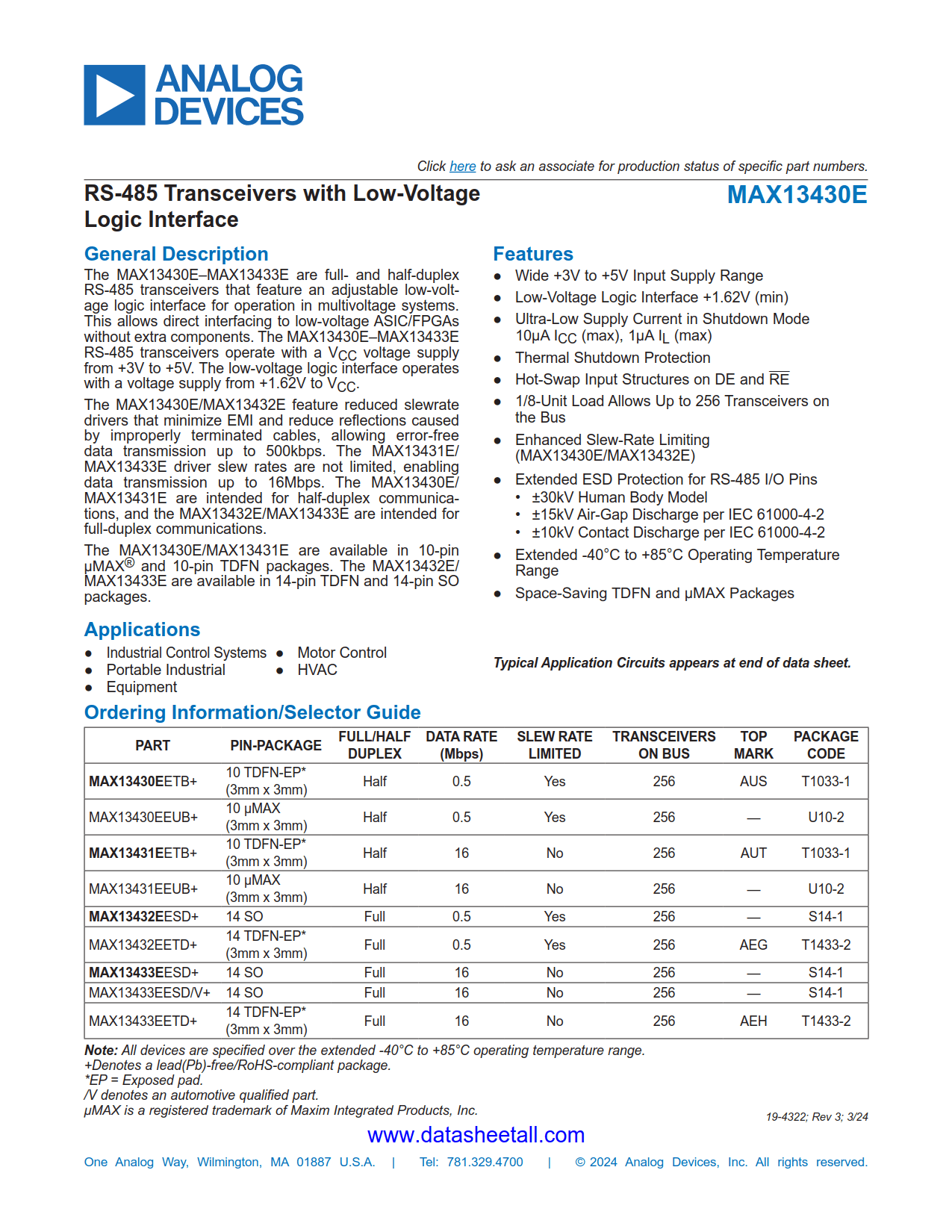

MAX13430E Datasheet

• Wide +3V to +5V Input Supply Range
• Low-Voltage Logic Interface +1.62V (min)
• Ultra-Low Supply Current in Shutdown Mode 10µA I_CC (max), 1µA I_L (max)
• Thermal Shutdown Protection
• Hot-Swap Input Structures on DE and RE
• 1/8-Unit Load Allows Up to 256 Transceivers on the Bus
• Enhanced Slew-Rate Limiting (MAX13430E)
• Extended ESD Protection for RS-485 I/O Pins
  • ±30kV Human Body Model
  • ±15kV Air-Gap Discharge per IEC 61000-4-2
  • ±10kV Contact Discharge per IEC 61000-4-2
• Extended -40°C to +85°C Operating Temperature Range
• Space-Saving TDFN and µMAX Packages

• HVAC
• Industrial Control Systems
• Motor Control
• Portable Industrial Equipment

The MAX13430E are full- and half-duplex RS-485 transceivers that feature an adjustable low-voltage logic interface for operation in multivoltage systems. This allows direct interfacing to low-voltage ASIC/FPGAs without extra components. The MAX13430E RS-485 transceivers operate with a V_CC voltage supply from +3V to +5V. The low-voltage logic interface operates with a voltage supply from +1.62V to V_CC.

The MAX13430E feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps. The MAX13430E are intended for half-duplex communications.

The MAX13430E are available in 10-pin µMAX® and 10-pin TDFN packages.
