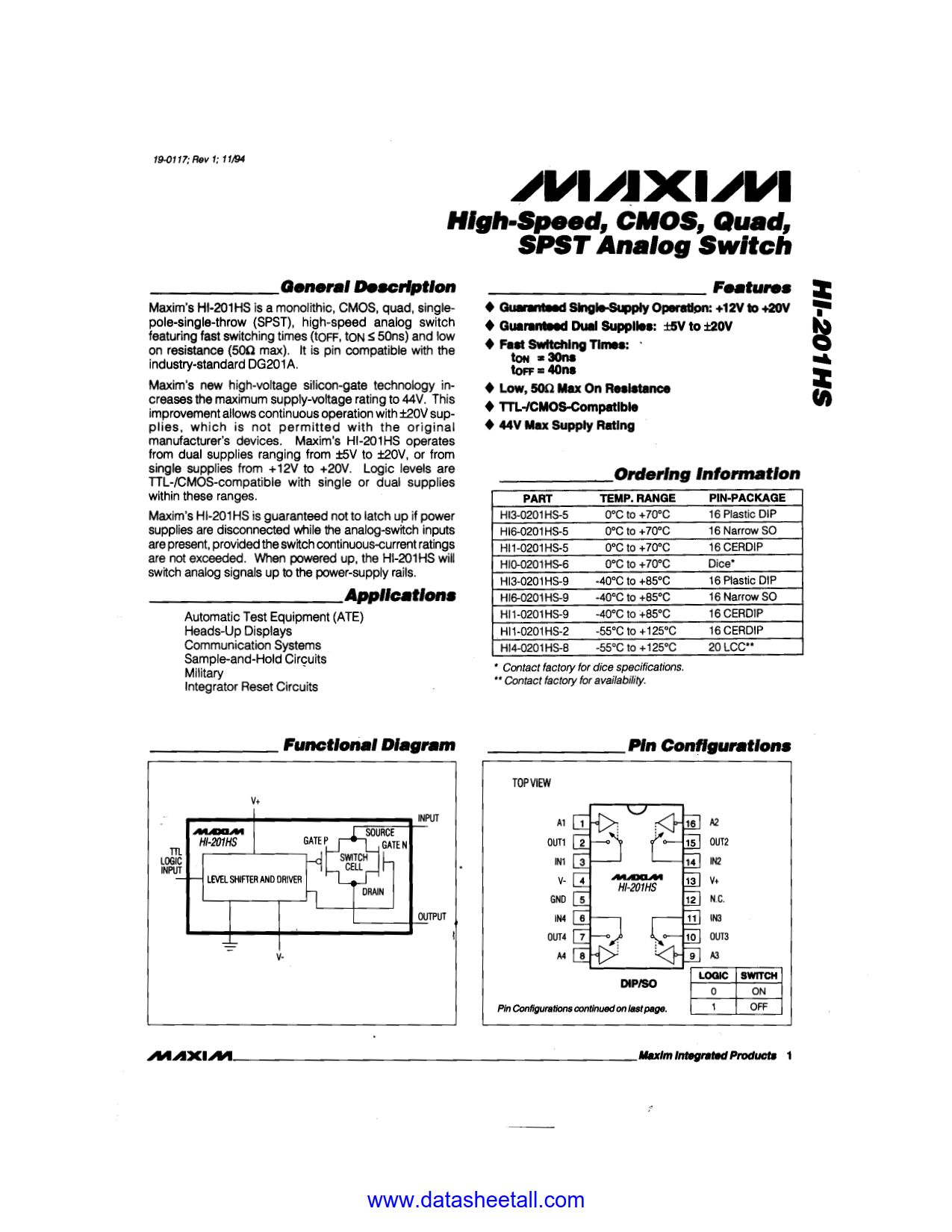

HI-201HS Datasheet

• Guaranteed Slngle-Supply Operation: +12V to +20V
• Guaranteed Dual Supplies: ±5V to ±20V
• Fast Switching Times:
  • t_ON = 30ns
  • l_OFF = 40ns
• Low, 50Ω Max On Resistance
• TTL-/CMOS-Compatible
• 44V Mex Supply Rating

• Automatic Test Equipment (ATE)
• Heads-Up Displays
• Communication Systems
• Sample-and-Hold Circuits
• Military
• Integrator Reset Circuits

Maxim's Hl-201HS is a monolithic, CMOS, quad, single-pole- single-throw (SPST), high-speed analog switch featuring fast switching times (t_OFF, t_ON ≤50ns) and low on resistance (50Ω max). It is pin compatible with the industry-standardD G201A.

Maxim's new high-voltage silicon-gate technology increases the maximum supply-voltage rating to 44V. This improvement allows continuous operation with ±20V supplies, which is not permitted with the original manufacturer's devices. Maxim's Hl-201HS operates from dual supplies ranging from ±5V to ±20V, or from single supplies from +12V to +20V. Logic levels are TTL-/CMOS-compatible with single or dual supplies within these ranges.

Maxim's H l-201HS is guaranteed not to latch up if power supplies are disconnected while the analog-switch inputs are present provided the switch continuous-current ratings are not exceeded. When powered up, the Hl-201HS will switch analogs signals up to the power-supply rails.
