Accurate Temperature Monitoring Easily Added to Any System
±0.5°C Accuracy (-20°C to +100°C)
±0.75°C Accuracy Over Entire Temperature Range of -40°C to +125°C
6.45mV/°C Output Gain with 509mV Offset at 0°C
Requires No External Components
User-Programmable Thermostat Function
Used In a Wide Variety of Applications
Power Supply Range (2.7V to 5.5V)
Reacts Quickly to Temperature Shifts
Exposed Pad 8-Pin µSOP Package for Quick Thermal Response
Shutdown Function Puts Device into a Low-Power Standby Mode
DS600 Applications
Cold-Junction Thermocouple Compensation
Portable Medical Equipment
Thermally Sensitive Systems that Require a High-Accuracy Analog-Output Temperature Sensor

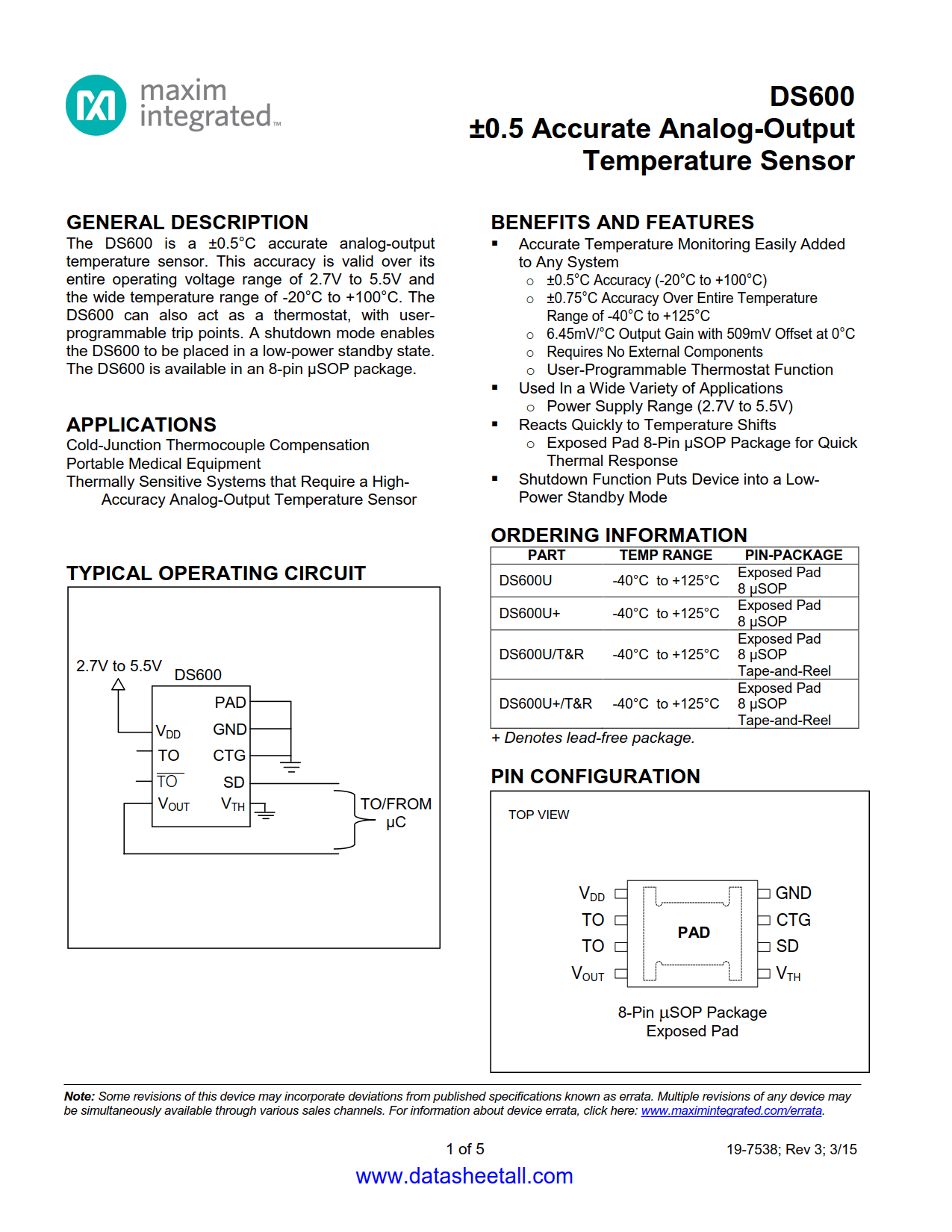

DS600 Description
The DS600 is a ±0.5°C accurate analog-output temperature sensor. This accuracy is valid over its entire operating voltage range of 2.7V to 5.5V and the wide temperature range of -20°C to +100°C. The DS600 can also act as a thermostat, with user-programmable trip points. A shutdown mode enables the DS600 to be placed in a low-power standby state. The DS600 is available in an 8-pin µSOP package.
