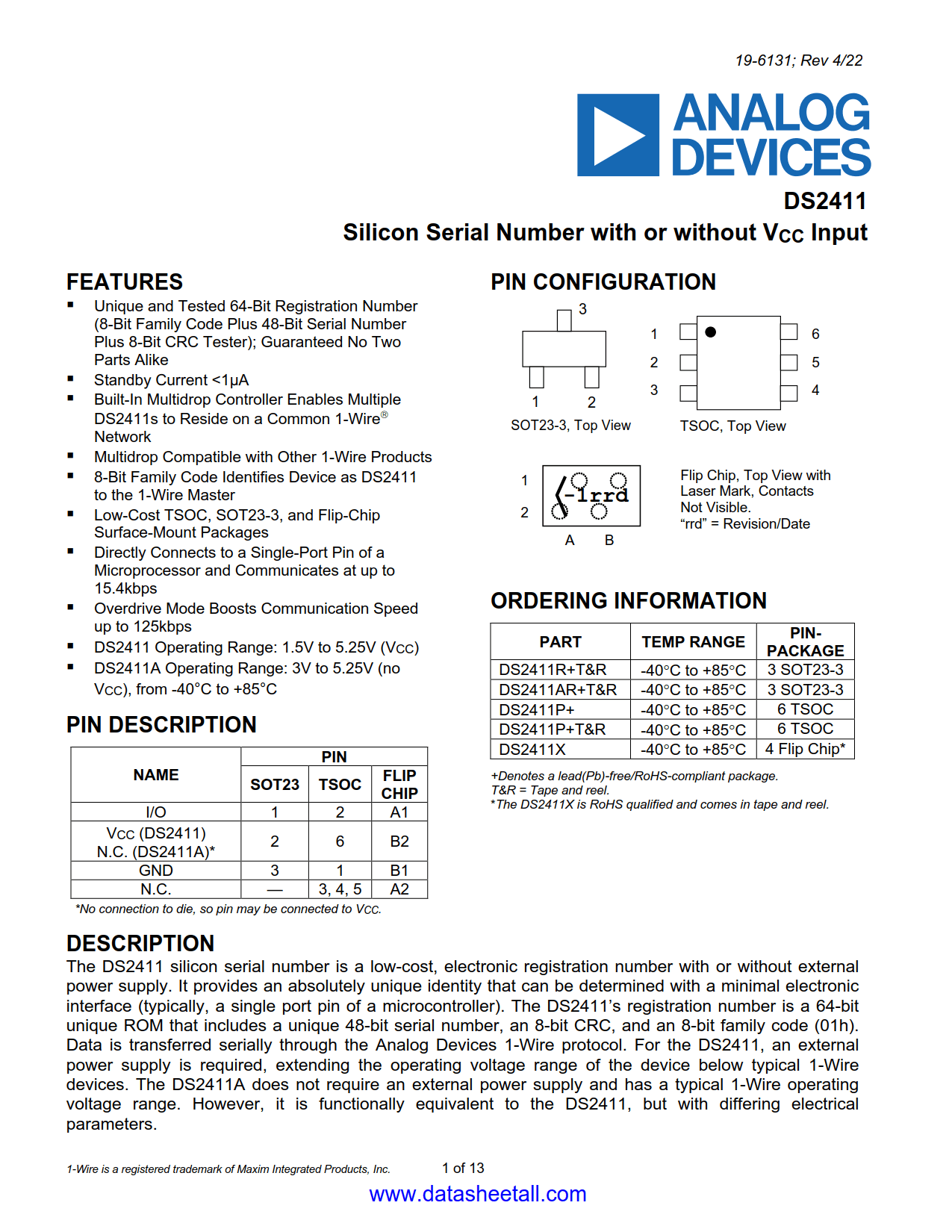

Unique, Factory-Lasered and Tested 64-Bit Registration Number (8-Bit Family Code Plus 48-Bit Serial Number Plus 8-Bit CRC Tester); Guaranteed No Two Parts Alike
Standby Current <1µA
Built-In Multidrop Controller Enables Multiple DS2411s to Reside on a Common 1-Wire Network
Multidrop Compatible with Other 1-Wire Products
8-Bit Family Code Identifies Device as DS2411 to the 1-Wire Master
Low-Cost TSOC, SOT23-3, and Flip-Chip Surface-Mount Packages
Directly Connects to a Single-Port Pin of a Microprocessor and Communicates at up to 15.4kbps
Overdrive Mode Boosts Communication Speed to 125kbps
DS2411 Operating Range: 1.5V to 5.25V (VCC)
DS2411A Operating Range: 3V to 5.25V (noVCC), from -40°C to +85°C
DS2411 Applications
Accessory/Peripheral Identification
Equipment Registration
Module Identification
Network-Node Identification
PCB Identification
Reference Design License Management
DS2411 Description
The DS2411 silicon serial number is a low-cost, electronic registration number with external power supply. It provides an absolutely unique identity that can be determined with a minimal electronic interface (typically, a single port pin of a microcontroller). The DS2411's registration number is a 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit family code (01h). Data is transferred serially through the Analog Devices 1-Wire protocol. For the DS2411, an external power supply is required, extending the operating voltage range of the device below typical 1-Wire devices. The DS2411A does not require an external power supply and has a typical 1-Wire operating voltage range. However, it is functionally equivalent to the DS2411, but with differing electrical parameters.
