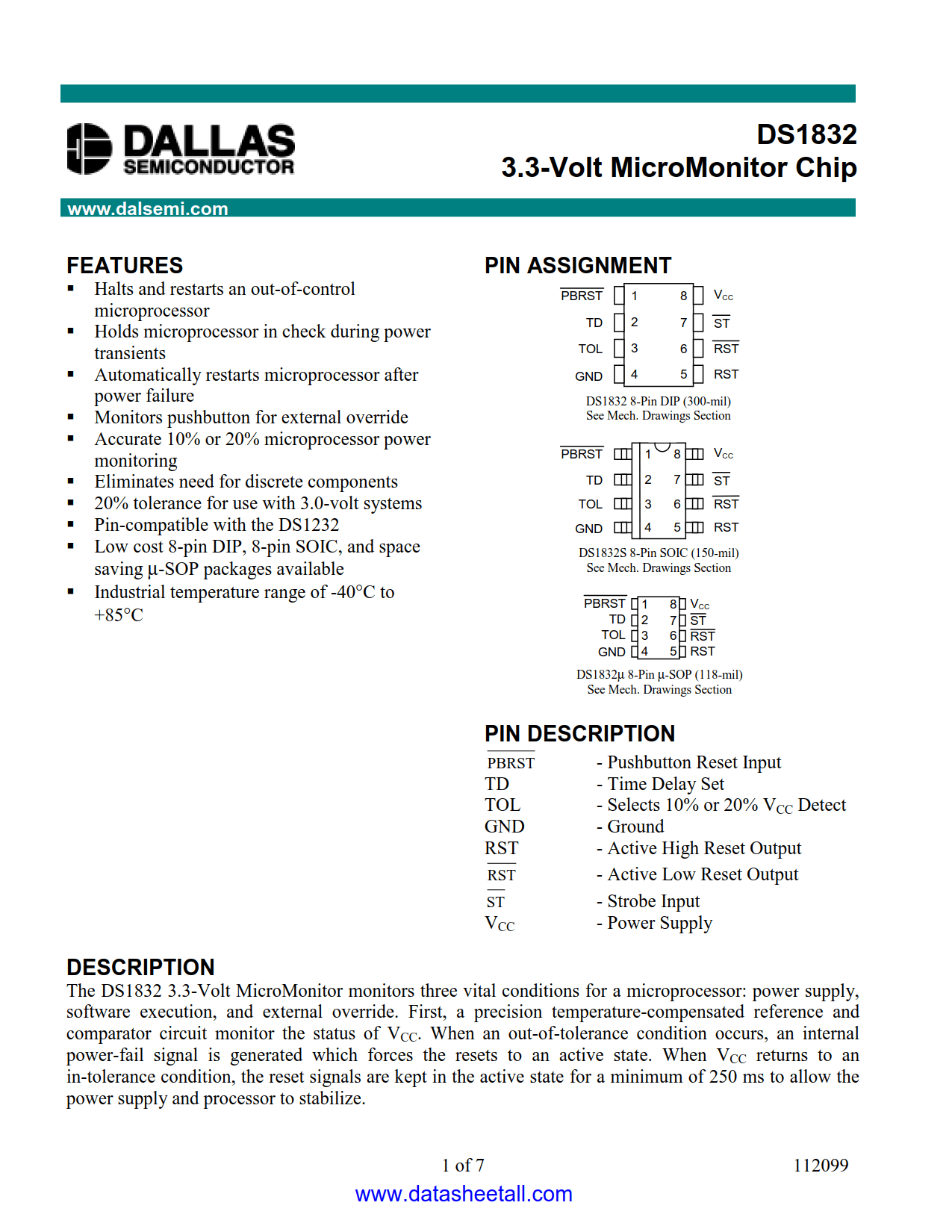

DS1832 Datasheet

• Power-fail detection
• Pushbutton reset
• Watchdog timer
• Active high and low resets
• Quiescent current less than 35µA
• Operating ranges:
  • -40°C to +85°C
  • 3.0V with 20% tolerance or
  • 3.3V with 10% or 20% tolerance

The DS1832 3.3-volt MicroMonitor Chip is pin-compatible with the industry-standard DS1232 and operates in both 3.0- and 3.3-volt environments. Like the DS1232, the DS1832 monitors power supply, software execution, and an external pushbutton override. It is designed with CMOS outputs and is capable of maintaining a valid output on the active low reset to 0 volts with a 100kΩ pull-down resistor. On power-up, the DS1832 holds reset for 250ms to allow the system to stabilize.

Moving a design from 5 volts to 3.3 volts can be as simple as substituting the DS1832 for the DS1232 and removing the pull-up resistor on the active low reset. This makes it a versatile, space- and cost-saving monitor for any processor-driven system requiring reliable operation.
