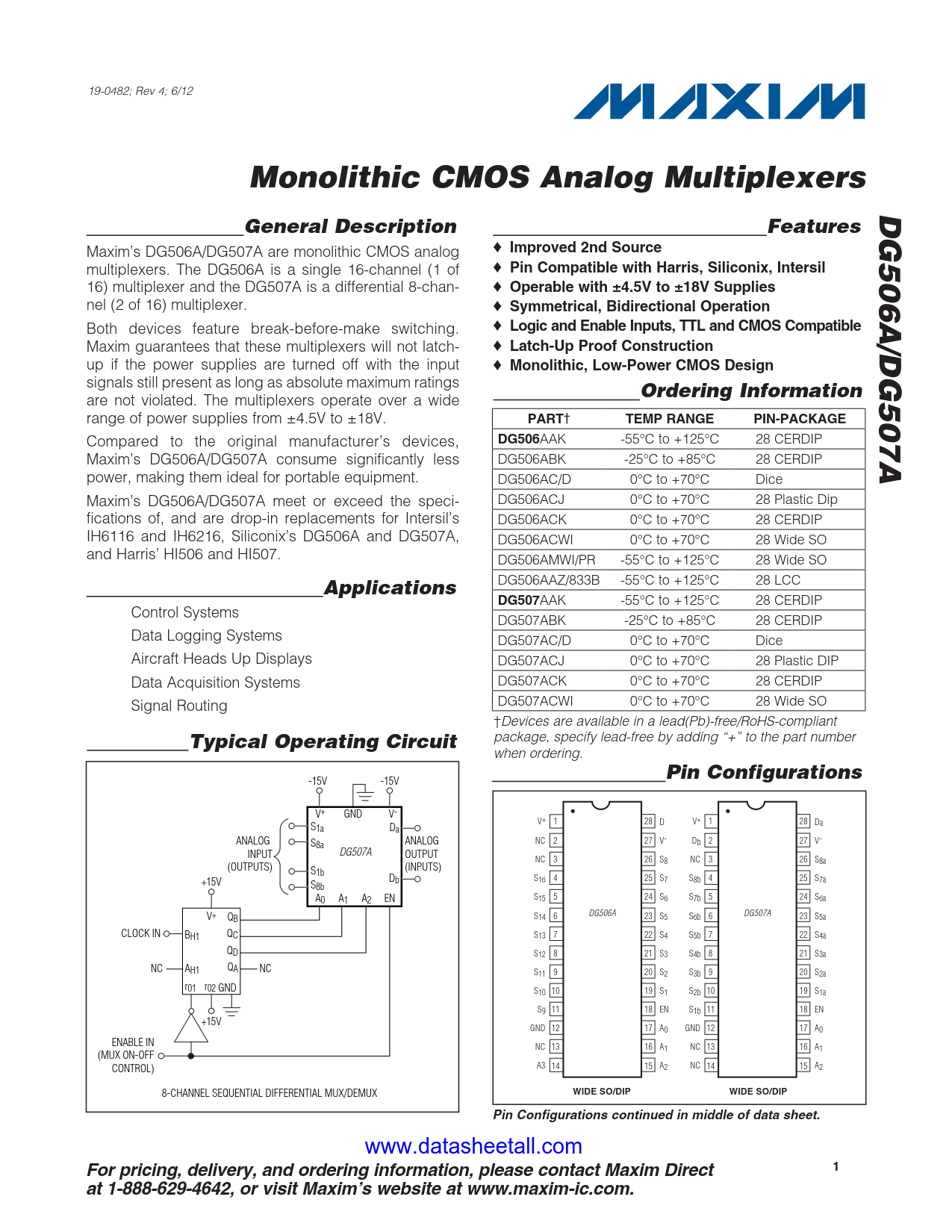

DG506A Datasheet

• Improved 2nd Source
• Pin Compatible with Harris, Siliconix, Intersil
• Operable with ±4.5V to ±18V Supplies
• Symmetrical, Bidirectional Operation
• Logic and Enable Inputs, TTL and CMOS Compatible
• Latch-Up Proof Construction
• Monolithic, Low-Power CMOS Design

Maxim's DG506A are monolithic CMOS analog multiplexers. The DG506A is a single 16-channel (1 of 16) multiplexer.

Both devices feature break-before-make switching. Maxim guarantees that these multiplexers will not latch-up if the power supplies are turned off with the input signals still present as long as absolute maximum ratings are not violated. The multiplexers operate over a wide range of power supplies from ±4.5V to ±18V.

Compared to the original manufacturer's devices, Maxim's DG506A consume significantly less power, making them ideal for portable equipment.

Maxim's DG506A meet or exceed the specifications of, and are drop-in replacements for Intersil's IH6116 and IH6216, Siliconix's DG506A, and Harris' HI506.
