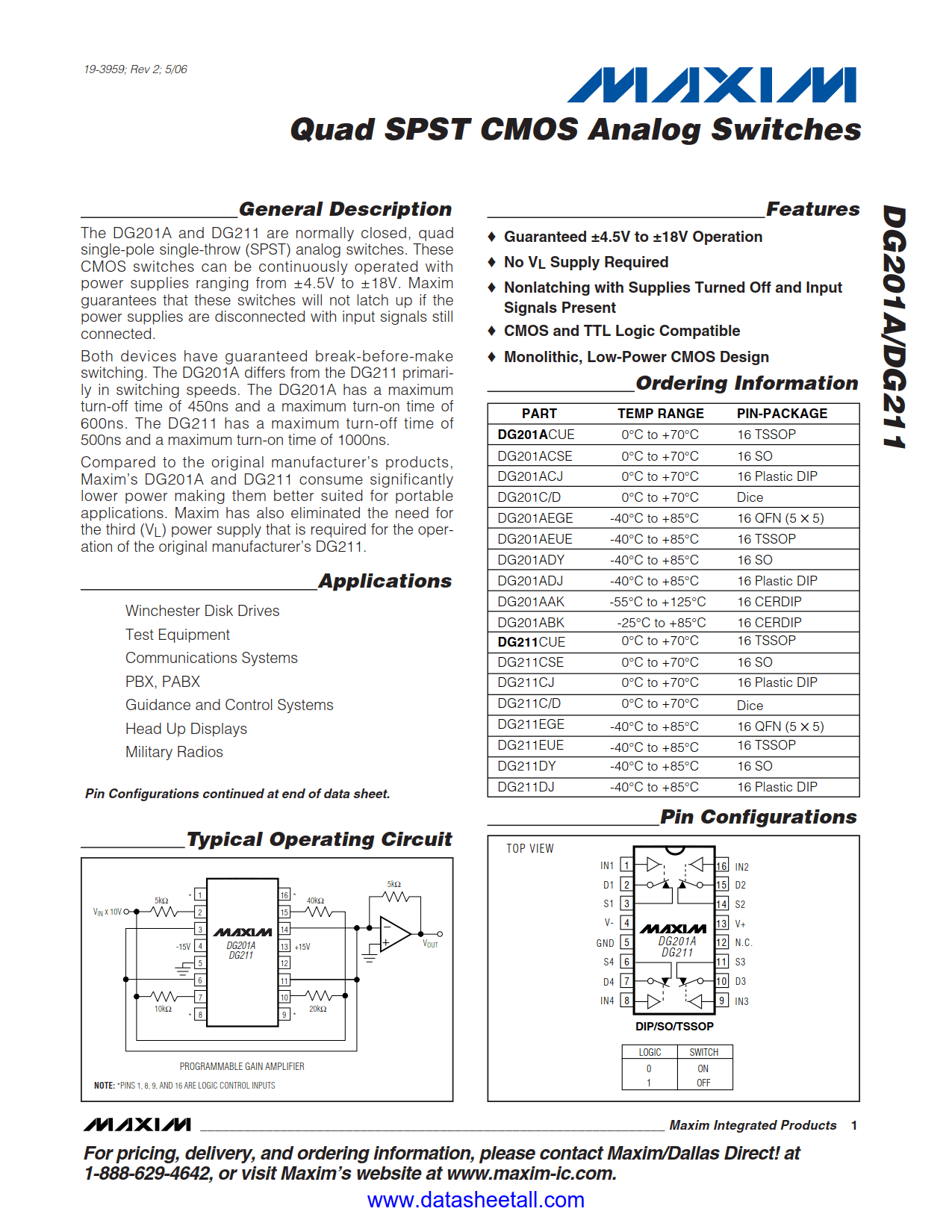

DG211 Datasheet

• Guaranteed ±4.5V to ±18V Operation
• No V_L Supply Required
• Nonlatching with Supplies Turned Off and Input Signals Present
• CMOS and TTL Logic Compatible
• Monolithic, Low-Power CMOS Design

• Communication Systems
• Guidance and Control Systems
• Heads-Up Displays
• Military Radios
• PBX, PABX
• Test Equipment
• Winchester Disk Drives

The DG211 are normally closed, quad single-pole single-throw (SPST) analog switches. These CMOS switches can be continuously operated with power supplies ranging from ±4.5V to ±18V. Maxim guarantees that these switches will not latch up if the power supplies are disconnected with input signals still connected.

Both devices have guaranteed break-before-make switching. The DG201A differs from the DG211 primarily in switching speeds. The DG211 has a maximum turn-off time of 500ns and a maximum turn-on time of 1000ns.

Compared to the original manufacturer's products, Maxim's DG211 consume significantly lower power making them better suited for portable applications. Maxim has also eliminated the need for the third (V_L) power supply that is required for the operation of the original manufacturer's DG211.
