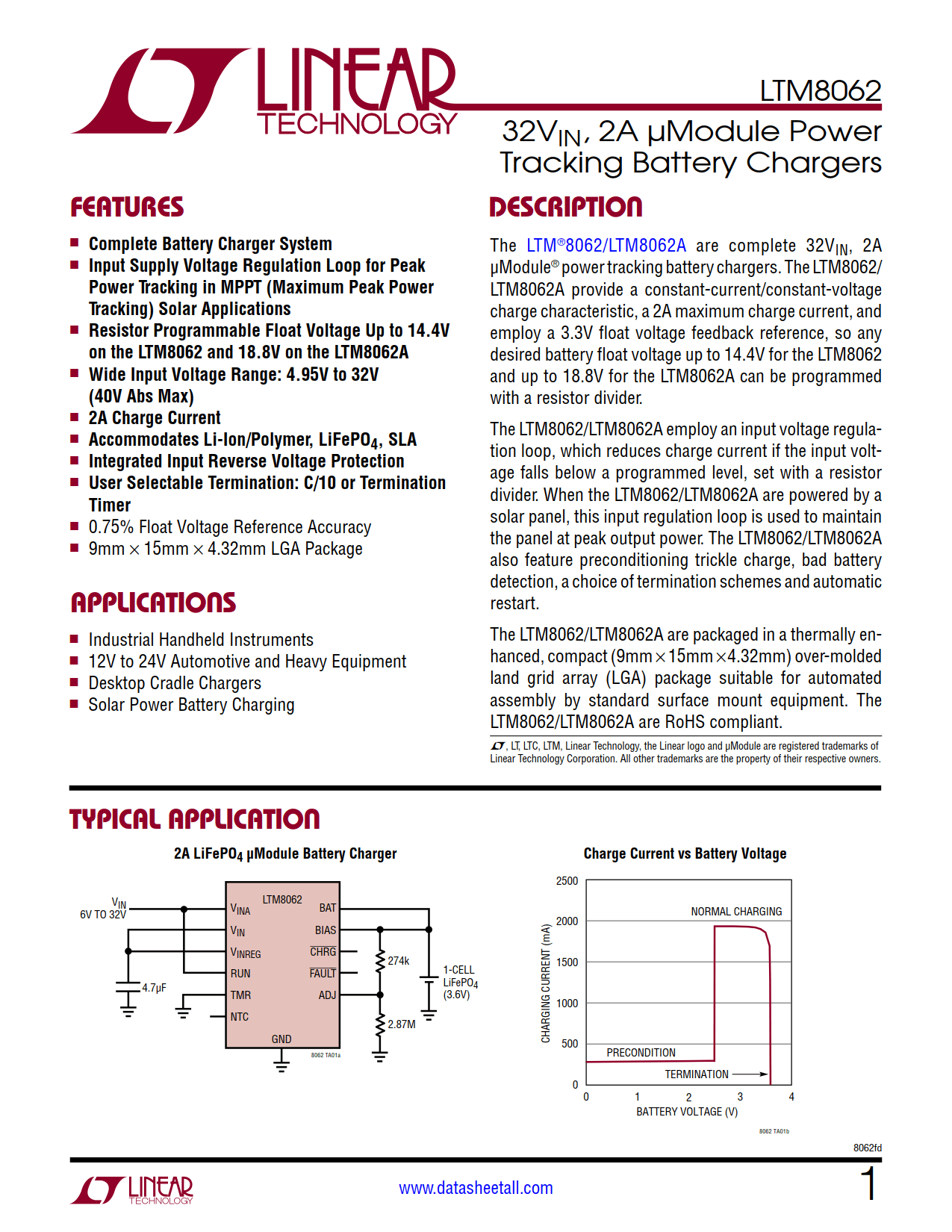

LTM8062 Datasheet

• Complete Battery Charger System
• Input Supply Voltage Regulation Loop for Peak Power Tracking in MPPT (Maximum Peak Power Tracking) Solar Applications
• Resistor Programmable Float Voltage Up to 14.4V on the LTM8062
• Wide Input Voltage Range: 4.95V to 32V (40V Abs Max)
• 2A Charge Current
• Accommodates Li-Ion/Polymer, LiFePO₄, SLA
• Integrated Input Reverse Voltage Protection
• User Selectable Termination: C/10 or Termination Timer
• 0.75% Float Voltage Reference Accuracy
• 9mm × 15mm × 4.32mm LGA Package

• Industrial Handheld Instruments
• 12V to 24V Automotive and Heavy Equipment
• Desktop Cradle Chargers
• Solar Power Battery Charging

The LTM8062 are complete 32V_IN, 2A μModule^® (power module) power tracking battery chargers. The LTM8062 provide a constant-current/constant-voltage charge characteristic, a 2A maximum charge current, and employ a 3.3V float voltage feedback reference, so any desired battery float voltage up to 14.4V for the LTM8062 can be programmed with a resistor divider.

The LTM8062 employ an input voltage regulation loop, which reduces charge current if the input voltage falls below a programmed level, set with a resistor divider. When the LTM8062 are powered by a solar panel, this input regulation loop is used to maintain the panel at peak output power. The LTM8062 also feature preconditioning trickle charge, bad battery detection, a choice of termination schemes and automatic restart.

The LTM8062 are packaged in a thermally enhanced, compact (9mm × 15mm × 4.32mm) over-molded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8062 are RoHS compliant.
