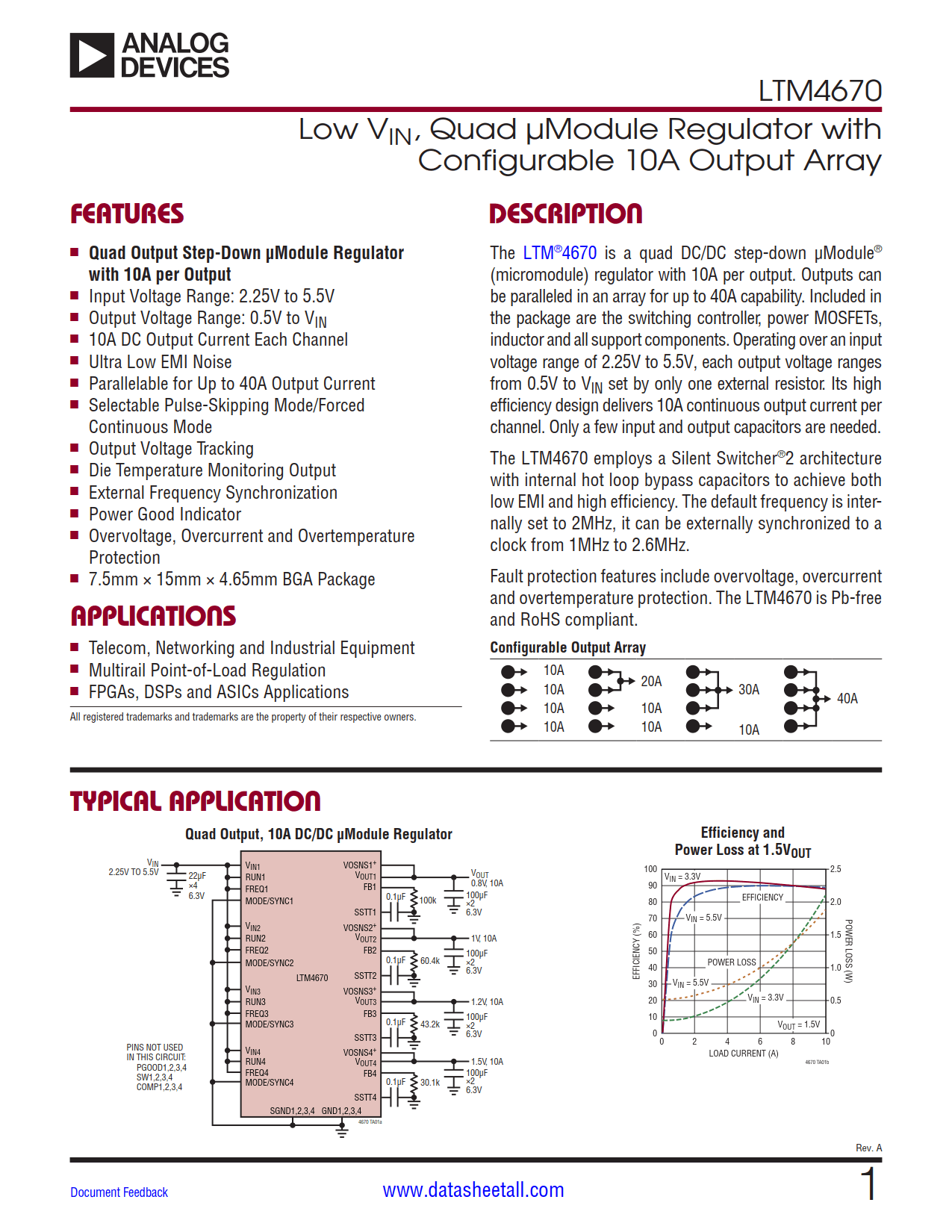

LTM4670 Datasheet

• Quad Output Step-Down μModule Regulator with 10A per Output
• Input Voltage Range: 2.25V to 5.5V
• Output Voltage Range: 0.5V to V_IN
• 10A DC Output Current Each Channel
• Ultra Low EMI Noise
• Parallelable for Up to 40A Output Current
• Selectable Pulse-Skipping Mode/Forced Continuous Mode
• Output Voltage Tracking
• Die Temperature Monitoring Output
• External Frequency Synchronization
• Power Good Indicator
• Overvoltage, Overcurrent and Overtemperature Protection

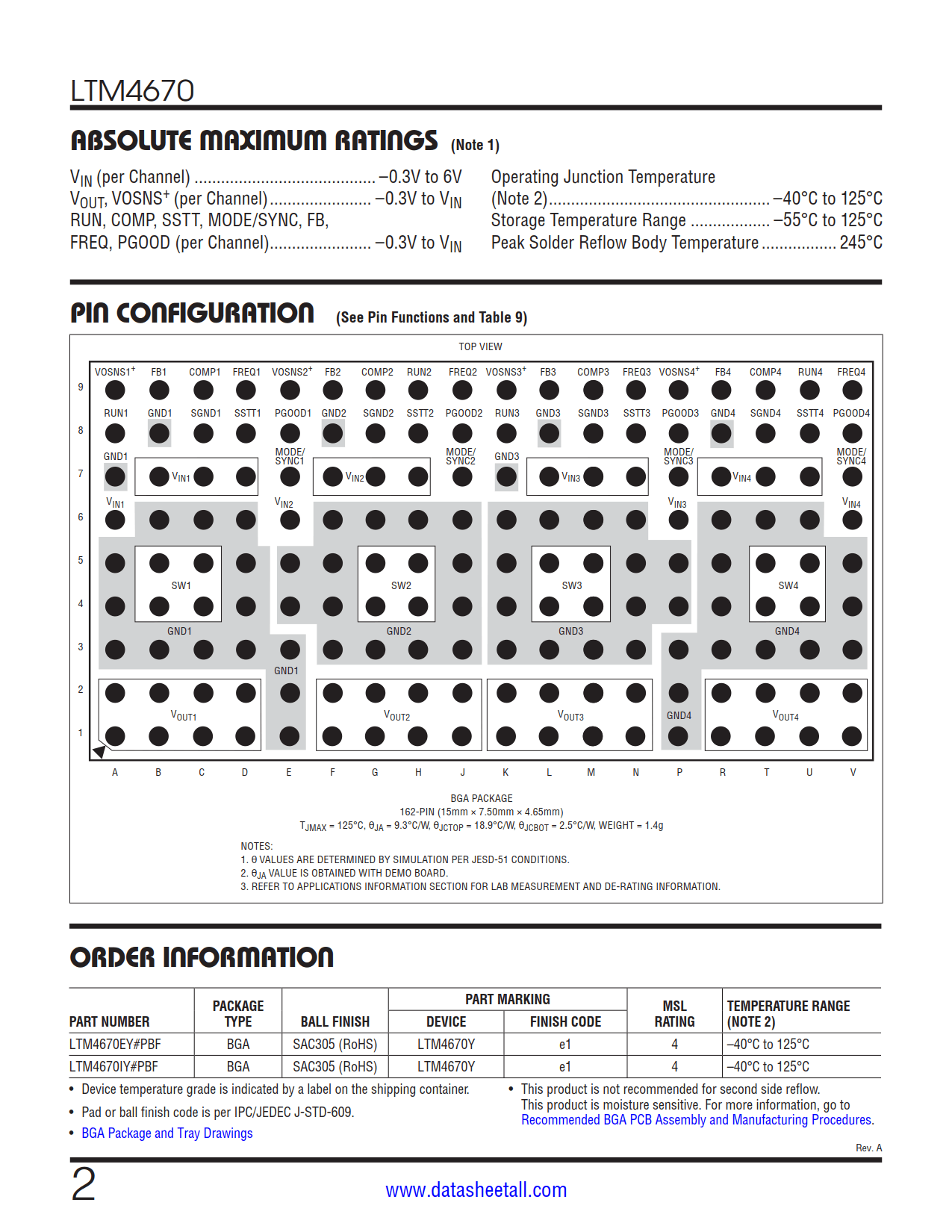

• 7.5mm × 15mm × 4.65mm BGA Package

• Telecom, Networking and Industrial Equipment
• Multirail Point-of-Load Regulation
• FPGAs, DSPs and ASICs Applications

The LTM4670 is a quad DC/DC step-down μModule^® (micromodule) regulator with 10A per output. Outputs can be paralleled in an array for up to 40A capability. Included in the package are the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, each output voltage ranges from 0.5V to V_IN set by only one external resistor. Its high efficiency design delivers 10A continuous output current per channel. Only a few input and output capacitors are needed.

The LTM4670 employs a Silent Switcher^®2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency. The default frequency is internally set to 2MHz, it can be externally synchronized to a clock from 1MHz to 2.6MHz.

Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4670 is Pb-free and RoHS compliant.
