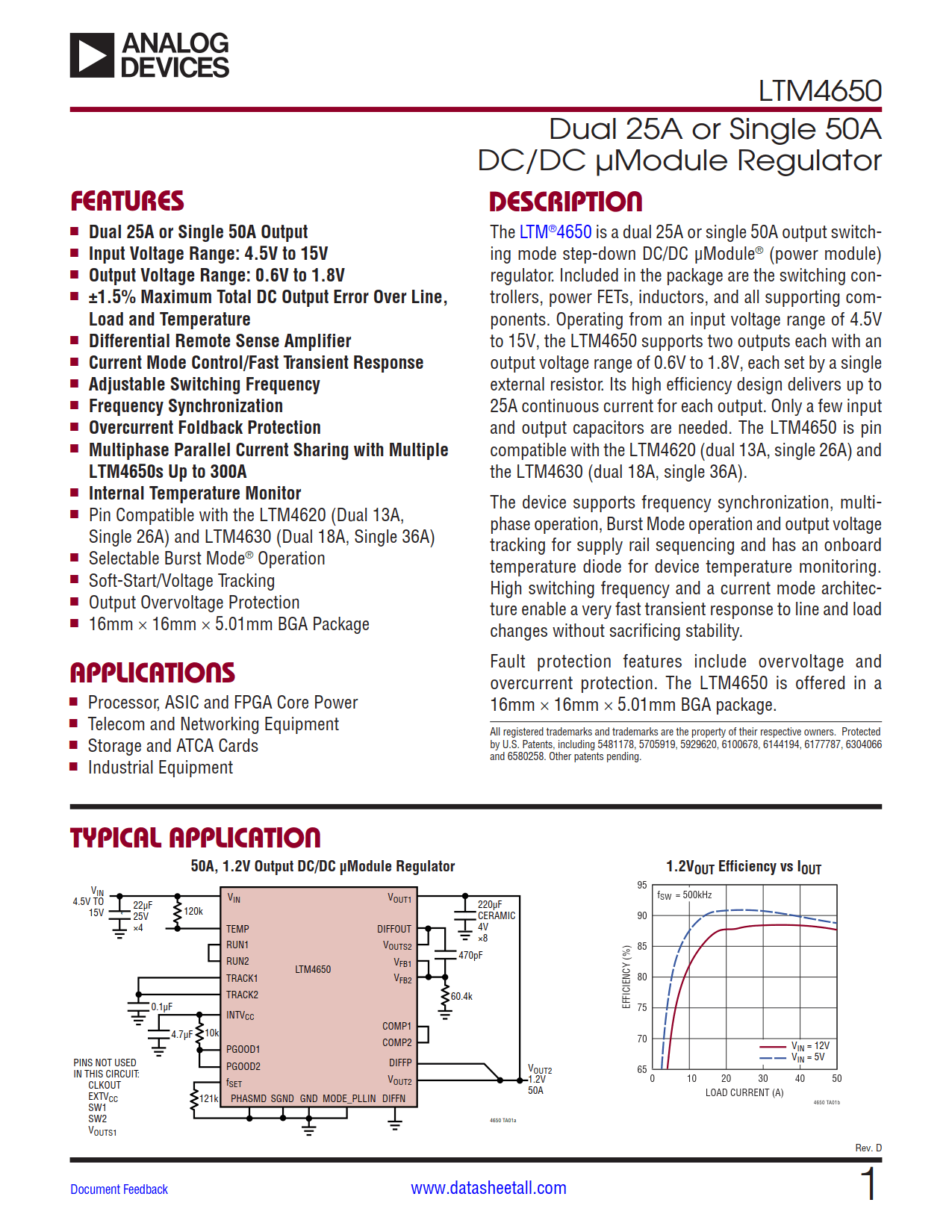

LTM4650 Datasheet

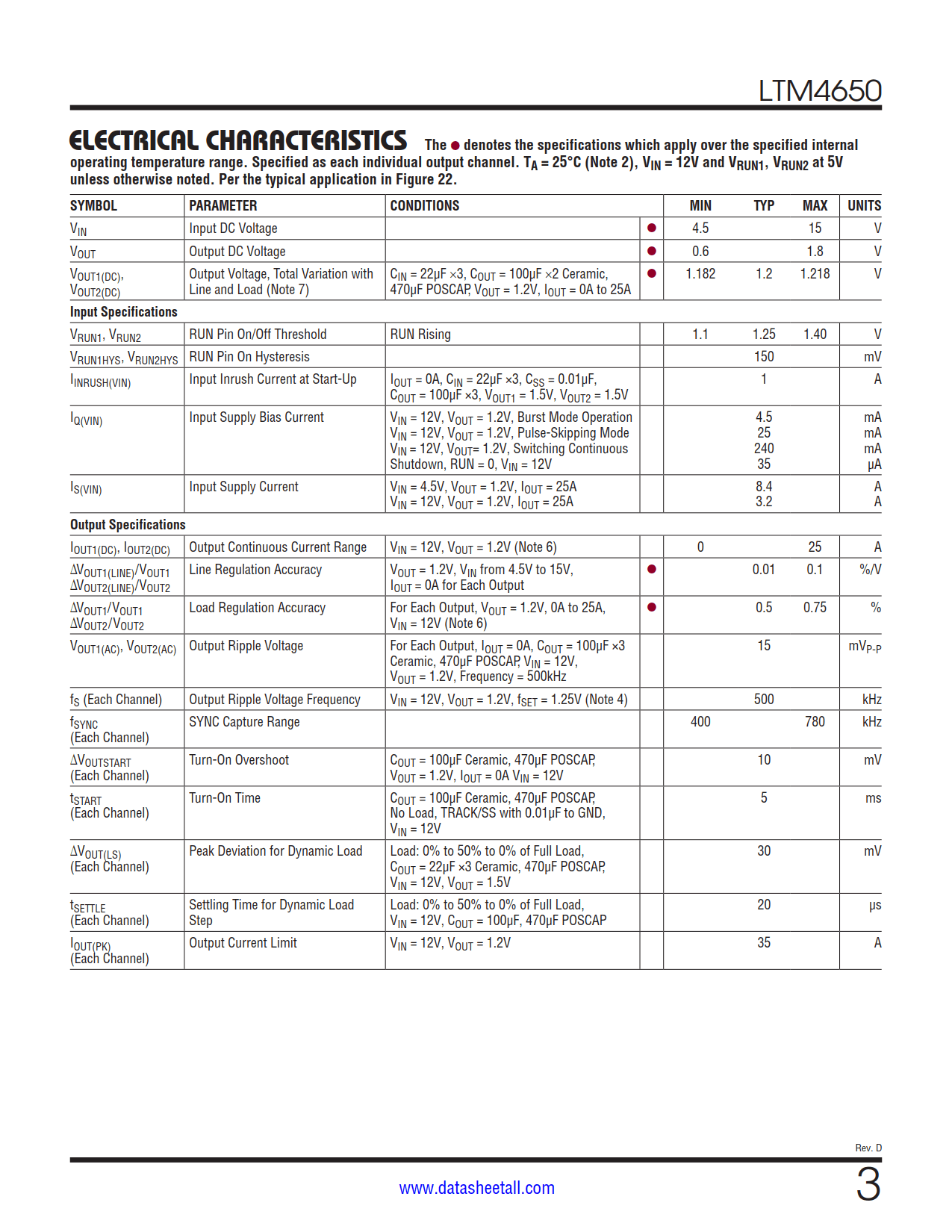

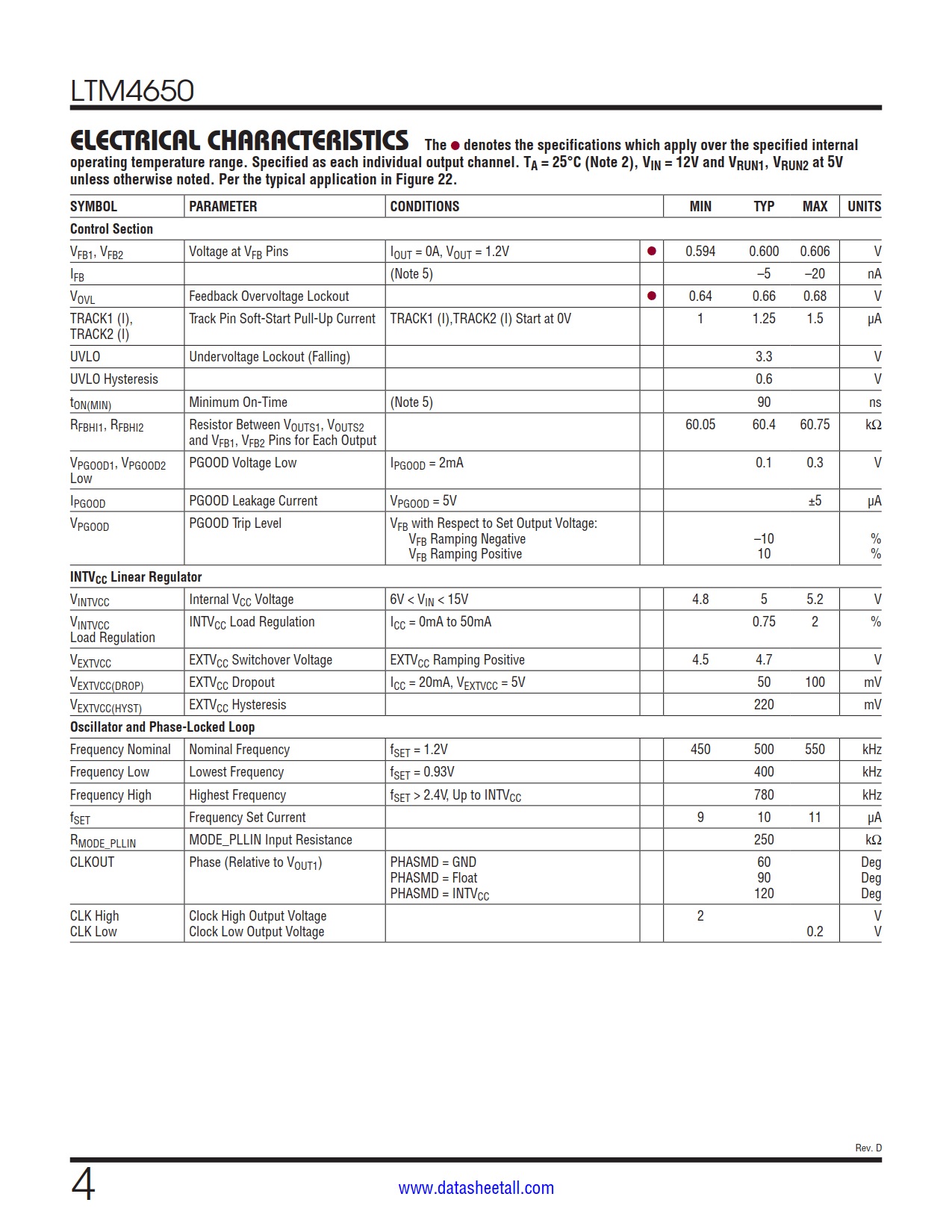

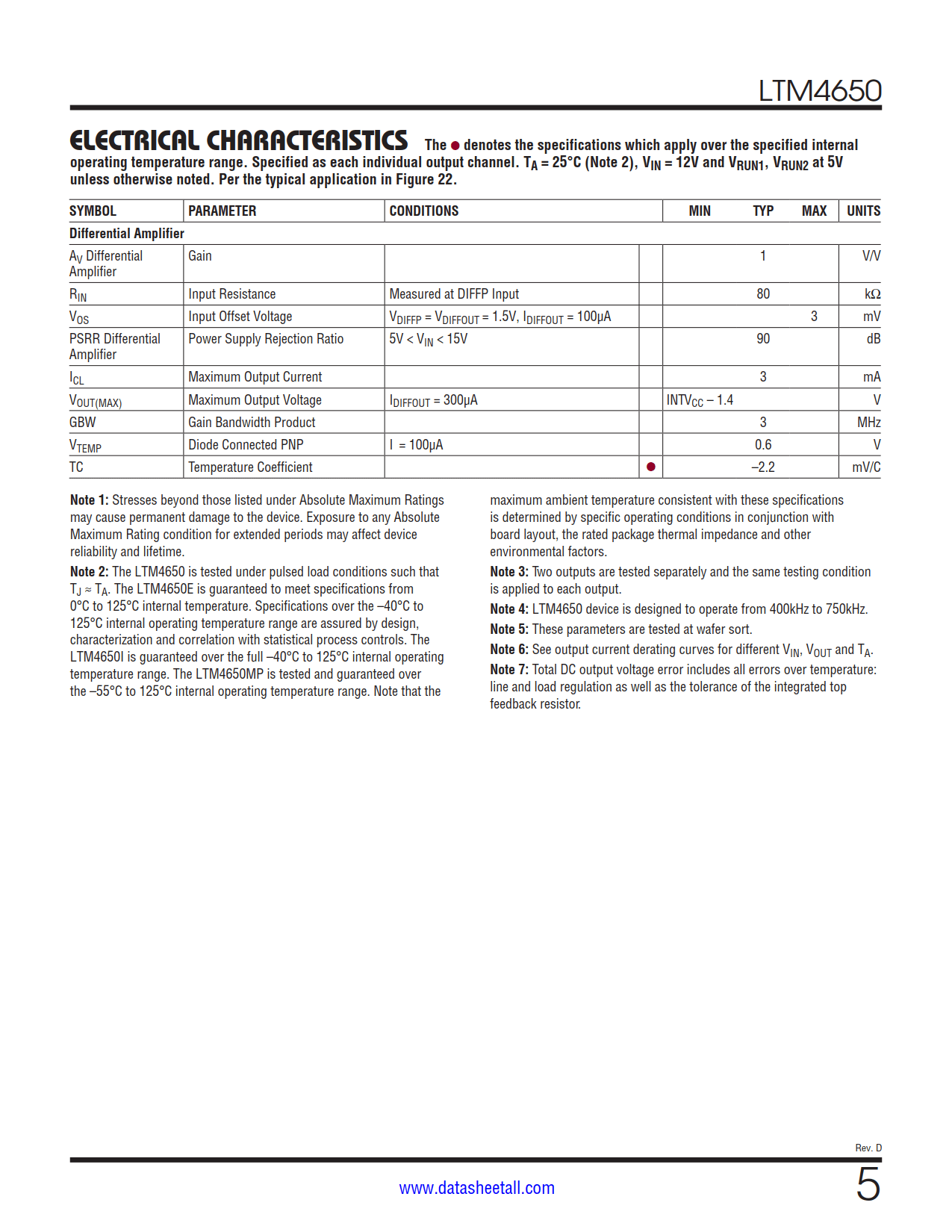

• Dual 25A or Single 50A Output
• Input Voltage Range: 4.5V to 15V
• Output Voltage Range: 0.6V to 1.8V
• ±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
• Differential Remote Sense Amplifier
• Current Mode Control/Fast Transient Response
• Adjustable Switching Frequency
• Frequency Synchronization
• Overcurrent Foldback Protection
• Multiphase Parallel Current Sharing with Multiple LTM4650s Up to 300A
• Internal Temperature Monitor
• Pin Compatible with the LTM4620 (Dual 13A, Single 26A) and LTM4630 (Dual 18A, Single 36A)
• Selectable Burst Mode^® Operation
• Soft-Start/Voltage Tracking
• Output Overvoltage Protection

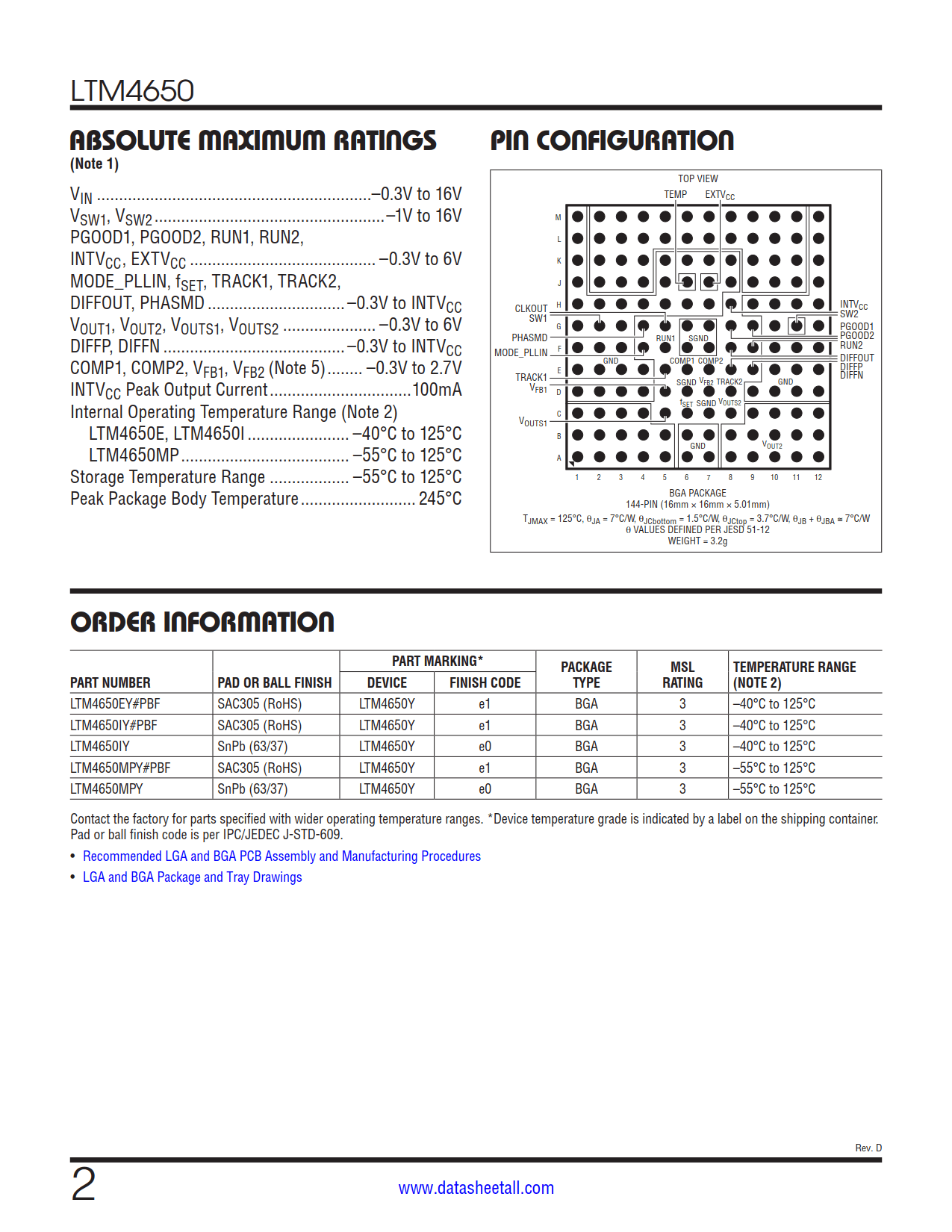

• 16mm × 16mm × 5.01mm BGA Package

• Processor, ASIC and FPGA Core Power
• Telecom and Networking Equipment
• Storage and ATCA Cards
• Industrial Equipment

The LTM4650 is a dual 25A or single 50A output switching mode step-down DC/DC μModule^® (power module) regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4650 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 25A continuous current for each output. Only a few input and output capacitors are needed. The LTM4650 is pin compatible with the LTM4620 (dual 13A, single 26A) and the LTM4630 (dual 18A, single 36A).

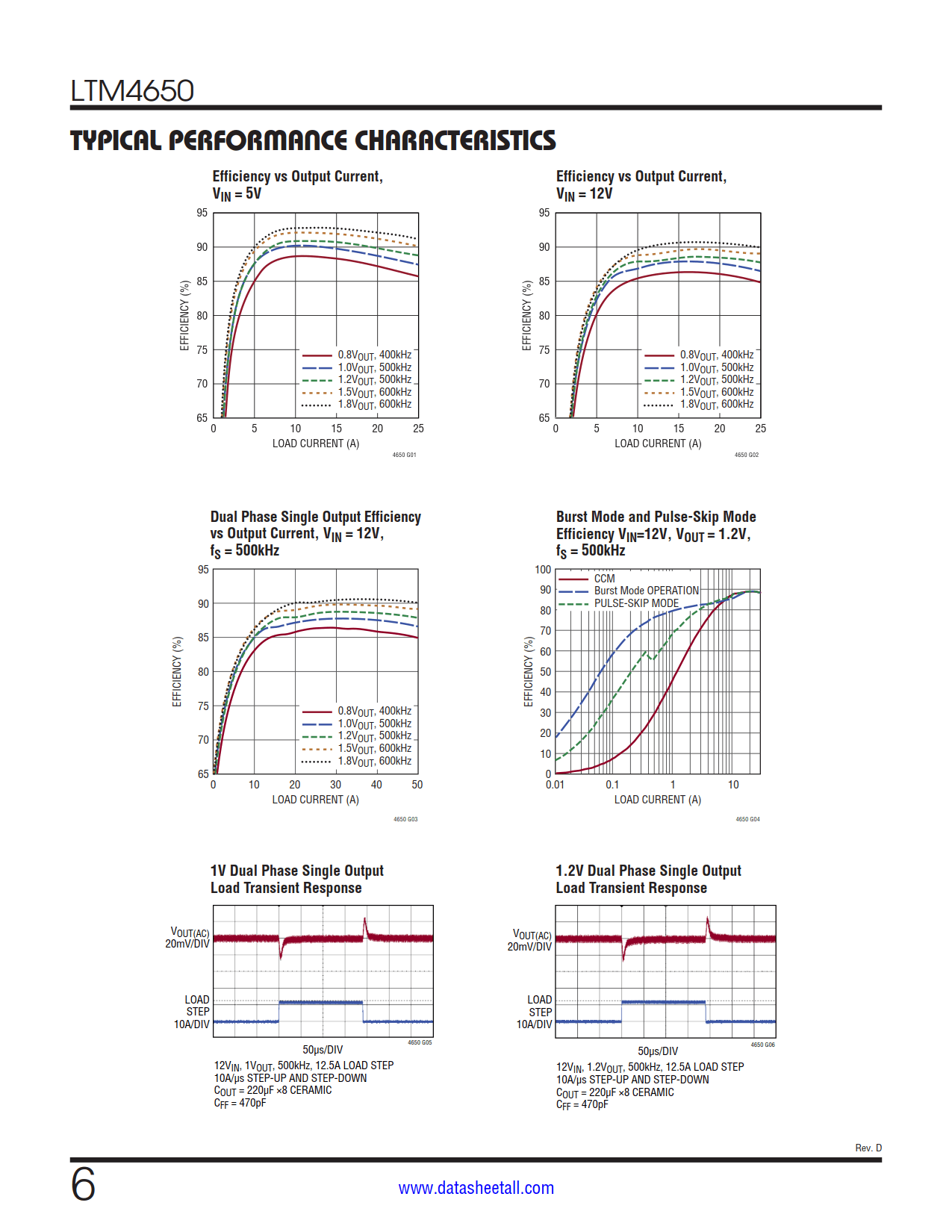

The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The LTM4650 is offered in a 16mm × 16mm × 5.01mm BGA package.
