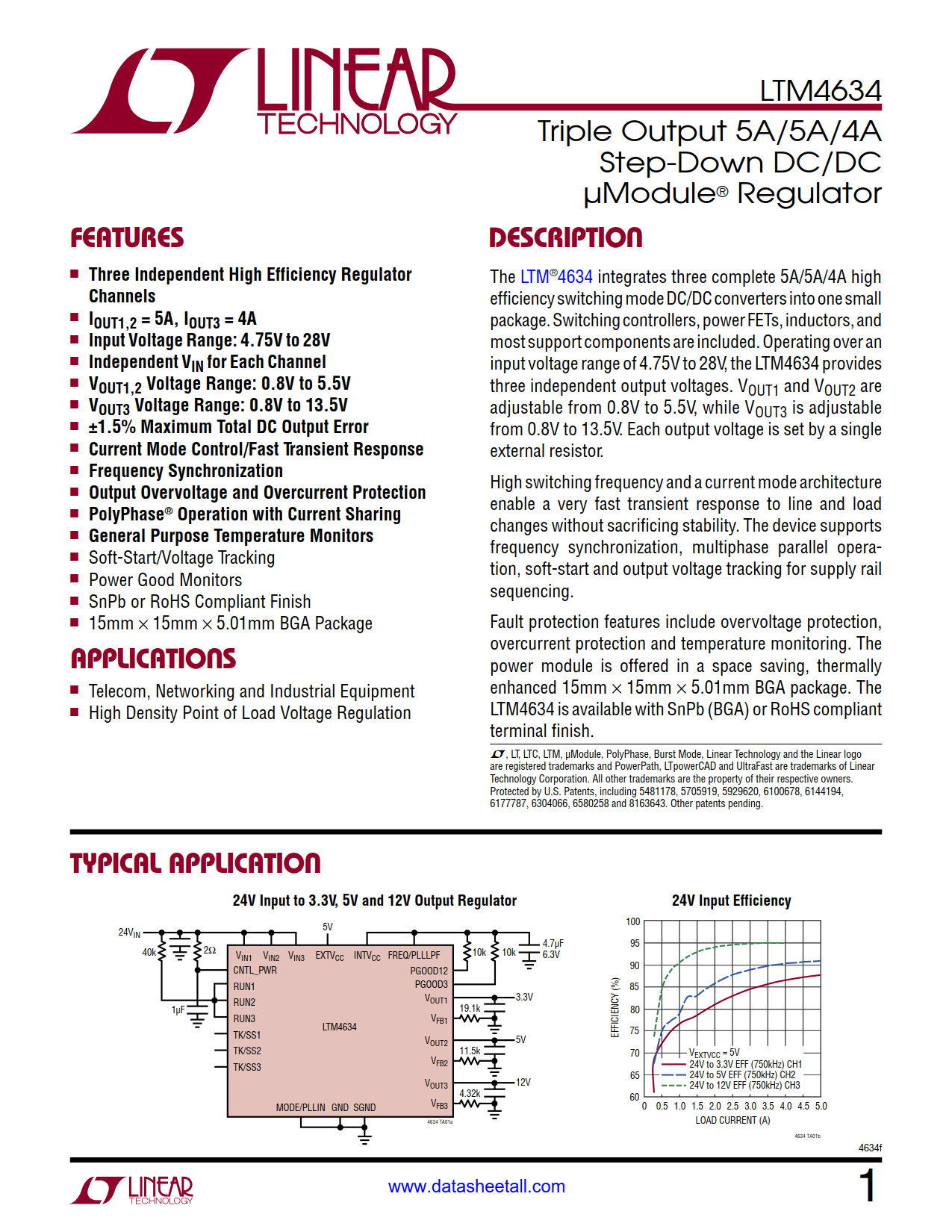

LTM4634 Datasheet

• Three Independent High Efficiency Regulator Channels
• I_OUT1,2 = 5A, I_OUT3 = 4A

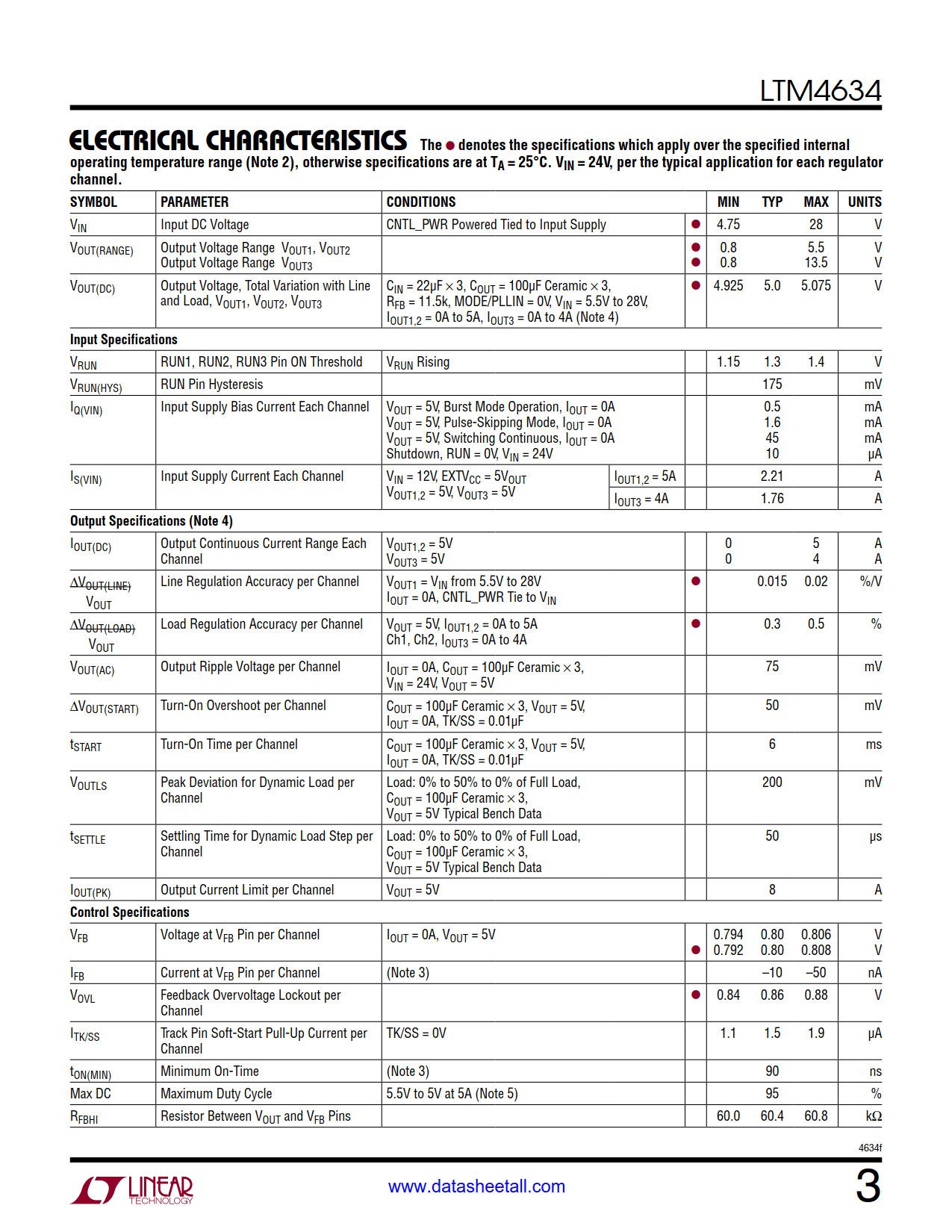

• Input Voltage Range: 4.75V to 28V
• Independent V_IN for Each Channel
• V_OUT1,2 Voltage Range: 0.8V to 5.5V
• V_OUT3 Voltage Range: 0.8V to 13.5V
• ±1.5% Maximum Total DC Output Error
• Current Mode Control/Fast Transient Response

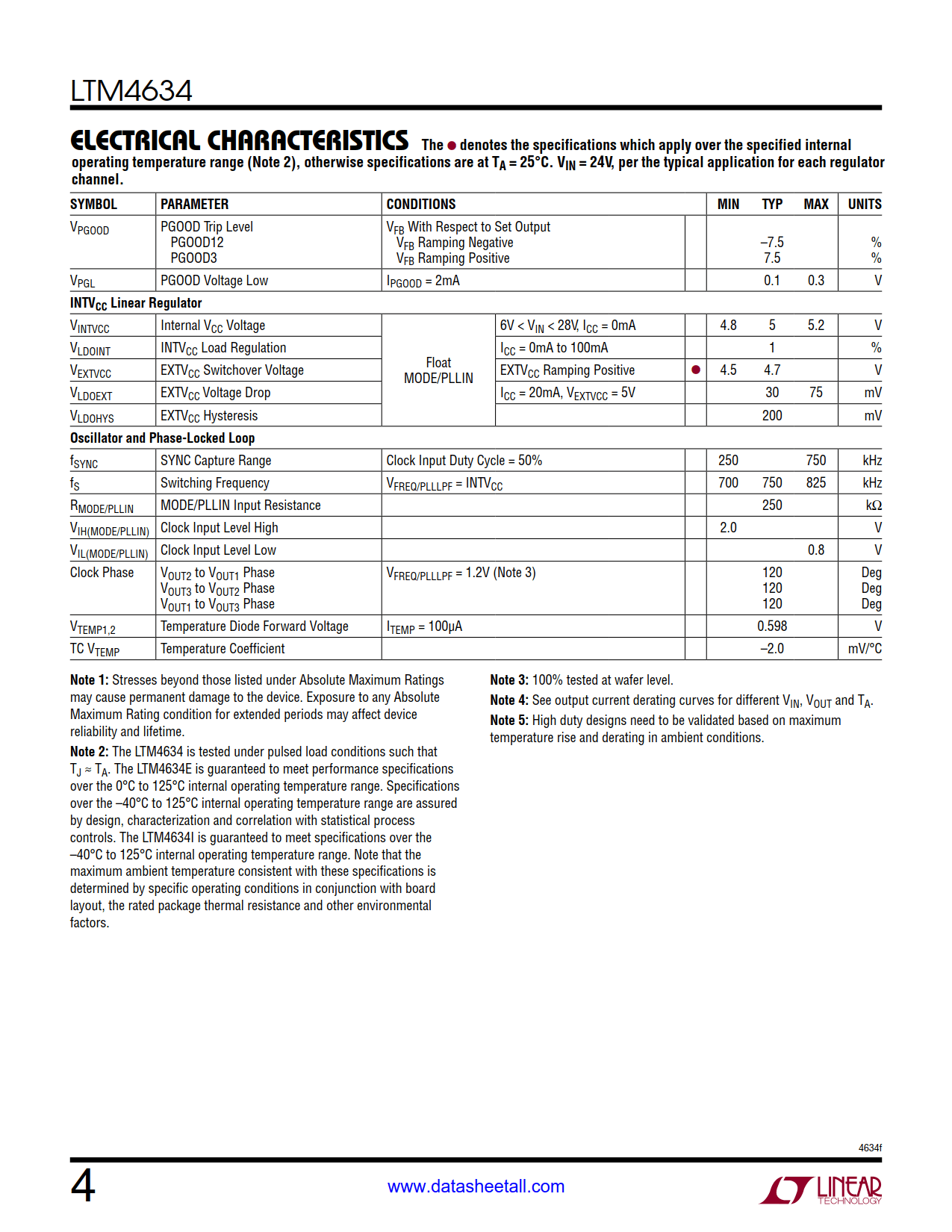

• Frequency Synchronization
• Output Overvoltage and Overcurrent Protection
• PolyPhase^® Operation with Current Sharing
• General Purpose Temperature Monitors
• Soft-Start/Voltage Tracking
• Power Good Monitors
• SnPb or RoHS Compliant Finish

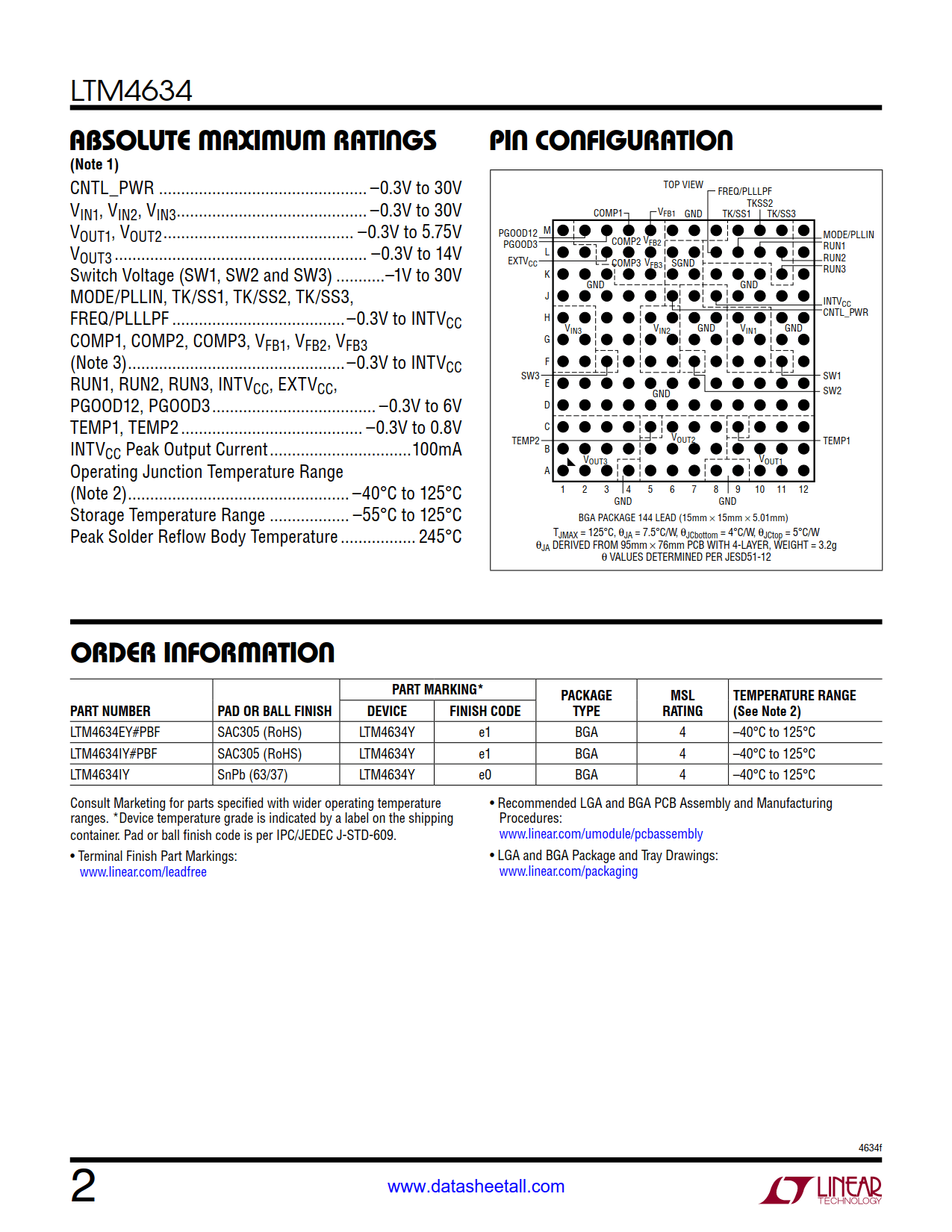

• 15mm × 15mm × 5.01mm BGA Package

• Telecom, Networking and Industrial Equipment
• High Density Point of Load Voltage Regulation

The LTM4634 integrates three complete 5A/5A/4A high efficiency switching mode DC/DC converters into one small package. Switching controllers, power FETs, inductors, and most support components are included. Operating over an input voltage range of 4.75V to 28V, the LTM4634 provides three independent output voltages. V_OUT1 and V_OUT2 are adjustable from 0.8V to 5.5V, while V_OUT3 is adjustable from 0.8V to 13.5V. Each output voltage is set by a single external resistor.

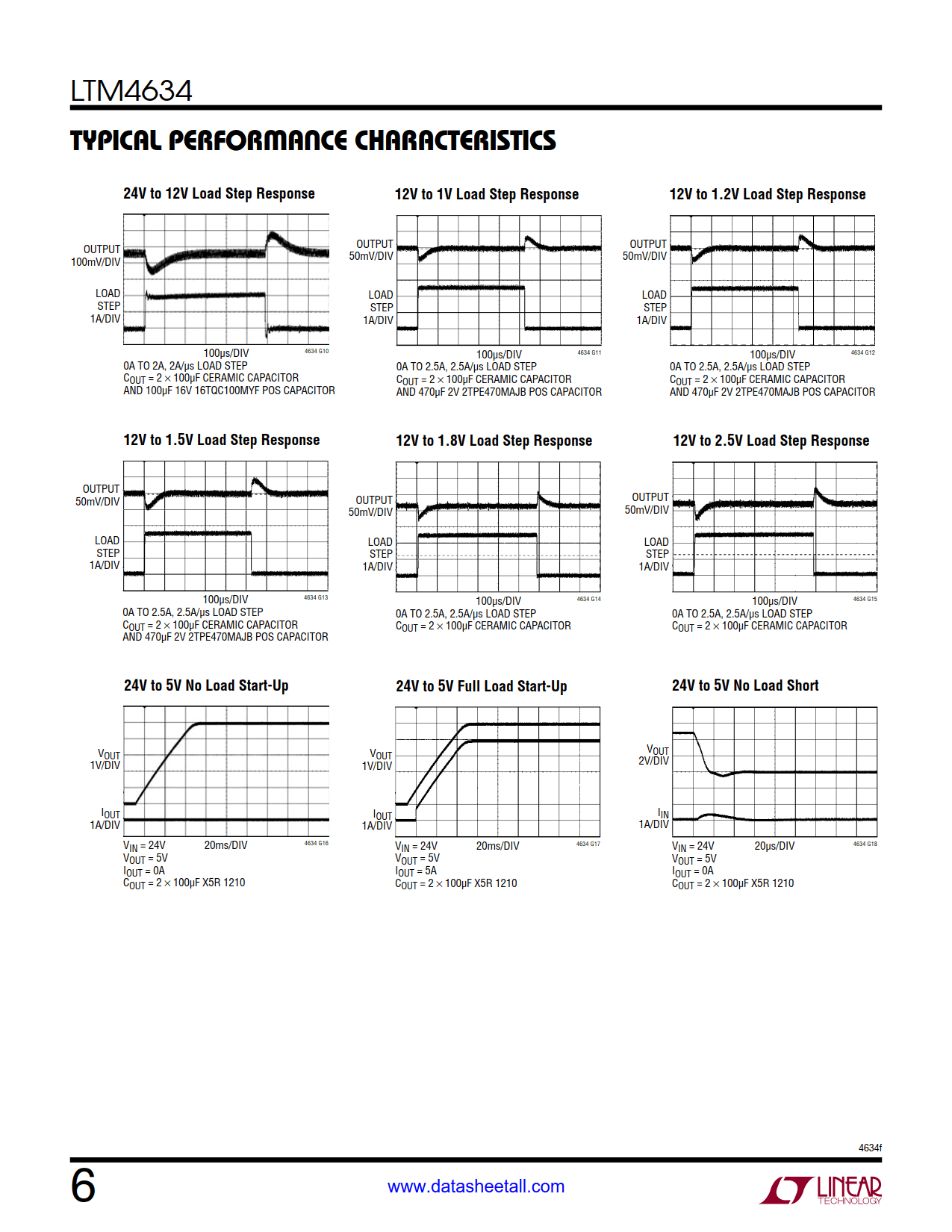

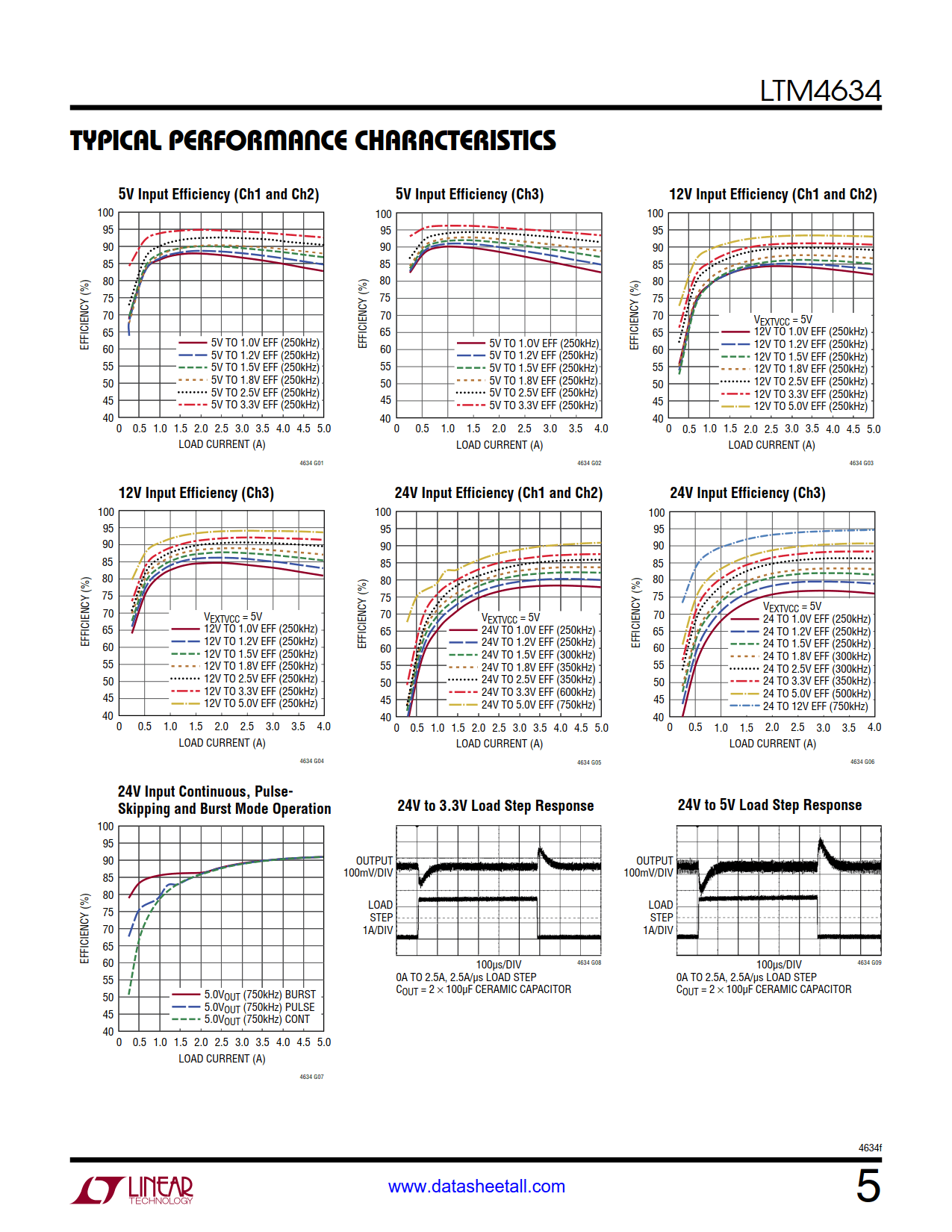

High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, multiphase parallel operation, soft-start and output voltage tracking for supply rail sequencing.

Fault protection features include overvoltage protection, overcurrent protection and temperature monitoring. The power module is offered in a space saving, thermally enhanced 15mm × 15mm × 5.01mm BGA package. The LTM4634 is available with SnPb (BGA) or RoHS compliant terminal finish.
