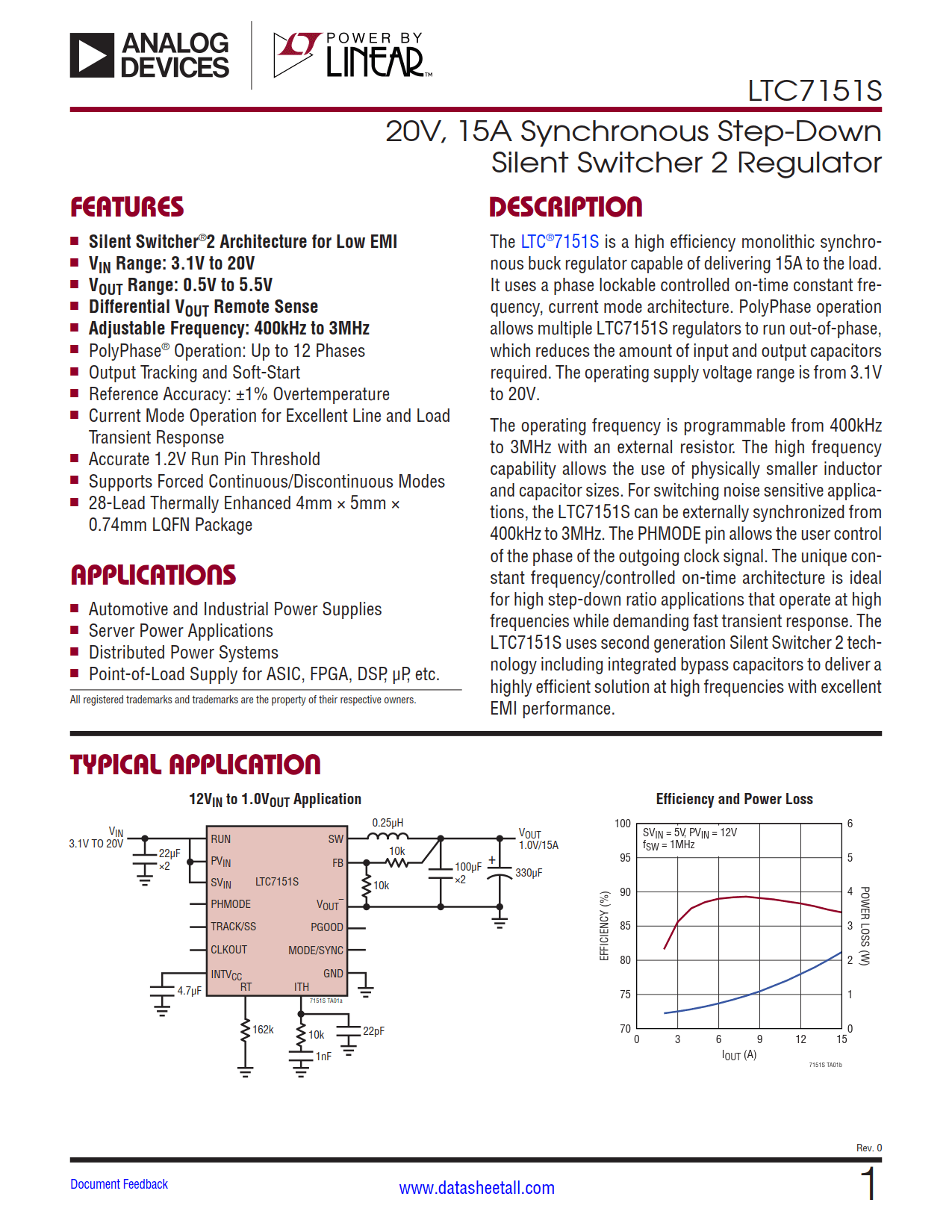

LTC7151S Datasheet

• Silent Switcher^®2 Architecture for Low EMI
• V_IN Range: 3.1V to 20V
• V_OUT Range: 0.5V to 5.5V
• Differential V_OUT Remote Sense
• Adjustable Frequency: 400kHz to 3MHz
• PolyPhase^® Operation: Up to 12 Phases
• Output Tracking and Soft-Start
• Reference Accuracy: ±1% Overtemperature
• Current Mode Operation for Excellent Line and Load Transient Response
• Accurate 1.2V Run Pin Threshold
• Supports Forced Continuous/Discontinuous Modes
• 28-Lead Thermally Enhanced 4mm × 5mm × 0.74mm LQFN Package

• Automotive and Industrial Power Supplies
• Server Power Applications
• Distributed Power Systems
• Point-of-Load Supply for ASIC, FPGA, DSP, µP, etc.

The LTC7151S is a high efficiency monolithic synchronous buck regulator capable of delivering 15A to the load. It uses a phase lockable controlled on-time constant frequency, current mode architecture. PolyPhase operation allows multiple LTC7151S regulators to run out-of-phase, which reduces the amount of input and output capacitors required. The operating supply voltage range is from 3.1V to 20V.
