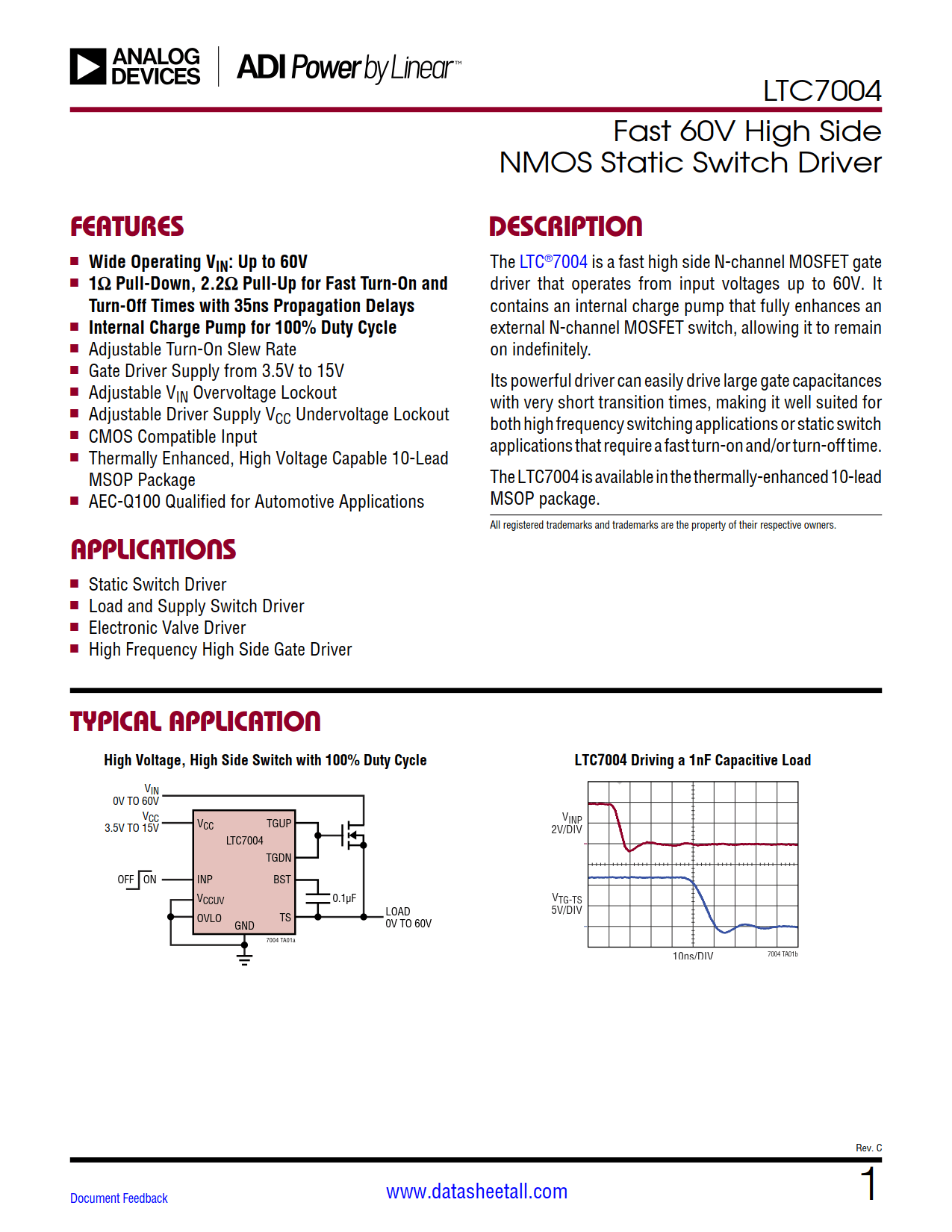

LTC7004 Datasheet

• Wide Operating V_IN : Up to 60V
• 1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and Turn-Off Times with 35ns Propagation Delays
• Internal Charge Pump for 100% Duty Cycle
• Adjustable Turn-On Slew Rate
• Gate Driver Supply from 3.5V to 15V
• Adjustable V_IN Overvoltage Lockout
• Adjustable Driver Supply V_CC Undervoltage Lockout
• CMOS Compatible Input
• Thermally Enhanced, High Voltage Capable 10-Lead MSOP Package
• AEC-Q100 Qualified for Automotive Applications

• Static Switch Driver
• Load and Supply Switch Driver
• Electronic Valve Driver
• High Frequency High Side Gate Driver

The LTC7004 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 60V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.

Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.

The LTC7004 is available in the thermally-enhanced 10-lead MSOP package.
