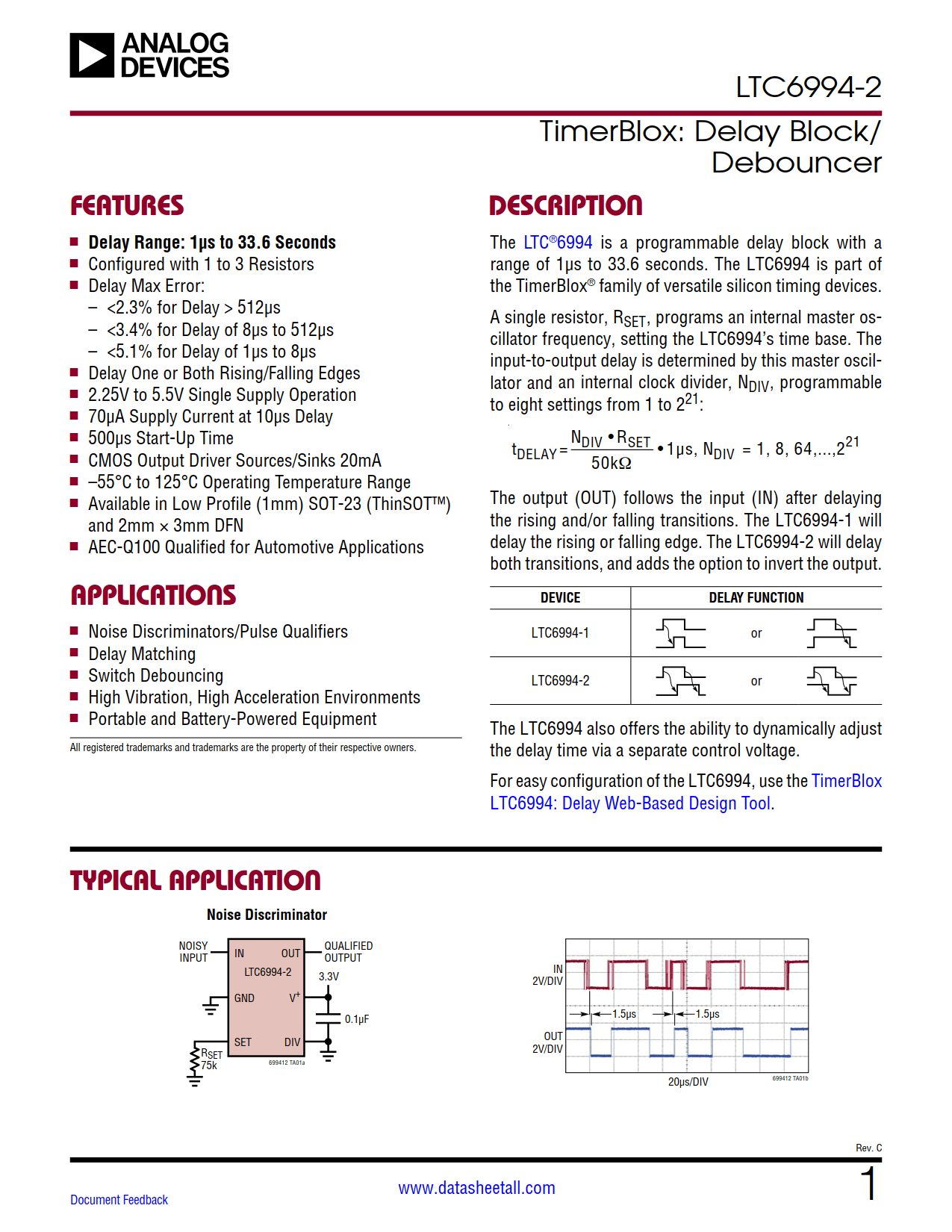

LTC6994-2 Datasheet

• Delay Range: 1µs to 33.6 Seconds
• Configured with 1 to 3 Resistors
• Delay Max Error:
  • <2.3% for Delay > 512µs
  • <3.4% for Delay of 8µs to 512µs
  • <5.1% for Delay of 1µs to 8µs
• Delay One or Both Rising/Falling Edges
• 2.25V to 5.5V Single Supply Operation
• 70µA Supply Current at 10µs Delay
• 500µs Start-Up Time
• CMOS Output Driver Sources/Sinks 20mA
• –55°C to 125°C Operating Temperature Range
• Available in Low Profile (1mm) SOT-23 (ThinSOT^™) and 2mm × 3mm DFN
• AEC-Q100 Qualified for Automotive Applications

• Noise Discriminators/Pulse Qualifiers
• Delay Matching
• Switch Debouncing
• High Vibration, High Acceleration Environments
• Portable and Battery-Powered Equipment

The LTC6994 is a programmable delay block with a range of 1µs to 33.6 seconds. The LTC6994 is part of the TimerBlox^® family of versatile silicon timing devices.

A single resistor, R_SET, programs an internal master oscillator frequency, setting the LTC6994’s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, N_DIV, programmable to eight settings from 1 to 2²¹.

The output (OUT) follows the input (IN) after delaying the rising and/or falling transitions. The LTC6994-2 will delay both transitions, and adds the option to invert the output.

The LTC6994 also offers the ability to dynamically adjust the delay time via a separate control voltage.
