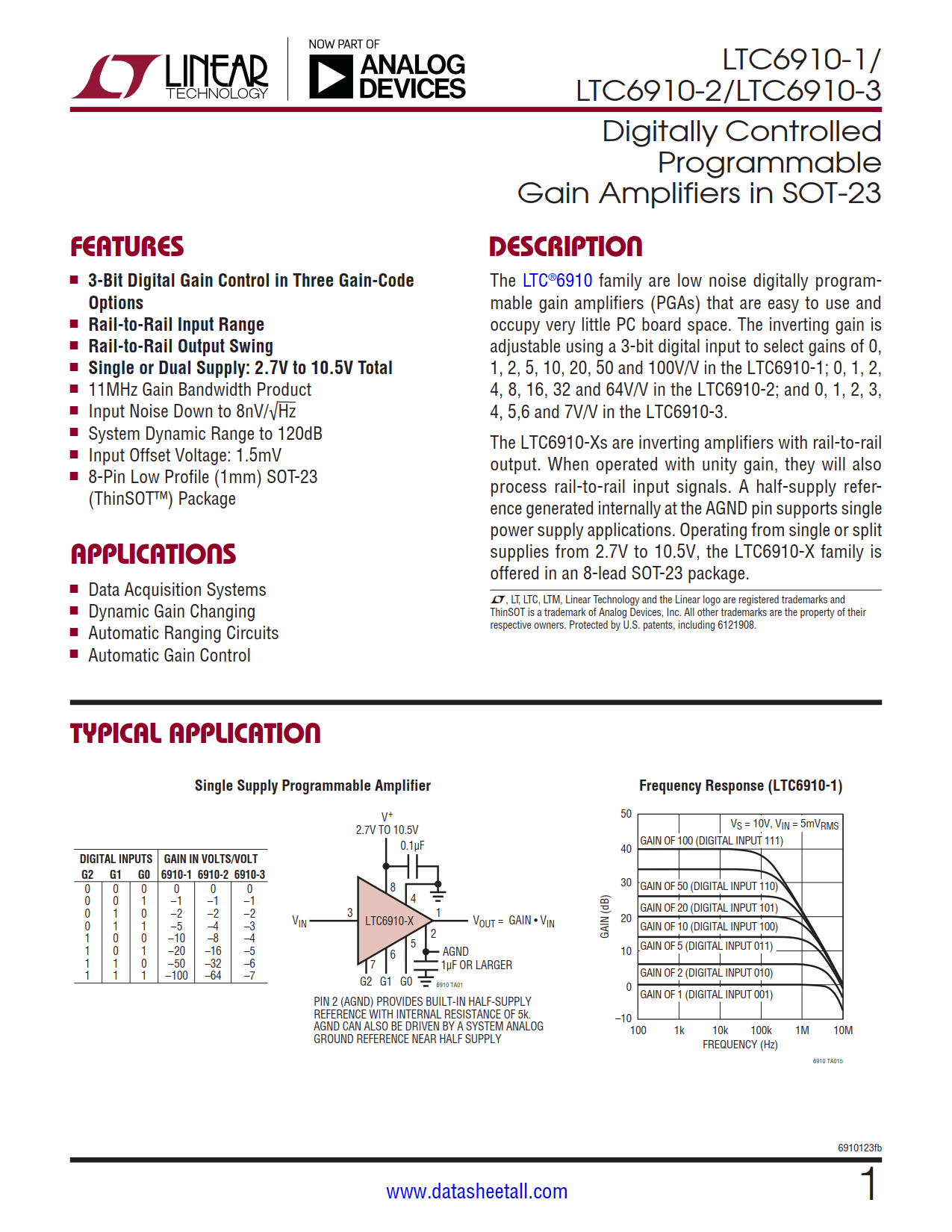

LTC6910 Datasheet

• 3-Bit Digital Gain Control in Three Gain-Code Options
• Rail-to-Rail Input Range
• Rail-to-Rail Output Swing
• Single or Dual Supply: 2.7V to 10.5V Total
• 11MHz Gain Bandwidth Product
• Input Noise Down to 8nV/√Hz
• System Dynamic Range to 120dB
• Input Offset Voltage: 1.5mV
• 8-Pin Low Profile (1mm) SOT-23 (ThinSOT^™) Package

• Data Acquisition Systems
• Dynamic Gain Changing
• Automatic Ranging Circuits
• Automatic Gain Control

The LTC6910 family are low noise digitally programmable gain amplifiers (PGAs) that are easy to use and occupy very little PC board space. The inverting gain is adjustable using a 3-bit digital input to select gains of 0, 1, 2, 5, 10, 20, 50 and 100V/V in the LTC6910-1; 0, 1, 2, 4, 8, 16, 32 and 64V/V in the LTC6910-2; and 0, 1, 2, 3, 4, 5,6 and 7V/V in the LTC6910-3.

The LTC6910-Xs are inverting amplifiers with rail-to-rail output. When operated with unity gain, they will also process rail-to-rail input signals. A half-supply reference generated internally at the AGND pin supports single power supply applications. Operating from single or split supplies from 2.7V to 10.5V, the LTC6910-X family is offered in an 8-lead SOT-23 package.
