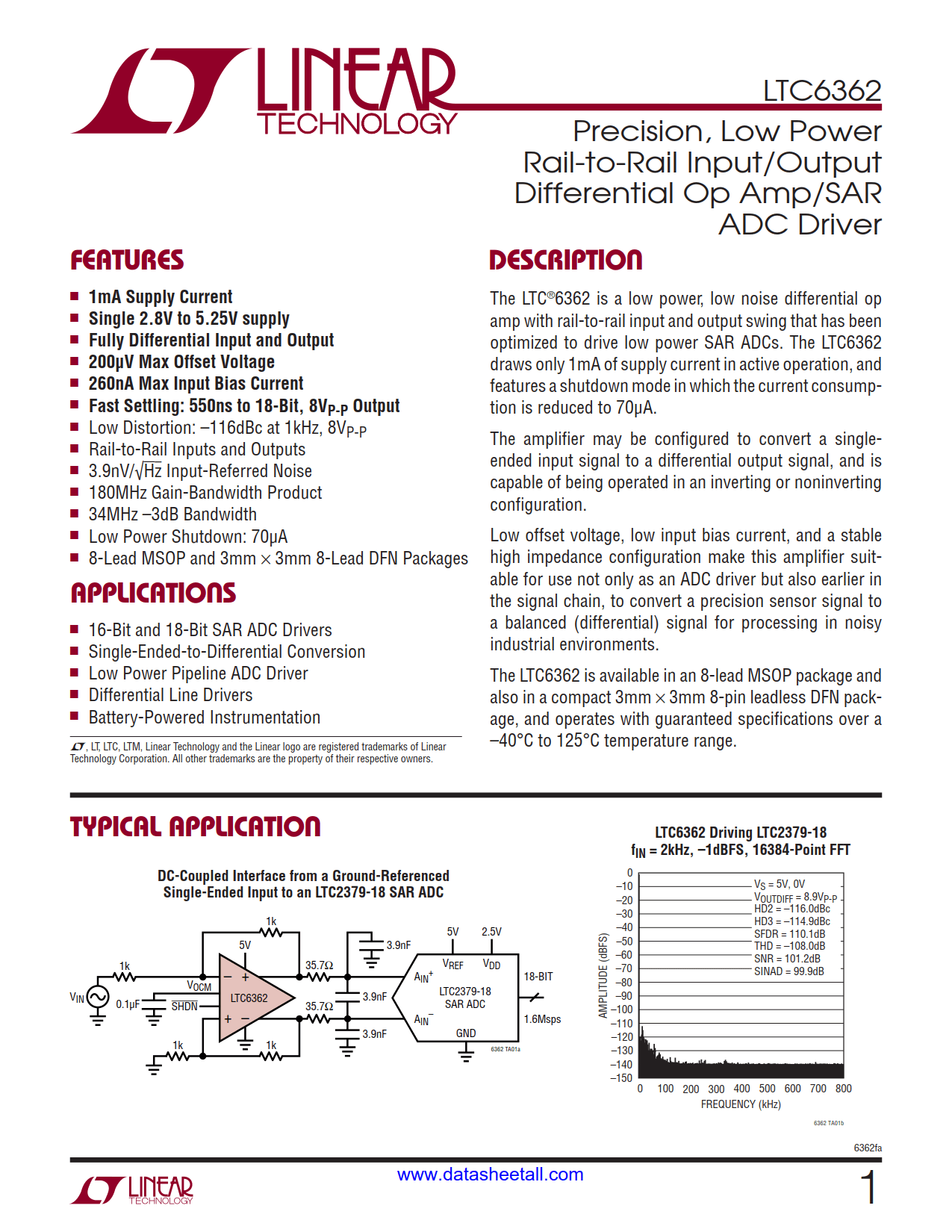

LTC6362 Datasheet

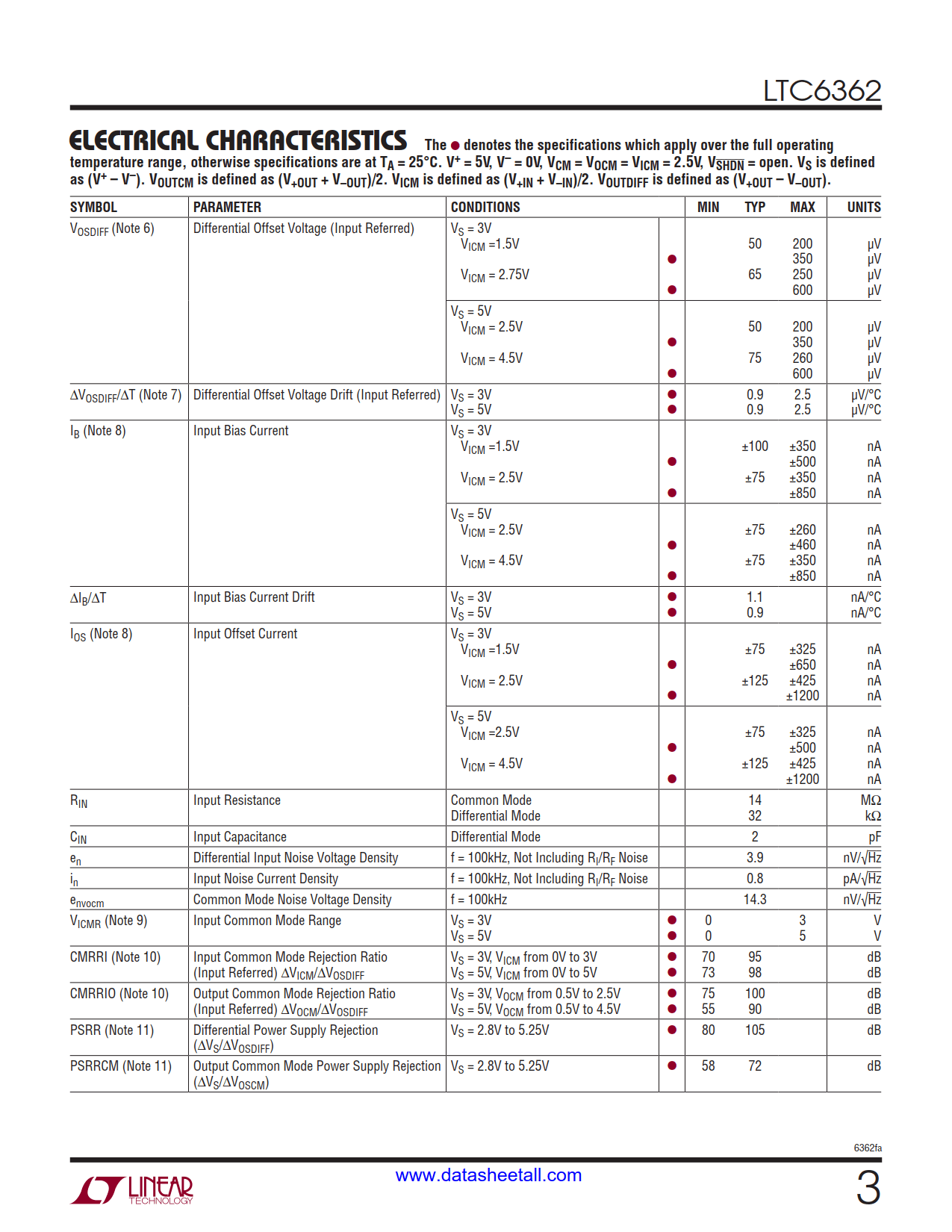

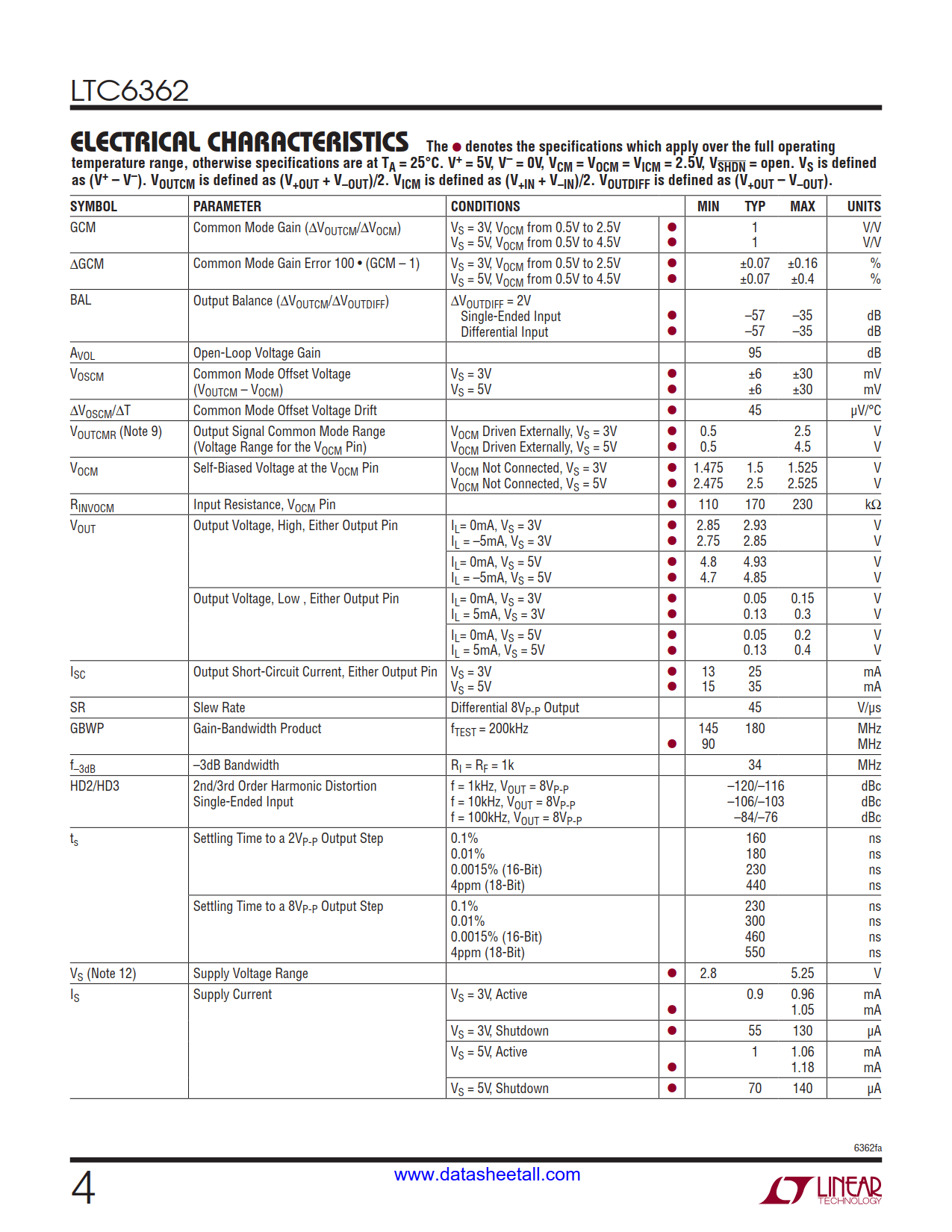

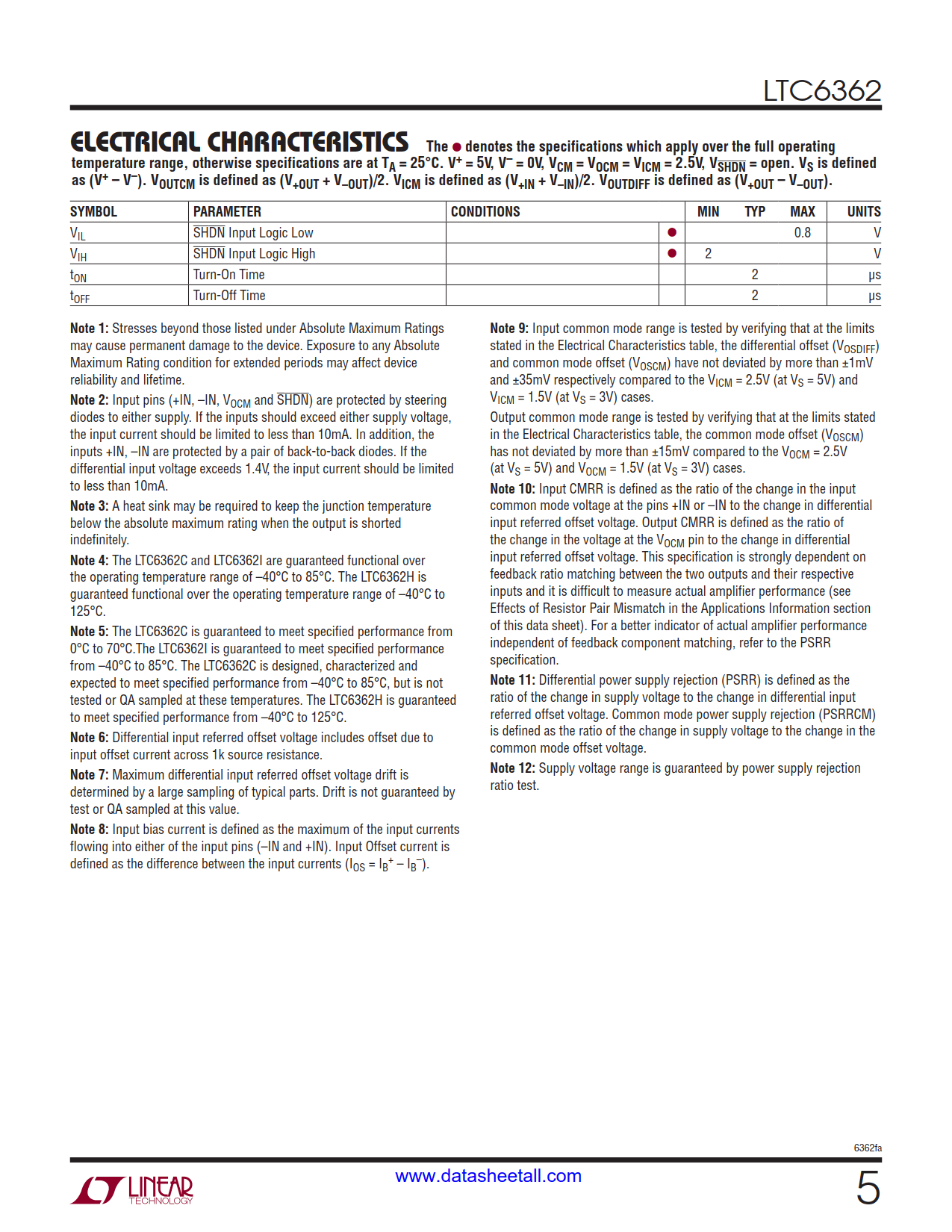

• 1mA Supply Current
• Single 2.8V to 5.25V supply
• Fully Differential Input and Output
• 200μV Max Offset Voltage
• 260nA Max Input Bias Current
• Fast Settling: 550ns to 18-Bit, 8V_P-P Output
• Low Distortion: –116dBc at 1kHz, 8V_P-P
• Rail-to-Rail Inputs and Outputs
• 3.9nV/√Hz Input-Referred Noise
• 180MHz Gain-Bandwidth Product
• 34MHz –3dB Bandwidth
• Low Power Shutdown: 70μA
• 8-Lead MSOP and 3mm × 3mm 8-Lead DFN Packages

• 16-Bit and 18-Bit SAR ADC Drivers
• Single-Ended-to-Differential Conversion
• Low Power Pipeline ADC Driver
• Differential Line Drivers
• Battery-Powered Instrumentation

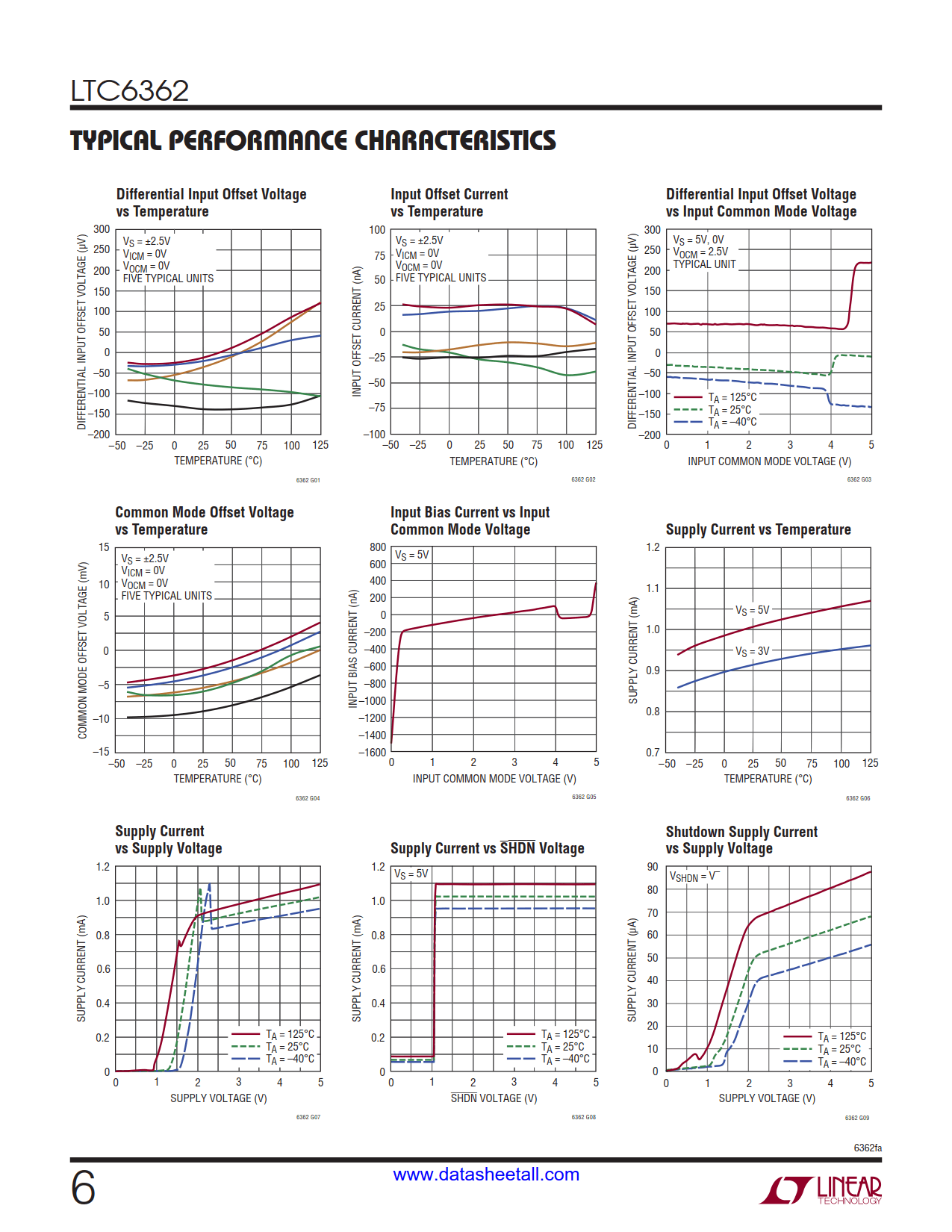

The LTC6362 is a low power, low noise differential op amp with rail-to-rail input and output swing that has been optimized to drive low power SAR ADCs. The LTC6362 draws only 1mA of supply current in active operation, and features a shutdown mode in which the current consumption is reduced to 70μA.

The amplifier may be configured to convert a single-ended input signal to a differential output signal, and is capable of being operated in an inverting or noninverting configuration.

Low offset voltage, low input bias current, and a stable high impedance configuration make this amplifier suitable for use not only as an ADC driver but also earlier in the signal chain, to convert a precision sensor signal to a balanced (differential) signal for processing in noisy industrial environments.

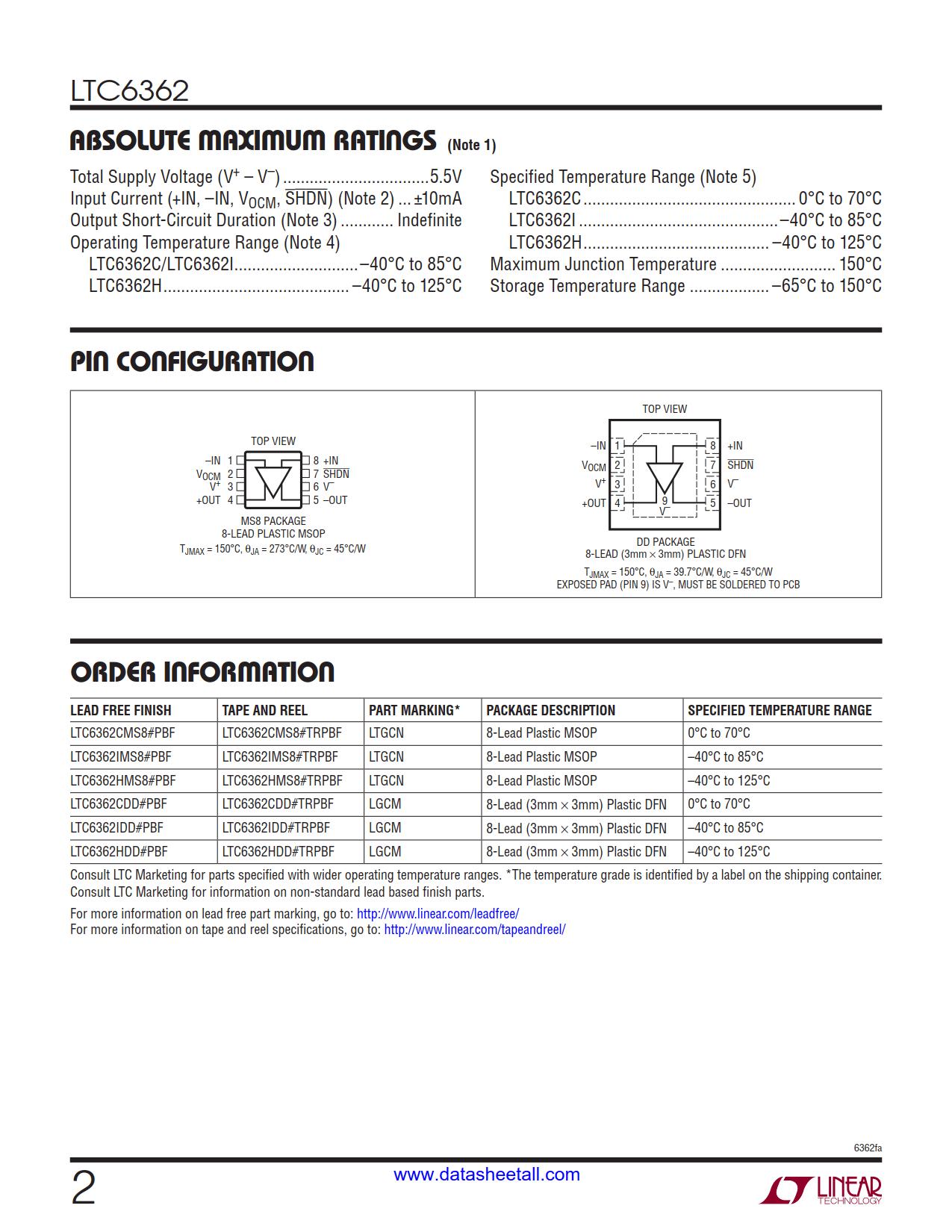

The LTC6362 is available in an 8-lead MSOP package and also in a compact 3mm × 3mm 8-pin leadless DFN package, and operates with guaranteed specifications over a –40°C to 125°C temperature range.
