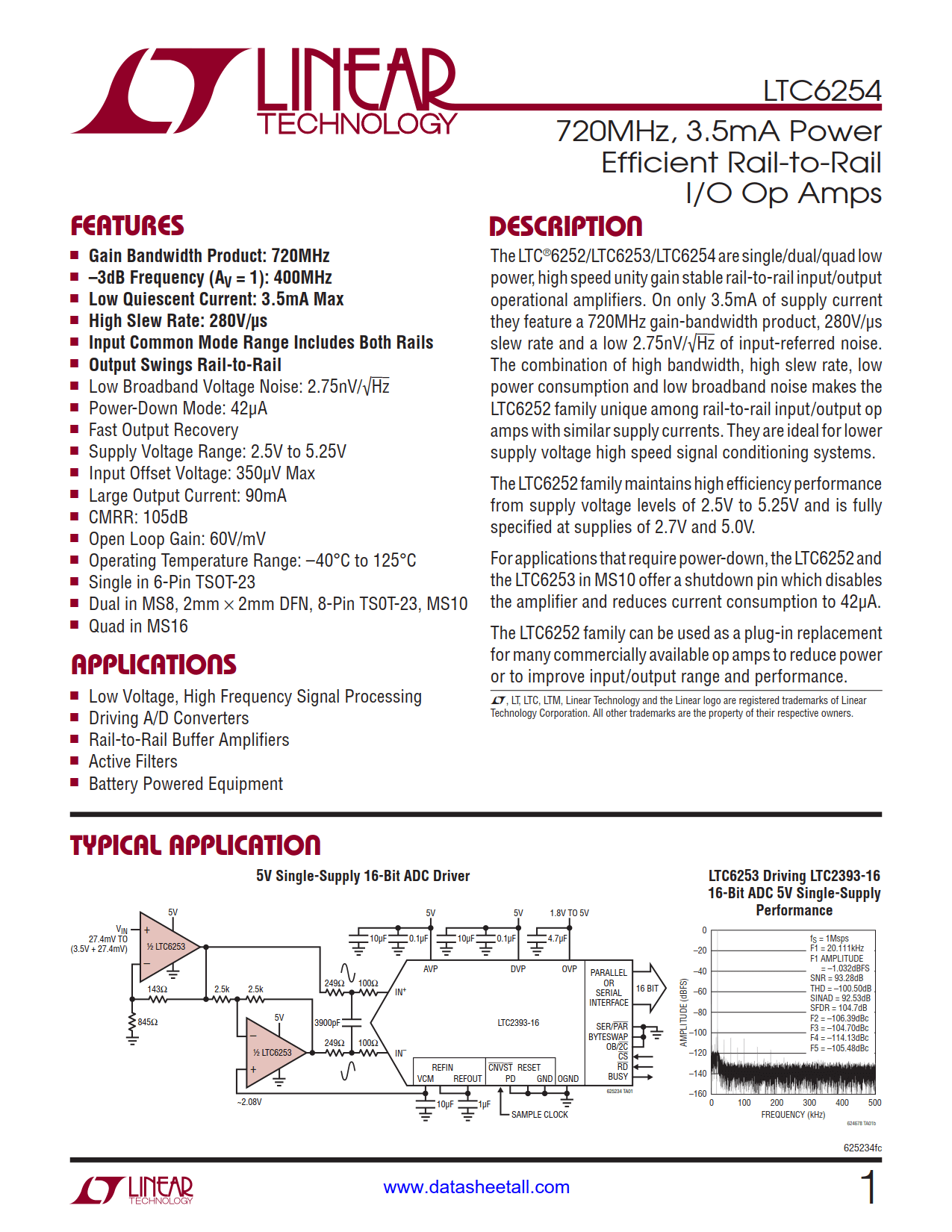

LTC6254 Datasheet

• Gain Bandwidth Product: 720MHz
• –3dB Frequency (A_V = 1): 400MHz
• Low Quiescent Current: 3.5mA Max
• High Slew Rate: 280V/μs
• Input Common Mode Range Includes Both Rails
• Output Swings Rail-to-Rail
• Low Broadband Voltage Noise: 2.75nV/√Hz
• Power-Down Mode: 42μA
• Fast Output Recovery
• Supply Voltage Range: 2.5V to 5.25V
• Input Offset Voltage: 350μV Max
• Large Output Current: 90mA
• CMRR: 105dB
• Open Loop Gain: 60V/mV
• Operating Temperature Range: –40°C to 125°C
• Quad in MS16

• Low Voltage, High Frequency Signal Processing
• Driving A/D Converters
• Rail-to-Rail Buffer Amplifiers
• Active Filters
• Battery Powered Equipment

The LTC6254 are quad low power, high speed unity gain stable rail-to-rail input/output operational amplifiers. On only 3.5mA of supply current they feature a 720MHz gain-bandwidth product, 280V/μs slew rate and a low 2.75nV/√Hz of input-referred noise. The combination of high bandwidth, high slew rate, low power consumption and low broadband noise makes the LTC6252 family unique among rail-to-rail input/output op amps with similar supply currents. They are ideal for lower supply voltage high speed signal conditioning systems.
