LTC6090-5 Datasheet
140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp
140V CMOS Rail-to-Rail Output, Picoamp Input Current Op Amp
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| LTC6090CFE-5#PBF | 0 | $5.112 | Tube | 95 | 6090FE-5 | 1 | 16 | 0°C ~ 70°C | 16-Lead TSSOP-EP |
| LTC6090CFE-5#TRPBF | 0 | $5.112 | Reel | 2500 | 6090FE-5 | 1 | 16 | 0°C ~ 70°C | 16-Lead TSSOP-EP |
| LTC6090CS8E-5#PBF | 0 | $4.635 | Tube | 100 | 60905 | 3 | 8 | 0°C ~ 70°C | 8-Lead SOIC-EP |
| LTC6090CS8E-5#TRPBF | 2500pcs | $4.635 | Reel | 2500 | 60905 | 3 | 8 | 0°C ~ 70°C | 8-Lead SOIC-EP |
| LTC6090HFE-5#PBF | 0 | $6.219 | Tube | 95 | 6090FE-5 | 1 | 16 | -40°C ~ 125°C | 16-Lead TSSOP-EP |
| LTC6090HFE-5#TRPBF | 0 | $6.219 | Reel | 2500 | 6090FE-5 | 1 | 16 | -40°C ~ 125°C | 16-Lead TSSOP-EP |
| LTC6090HS8E-5#PBF | 0 | $5.769 | Tube | 100 | 60905 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC-EP |
| LTC6090HS8E-5#TRPBF | 0 | $5.769 | Reel | 2500 | 60905 | 3 | 8 | -40°C ~ 125°C | 8-Lead SOIC-EP |
| LTC6090IFE-5#PBF | 41pcs | $5.697 | Tube | 95 | 6090FE-5 | 1 | 16 | -40°C ~ 85°C | 16-Lead TSSOP-EP |
| LTC6090IFE-5#TRPBF | 0 | $5.697 | Reel | 2500 | 6090FE-5 | 1 | 16 | -40°C ~ 85°C | 16-Lead TSSOP-EP |
| LTC6090IS8E-5#PBF | 0 | $5.229 | Tube | 100 | 60905 | 3 | 8 | -40°C ~ 85°C | 8-Lead SOIC-EP |
| LTC6090IS8E-5#TRPBF | 0 | $5.229 | Reel | 2500 | 60905 | 3 | 8 | -40°C ~ 85°C | 8-Lead SOIC-EP |

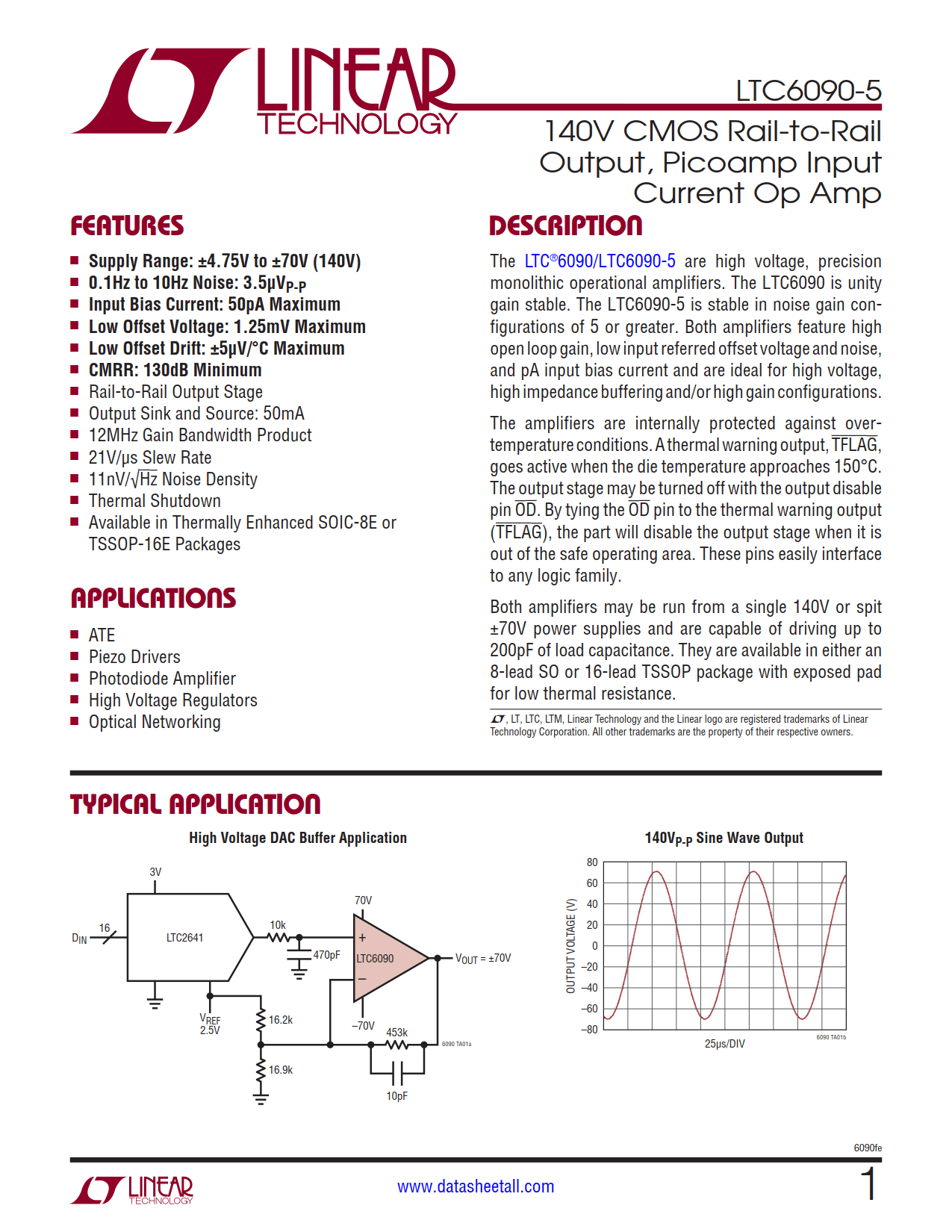

The LTC6090-5 is high voltage, precision monolithic operational amplifiers. The LTC6090-5 is stable in noise gain configurations of 5 or greater. The LTC6090-5 amplifiers feature high open loop gain, low input referred offset voltage and noise, and pA input bias current and are ideal for high voltage, high impedance buffering and/or high gain configurations.
The amplifiers are internally protected against overtemperature conditions. A thermal warning output, TFLAG, goes active when the die temperature approaches 150°C. The output stage may be turned off with the output disable pin OD. By tying the OD pin to the thermal warning output (TFLAG), the part will disable the output stage when it is out of the safe operating area. These pins easily interface to any logic family.
Both amplifiers may be run from a single 140V or spit ±70V power supplies and are capable of driving up to 200pF of load capacitance. They are available in either an 8-lead SO or 16-lead TSSOP package with exposed pad for low thermal resistance.
