LTC4358 Datasheet

Name: LTC4358 Datasheet
Brand: Linear Technology
SKU: LTC4358

5A Ideal Diode

Part No.:

LTC4358

Manufacturer:

Linear Technology

Page:

12 Pages

Size:

155 KB

Views:

Update Time:

2023-10-23 11:25:00

DataSheet:

LTC4358 Datasheet PDF Download

LTC4358 DataSheet Applicable Part

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

SPQ：Standard Pack Quantity；MSL：Moisture Sensitivity Level

LTC4358 DataSheet PDF

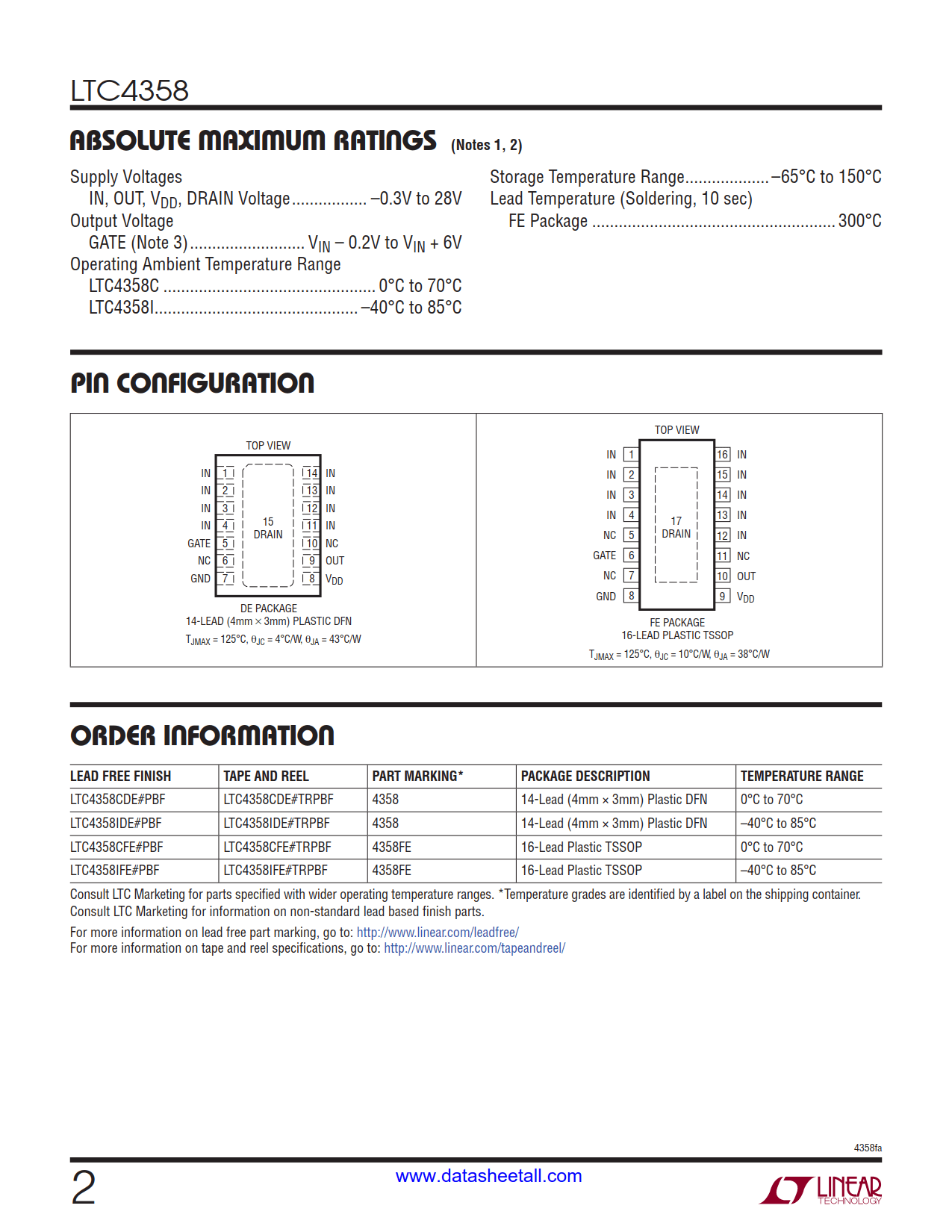

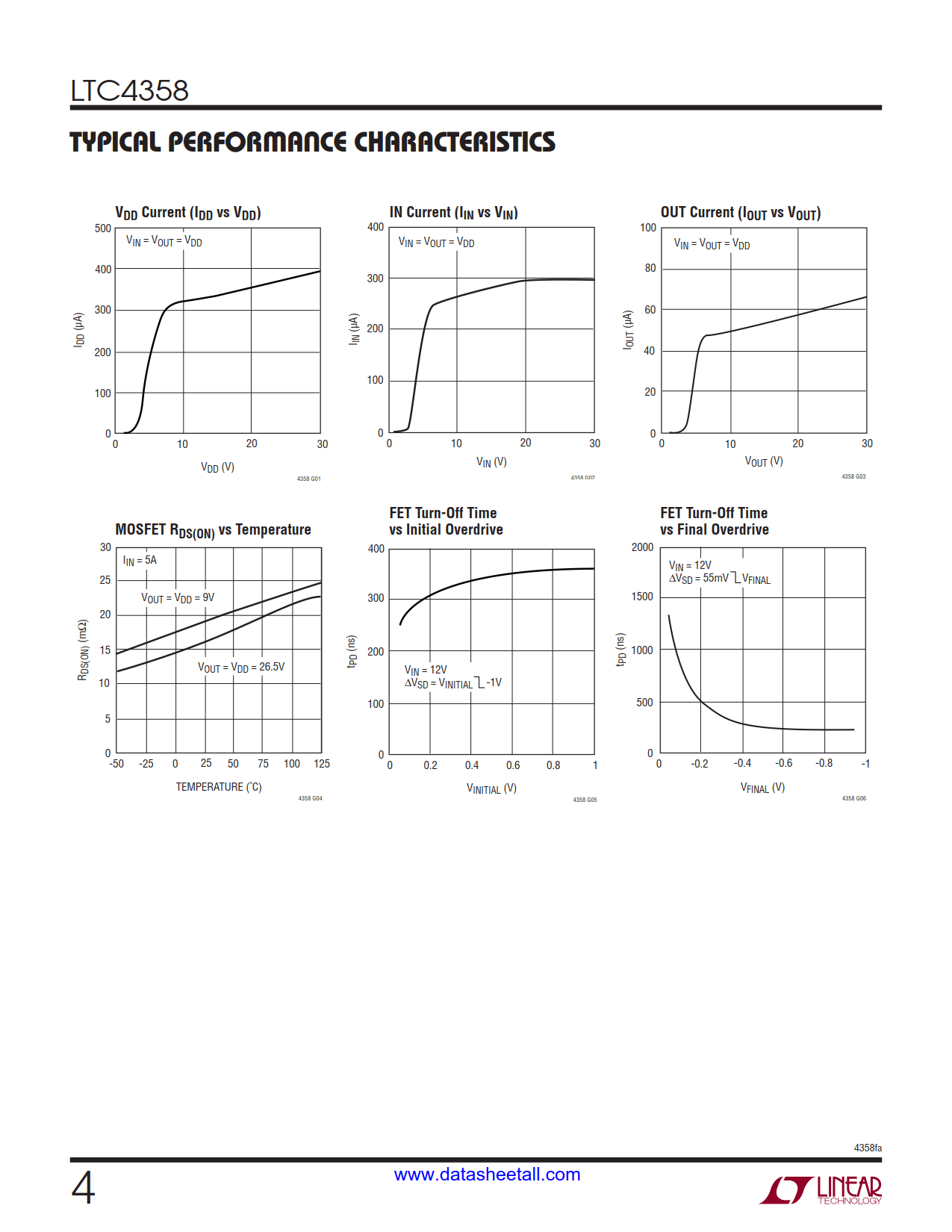

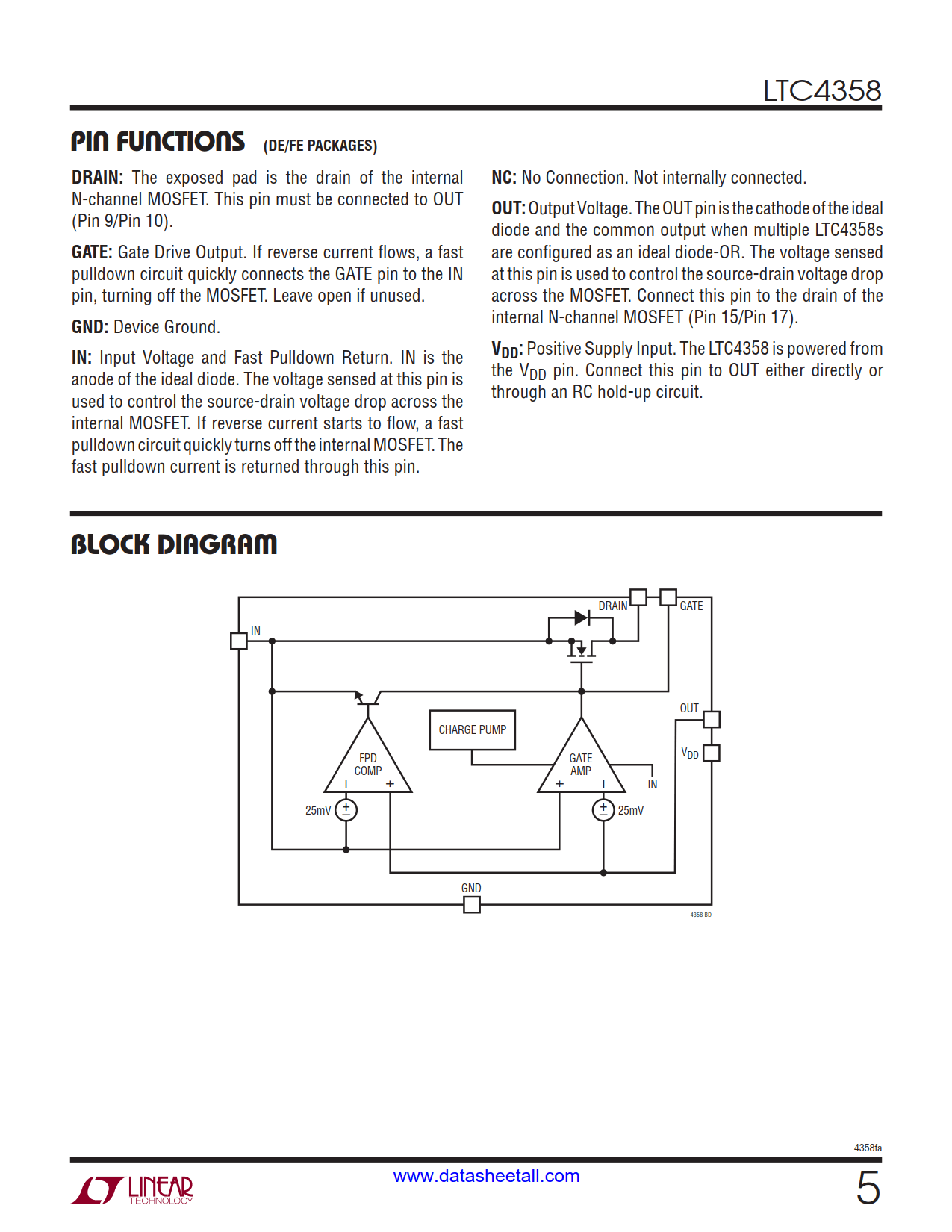

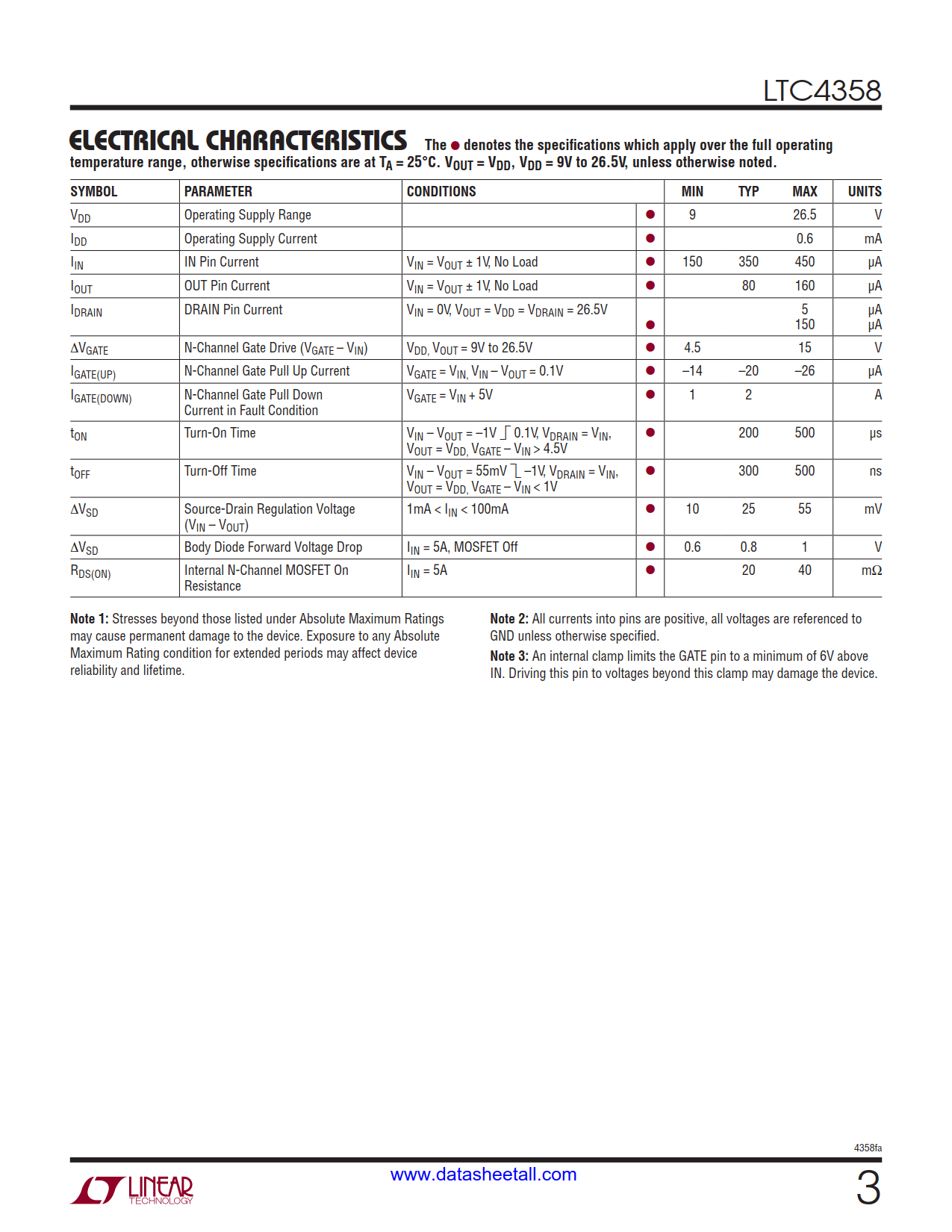

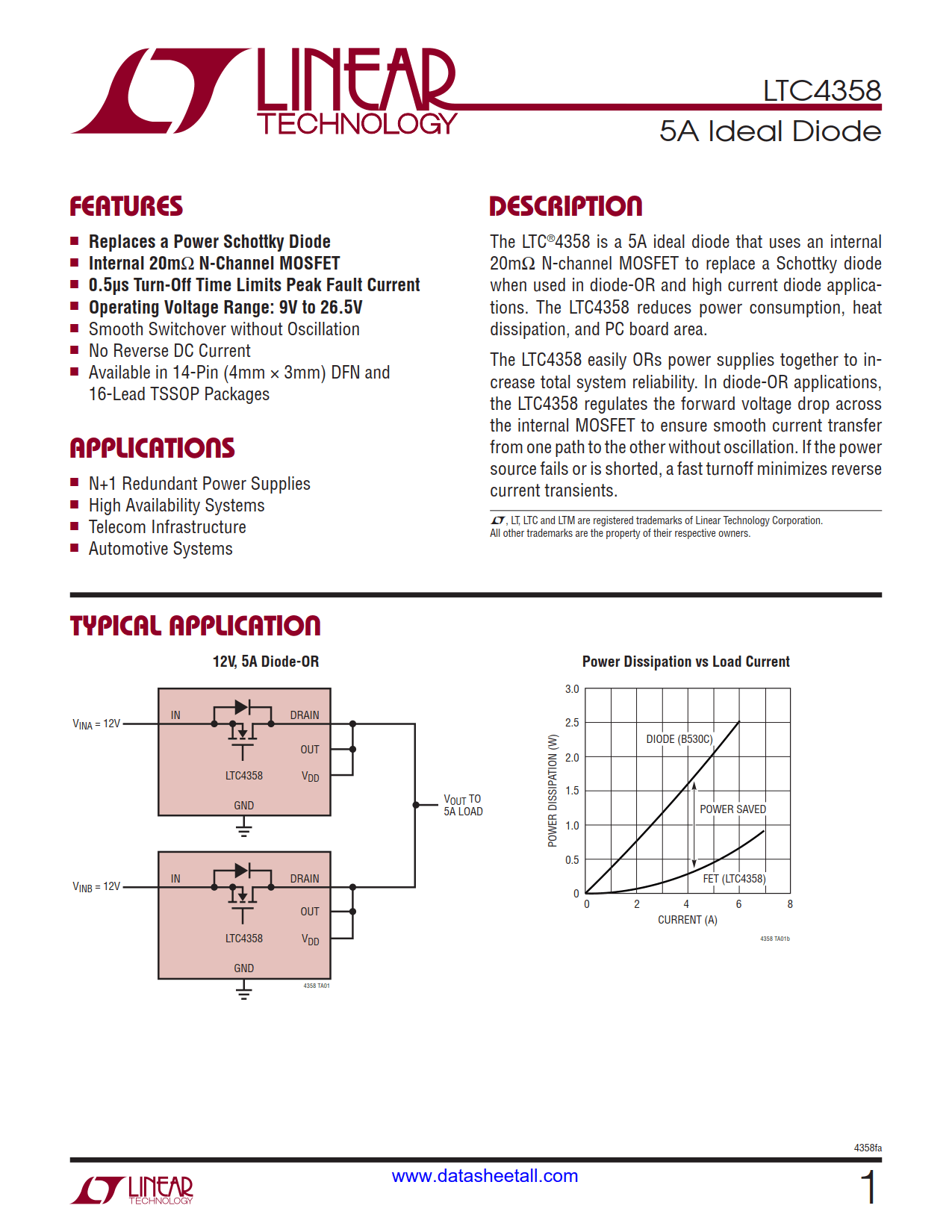

LTC4358 Features

Replaces a Power Schottky Diode
Internal 20mΩ N-Channel MOSFET
0.5μs Turn-Off Time Limits Peak Fault Current
Operating Voltage Range: 9V to 26.5V
Smooth Switchover without Oscillation
No Reverse DC Current
Available in 14-Pin (4mm × 3mm) DFN and 16-Lead TSSOP Packages

LTC4358 Applications

N+1 Redundant Power Supplies
High Availability Systems
Telecom Infrastructure
Automotive Systems

LTC4358 Description

The LTC4358 is a 5A ideal diode that uses an internal 20mΩ N-channel MOSFET to replace a Schottky diode when used in diode-OR and high current diode applications. The LTC4358 reduces power consumption, heat dissipation, and PC board area.

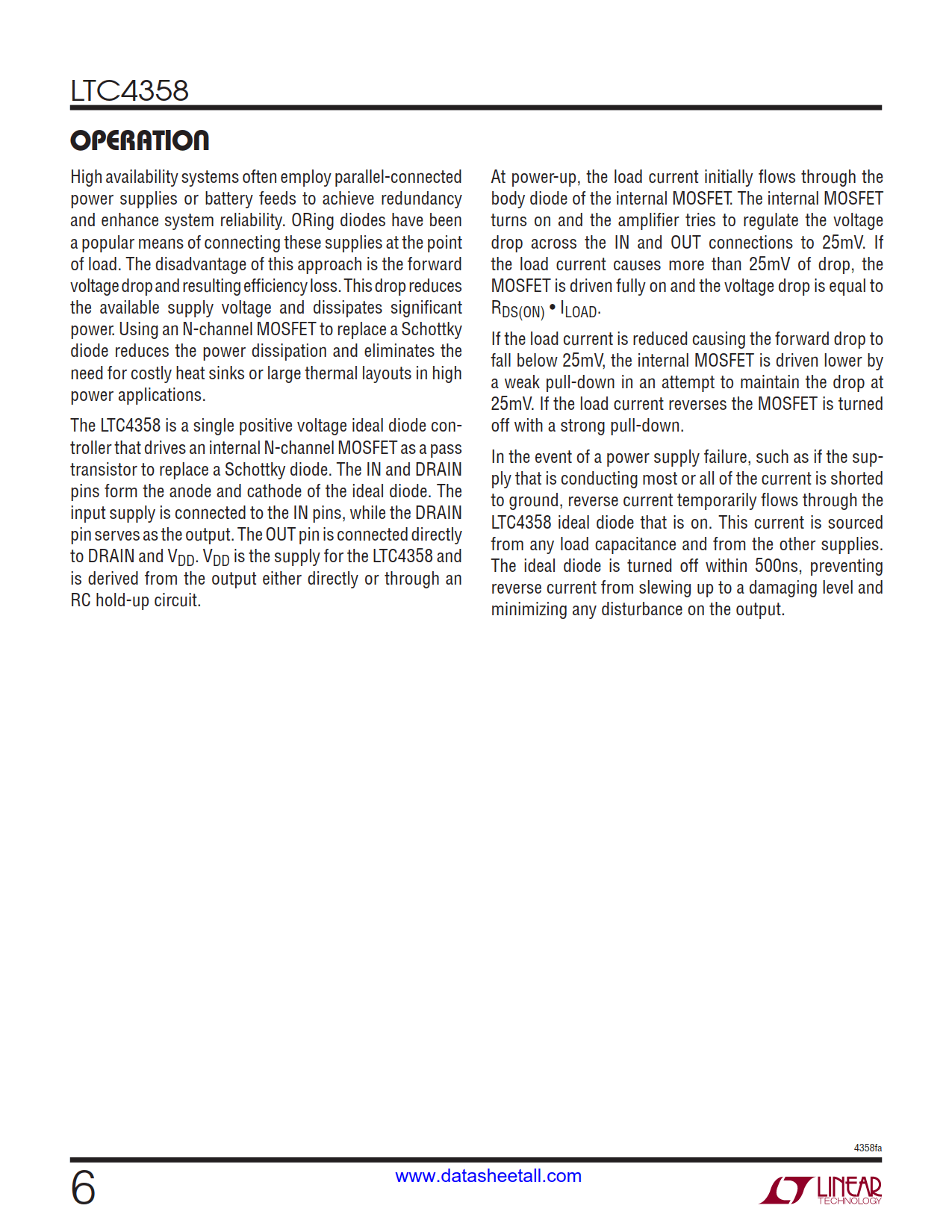

The LTC4358 easily ORs power supplies together to increase total system reliability. In diode-OR applications, the LTC4358 regulates the forward voltage drop across the internal MOSFET to ensure smooth current transfer from one path to the other without oscillation. If the power source fails or is shorted, a fast turnoff minimizes reverse current transients.
