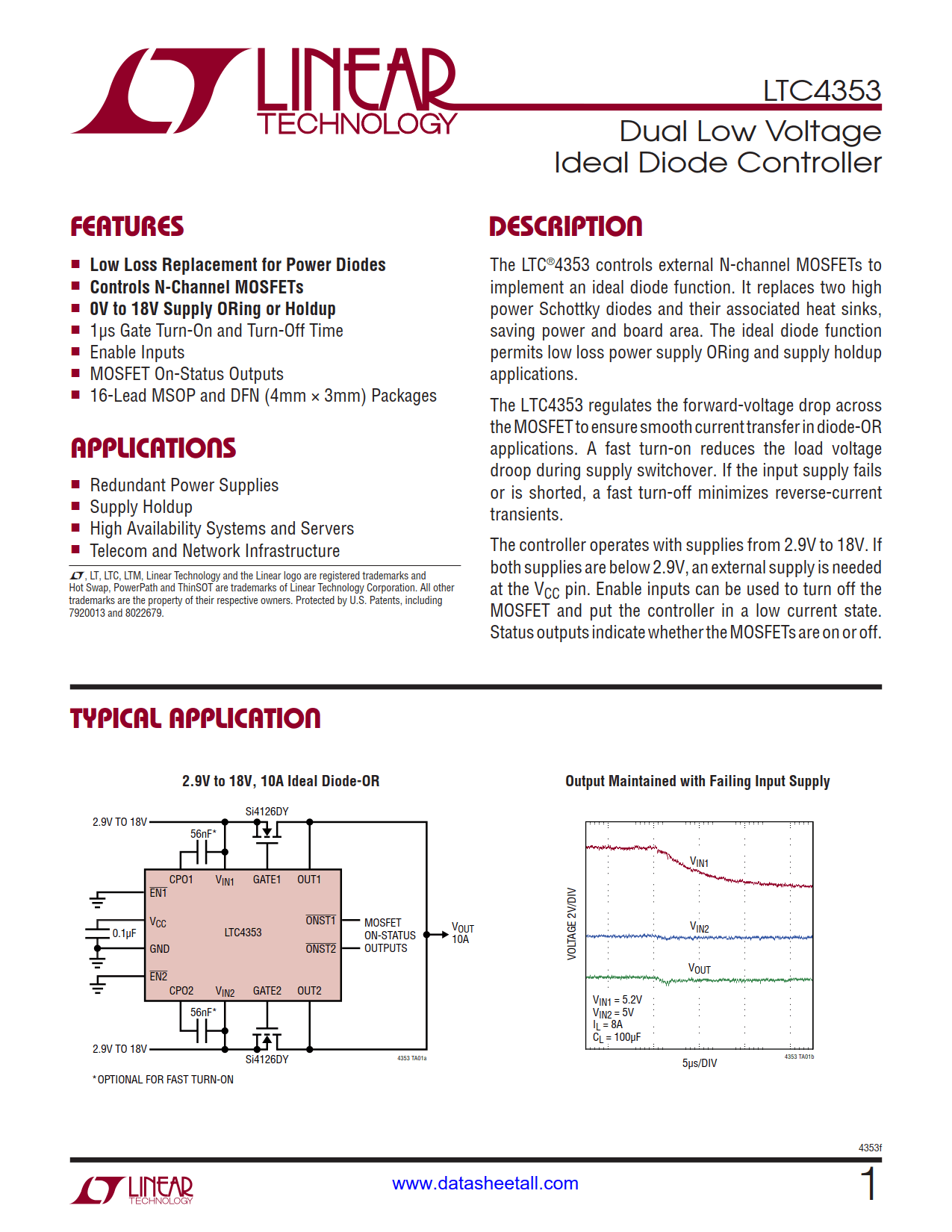

LTC4353 Datasheet

• Low Loss Replacement for Power Diodes
• Controls N-Channel MOSFETs
• 0V to 18V Supply ORing or Holdup
• 1μs Gate Turn-On and Turn-Off Time
• Enable Inputs
• MOSFET On-Status Outputs
• 16-Lead MSOP and DFN (4mm × 3mm) Packages

• Redundant Power Supplies
• Supply Holdup
• High Availability Systems and Servers
• Telecom and Network Infrastructure

The LTC4353 controls external N-channel MOSFETs to implement an ideal diode function. It replaces two high power Schottky diodes and their associated heat sinks, saving power and board area. The ideal diode function permits low loss power supply ORing and supply holdup applications.

The LTC4353 regulates the forward-voltage drop across the MOSFET to ensure smooth current transfer in diode-OR applications. A fast turn-on reduces the load voltage droop during supply switchover. If the input supply fails or is shorted, a fast turn-off minimizes reverse-current transients.

The controller operates with supplies from 2.9V to 18V. If both supplies are below 2.9V, an external supply is needed at the V_CC pin. Enable inputs can be used to turn off the MOSFET and put the controller in a low current state. Status outputs indicate whether the MOSFETs are on or off.
