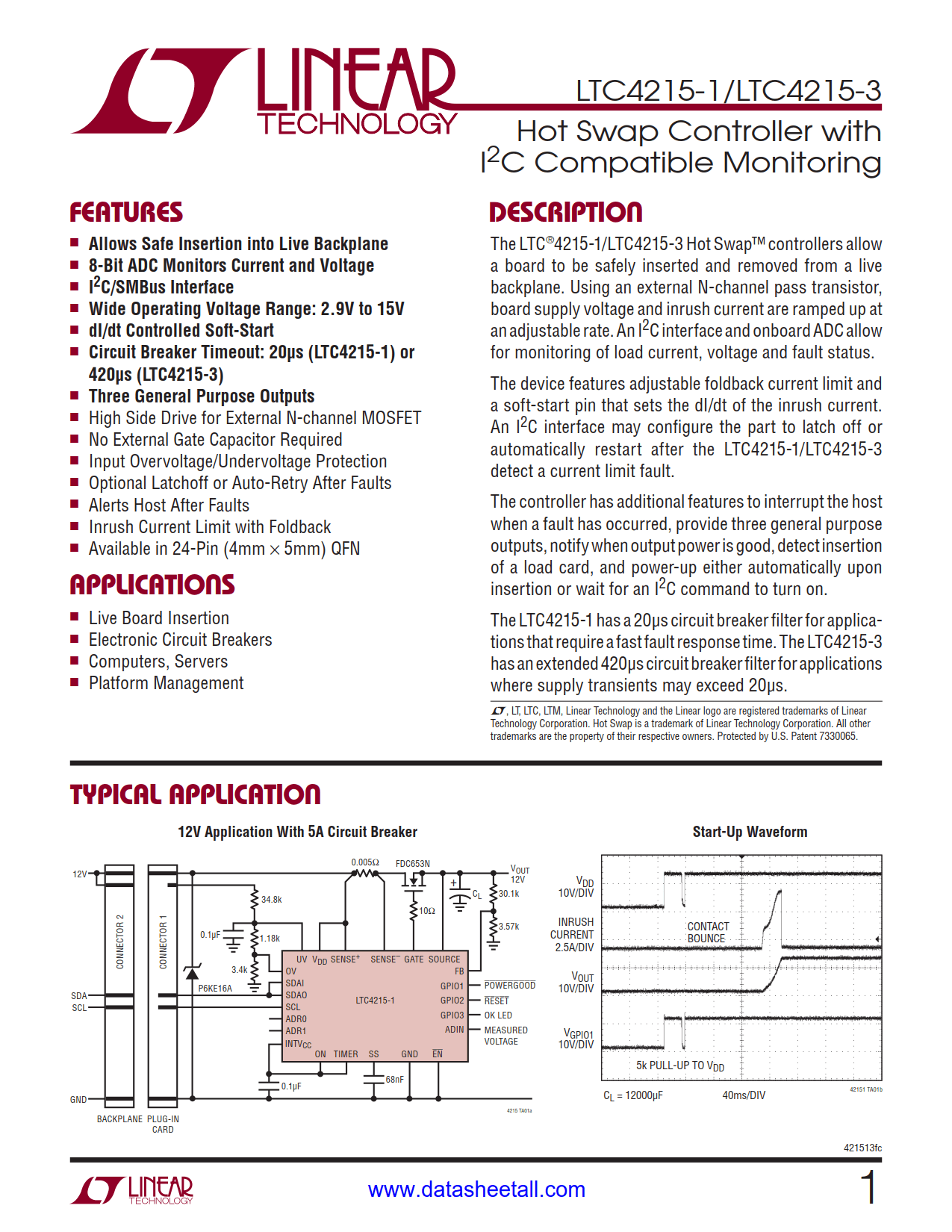

LTC4215-3 Datasheet

• Allows Safe Insertion into Live Backplane
• 8-Bit ADC Monitors Current and Voltage
• I²C/SMBus Interface
• Wide Operating Voltage Range: 2.9V to 15V
• dI/dt Controlled Soft-Start
• Circuit Breaker Timeout: 420μs (LTC4215-3)
• Three General Purpose Outputs
• High Side Drive for External N-channel MOSFET
• No External Gate Capacitor Required
• Input Overvoltage/Undervoltage Protection
• Optional Latch-off or Auto-Retry After Faults
• Alerts Host After Faults
• Inrush Current Limit with Foldback
• Available in 24-Pin (4mm × 5mm) QFN

• Live Board Insertion
• Electronic Circuit Breakers
• Computers, Servers
• Platform Management

The LTC4215-3 Hot Swap^™ controllers allow a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, board supply voltage and inrush current are ramped up at an adjustable rate. An I²C interface and on-board ADC allow for monitoring of load current, voltage and fault status.

The device features adjustable foldback current limit and a soft-start pin that sets the dI/dt of the inrush current. An I²C interface may configure the part to latch-off or automatically restart after the LTC4215-3 detect a current limit fault.

The controller has additional features to interrupt the host when a fault has occurred, provide three general purpose outputs, notify when output power is good, detect insertion of a load card, and power-up either automatically upon insertion or wait for an I²C command to turn on.

The LTC4215-3 has an extended 420μs circuit breaker filter for applications where supply transients may exceed 20μs.
