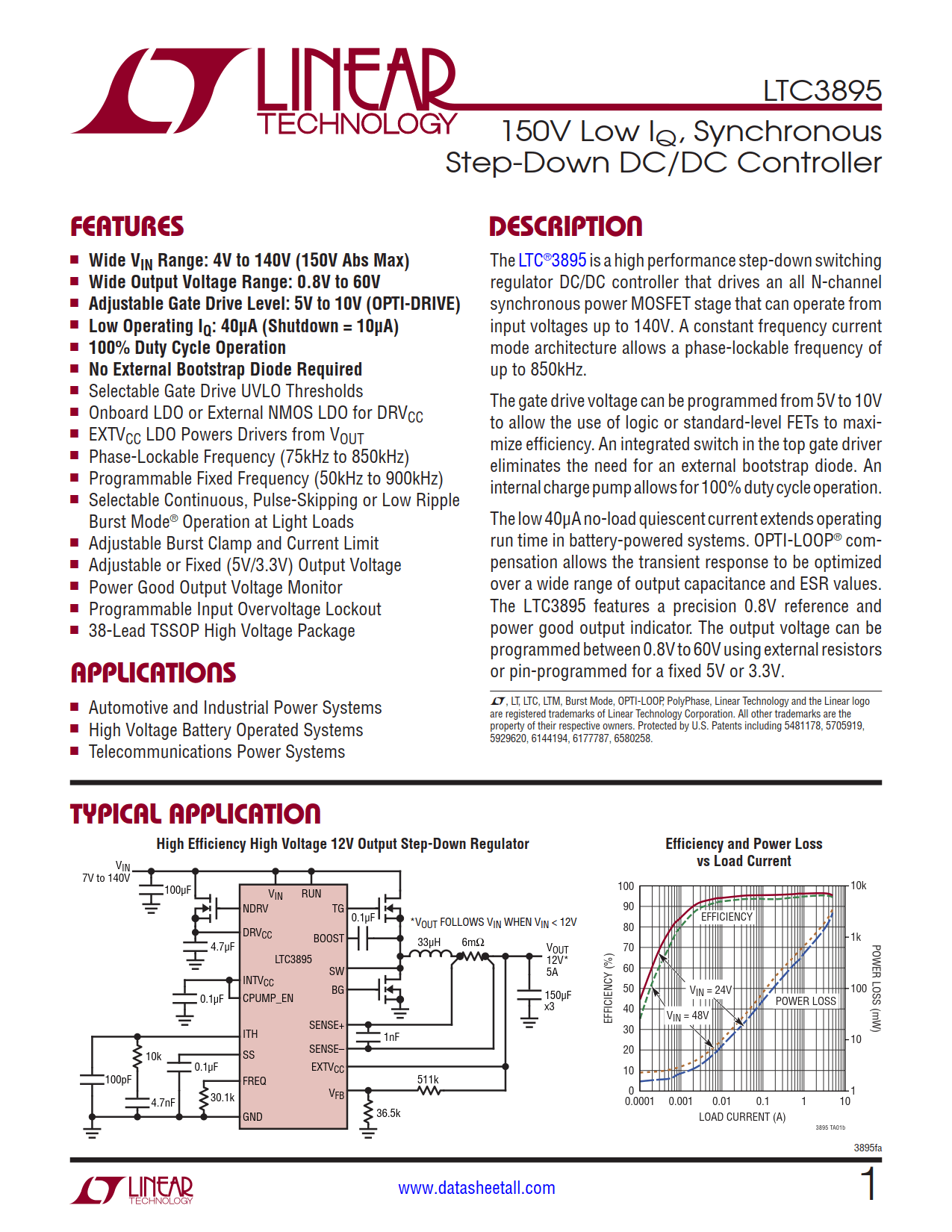

LTC3895 Datasheet

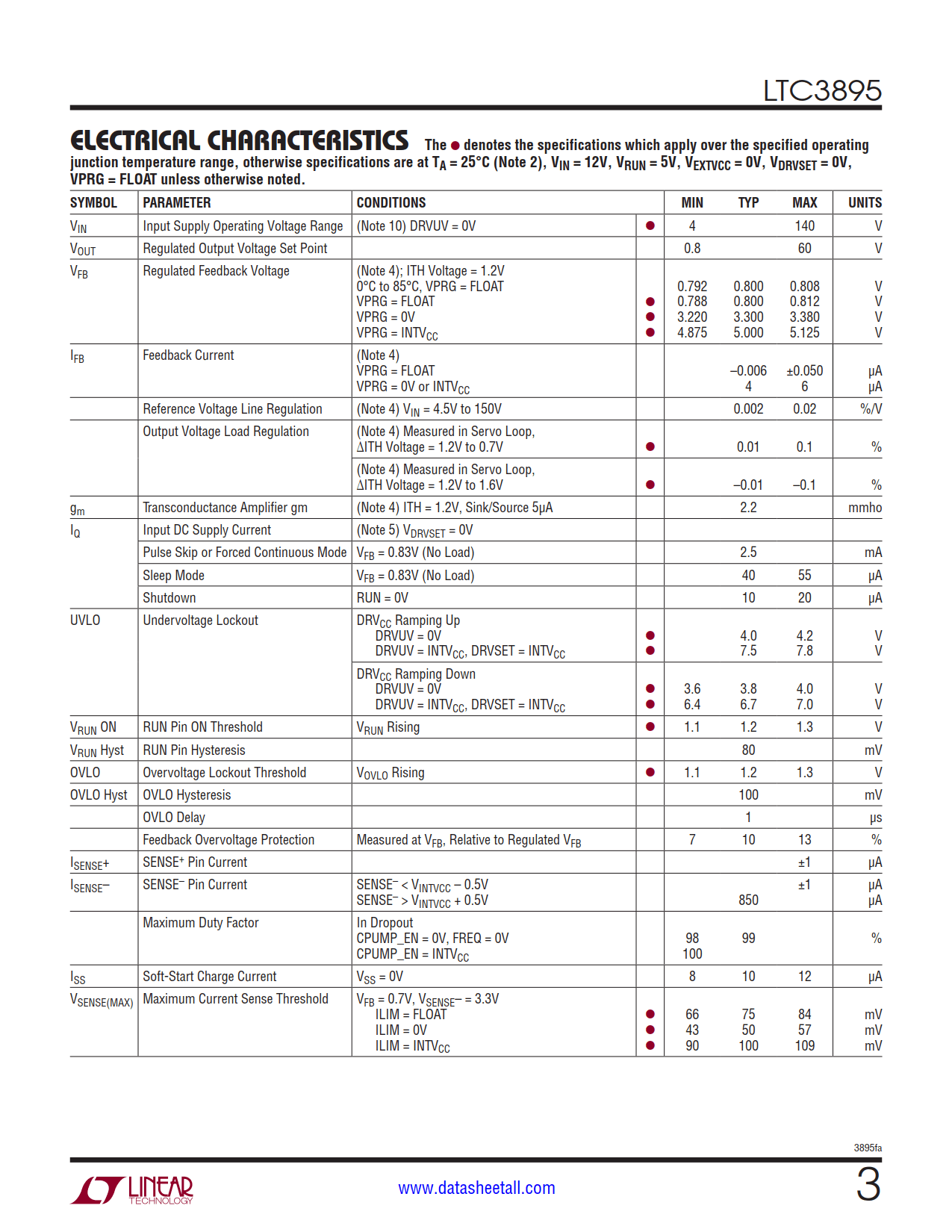

• Wide V_IN Range: 4V to 140V (150V Abs Max)
• Wide Output Voltage Range: 0.8V to 60V

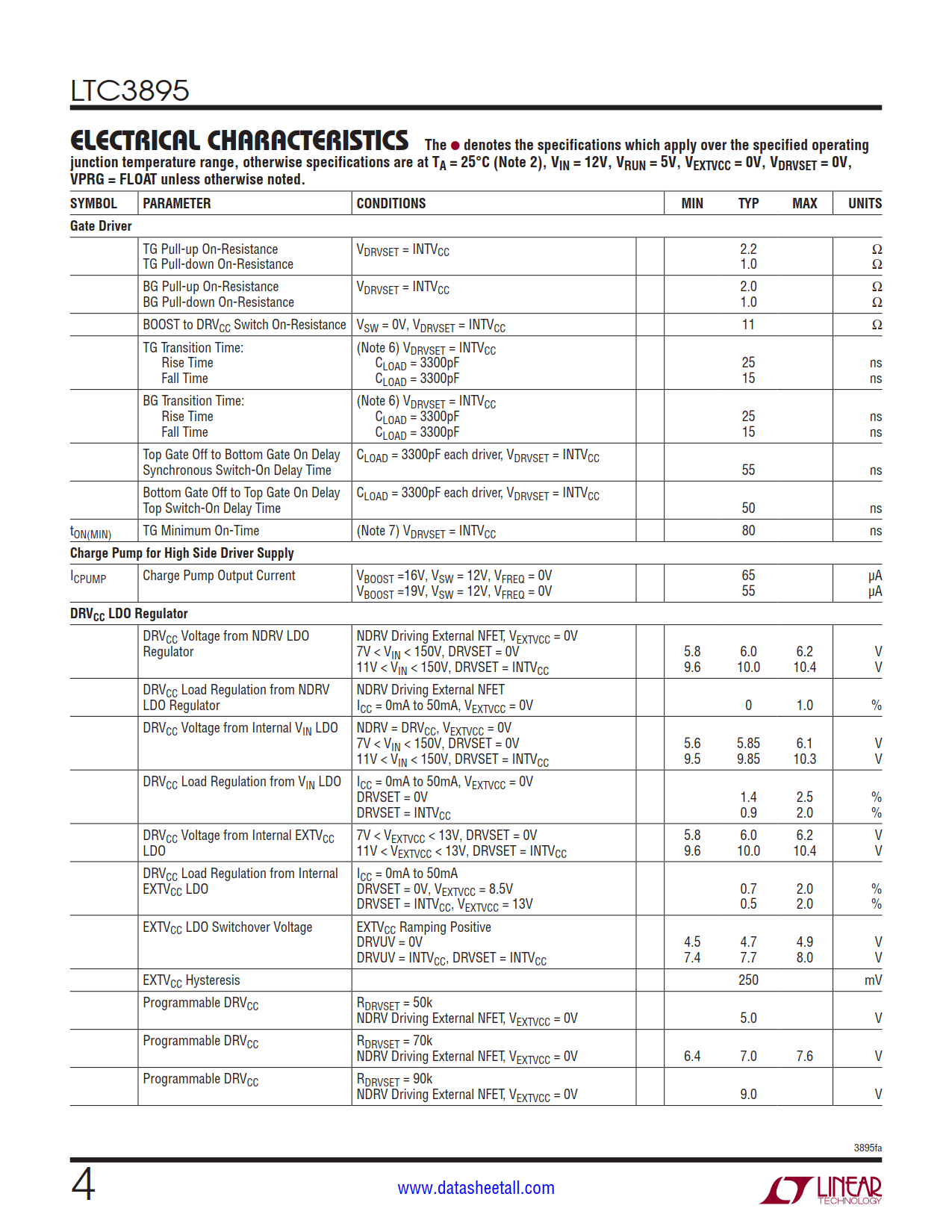

• Adjustable Gate Drive Level: 5V to 10V (OPTI-DRIVE)
• Low Operating I_Q: 40μA (Shutdown = 10μA)
• 100% Duty Cycle Operation
• No External Bootstrap Diode Required
• Selectable Gate Drive UVLO Thresholds
• Onboard LDO or External NMOS LDO for DRV_CC
• EXTV_CC LDO Powers Drivers from V_OUT

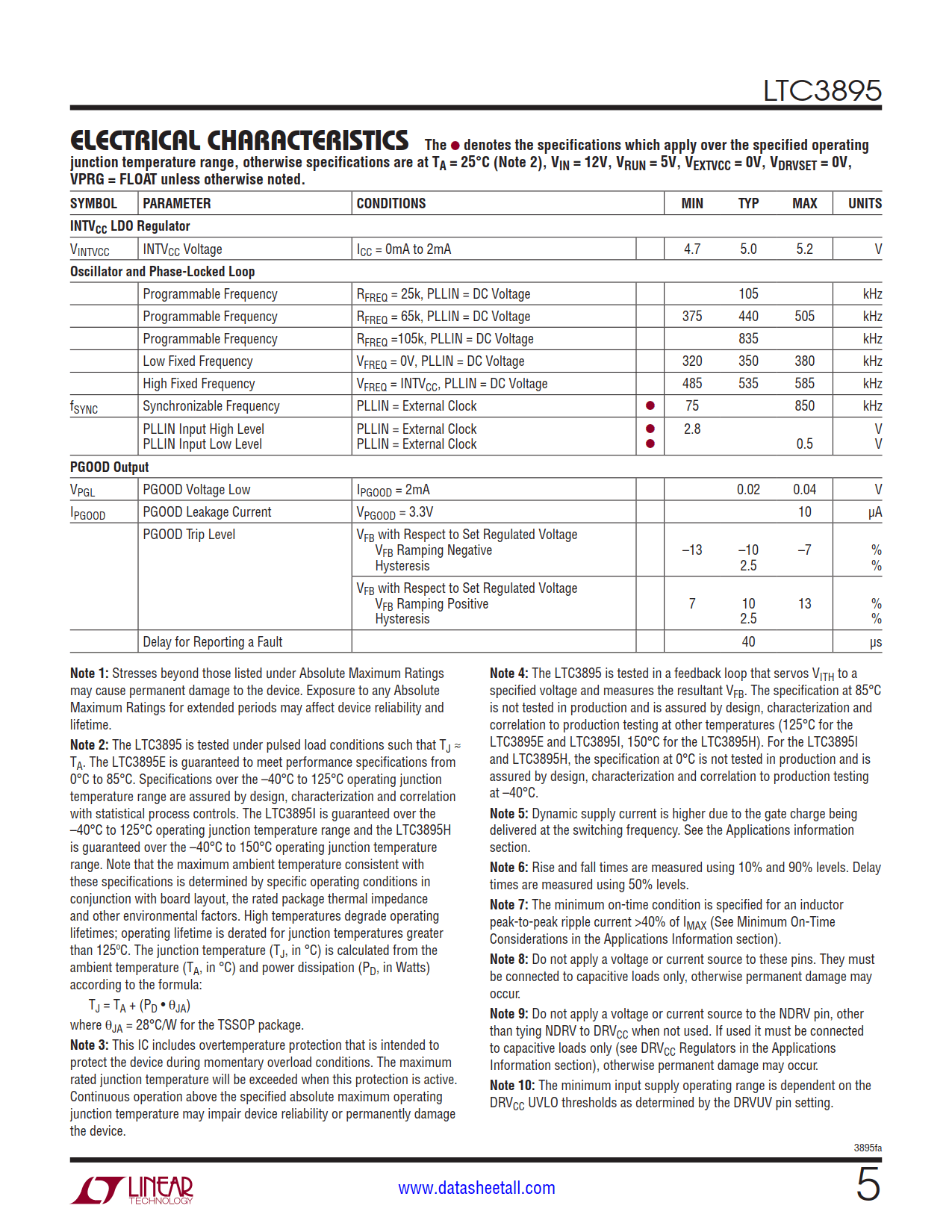

• Phase-Lockable Frequency (75kHz to 850kHz)
• Programmable Fixed Frequency (50kHz to 900kHz)
• Selectable Continuous, Pulse-Skipping or Low Ripple Burst Mode^® Operation at Light Loads
• Adjustable Burst Clamp and Current Limit
• Adjustable or Fixed (5V/3.3V) Output Voltage
• Power Good Output Voltage Monitor
• Programmable Input Overvoltage Lockout

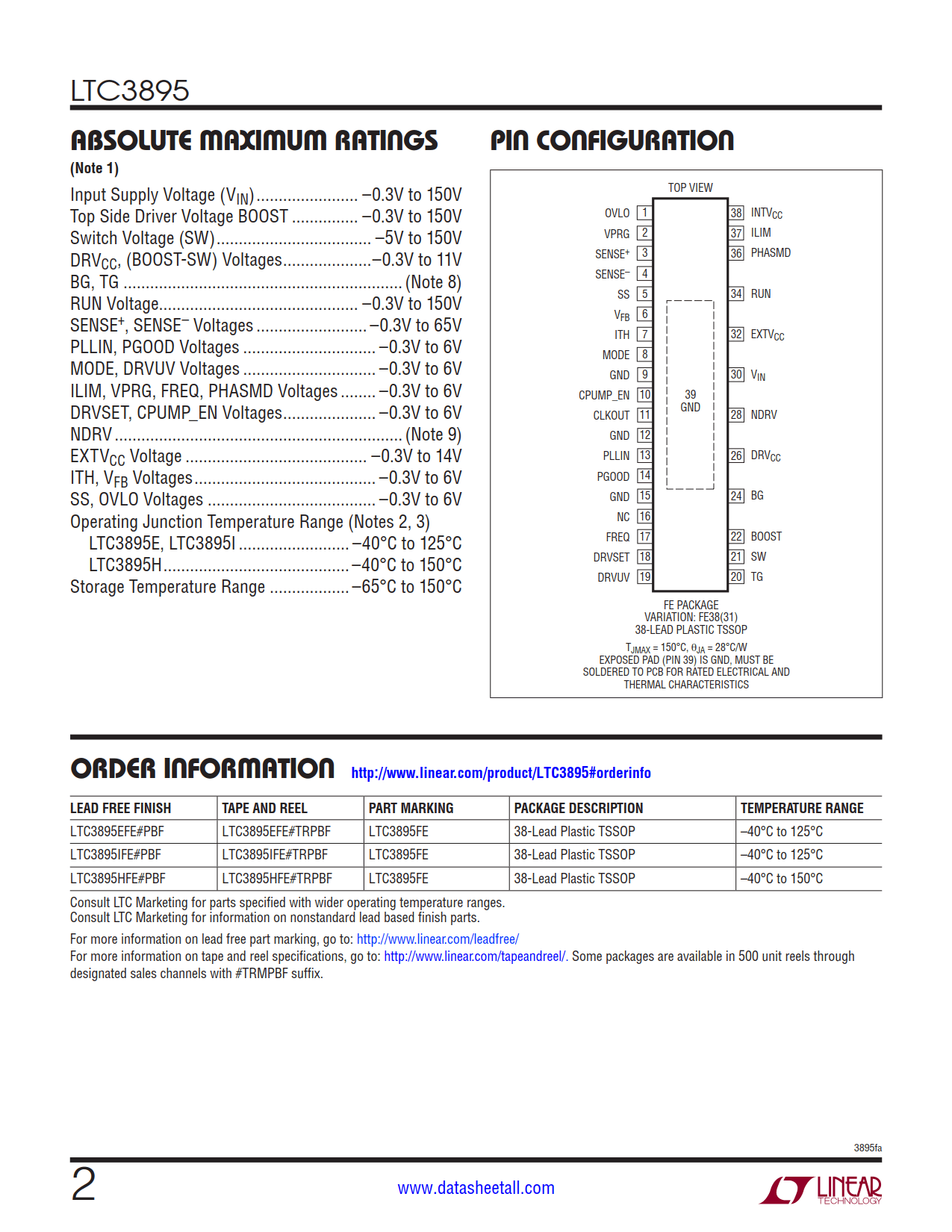

• 38-Lead TSSOP High Voltage Package

• Automotive and Industrial Power Systems
• High Voltage Battery Operated Systems
• Telecommunications Power Systems

The LTC3895 is a high performance step-down switching regulator DC/DC controller that drives an all N-channel synchronous power MOSFET stage that can operate from input voltages up to 140V. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz.

The gate drive voltage can be programmed from 5V to 10V to allow the use of logic or standard-level FETs to maximize efficiency. An integrated switch in the top gate driver eliminates the need for an external bootstrap diode. An internal charge pump allows for 100% duty cycle operation.

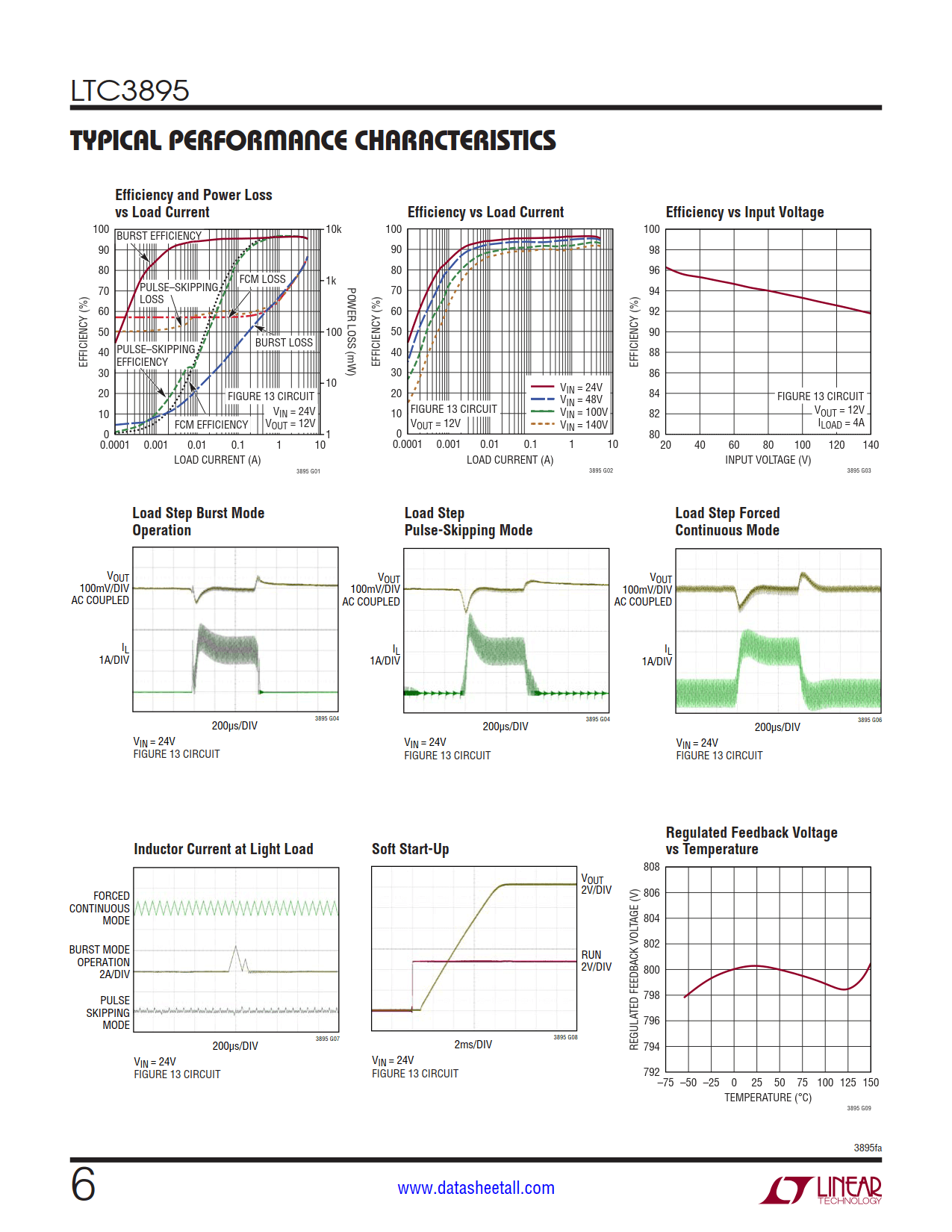

The low 40μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP^® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3895 features a precision 0.8V reference and power good output indicator. The output voltage can be programmed between 0.8V to 60V using external resistors or pin-programmed for a fixed 5V or 3.3V.
