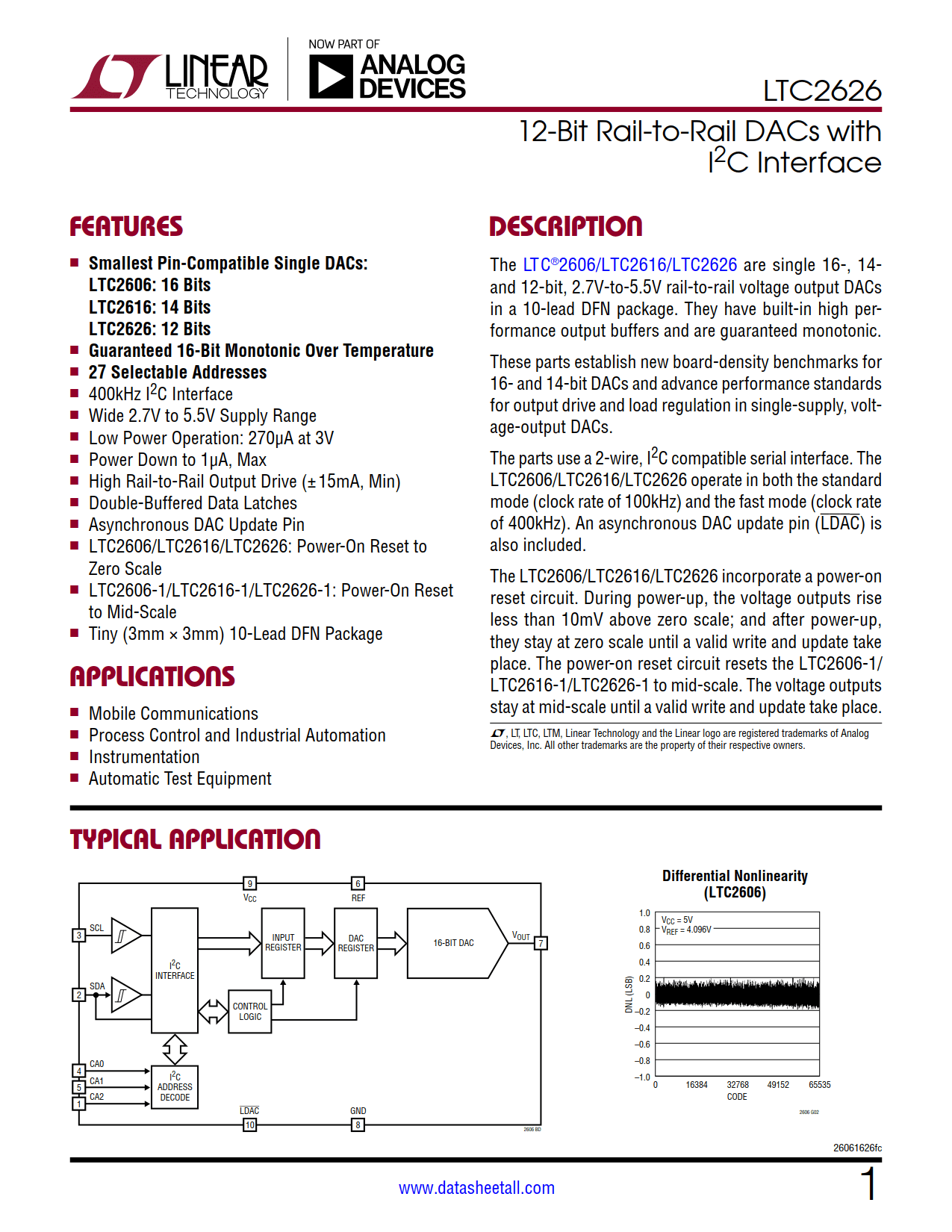

LTC2626 Datasheet

12-Bit Rail-to-Rail DACs with I2C Interface

Part No.:
LTC2626
Manufacturer:
Linear Technology
Page:
20 Pages
Size:
633 KB
Views:
1
Update Time:
2024-03-18 15:27:50

LTC2626 DataSheet Applicable Part

Part No. In Stock Price Packaging SPQ Marking MSL Pins Temp Range Package Description
SPQ:Standard Pack Quantity;MSL:Moisture Sensitivity Level

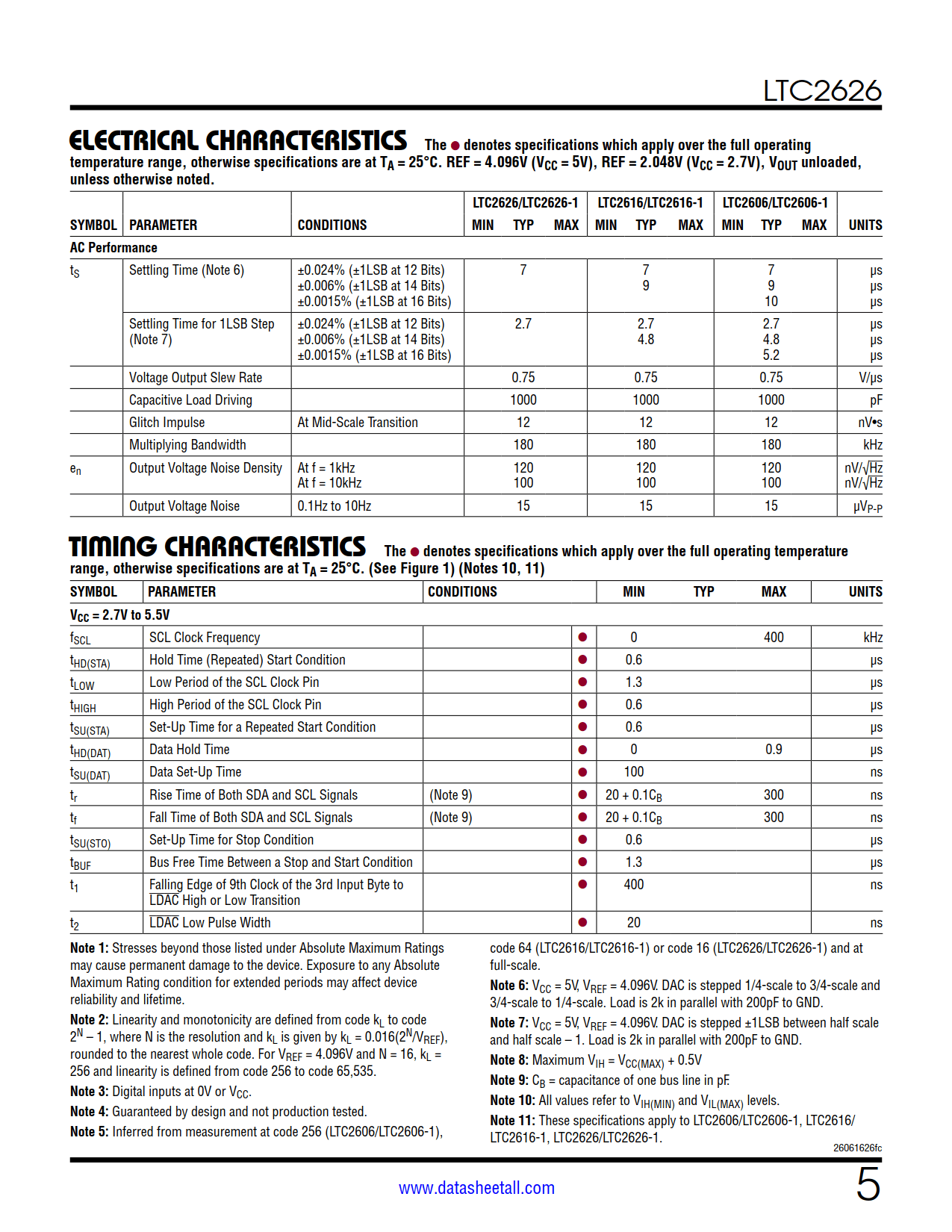

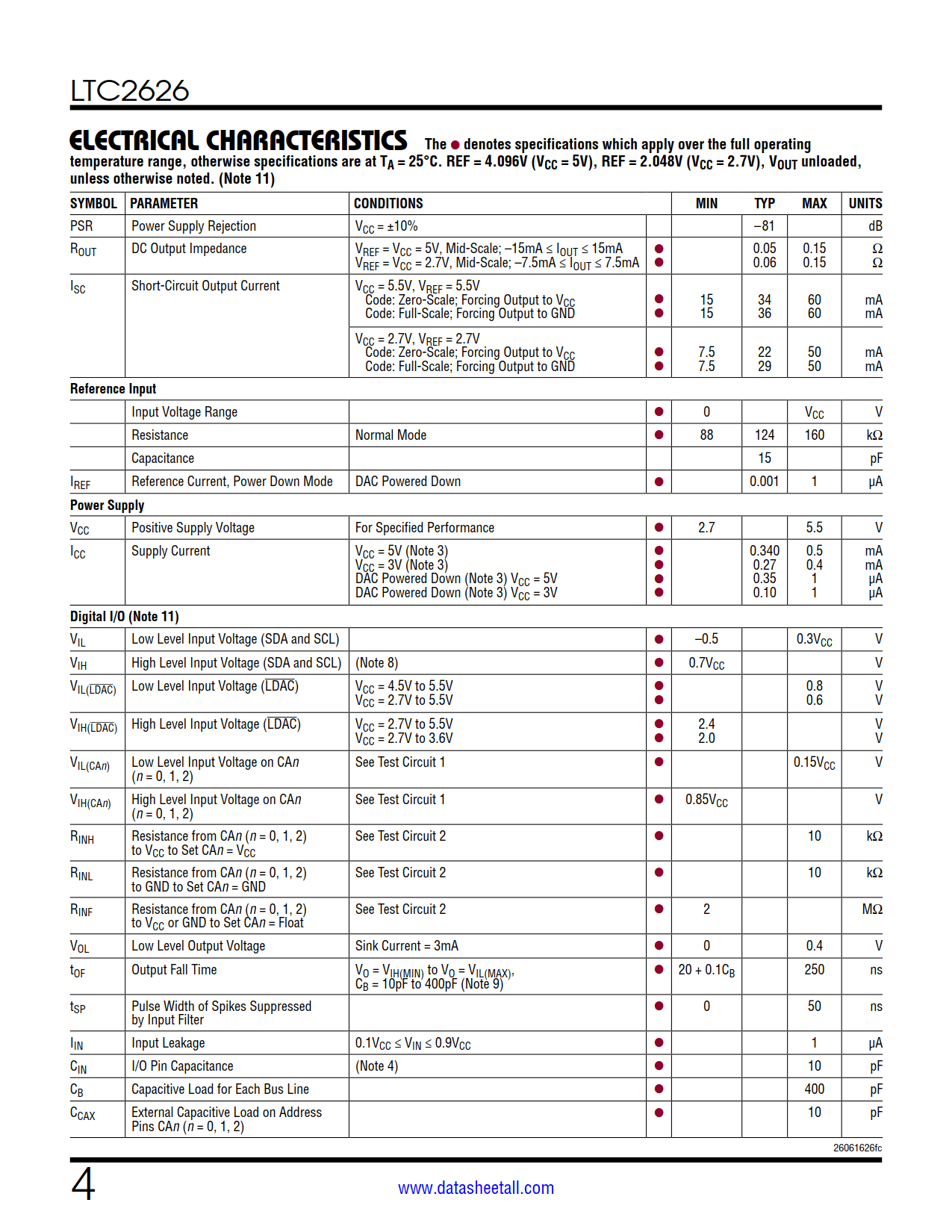

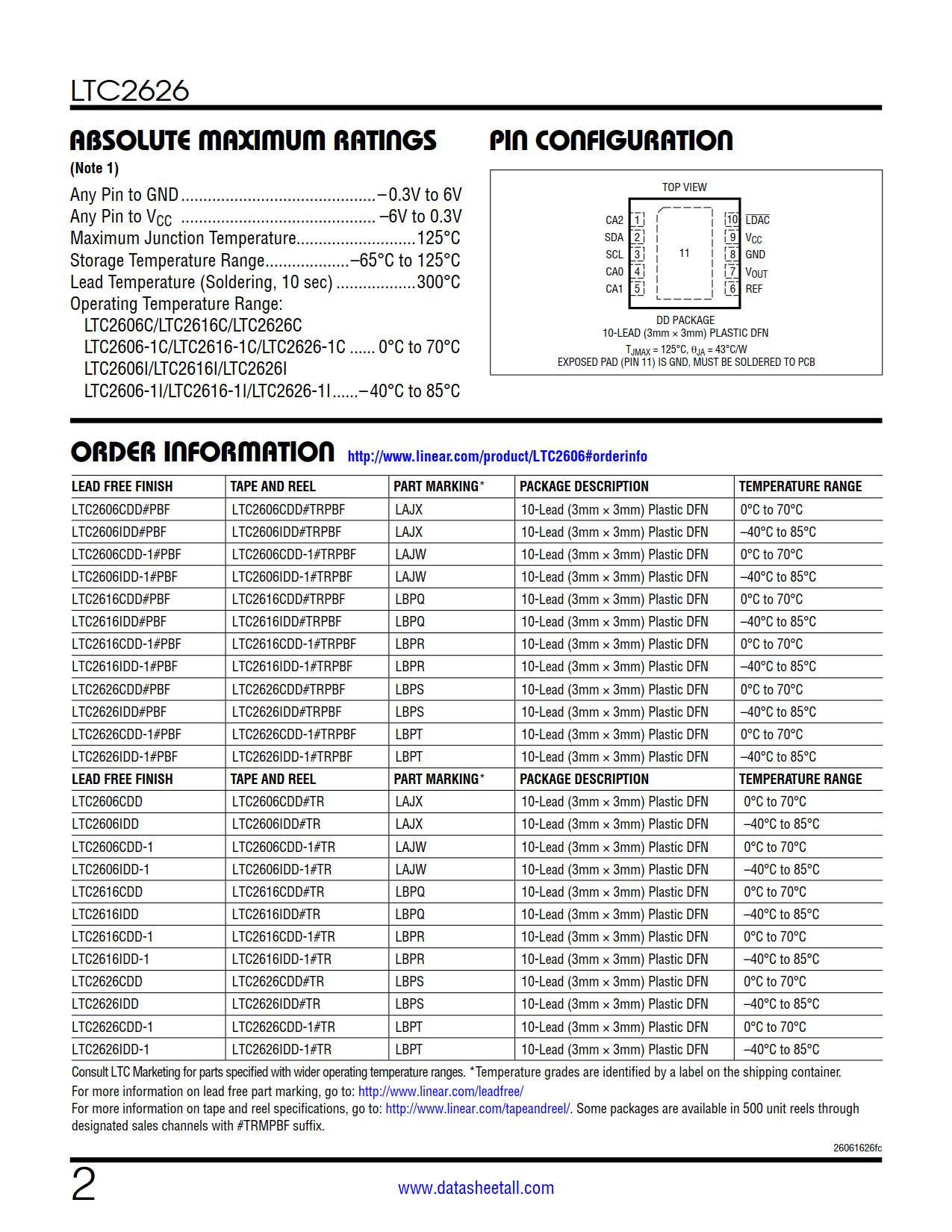

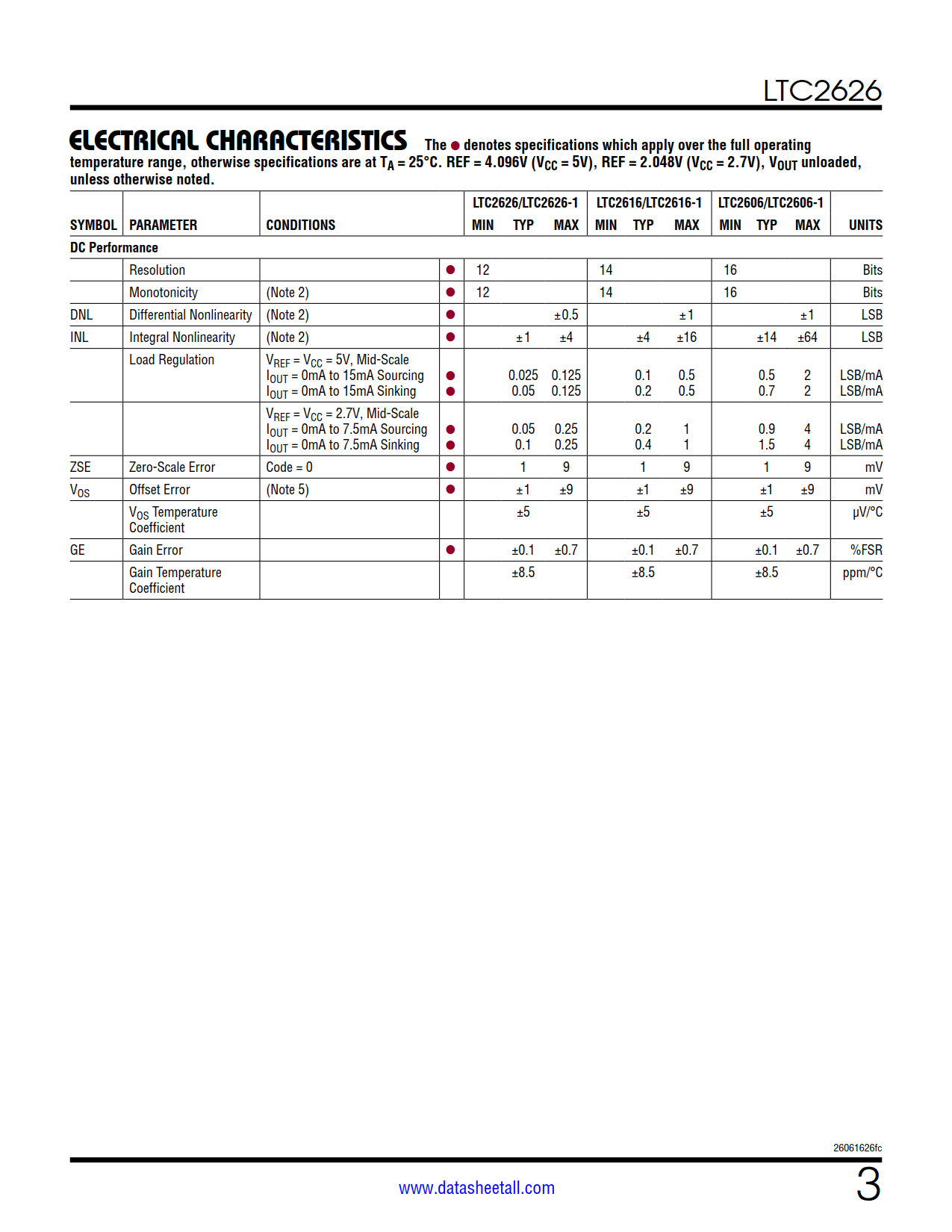

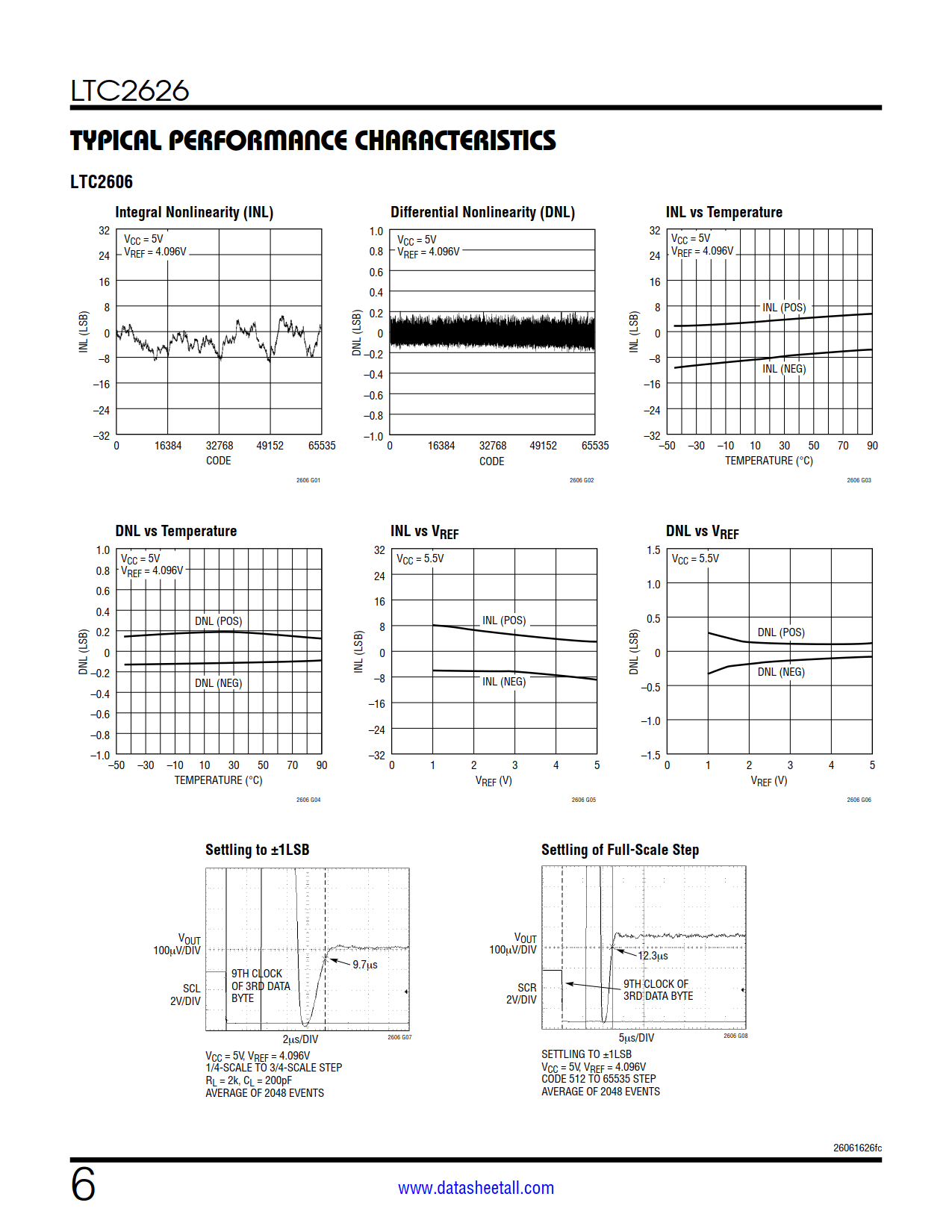

LTC2626 DataSheet PDF

LTC2626 Features

  • Smallest Pin-Compatible Single DACs:
    • LTC2626: 12 Bits
  • Guaranteed 16-Bit Monotonic Over Temperature
  • 27 Selectable Addresses
  • 400kHz I2C Interface
  • Wide 2.7V to 5.5V Supply Range
  • Low Power Operation: 270µA at 3V
  • Power Down to 1µA, Max
  • High Rail-to-Rail Output Drive (±15mA, Min)
  • Double-Buffered Data Latches
  • Asynchronous DAC Update Pin
  • LTC2626: Power-On Reset to Zero Scale
  • LTC2626-1: Power-On Reset to Midscale
  • Tiny (3mm × 3mm) 10-Lead DFN Package

LTC2626 Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment

LTC2626 Description

The LTC2626 are single 12-bit, 2.7V-to-5.5V rail-to-rail voltage output DACs in a 10-lead DFN package. They have built-in high performance output buffers and are guaranteed monotonic.

These parts establish new board-density benchmarks for 16- and 14-bit DACs and advance performance standards for output drive and load regulation in single-supply, voltage-output DACs.

The parts use a 2-wire, I2C compatible serial interface. The LTC2626 operate in both the standard mode (clock rate of 100kHz) and the fast mode (clock rate of 400kHz). An asynchronous DAC update pin (LDAC) is also included.

The LTC2626 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale; and after power-up, they stay at zero scale until a valid write and update take place. The power-on reset circuit resets the LTC2626-1 to midscale. The voltage outputs stay at midscale until a valid write and update take place.
