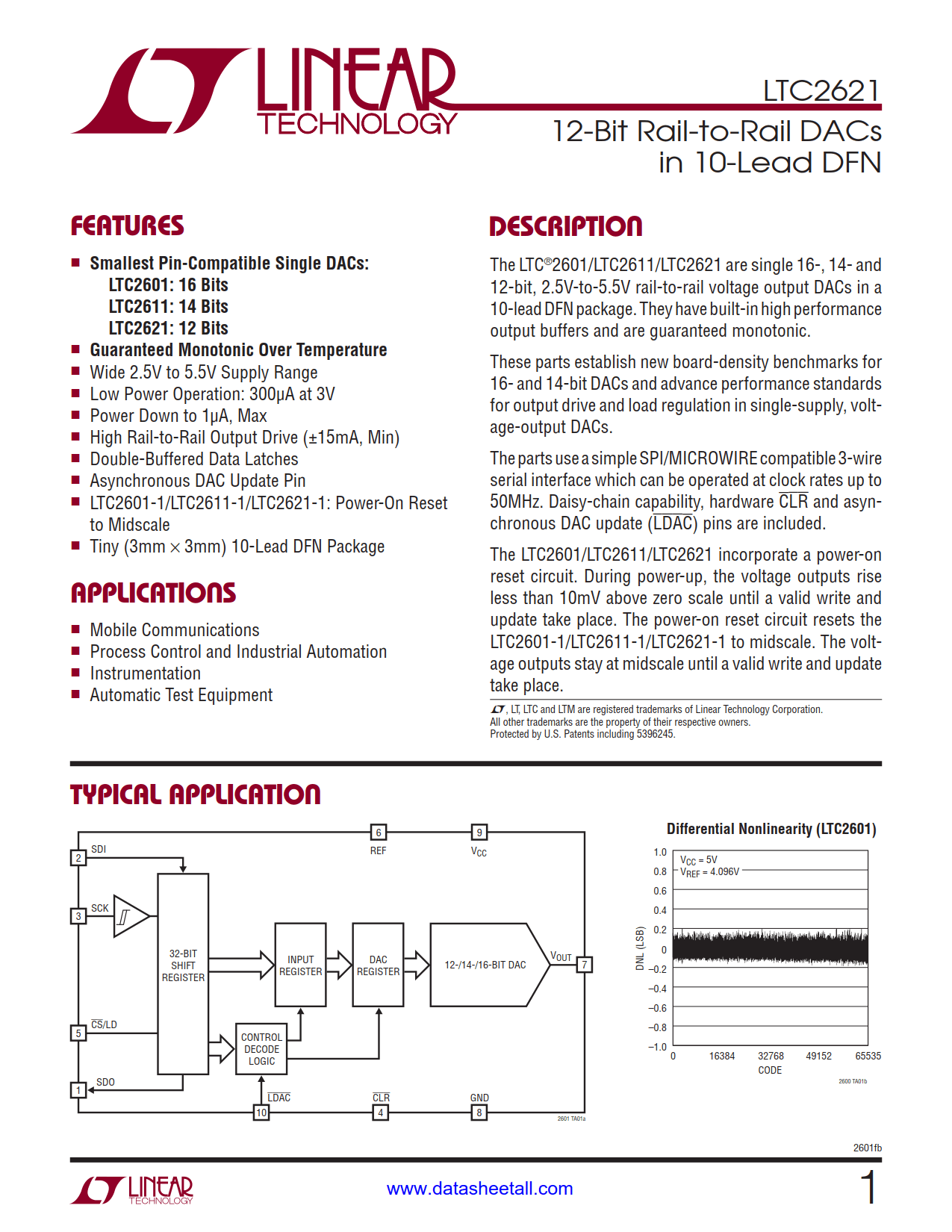

LTC2621 Datasheet

• Smallest Pin-Compatible Single DACs:
  • LTC2621: 12 Bits
• Guaranteed Monotonic Over Temperature
• Wide 2.5V to 5.5V Supply Range
• Low Power Operation: 300µA at 3V
• Power Down to 1µA, Max
• High Rail-to-Rail Output Drive (±15mA, Min)
• Double-Buffered Data Latches
• Asynchronous DAC Update Pin
• LTC2621-1: Power-On Reset to Midscale
• Tiny (3mm x 3mm) 10-Lead DFN Package

• Mobile Communications
• Process Control and Industrial Automation
• Instrumentation
• Automatic Test Equipment

The LTC2621 are single 12-bit, 2.5V-to-5.5V rail-to-rail voltage output DACs in a 10-lead DFN package. They have built-in high performance output buffers and are guaranteed monotonic.

These parts establish new board-density benchmarks for 16- and 14-bit DACs and advance performance standards for output drive and load regulation in single-supply, voltage-output DACs.

The parts use a simple SPI/MICROWIRE compatible 3-wire serial interface which can be operated at clock rates up to 50MHz. Daisy-chain capability, hardware CLR and asynchronous DAC update (LDAC) pins are included.

The LTC2621 incorporate a power-on reset circuit. During power-up, the voltage outputs rise less than 10mV above zero scale until a valid write and update take place. The power-on reset circuit resets the LTC2621-1 to midscale. The voltage outputs stay at midscale until a valid write and update take place.
