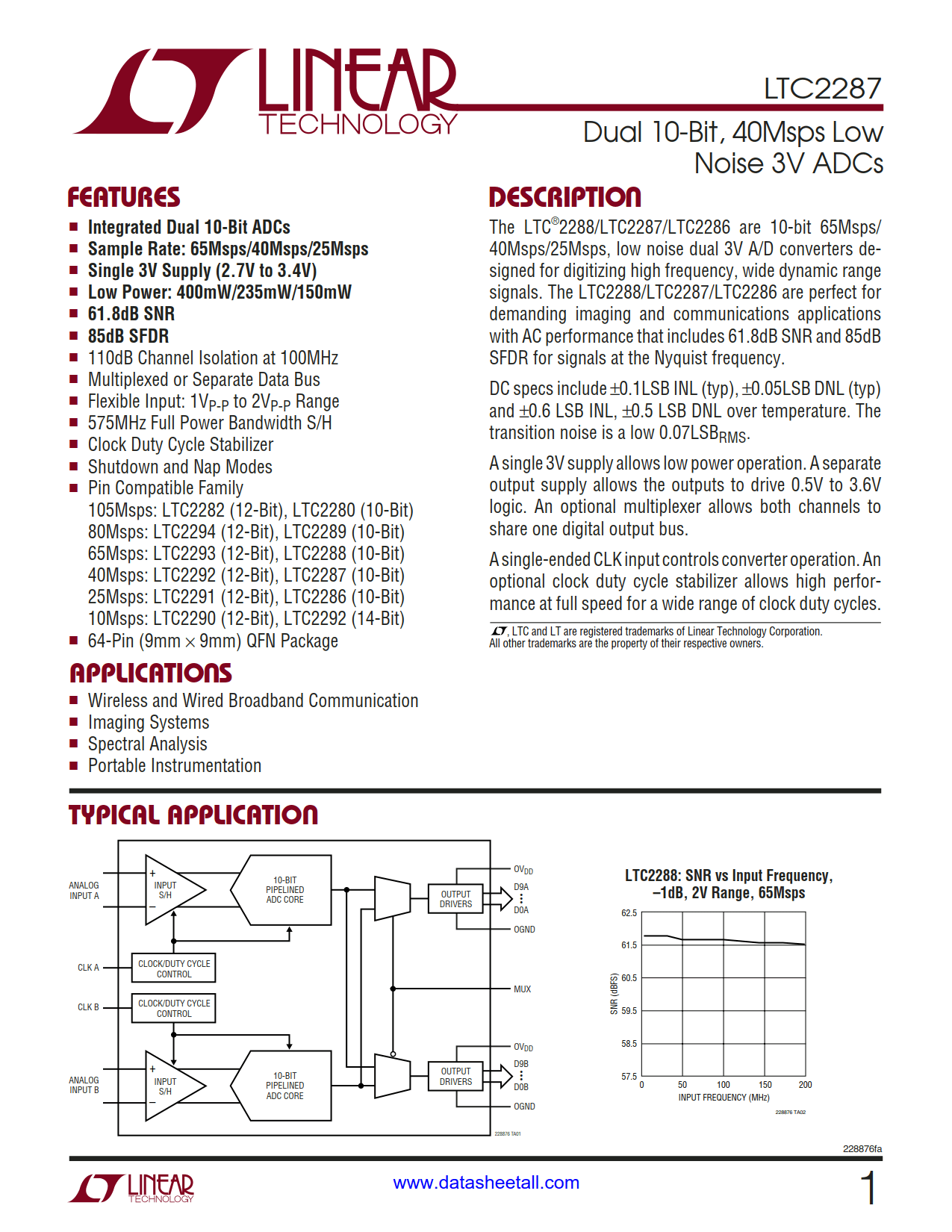

LTC2287 Datasheet

• Integrated Dual 10-Bit ADCs
• Sample Rate: 40Msps
• Single 3V Supply (2.7V to 3.4V)
• Low Power: 400mW/235mW/150mW
• 61.8dB SNR
• 85dB SFDR
• 110dB Channel Isolation at 100MHz
• Multiplexed or Separate Data Bus
• Flexible Input: 1V_P-P to 2V_P-P Range
• 575MHz Full Power Bandwidth S/H
• Clock Duty Cycle Stabilizer
• Shutdown and Nap Modes
• Pin Compatible Family
  • 105Msps: LTC2282 (12-Bit), LTC2280 (10-Bit)
  • 80Msps: LTC2294 (12-Bit), LTC2289 (10-Bit)
  • 65Msps: LTC2293 (12-Bit), LTC2288 (10-Bit)
  • 40Msps: LTC2292 (12-Bit), LTC2287 (10-Bit)
  • 25Msps: LTC2291 (12-Bit), LTC2286 (10-Bit)

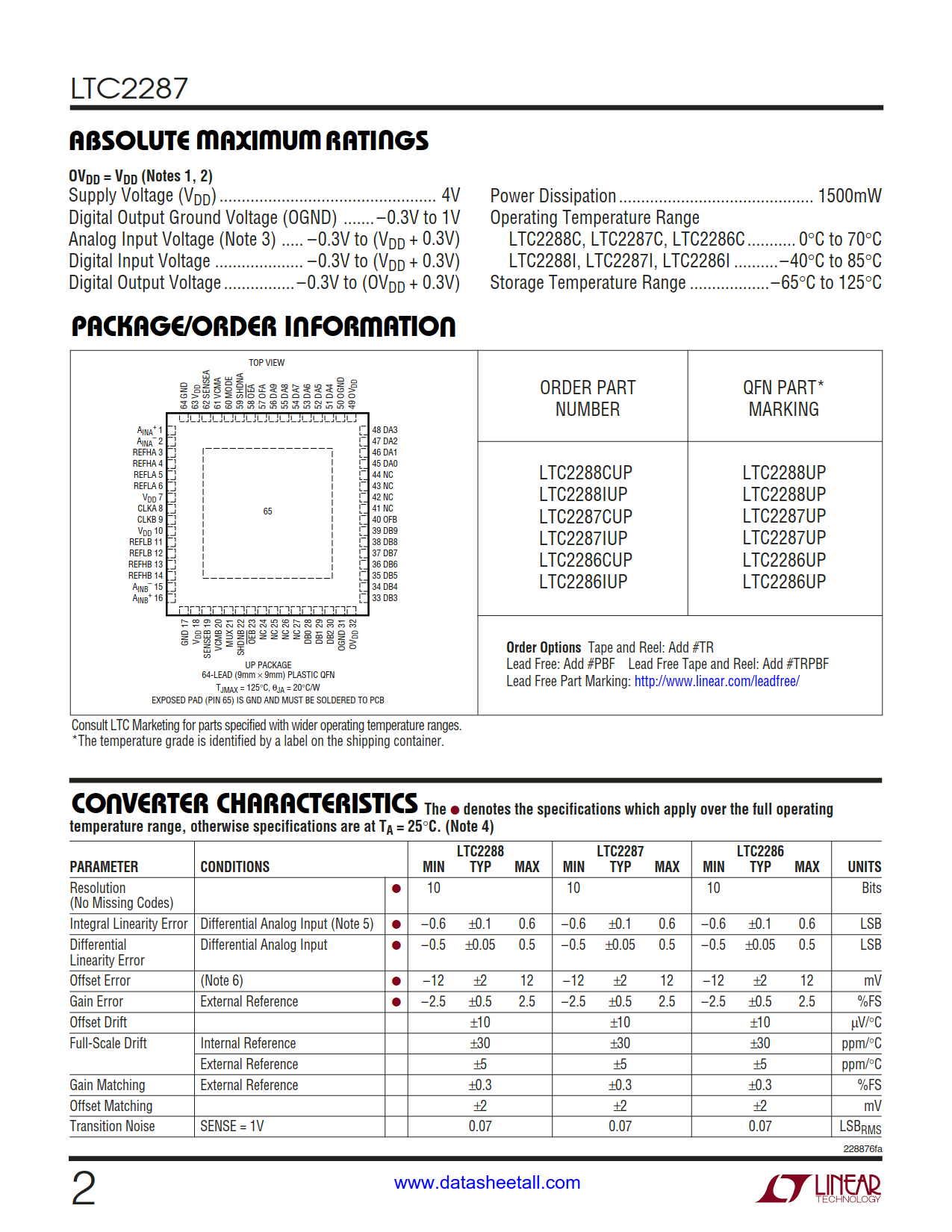

• 64-Pin (9mm × 9mm) QFN Package

• Wireless and Wired Broadband Communication
• Imaging Systems
• Spectral Analysis
• Portable Instrumentation

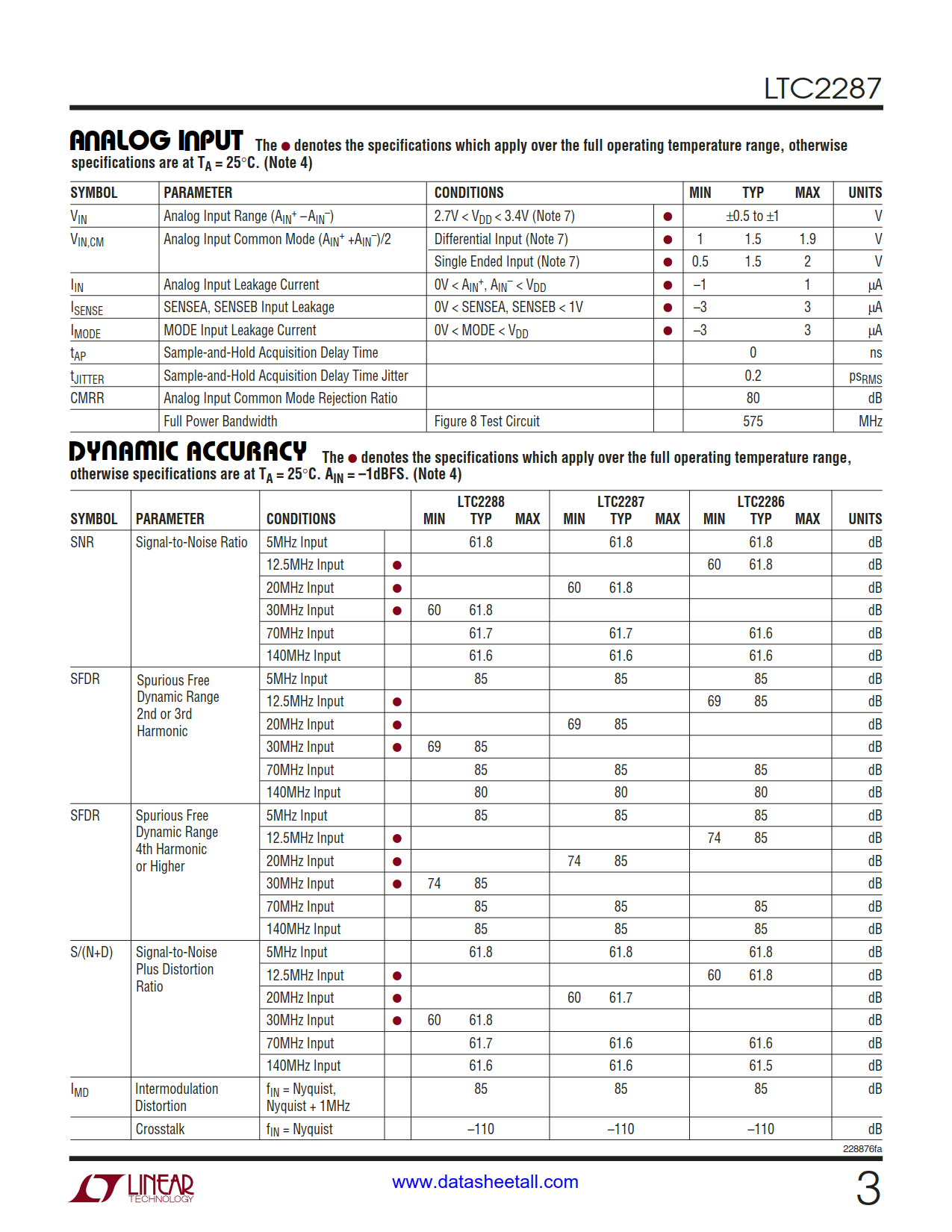

The LTC2287 are 10-bit 40Msps, low noise dual 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2287 are perfect for demanding imaging and communications applications with AC performance that includes 61.8dB SNR and 85dB SFDR for signals at the Nyquist frequency.

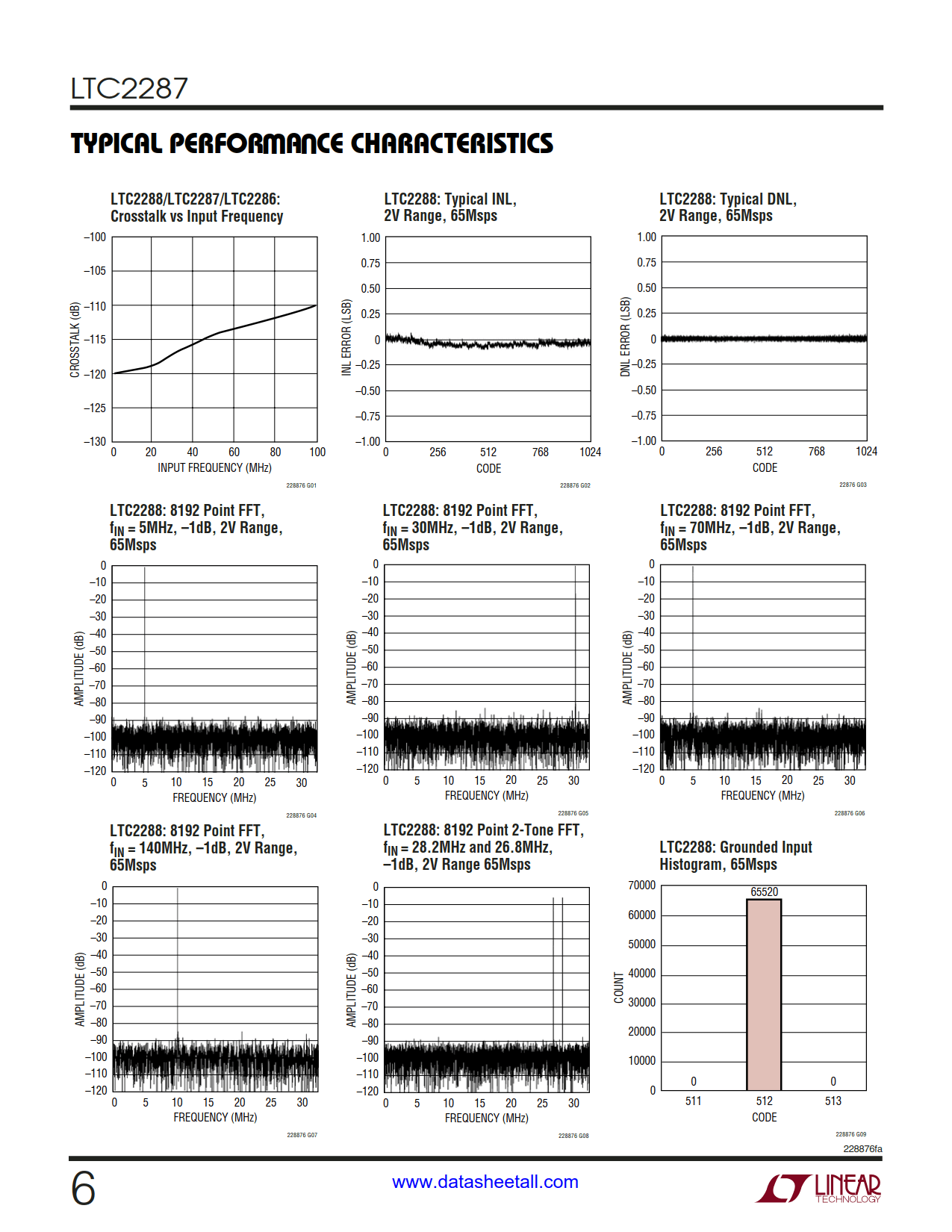

DC specs include ±0.1LSB INL (typ), ±0.05LSB DNL (typ) and ±0.6 LSB INL, ±0.5 LSB DNL over temperature. The transition noise is a low 0.07LSB_RMS.

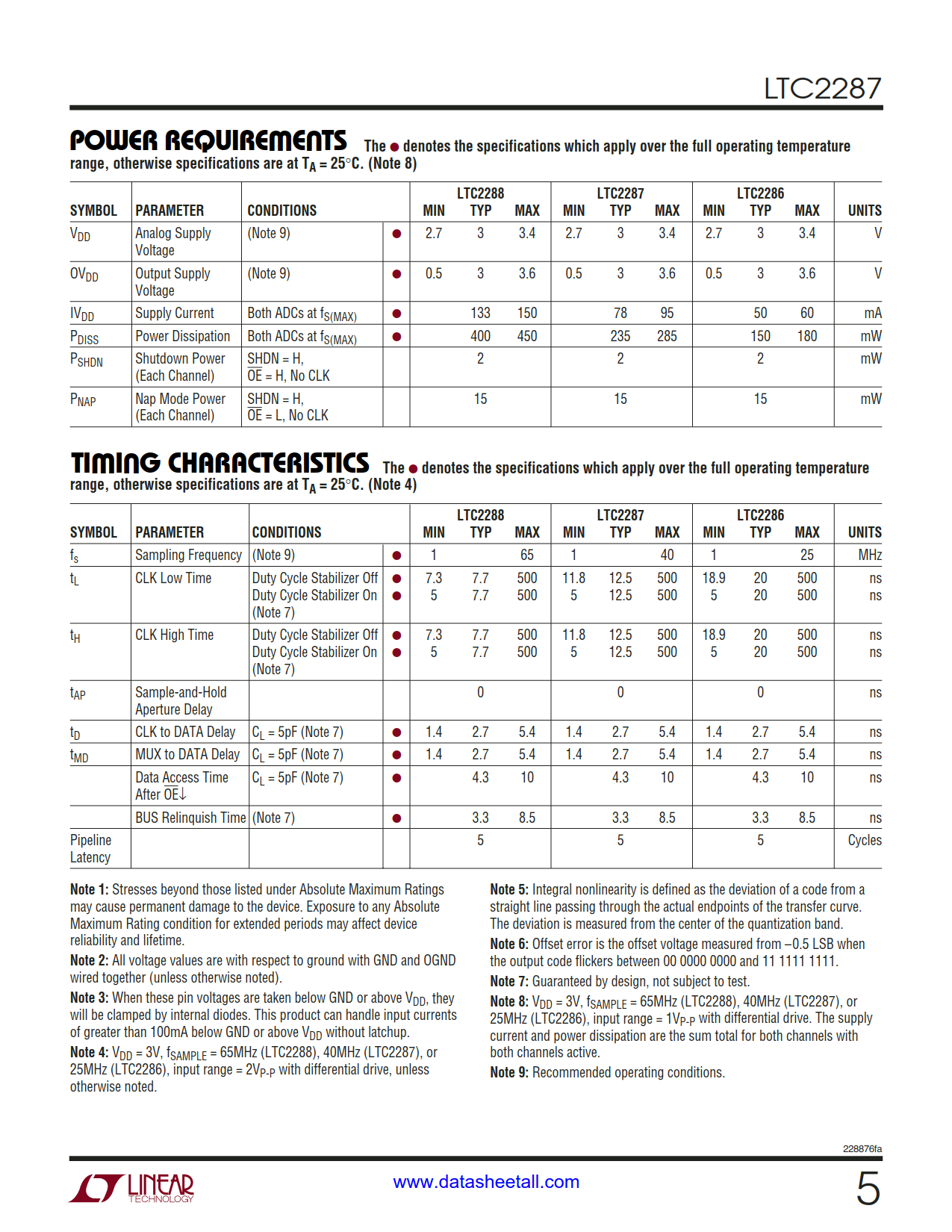

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.6V logic. An optional multiplexer allows both channels to share one digital output bus.

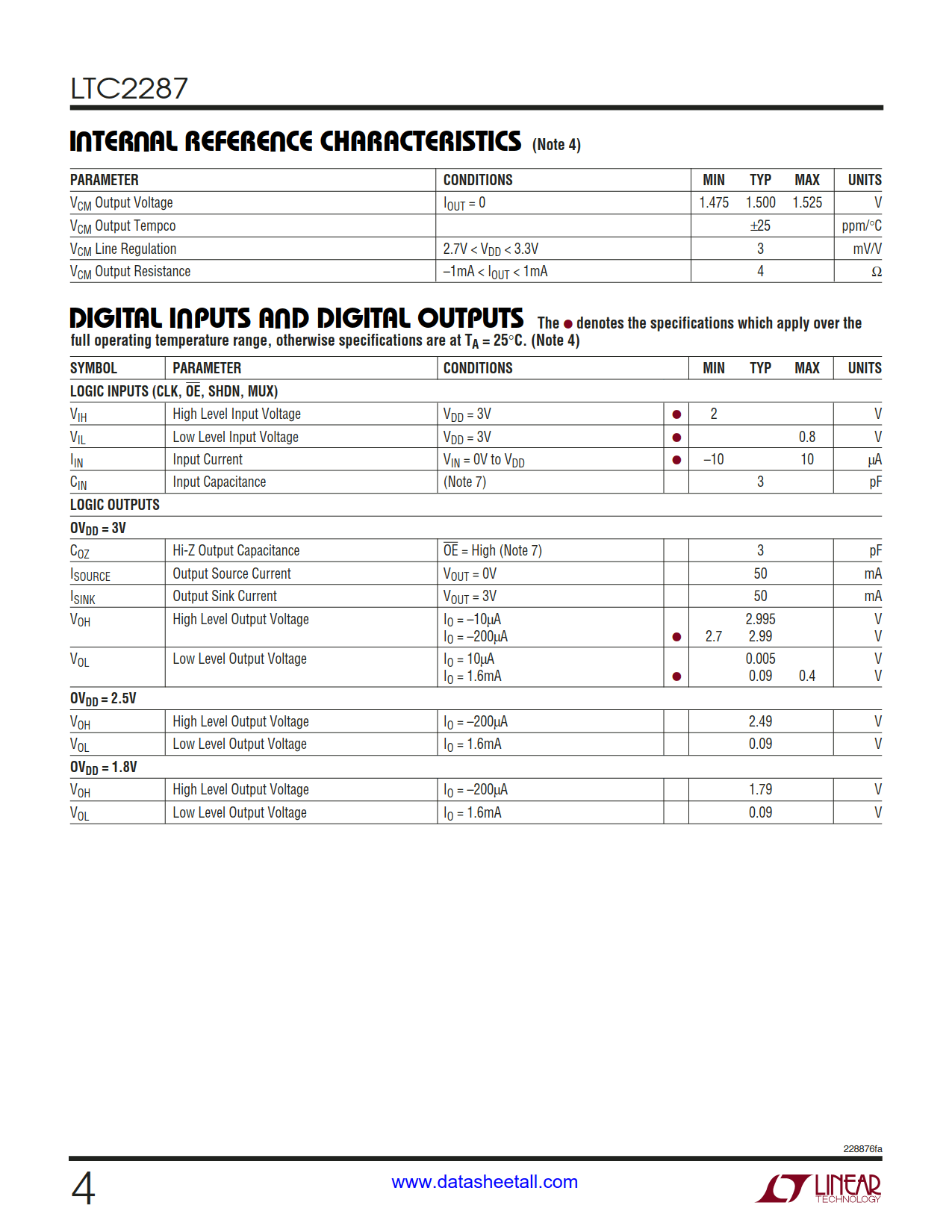

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
