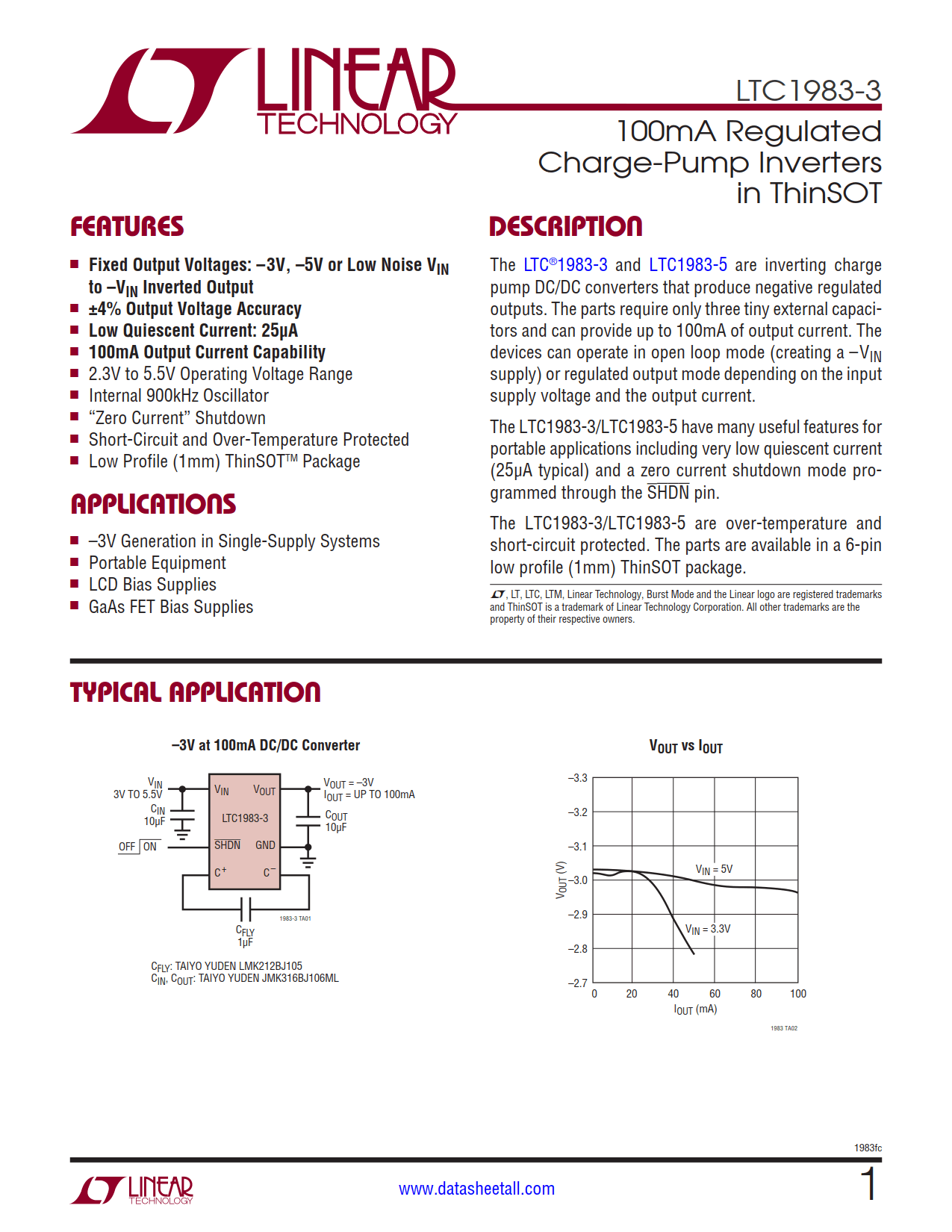

LTC1983-3 Datasheet

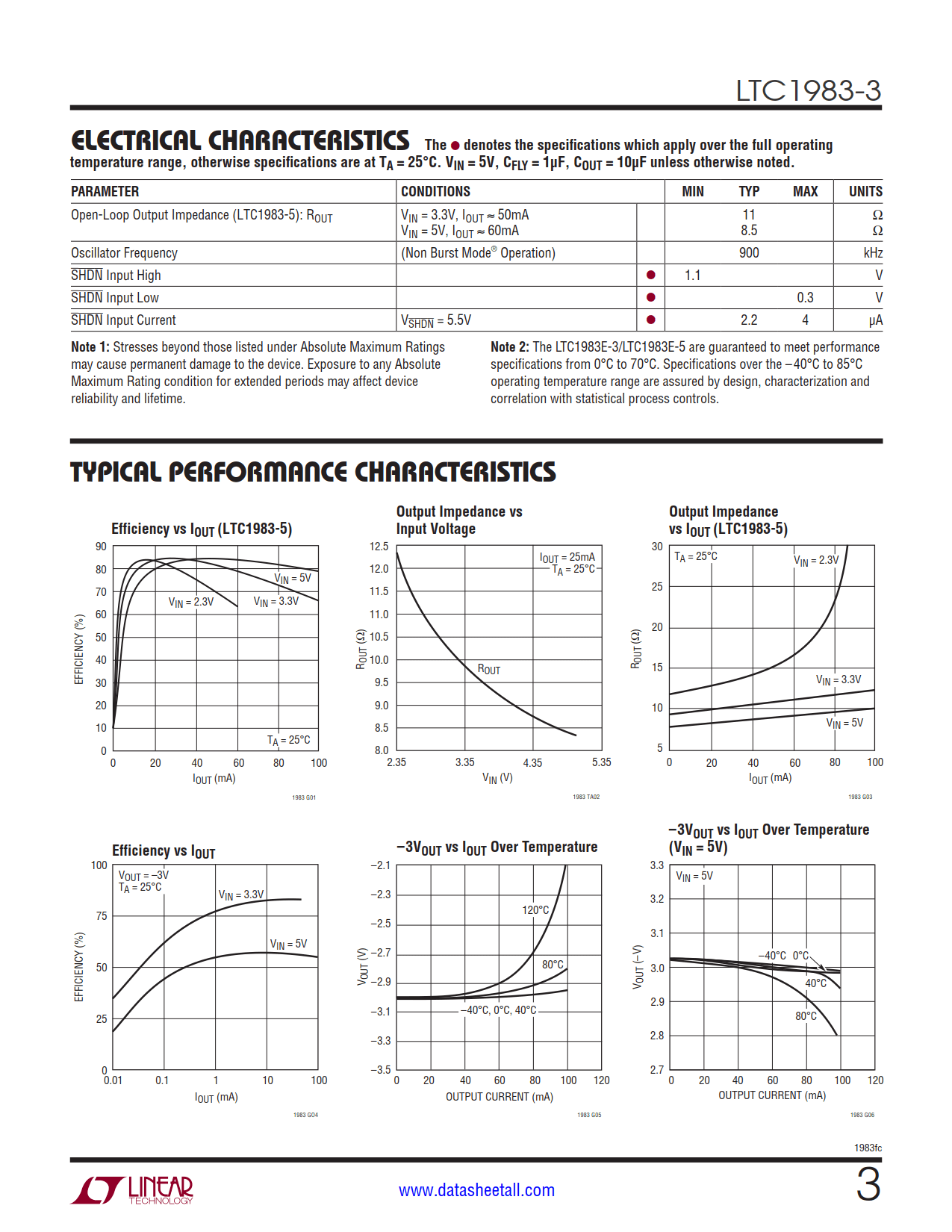

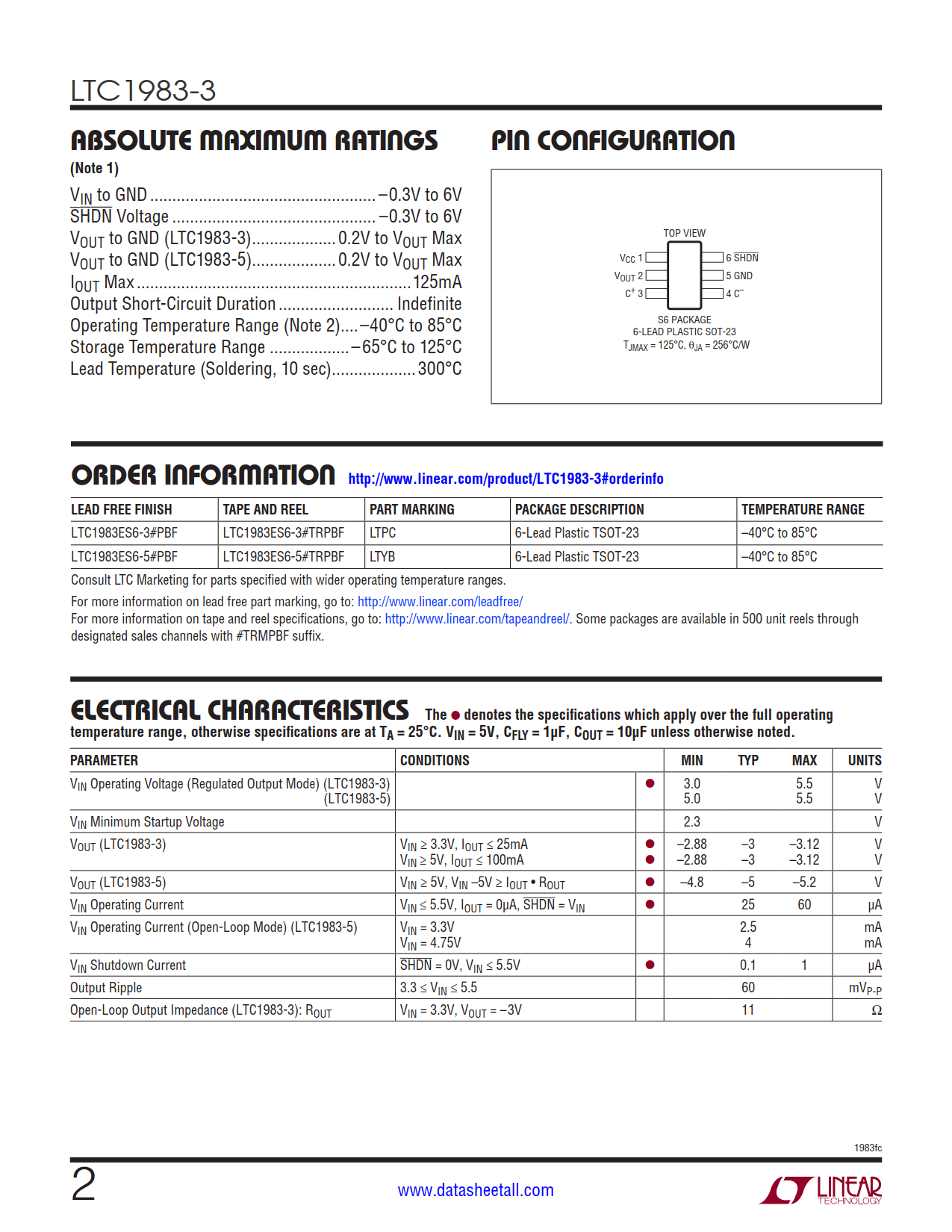

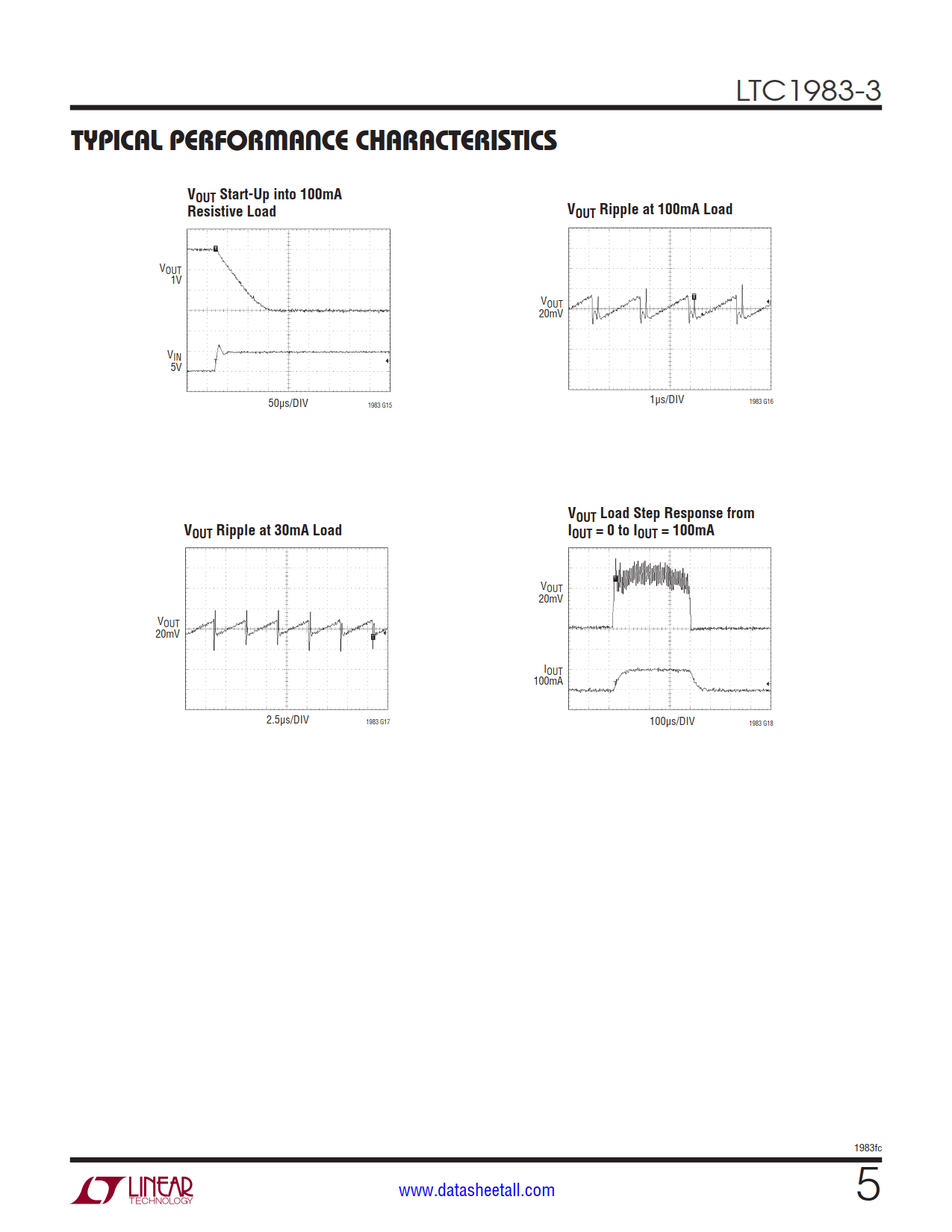

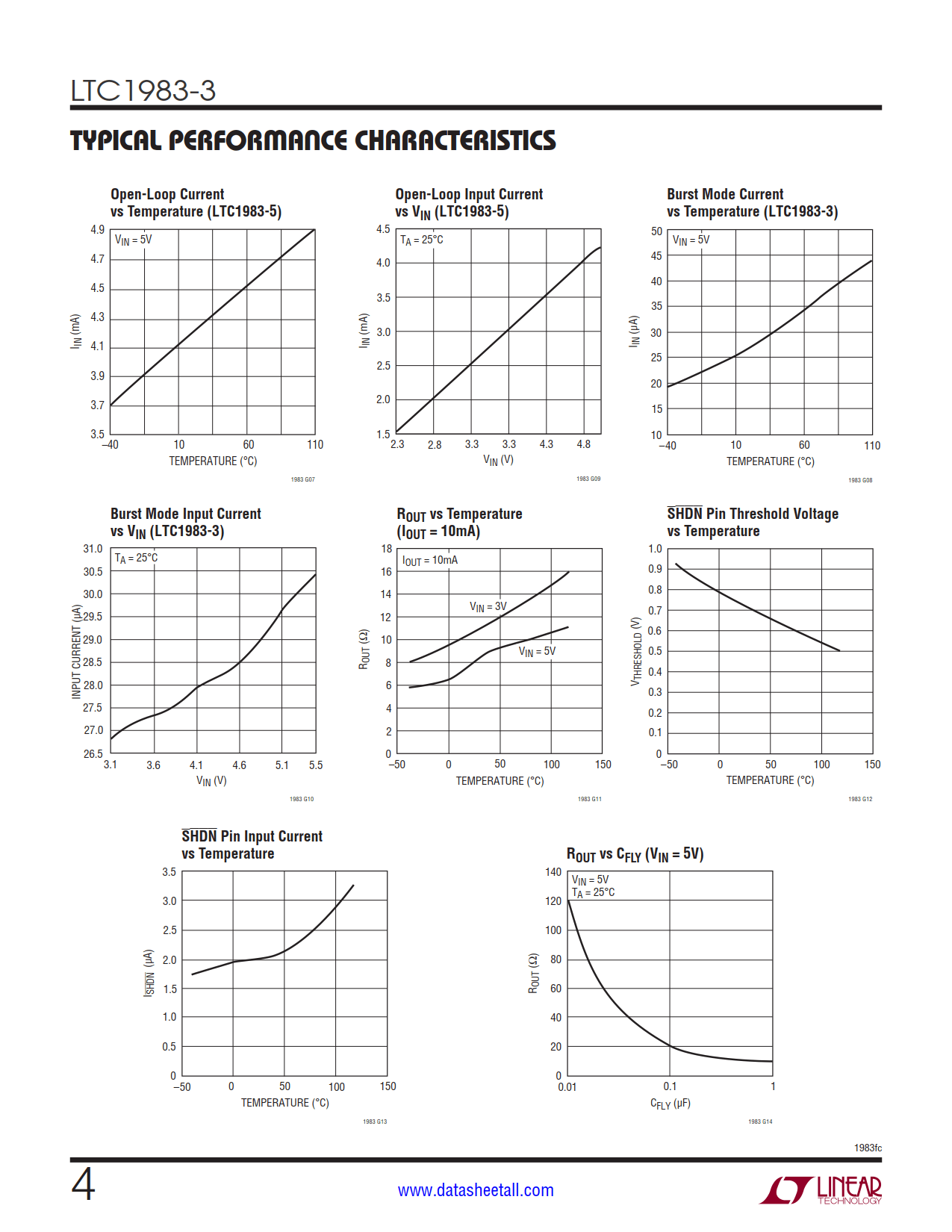

• Fixed Output Voltages: –3V, –5V or Low Noise V_IN to –V_IN Inverted Output
• ±4% Output Voltage Accuracy
• Low Quiescent Current: 25µA
• 100mA Output Current Capability
• 2.3V to 5.5V Operating Voltage Range
• Internal 900kHz Oscillator
• "Zero Current" Shutdown
• Short-Circuit and Over-Temperature Protected
• Low Profile (1mm) ThinSOT^™ Package

• –3V Generation in Single-Supply Systems
• Portable Equipment
• LCD Bias Supplies
• GaAs FET Bias Supplies

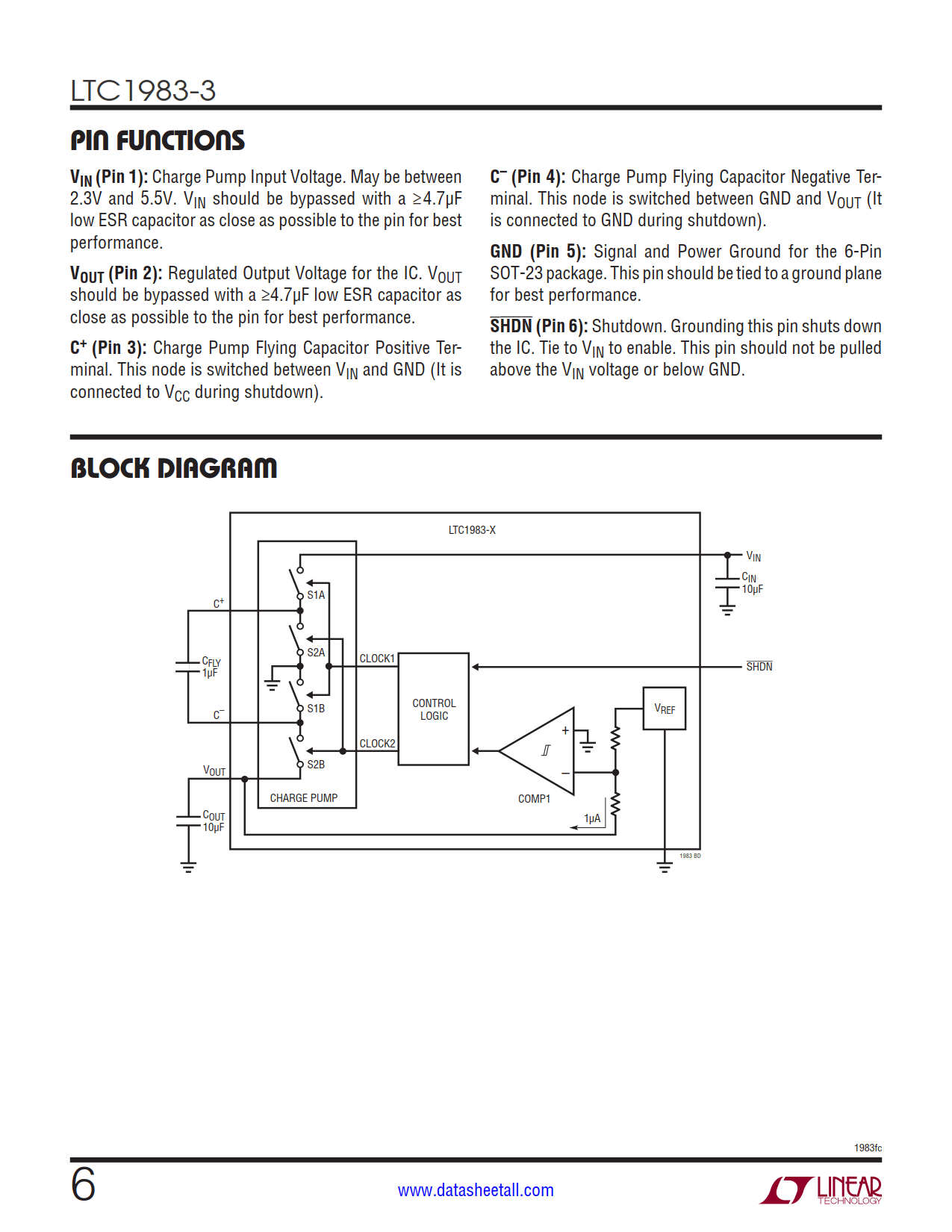

The LTC1983-3 are inverting charge pump DC/DC converters that produce negative regulated outputs. The parts require only three tiny external capacitors and can provide up to 100mA of output current. The devices can operate in open loop mode (creating a –V_IN supply) or regulated output mode depending on the input supply voltage and the output current.

The LTC1983-3 have many useful features for portable applications including very low quiescent current (25µA typical) and a zero current shutdown mode programmed through the SHDN pin.

The LTC1983-3 are over-temperature and short-circuit protected. The parts are available in a 6-pin low profile (1mm) ThinSOT package.
