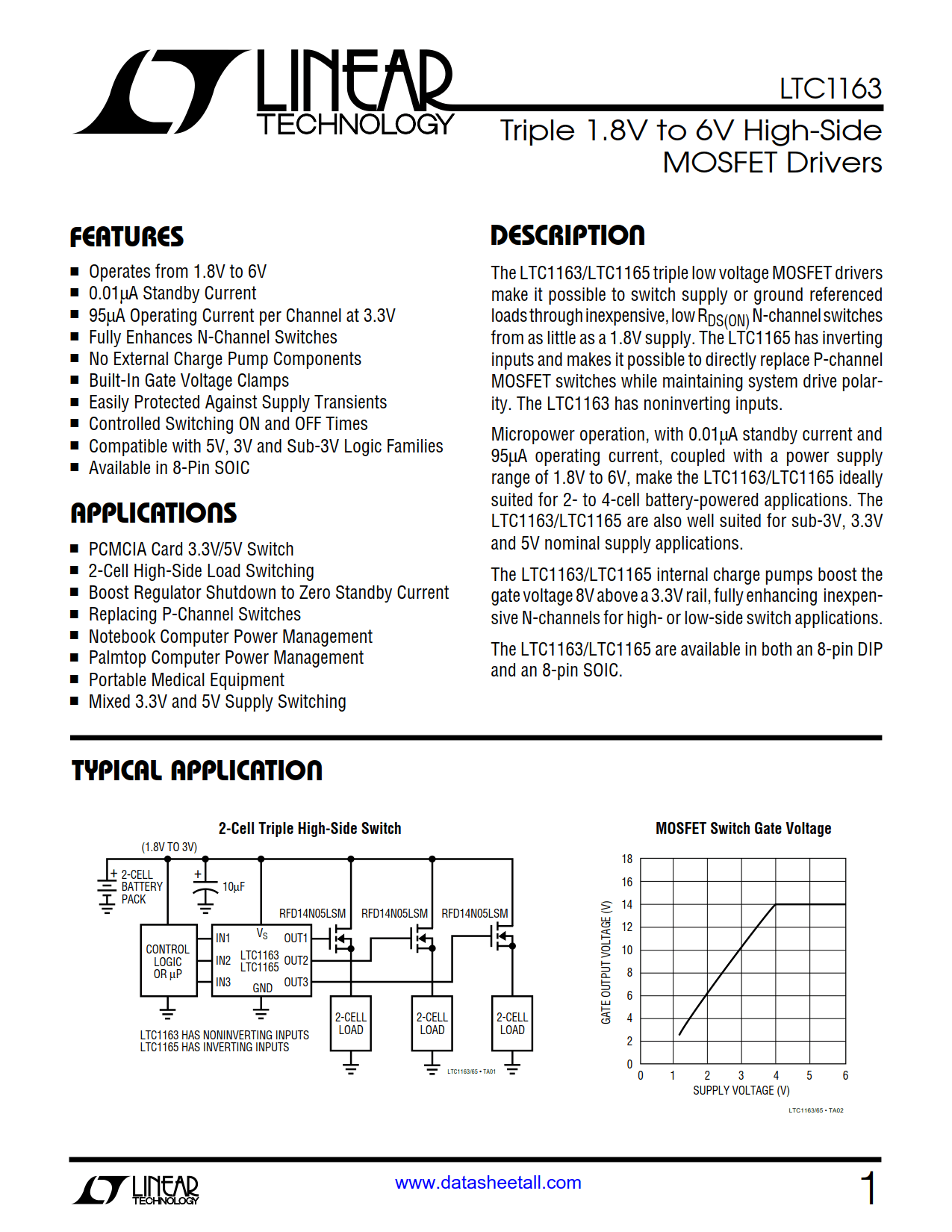

LTC1163 Datasheet

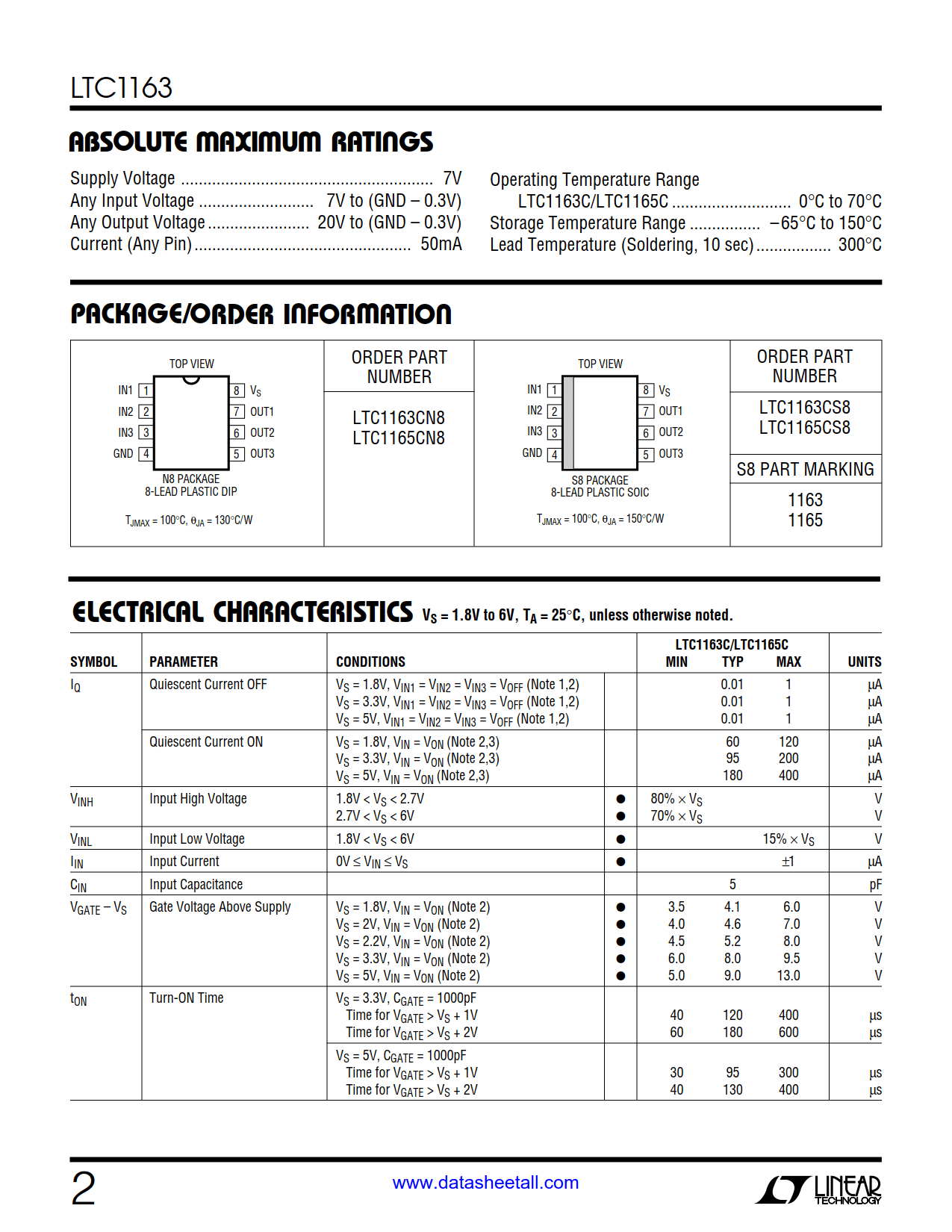

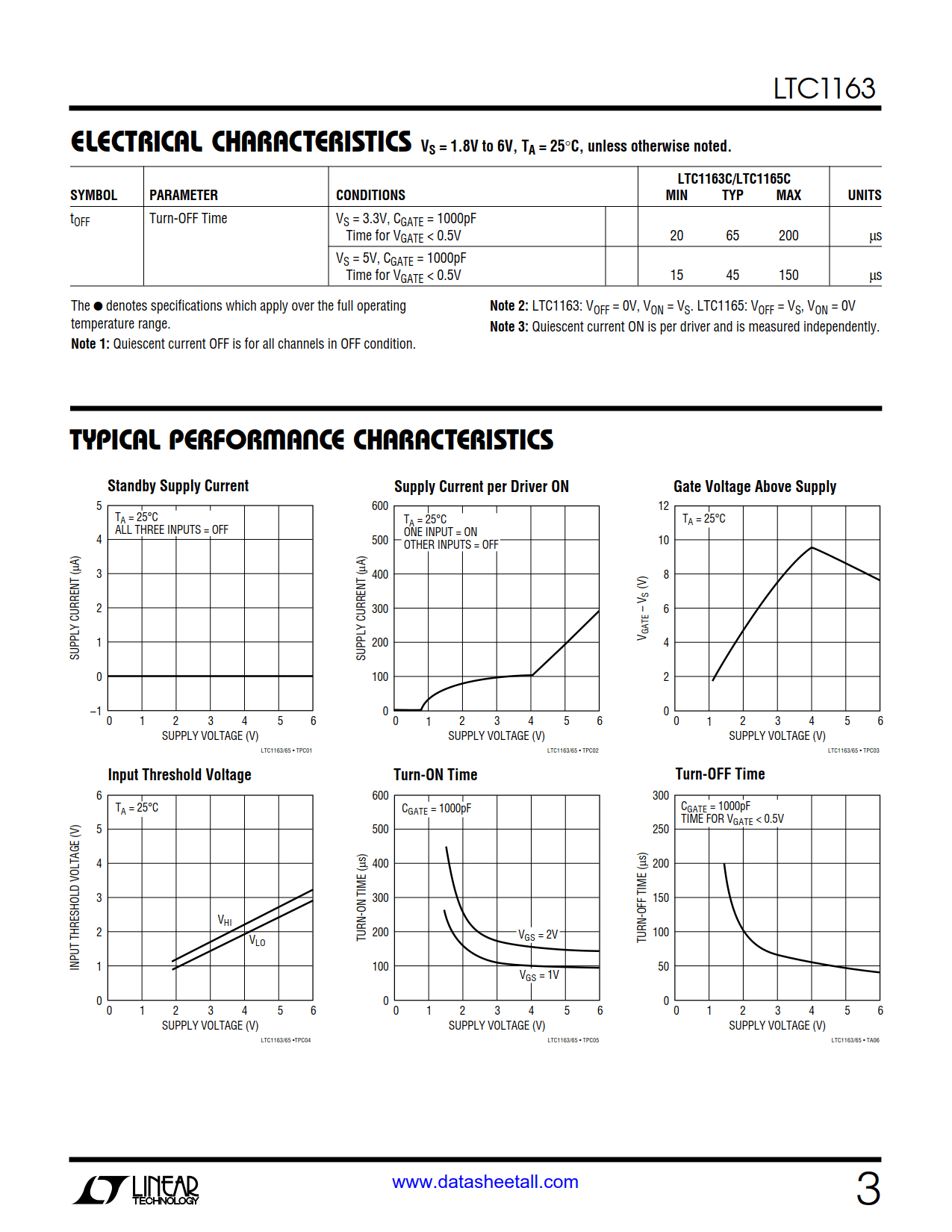

• Operates from 1.8V to 6V
• 0.01µA Standby Current
• 95µA Operating Current per Channel at 3.3V
• Fully Enhances N-Channel Switches
• No External Charge Pump Components
• Built-In Gate Voltage Clamps
• Easily Protected Against Supply Transients
• Controlled Switching ON and OFF Times
• Compatible with 5V, 3V and Sub-3V Logic Families
• Available in 8-Pin SOIC

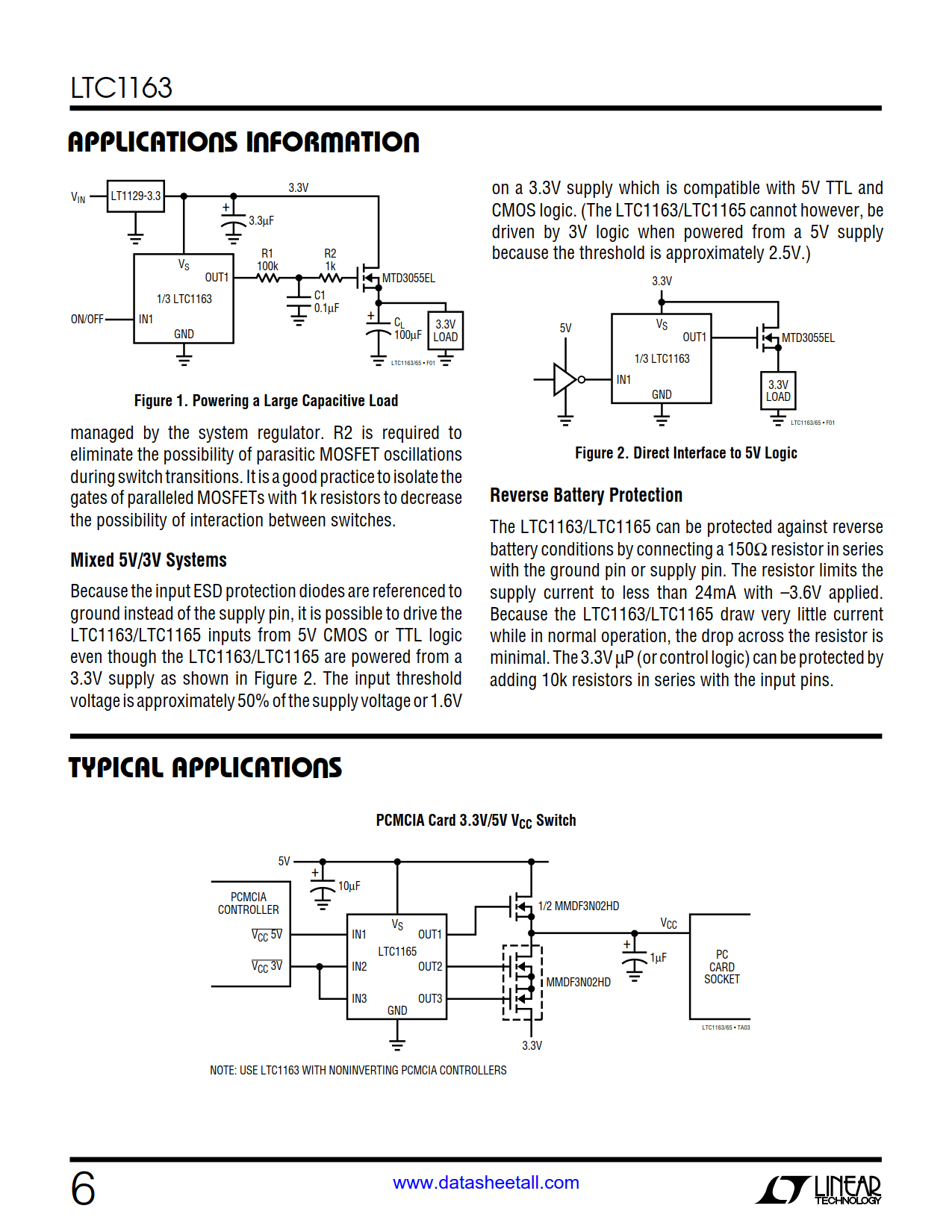

• PCMCIA Card 3.3V/5V Switch
• 2-Cell High-Side Load Switching
• Boost Regulator Shutdown to Zero Standby Current
• Replacing P-Channel Switches
• Notebook Computer Power Management
• Palmtop Computer Power Management
• Portable Medical Equipment
• Mixed 3.3V and 5V Supply Switching

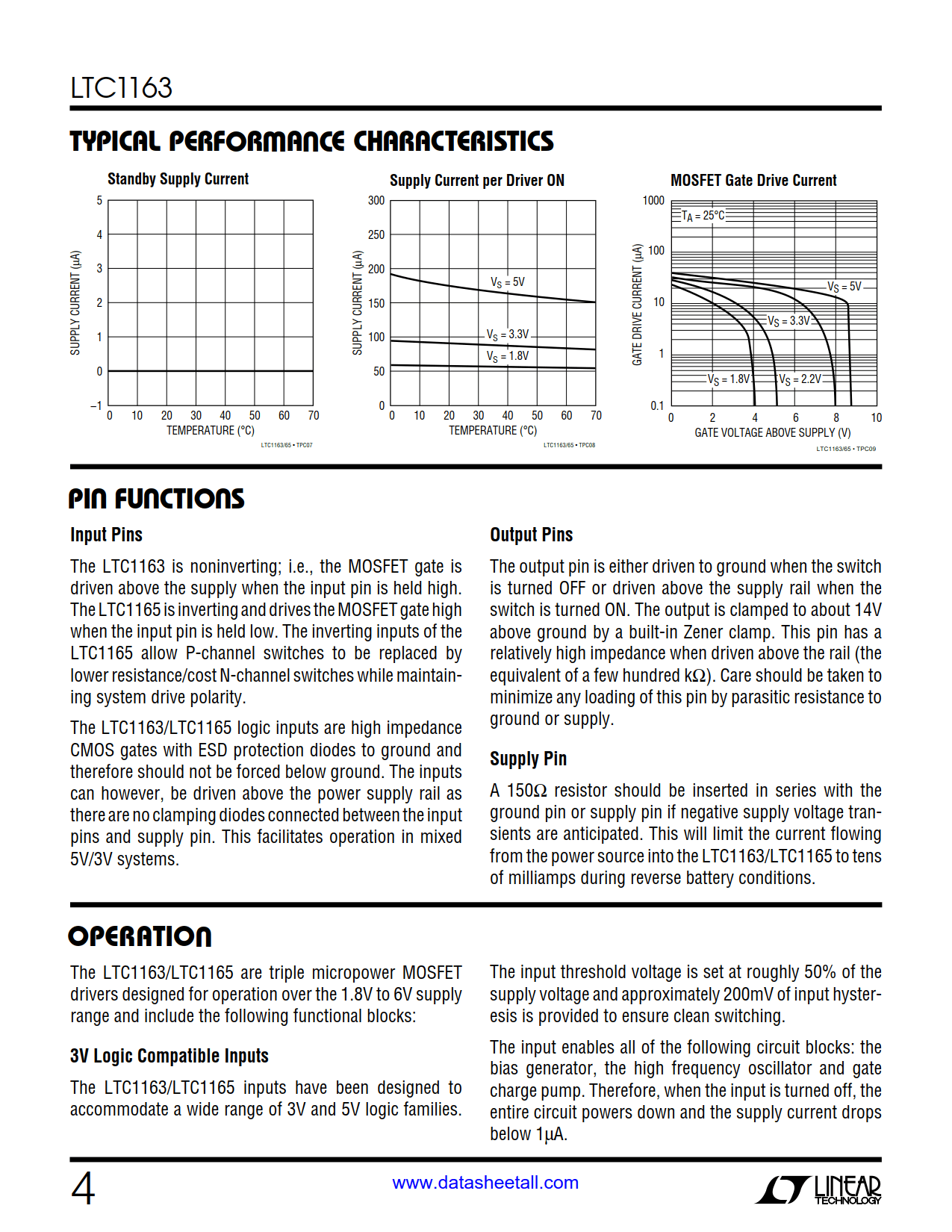

The LTC1163 triple low voltage MOSFET drivers make it possible to switch supply or ground referenced loads hrough inexpensive, low R_DS(ON) N-channel switches from as little as a 1.8V supply. The LTC1163 has noninverting inputs.

Micropower operation, with 0.01µA standby current and 95µA operating current, coupled with a power supply range of 1.8V to 6V, make the LTC1163 ideally suited for 2- to 4-cell battery-powered applications. The LTC1163 are also well suited for sub-3V, 3.3V and 5V nominal supply applications.

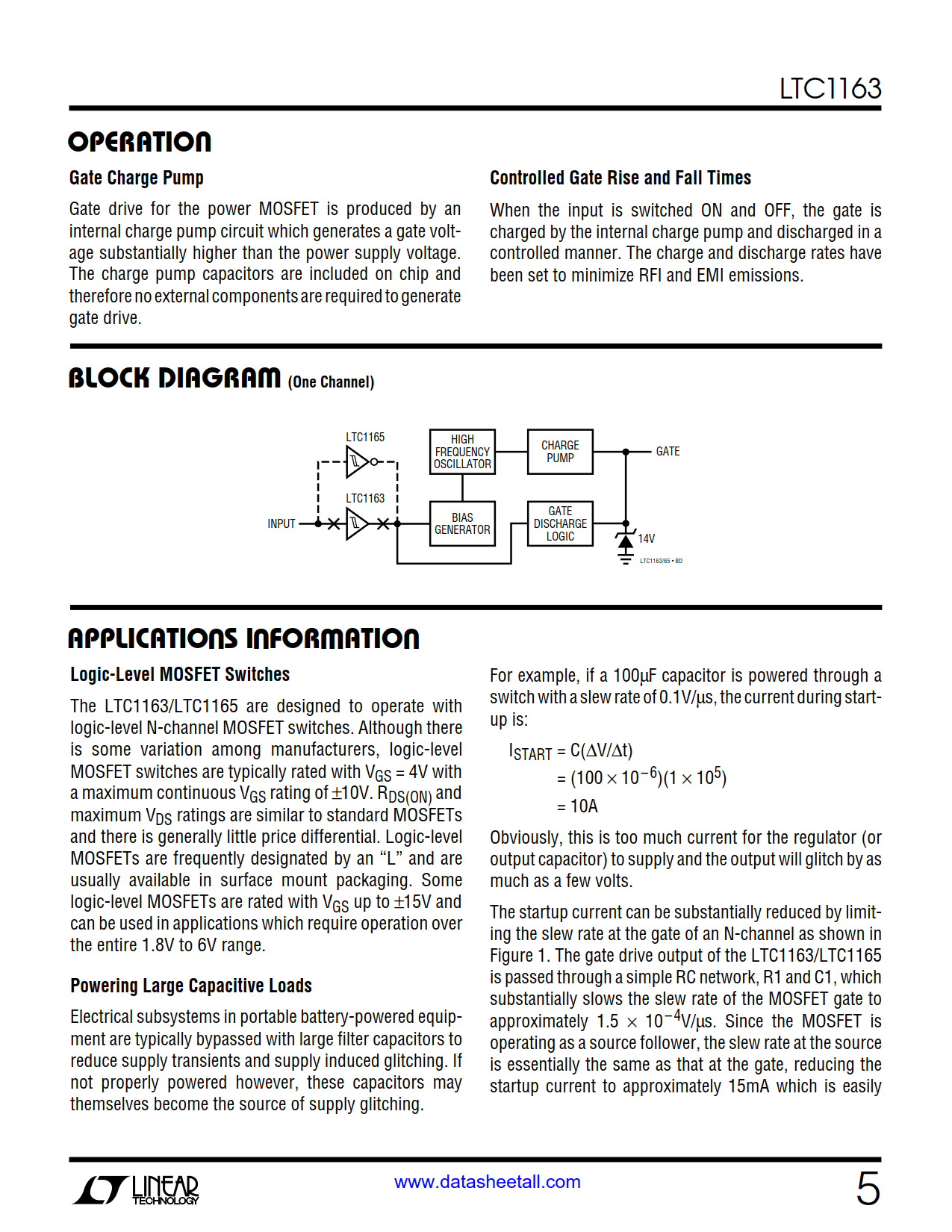

The LTC1163 internal charge pumps boost the gate voltage 8V above a 3.3V rail, fully enhancing inexpensive N-channels for high- or low-side switch applications.

The LTC1163 are available in both an 8-pin DIP and an 8-pin SOIC.
