LT8612 Datasheet

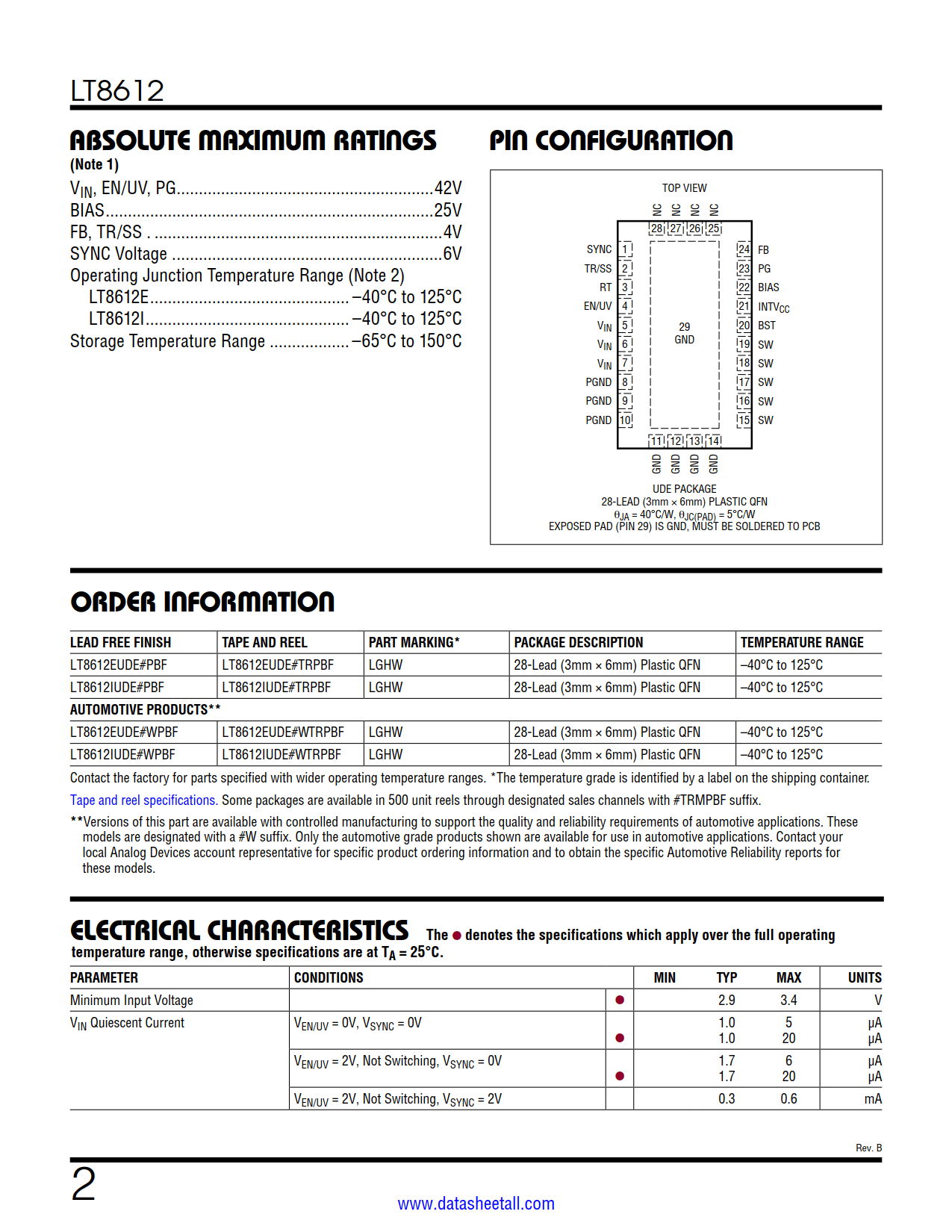

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
LT8612EUDE#PBF	0	$6.642	Tube	61	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612EUDE#TRPBF	7000pcs	$6.642	Reel	2500	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612EUDE#WPBF	0	$0	Tube	61	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612EUDE#WTRPBF	0	$0	Reel	2500	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612IUDE#PBF	200pcs	$7.29	Tube	61	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612IUDE#TRPBF	5000pcs	$7.29	Reel	2500	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612IUDE#WPBF	0	$0	Tube	61	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN
LT8612IUDE#WTRPBF	0	$0	Reel	2500	LGHW	1	28	-40°C ~ 125°C	28-Lead QFN

• Wide Input Voltage Range: 3.4V to 42V
• Ultralow Quiescent Current Burst Mode^® Operation:
  • 3μA I_Q Regulating 12V_IN to 3.3V_OUT
  • Output Ripple < 10mV_P-P
• High Efficiency Synchronous Operation:
  • 95% Efficiency at 3A, 5V_OUT from 12V_IN
  • 94% Efficiency at 3A, 3.3V_OUT from 12V_IN
• Fast Minimum Switch-On-Time: 40ns
• Low Dropout Under All Conditions: 250mV at 3A
• Allows Use Of Small Inductors
• Safely Tolerates Inductor Saturation in Overload Conditions
• Adjustable and Synchronizable: 200kHz to 2.2MHz
• Current Mode Operation
• Accurate 1V Enable Pin Threshold
• Internal Compensation
• Output Soft-Start and Tracking
• Small Thermally Enhanced 3mm × 6mm 28-Lead QFN Package
• AEC-Q100 Qualified for Automotive Applications

• Automotive and Industrial Supplies
• General Purpose Step-Down
• GSM Power Supplies

The LT8612 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 3μA of quiescent current. Top and bottom power switches are included with all necessary circuitry to minimize the need for external components. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mV_P-P. A SYNC pin allows synchronization to an external clock. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program V_IN undervoltage lockout or to shut down the LT8612 reducing the input supply current to 1μA. A capacitor on the TR/SS pin programs the output voltage ramp rate during start-up. The PG flag signals when V_OUT is within ±9% of the programmed output voltage as well as fault conditions. The LT8612 is available in a small 3mm × 6mm 28-lead QFN package with exposed pad for low thermal resistance.
