LT8316 Datasheet
560VIN Micropower No-Opto Isolated Flyback Controller
560VIN Micropower No-Opto Isolated Flyback Controller
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| LT8316EFE#PBF | 0 | $2.889 | Tube | 74 | LT8316FE | 1 | 20 | -40°C ~ 125°C | 20-Lead TSSOP-EP |
| LT8316EFE#TRPBF | 7500pcs | $2.889 | Reel | 2500 | LT8316FE | 1 | 20 | -40°C ~ 125°C | 20-Lead TSSOP-EP |
| LT8316IF#PBF | 0 | $3.114 | Tube | 75 | LT8316F | 1 | 20 | -40°C ~ 125°C | 20-TSSOP 4.4 MM |
| LT8316IF#TRPBF | 0 | $3.114 | Reel | 2500 | LT8316F | 1 | 20 | -40°C ~ 125°C | 20-TSSOP 4.4 MM |
| LT8316IFE#PBF | 0 | $3.114 | Tube | 74 | LT8316FE | 1 | 20 | -40°C ~ 125°C | 20-Lead TSSOP-EP |
| LT8316IFE#TRPBF | 2500pcs | $3.114 | Reel | 2500 | LT8316FE | 1 | 20 | -40°C ~ 125°C | 20-Lead TSSOP-EP |
| LT8316IFE#WTRPBF | 7500pcs | $0 | Reel | 2500 | LT8316FE | 1 | 20 | -40°C ~ 125°C | 20-Lead TSSOP-EP |

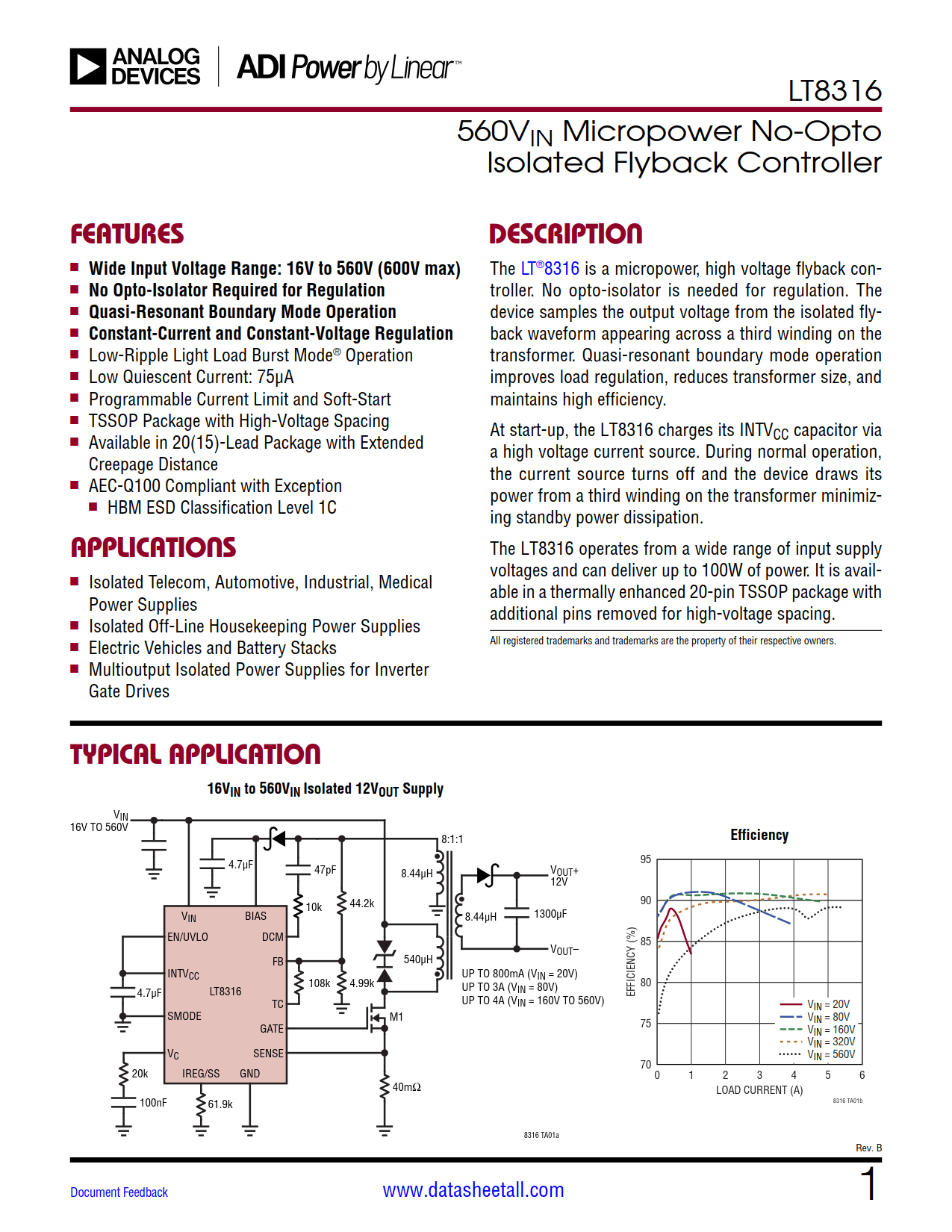

The LT8316 is a micropower, high voltage flyback controller. No opto-isolator is needed for regulation. The device samples the output voltage from the isolated flyback waveform appearing across a third winding on the transformer. Quasi-resonant boundary mode operation improves load regulation, reduces transformer size, and maintains high efficiency.
At start-up, the LT8316 charges its INTVCC capacitor via a high voltage current source. During normal operation, the current source turns off and the device draws its power from a third winding on the transformer minimizing standby power dissipation.
The LT8316 operates from a wide range of input supply voltages and can deliver up to 100W of power. It is available in a thermally enhanced 20-pin TSSOP package with four pins removed for high-voltage spacing.
