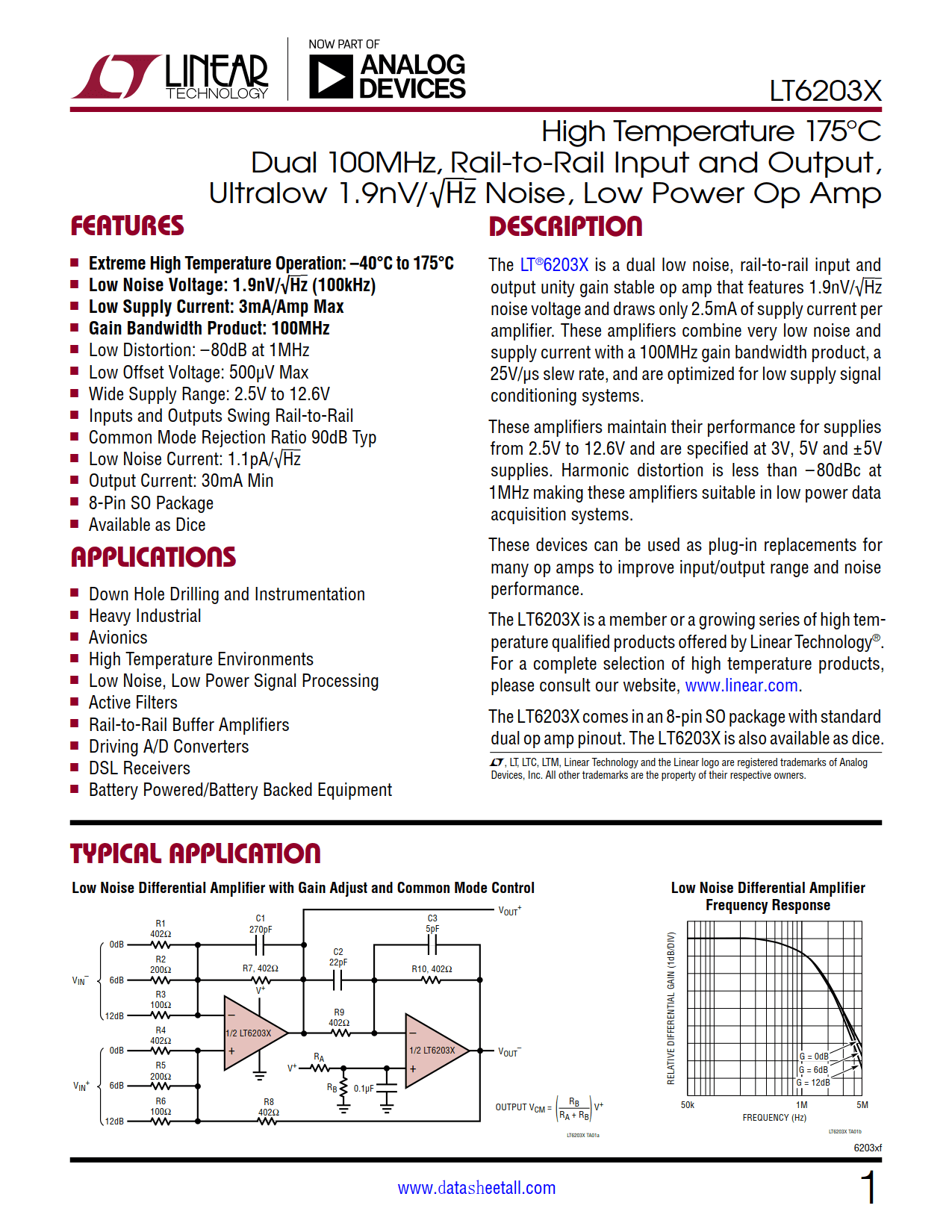

LT6203X Datasheet

• Extreme High Temperature Operation: –40°C to 175°C
• Low Noise Voltage: 1.9nV/√Hz (100kHz)
• Low Supply Current: 3mA/Amp Max
• Gain Bandwidth Product: 100MHz
• Low Distortion: –80dB at 1MHz
• Low Offset Voltage: 500µV Max
• Wide Supply Range: 2.5V to 12.6V
• Inputs and Outputs Swing Rail-to-Rail
• Common Mode Rejection Ratio 90dB Typ
• Low Noise Current: 1.1pA/√Hz
• Output Current: 30mA Min
• 8-Pin SO Package
• Available as Dice

• Down Hole Drilling and Instrumentation
• Heavy Industrial
• Avionics
• High Temperature Environments
• Low Noise, Low Power Signal Processing
• Active Filters
• Rail-to-Rail Buffer Amplifiers
• Driving A/D Converters
• DSL Receivers
• Battery Powered/Battery Backed Equipment

The LT6203X is a dual low noise, rail-to-rail input and output unity gain stable op amp that features 1.9nV/√Hz noise voltage and draws only 2.5mA of supply current per amplifier. These amplifiers combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/µs slew rate, and are optimized for low supply signal conditioning systems.

These amplifiers maintain their performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V supplies. Harmonic distortion is less than –80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.

These devices can be used as plug-in replacements for many op amps to improve input/output range and noise performance.

The LT6203X is a member or a growing series of high temperature qualified products offered by Analog Devices.

The LT6203X comes in an 8-pin SO package with standard dual op amp pinout. The LT6203X is also available as dice.
