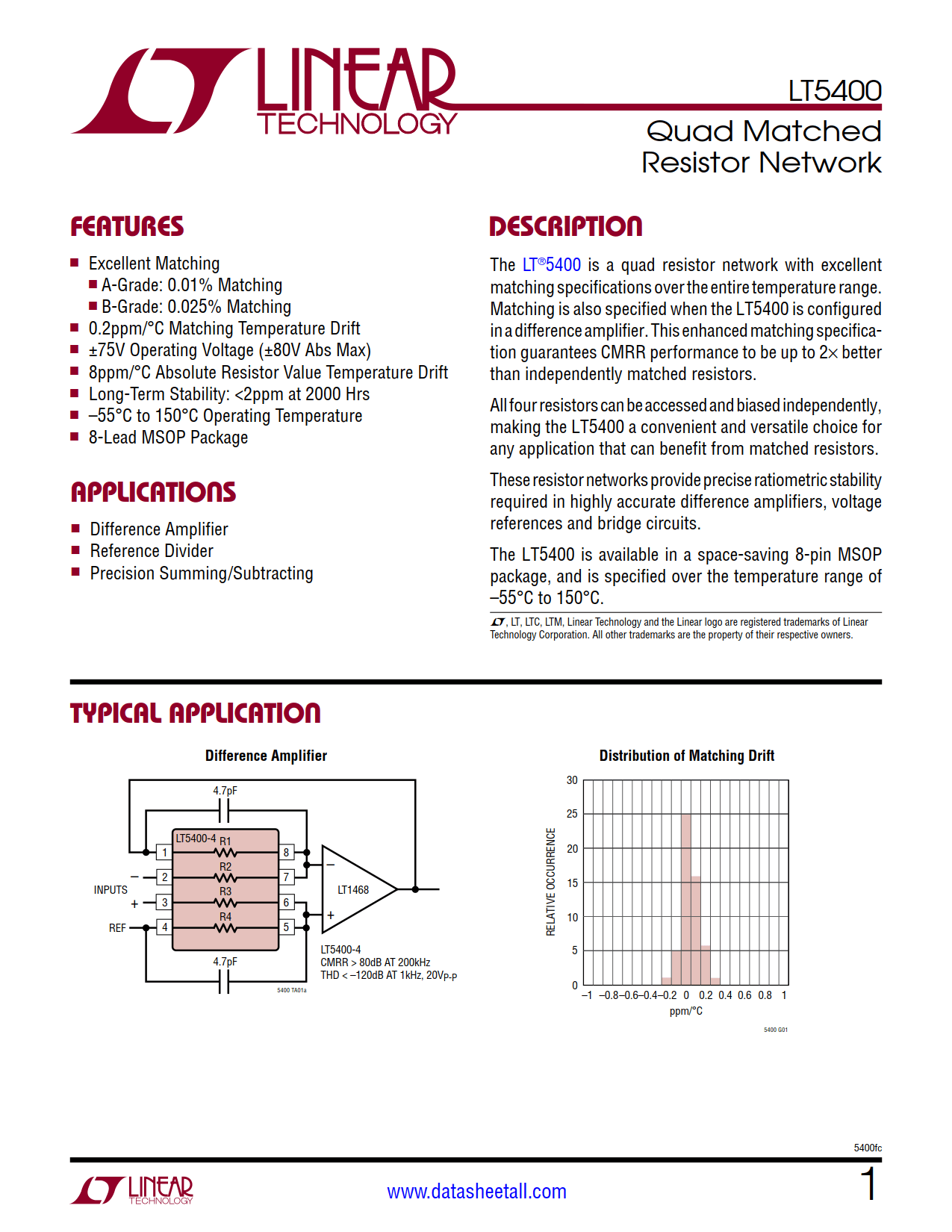

LT5400 Datasheet

• Excellent Matching
  • A-Grade: 0.01% Matching
  • B-Grade: 0.025% Matching
• 0.2ppm/°C Matching Temperature Drift
• ±75V Operating Voltage (±80V Abs Max)
• 8ppm/°C Absolute Resistor Value Temperature Drift
• Long-Term Stability: <2ppm at 2000 Hrs
• –55°C to 150°C Operating Temperature
• 8-Lead MSOP Package

• Difference Amplifier
• Reference Divider
• Precision Summing /Subtracting

The LT5400 is a quad resistor network with excellent matching specifications over the entire temperature range. Matching is also specified when the LT5400 is configured in a difference amplifier. This enhanced matching specification guarantees CMRR performance to be up to 2× better than independently matched resistors.

All four resistors can be accessed and biased independently, making the LT5400 a convenient and versatile choice for any application that can benefit from matched resistors.

These resistor networks provide precise ratiometric stability required in highly accurate difference amplifiers, voltage references and bridge circuits.

The LT5400 is available in a space-saving 8-pin MSOP package, and is specified over the temperature range of –55°C to 150°C.
