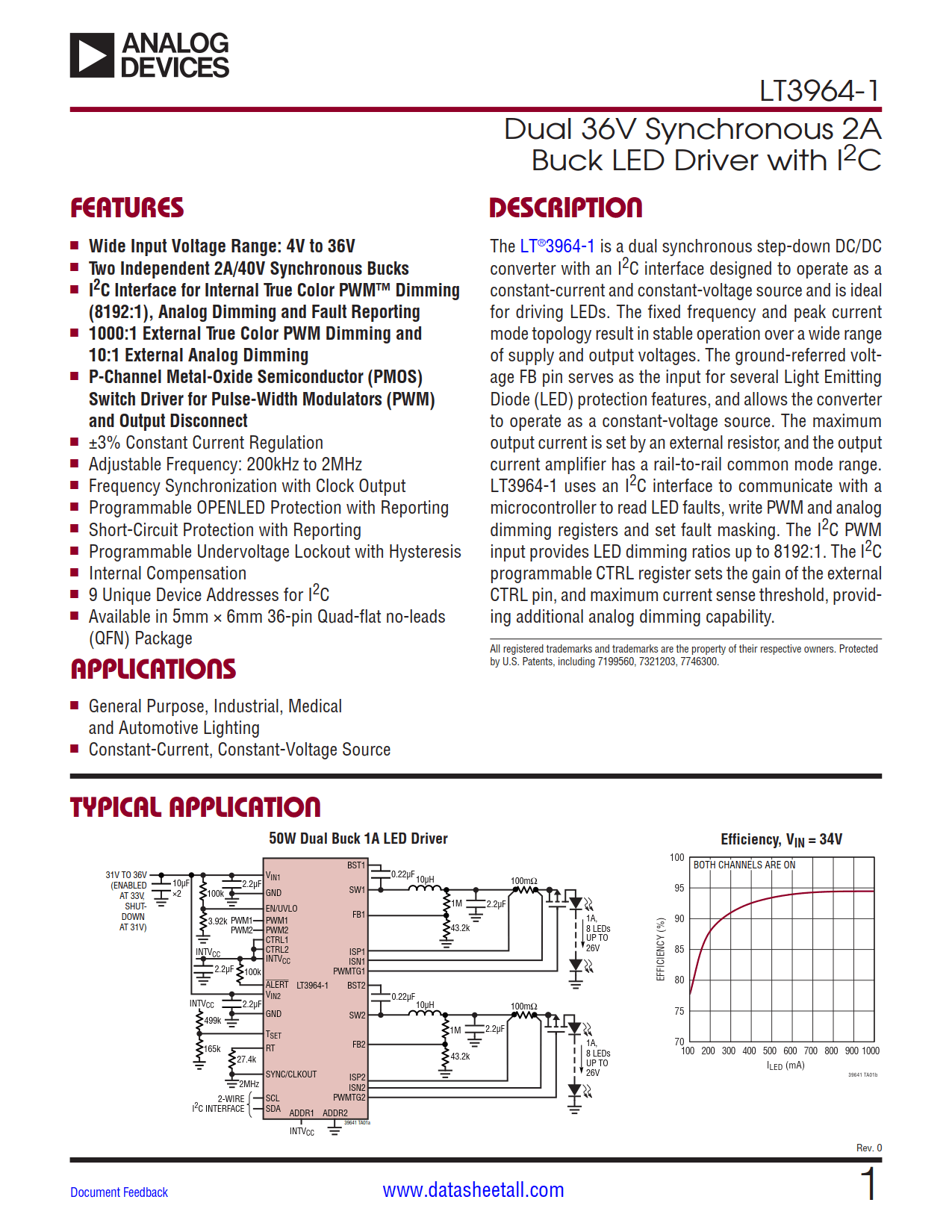

LT3964-1 Datasheet

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
LT3964RUHE-1#PBF	0	$2.475	Tube	61	39641	3	36	-40°C ~ 150°C	36-Lead QFN
LT3964RUHE-1#TRPBF	0	$2.475	Reel	2500	39641	3	36	-40°C ~ 150°C	36-Lead QFN

• Wide Input Voltage Range: 4V to 36V
• Two Independent 2A/40V Synchronous Bucks
• I²C Interface for Internal True Color PWM^™ Dimming (8192:1), Analog Dimming and Fault Reporting
• 1000:1 External True Color PWM Dimming and 10:1 External Analog Dimming
• P-Channel Metal-Oxide Semiconductor (PMOS) Switch Driver for Pulse-Width Modulators (PWM) and Output Disconnect
• ±3% Constant Current Regulation
• Adjustable Frequency: 200kHz to 2MHz
• Frequency Synchronization with Clock Output
• Programmable OPENLED Protection with Reporting
• Short-Circuit Protection with Reporting
• Programmable Undervoltage Lockout with Hysteresis
• Internal Compensation
• 9 Unique Device Addresses for I²C
• Available in 5mm × 6mm 36-pin Quad-flat no-leads (QFN) Package

• General Purpose, Industrial, Medical and Automotive Lighting
• Constant-Current, Constant-Voltage Source

The LT3964-1 is a dual synchronous step-down DC/ DC converter with an I²C interface designed to operate as a constant-current and constant-voltage source and is ideal for driving LEDs. The fixed frequency and peak current mode topology result in stable operation over a wide range of supply and output voltages. The ground-referred voltage FB pin serves as the input for several Light Emitting Diode (LED) protection features, and allows the converter to operate as a constant-voltage source. The maximum output current is set by an external resistor, and the output current amplifier has a rail-to-rail common mode range. LT3964-1 uses an I²C interface to communicate with a microcontroller to read LED faults, write PWM and analog dimming registers and set fault masking. The I²C PWM input provides LED dimming ratios up to 8192:1. The I²C programmable CTRL register sets the gain of the external CTRL pin, and maximum current sense threshold, providing additional analog dimming capability.
