Programmable Open LED Protection with OPENLED Flag
Short-Circuit Protection and SHORTLED Flag
Programmable Undervoltage Lockout with Hysteresis
Soft-Start with Programmable Fault Restart Timer
C/10 Detection for Battery Charging

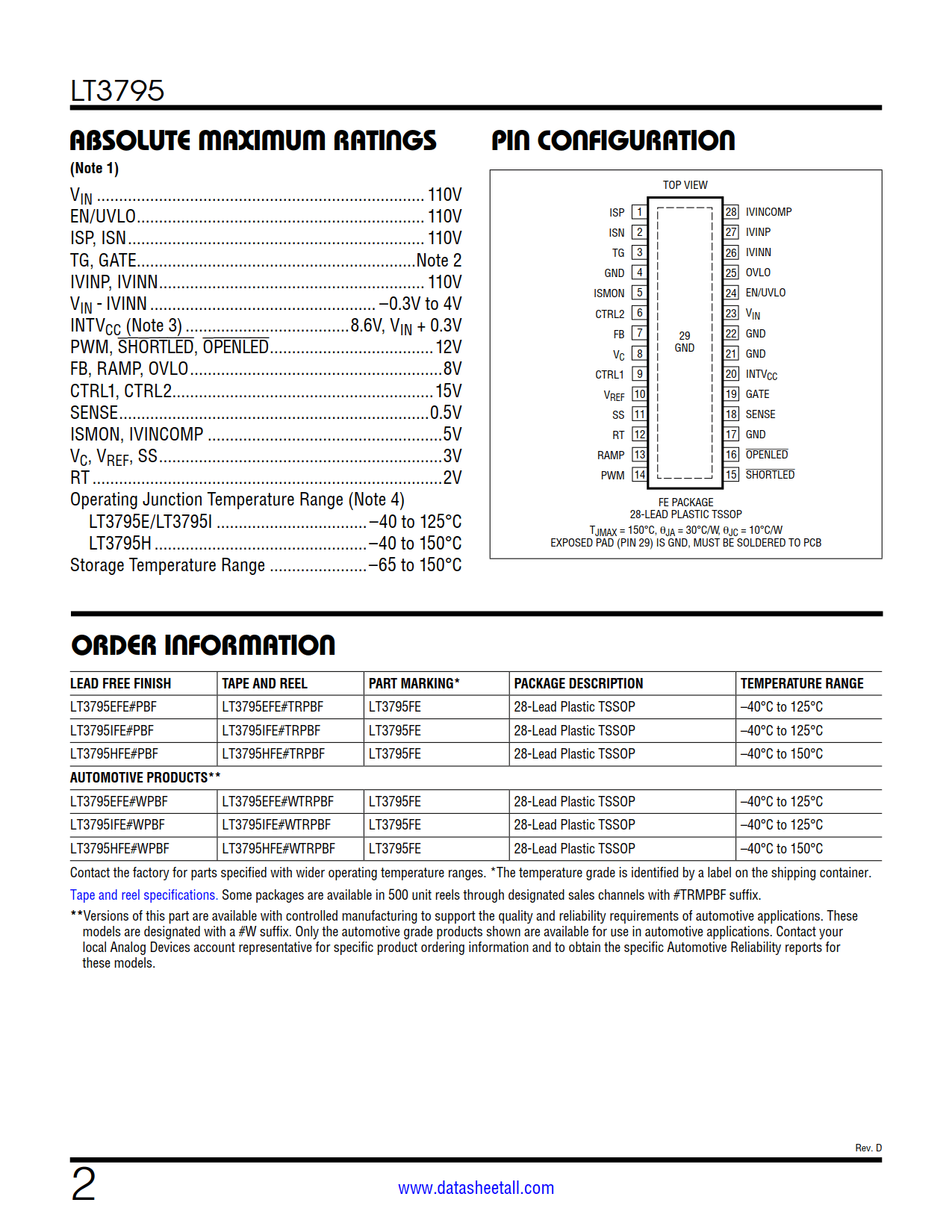

Available in 28-Lead TSSOP Package
AEC-Q100 Qualified for Automotive Applications
LT3795 Applications
High Power LED, High Voltage LED
Battery Chargers
Accurate Current Limited Voltage Regulators

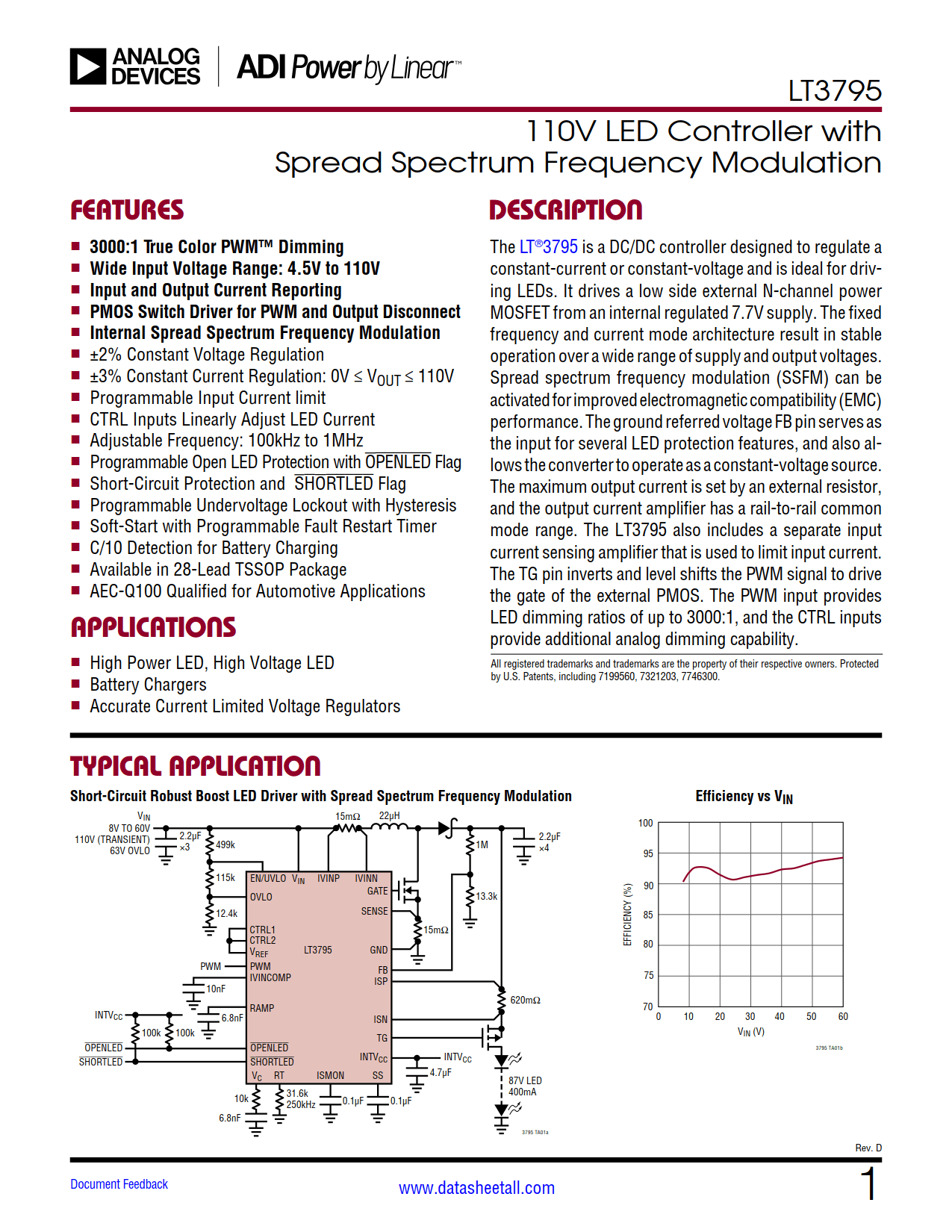

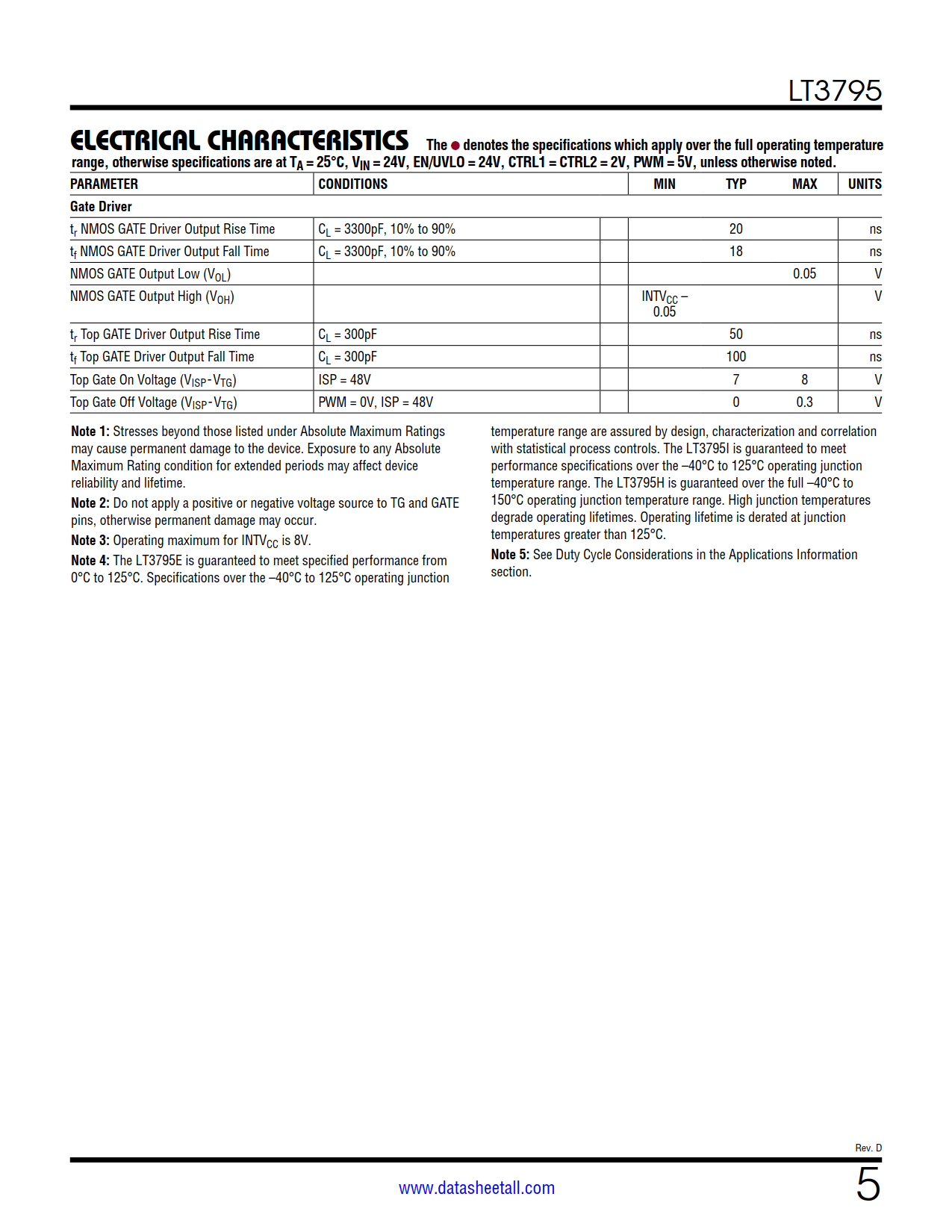

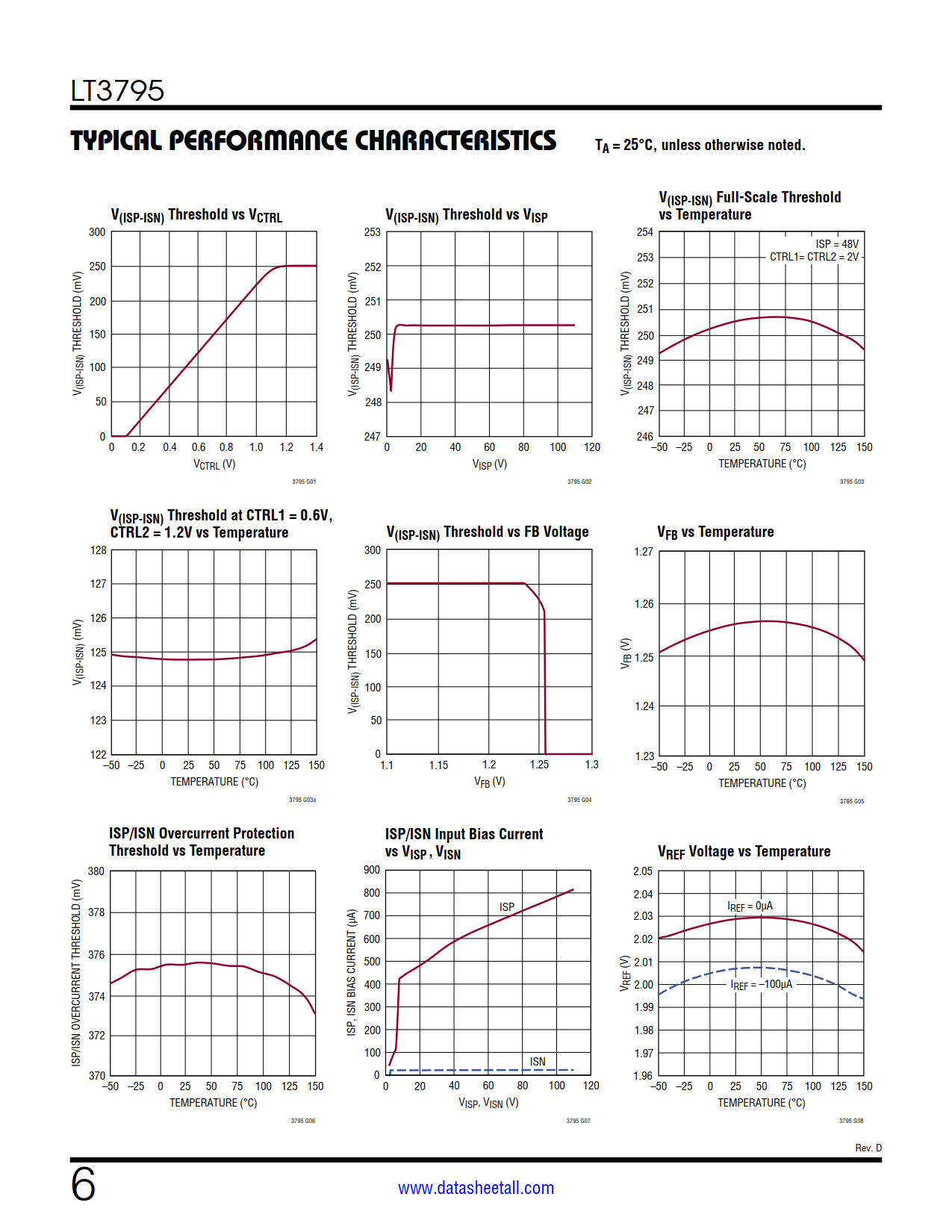

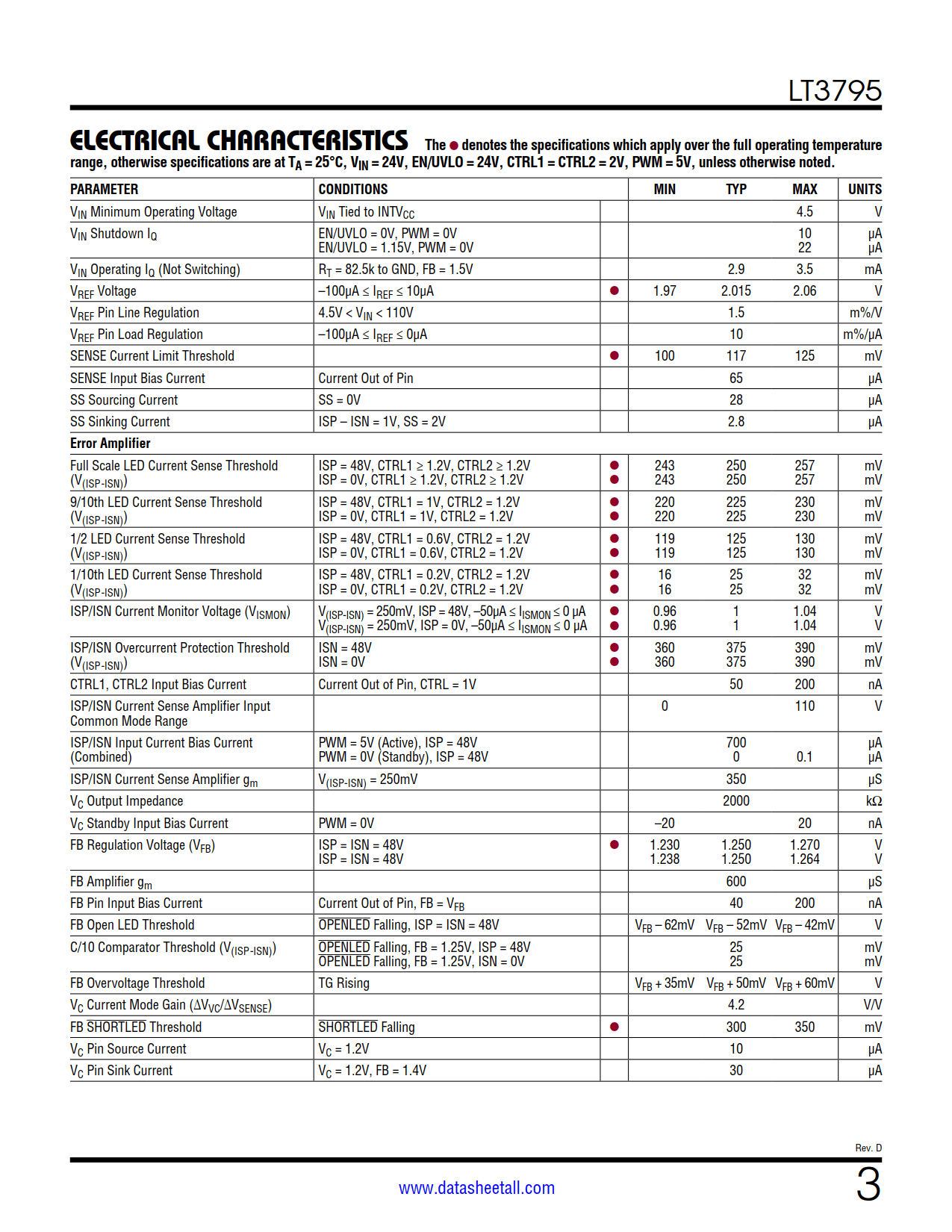

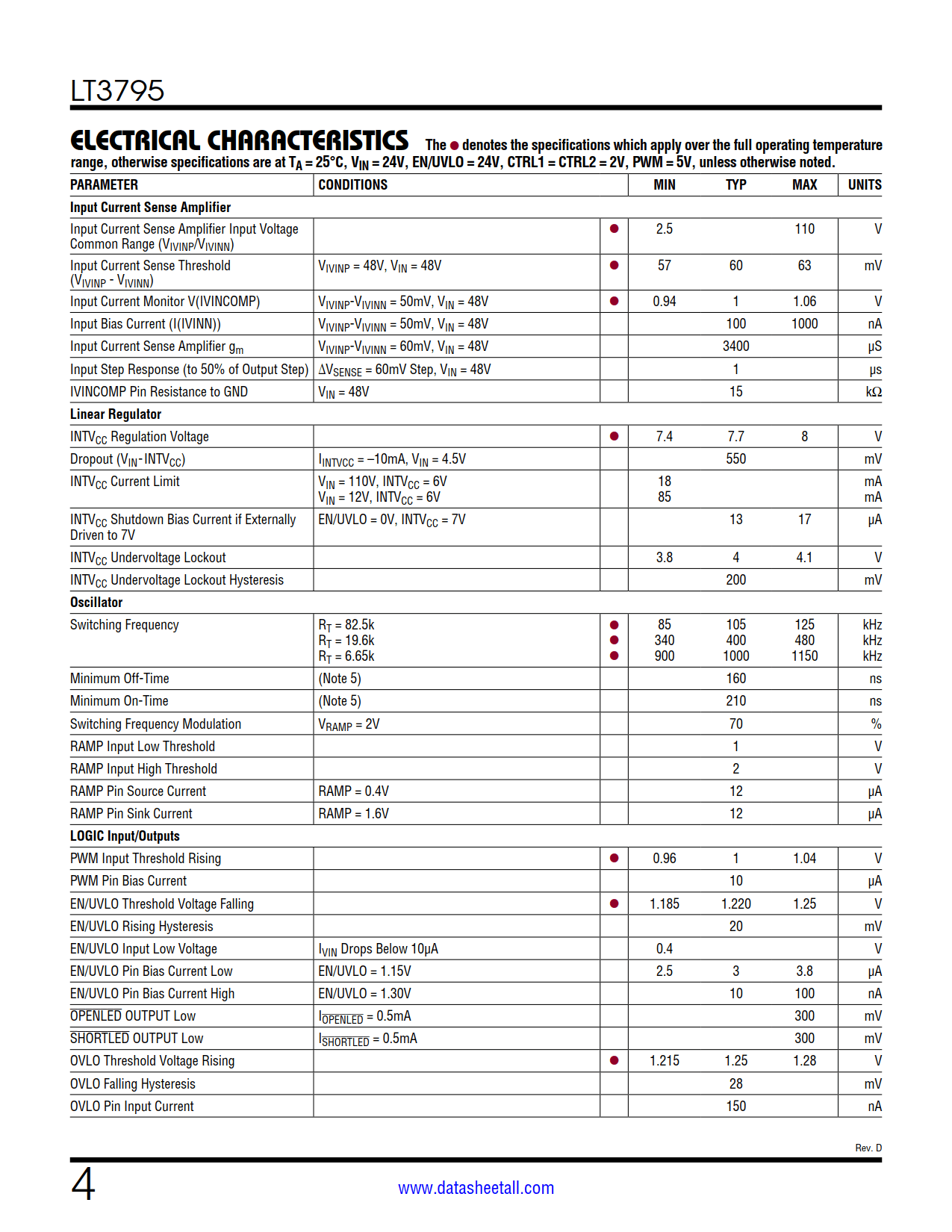

LT3795 Description
The LT3795 is a DC/DC controller designed to regulate a constant-current or constant-voltage and is ideal for driving LEDs. It drives a low side external N-channel power MOSFET from an internal regulated 7.7V supply. The fixed frequency and current mode architecture result in stable operation over a wide range of supply and output voltages. Spread spectrum frequency modulation (SSFM) can be activated for improved electromagnetic compatibility (EMC) performance. The ground referred voltage FB pin serves as the input for several LED protection features, and also allows the converter to operate as a constant-voltage source. The maximum output current is set by an external resistor, and the output current amplifier has a rail-to-rail common mode range. The LT3795 also includes a separate input current sensing amplifier that is used to limit input current. The TG pin inverts and level shifts the PWM signal to drive the gate of the external PMOS. The PWM input provides LED dimming ratios of up to 3000:1, and the CTRL inputs provide additional analog dimming capability.
