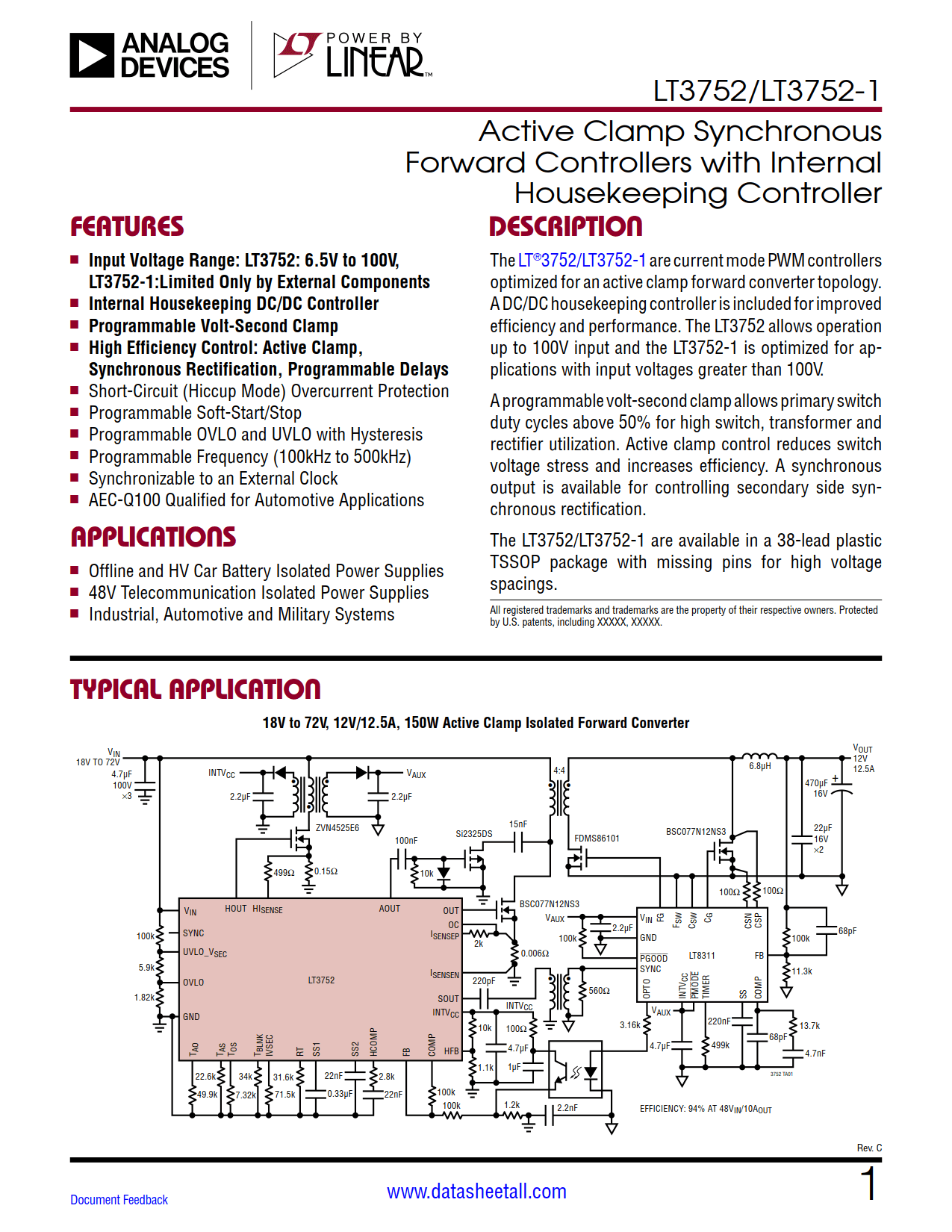

LT3752 Datasheet

• Input Voltage Range: LT3752: 6.5V to 100V, LT3752-1:Limited Only by External Components
• Internal Housekeeping DC/DC Controller
• Programmable Volt-Second Clamp
• High Efficiency Control: Active Clamp, Synchronous Rectification, Programmable Delays
• Short-Circuit (Hiccup Mode) Overcurrent Protection
• Programmable Soft-Start/Stop
• Programmable OVLO and UVLO with Hysteresis
• Programmable Frequency (100kHz to 500kHz)
• Synchronizable to an External Clock
• AEC-Q100 Qualified for Automotive Applications

• Offline and HV Car Battery Isolated Power Supplies
• 48V Telecommunication Isolated Power Supplies
• Industrial, Automotive and Military Systems

The LT3752/LT3752-1 are current mode PWM controllers optimized for an active clamp forward converter topology. A DC/DC housekeeping controller is included for improved efficiency and performance. The LT3752 allows operation up to 100V input and the LT3752-1 is optimized for applications with input voltages greater than 100V.

A programmable volt-second clamp allows primary switch duty cycles above 50% for high switch, transformer and rectifier utilization. Active clamp control reduces switch voltage stress and increases efficiency. A synchronous output is available for controlling secondary side synchronous rectification.

The LT3752/LT3752-1 are available in a 38-lead plastic TSSOP package with missing pins for high voltage spacings.
