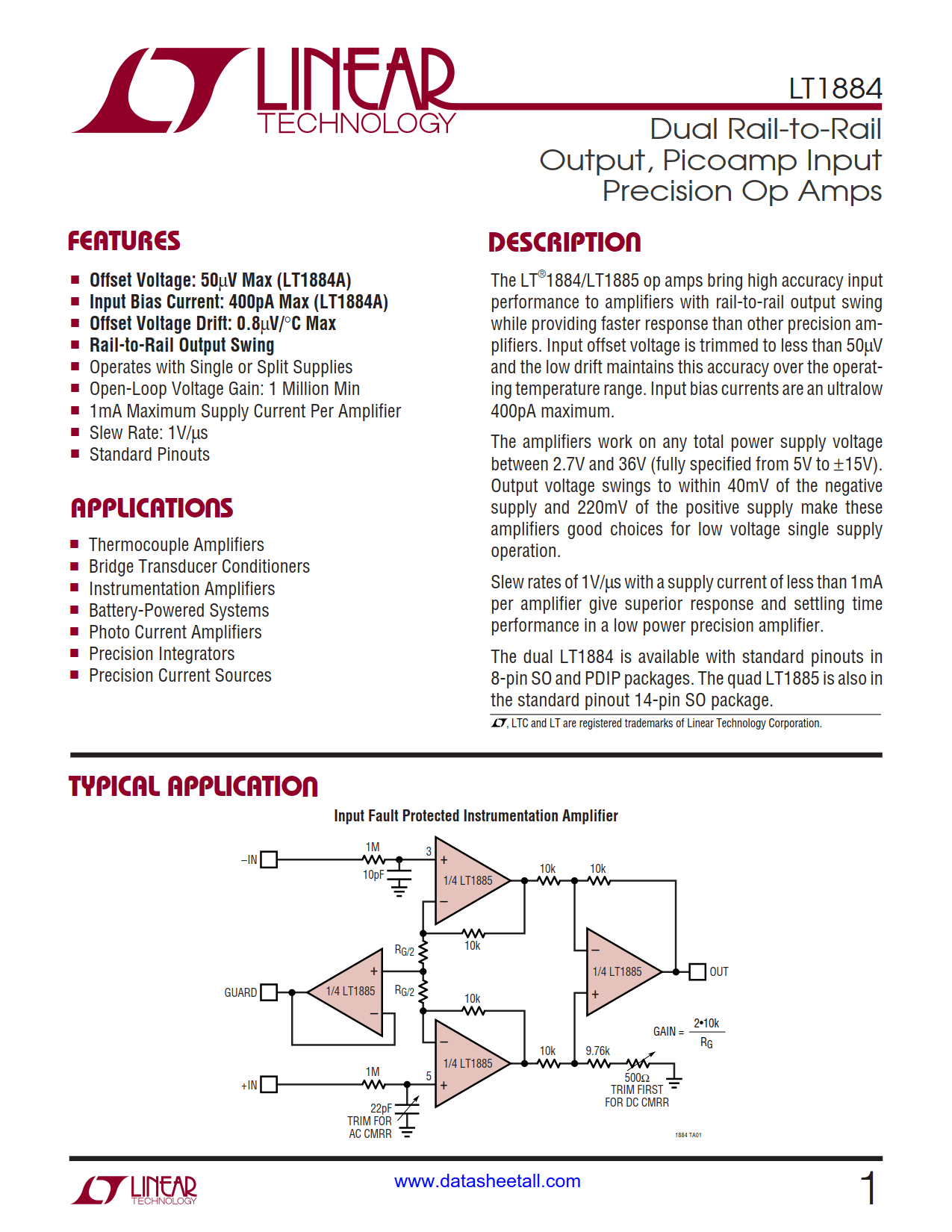

LT1884 Datasheet

• Offset Voltage: 50µV Max (LT1884A)
• Input Bias Current: 400pA Max (LT1884A)
• Offset Voltage Drift: 0.8µV/°C Max
• Rail-to-Rail Output Swing
• Operates with Single or Split Supplies
• Open-Loop Voltage Gain: 1 Million Min
• 1mA Maximum Supply Current Per Amplifier
• Slew Rate: 1V/µs
• Standard Pinouts

• Thermocouple Amplifiers
• Bridge Transducer Conditioners
• Instrumentation Amplifiers
• Battery-Powered Systems
• Photo Current Amplifiers
• Precision Integrators
• Precision Current Sources

The LT1884 op amps bring high accuracy input performance to amplifiers with rail-to-rail output swing while providing faster response than other precision amplifiers. Input offset voltage is trimmed to less than 50µV and the low drift maintains this accuracy over the operating temperature range. Input bias currents are an ultralow 400pA maximum.

The amplifiers work on any total power supply voltage between 2.7V and 36V (fully specified from 5V to ±15V). Output voltage swings to within 40mV of the negative supply and 220mV of the positive supply make these amplifiers good choices for low voltage single supply operation.

Slew rates of 1V/µs with a supply current of less than 1mA per amplifier give superior response and settling time performance in a low power precision amplifier.

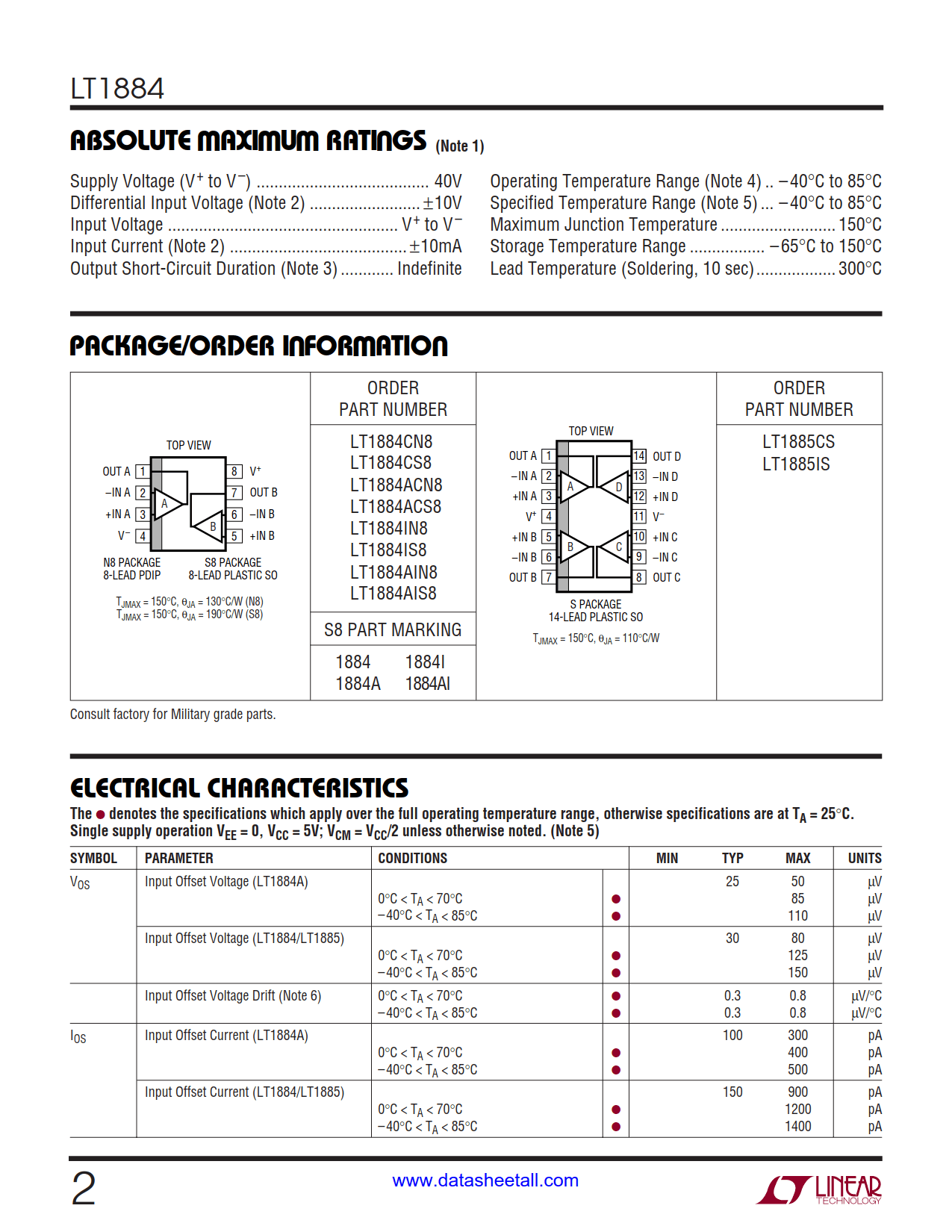

The dual LT1884 is available with standard pinouts in 8-pin SO and PDIP packages.
