LT1640 Datasheet

• Allows Safe Board Insertion and Removal from a Live –48V Backplane
• Operates from –10V to –80V
• Programmable Inrush Current
• Programmable Electronic Circuit Breaker
• Programmable Overvoltage Protection
• Programmable Undervoltage Lockout
• Power Good Control Output

• Central Office Switching
• –48V Distributed Power Systems
• Negative Power Supply Control

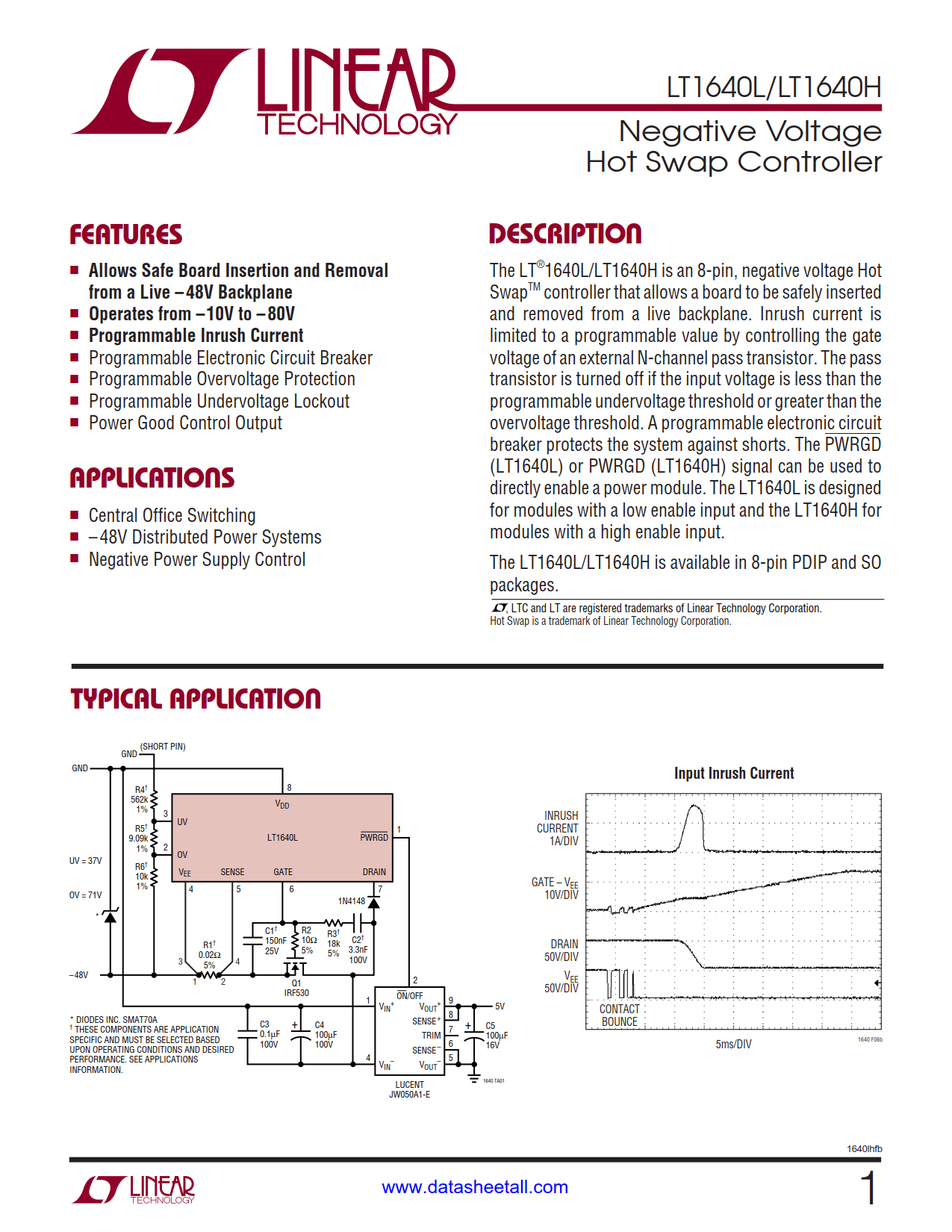

The LT1640L/LT1640H is an 8-pin, negative voltage Hot Swap^™ controller that allows a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external N-channel pass transistor. The pass transistor is turned off if the input voltage is less than the programmable undervoltage threshold or greater than the overvoltage threshold. A programmable electronic circuit breaker protects the system against shorts. The PWRGD (LTC1640L) or PWRGD (LTC1640H) signal can be used to directly enable a power module. The LT1640L is designed for modules with a low enable input and the LT1640H for modules with a high enable input.

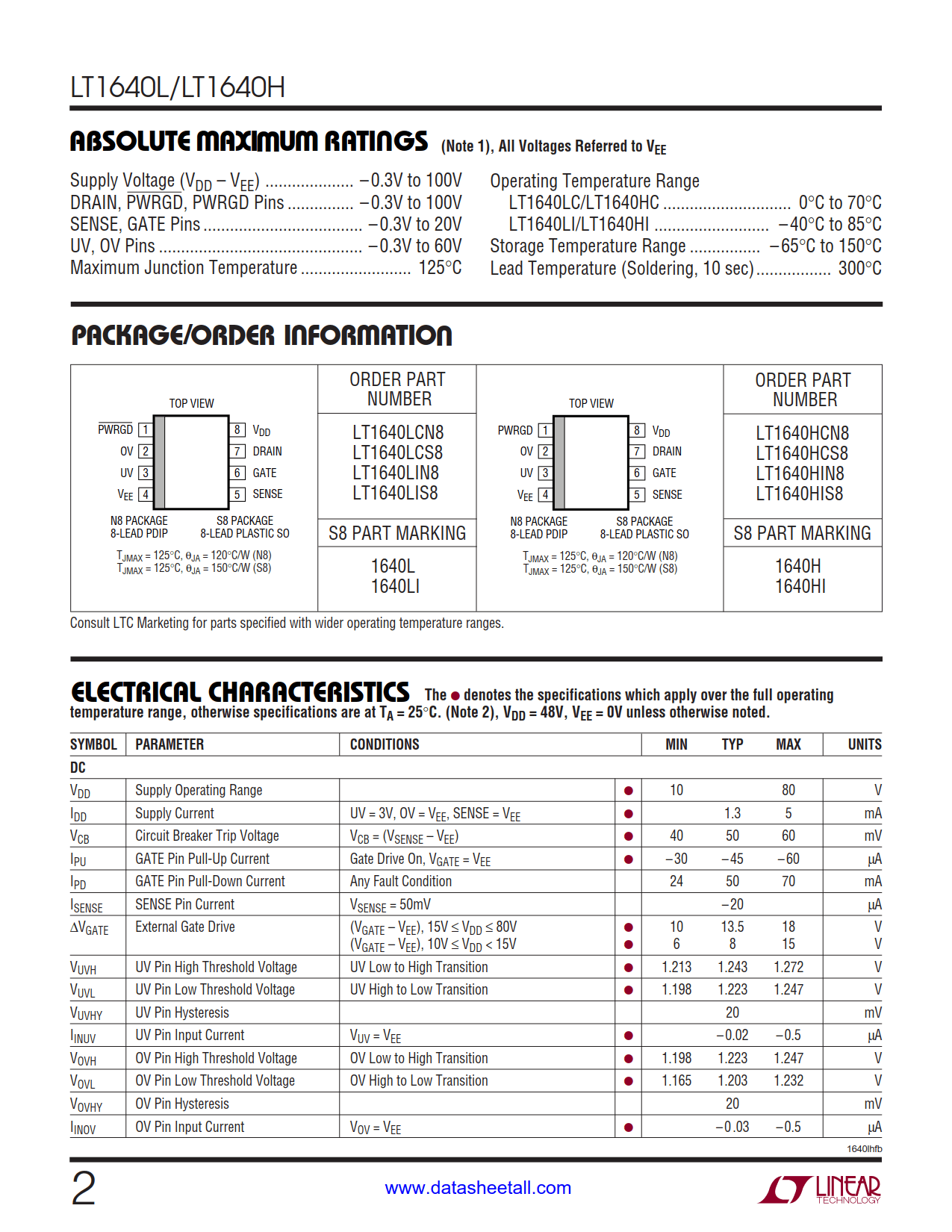

The LT1640L/LT1640H is available in 8-pin PDIP and SO packages.
