LT1615-1 Datasheet

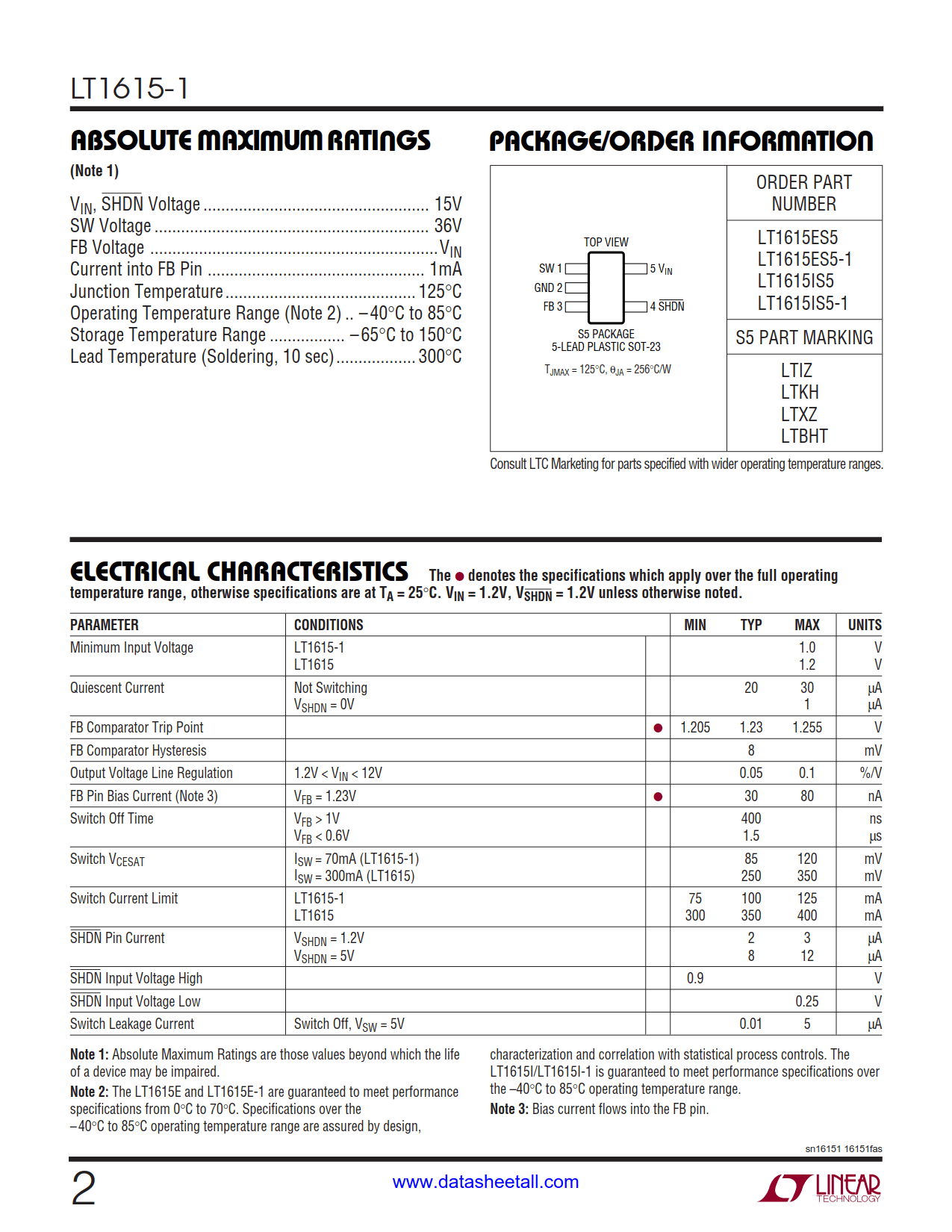

Part No.	In Stock	Price	Packaging	SPQ	Marking	MSL	Pins	Temp Range	Package Description
LT1615ES5-1#TRMPBF	1000pcs	$2.745	Reel	500	LTKH	1	5	-40°C ~ 85°C	5-Lead TSOT-23
LT1615ES5-1#TRPBF	0	$2.745	Reel	2500	LTKH	1	5	-40°C ~ 85°C	5-Lead TSOT-23
LT1615IS5-1#TRMPBF	0	$3.159	Reel	500	LTBHT	1	5	-40°C ~ 125°C	5-Lead TSOT-23
LT1615IS5-1#TRPBF	1500pcs	$3.159	Reel	2500	LTBHT	1	5	-40°C ~ 125°C	5-Lead TSOT-23

• Low Quiescent Current:
  • 20µA in Active Mode
  • <1µA in Shutdown Mode
• Operates with V_IN as Low as 1V

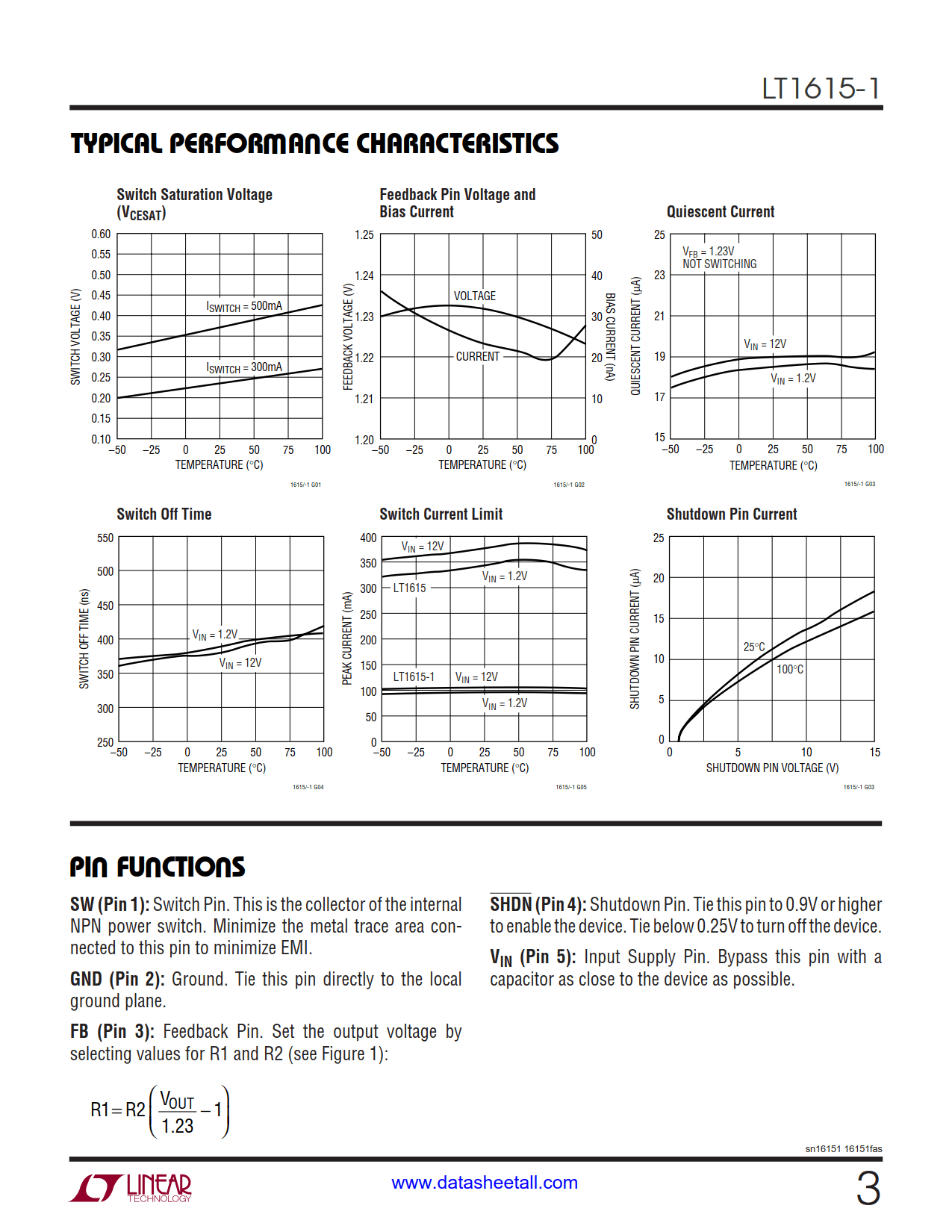

• Low V_CESAT Switch: 250mV at 300mA
• Uses Small Surface Mount Components
• High Output Voltage: Up to 34V
• Low Profile (1mm) ThinSOT^™ Package

• LCD Bias
• Handheld Computers
• Battery Backup
• Digital Cameras

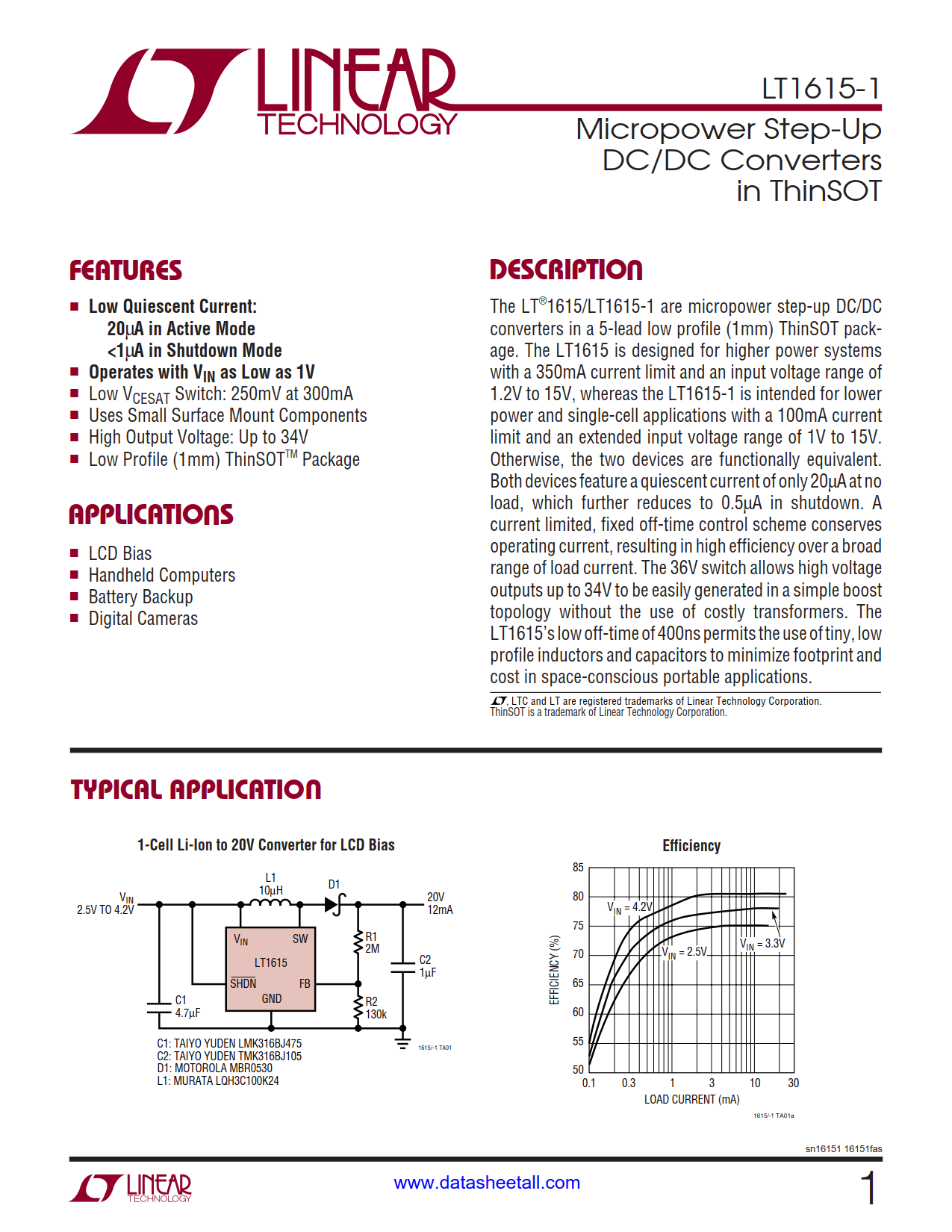

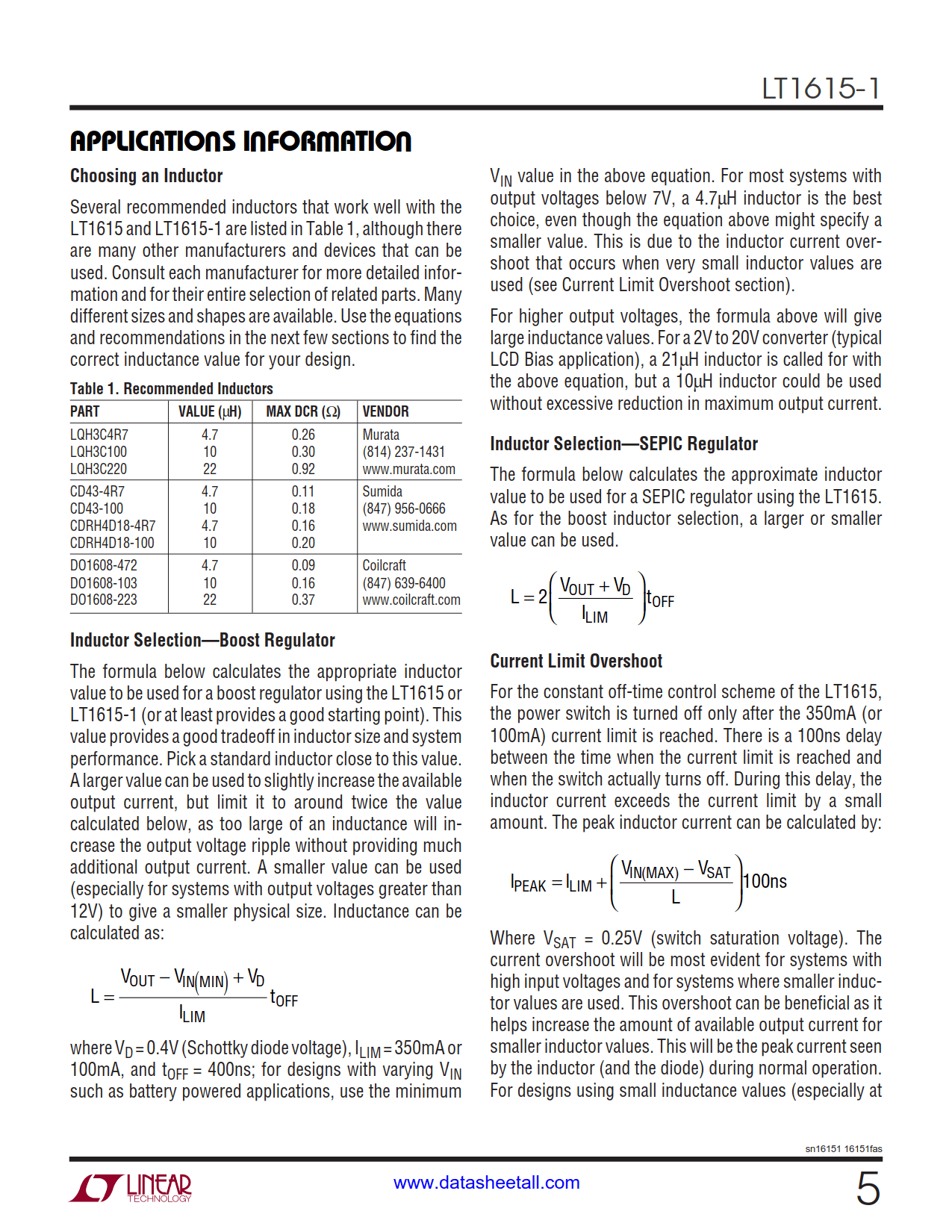

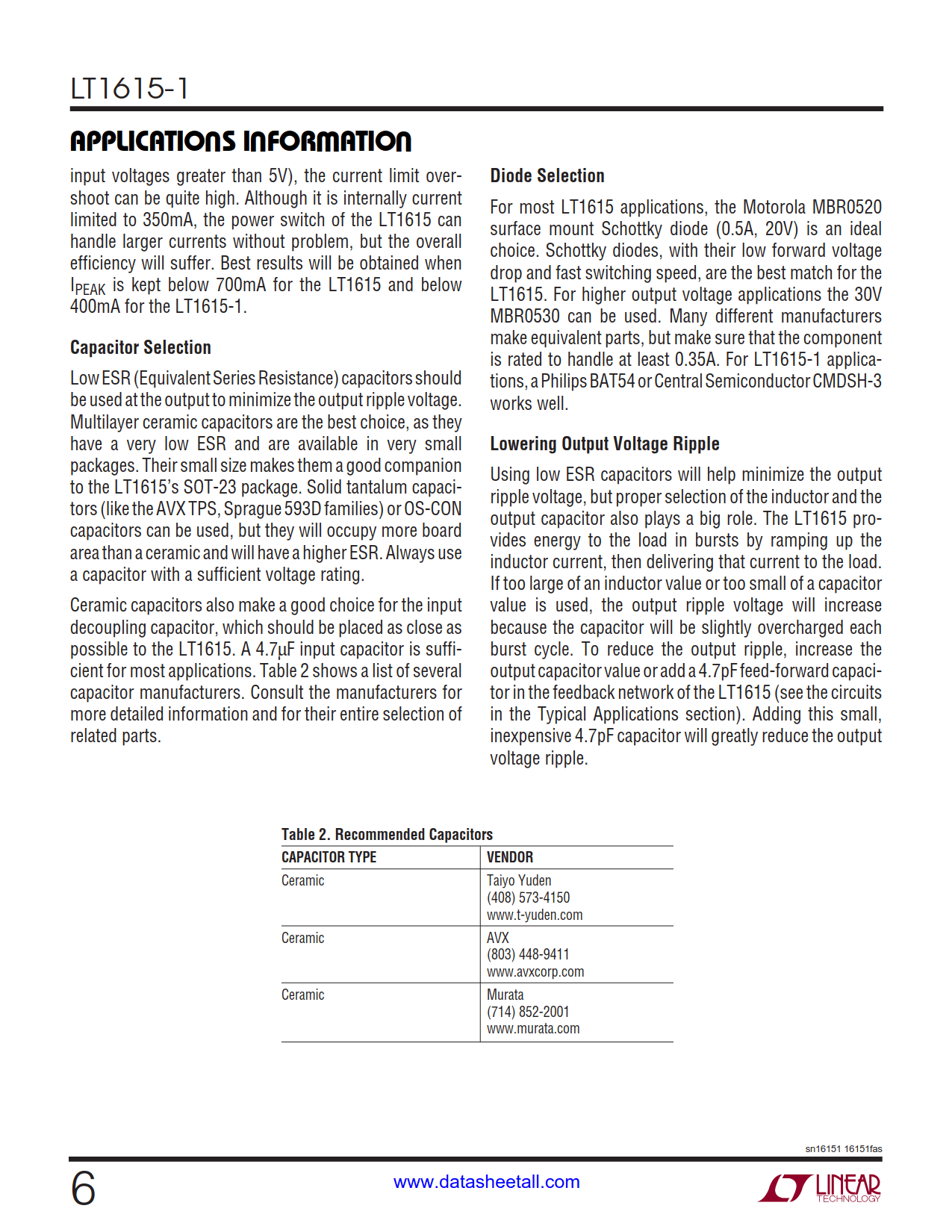

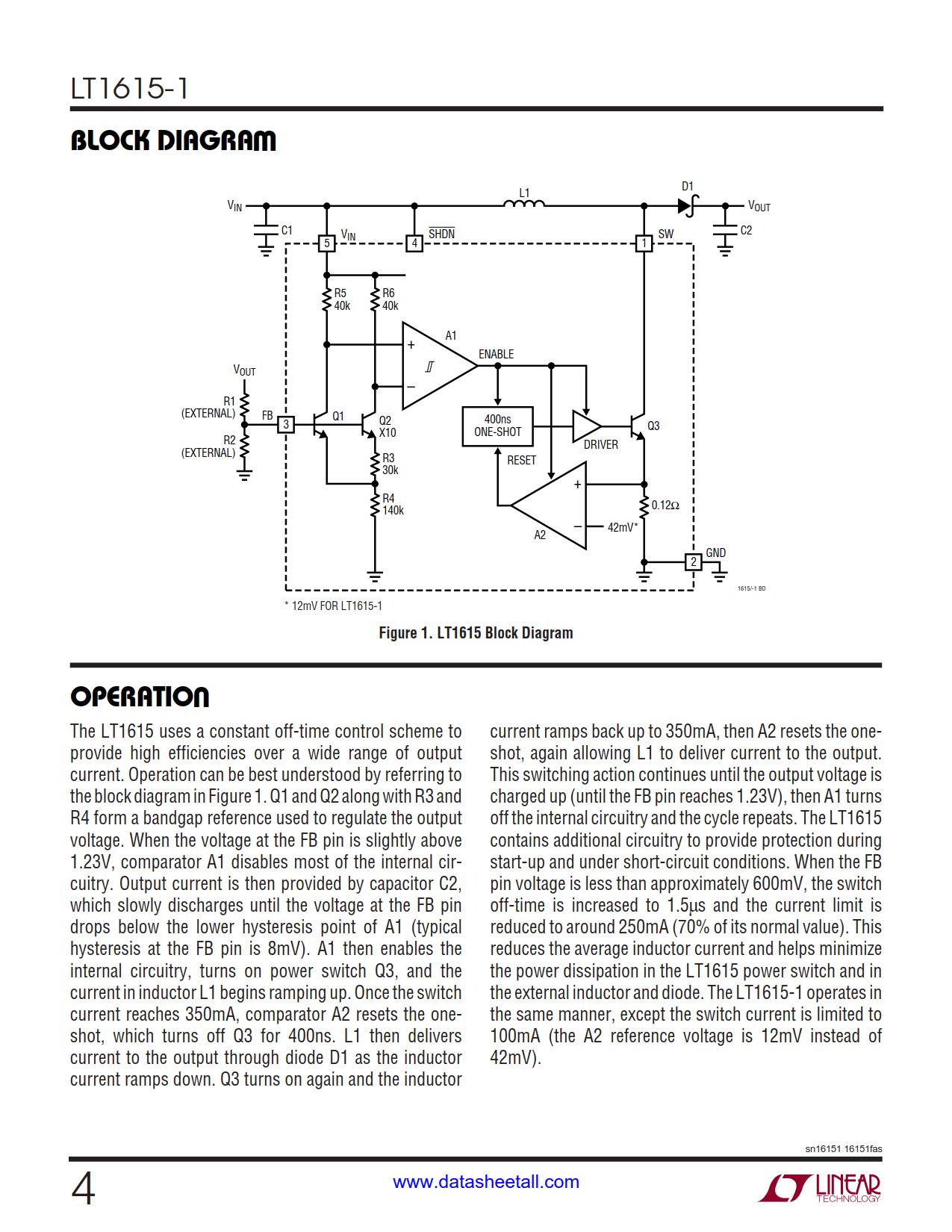

The LT1615-1 are micropower step-up DC/DC converters in a 5-lead low profile (1mm) ThinSOT package. The LT1615-1 is intended for lower power and single-cell applications with a 100mA current limit and an extended input voltage range of 1V to 15V. The LT1615-1 feature a quiescent current of only 20µA at no load, which further reduces to 0.5µA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current. The 36V switch allows high voltage outputs up to 34V to be easily generated in a simple boost topology without the use of costly transformers. The LT1615’s low off-time of 400ns permits the use of tiny, low profile inductors and capacitors to minimize footprint and cost in space-conscious portable applications.
