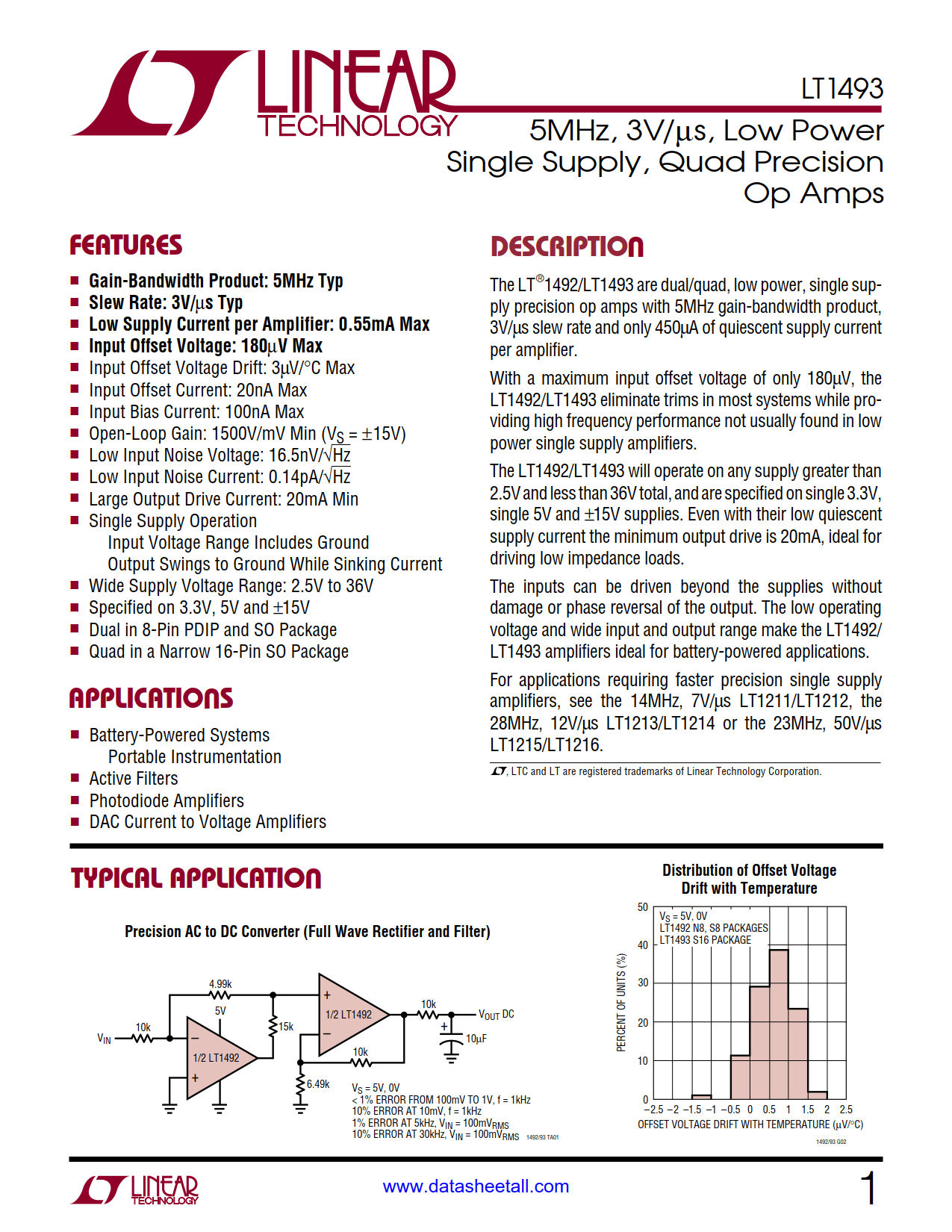

LT1493 Datasheet

• Gain-Bandwidth Product: 5MHz Typ
• Slew Rate: 3V/µs Typ
• Low Supply Current per Amplifier: 0.55mA Max
• Input Offset Voltage: 180µV Max
• Input Offset Voltage Drift: 3µV/°C Max
• Input Offset Current: 20nA Max
• Input Bias Current: 100nA Max
• Open-Loop Gain: 1500V/mV Min (V_S = ±15V)
• Low Input Noise Voltage: 16.5nV/√Hz
• Low Input Noise Current: 0.14pA/√Hz
• Large Output Drive Current: 20mA Min
• Single Supply Operation
  • Input Voltage Range Includes Ground
  • Output Swings to Ground while Sinking Current
• Wide Supply Voltage Range: 2.5V to 36V
• Specified on 3.3V, 5V and ±15V
• Dual in 8-Pin PDIP and SO Package
• Quad in a Narrow 16-Pin SO Package

• Battery-Powered Systems
  • Portable Instrumentation
• Active Filters
• Photodiode Amplifiers
• DAC Current to Voltage Amplifiers

The LT1493 are dual/quad, low power, single supply precision op amps with 5MHz gain-bandwidth product, 3V/µs slew rate and only 450µA of quiescent supply current per amplifier.

With a maximum input offset voltage of only 180µV, the LT1493 eliminate trims in most systems while providing high frequency performance not usually found in low power single supply amplifiers.

The LT1493 will operate on any supply greater than 2.5V and less than 36V total, and are specified on single 3.3V, single 5V and ±15V supplies. Even with their low quiescent supply current the minimum output drive is 20mA, ideal for driving low impedance loads.

The inputs can be driven beyond the supplies without damage or phase reversal of the output. The low operating voltage and wide input and output range make the LT1493 amplifiers ideal for battery-powered applications.
