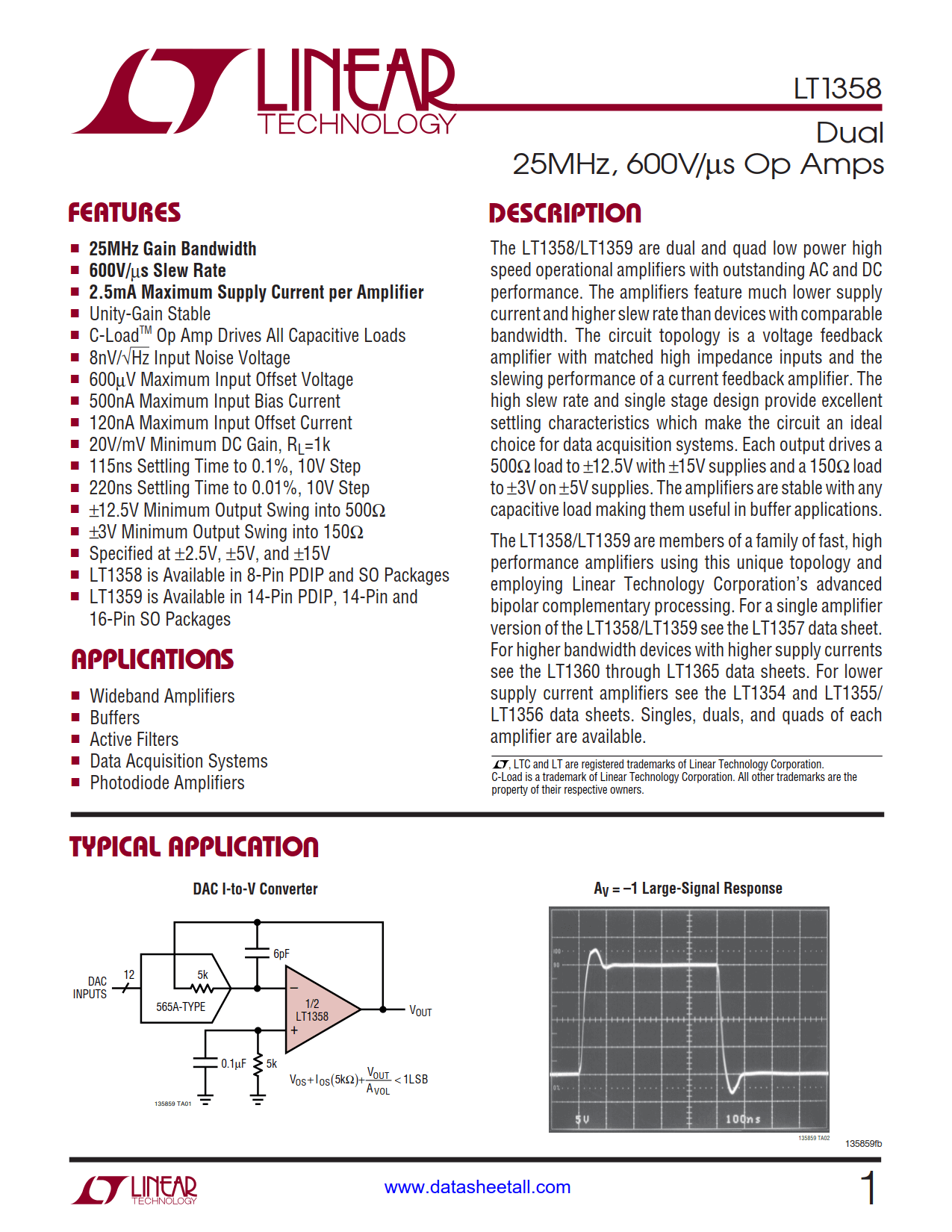

LT1358 Datasheet

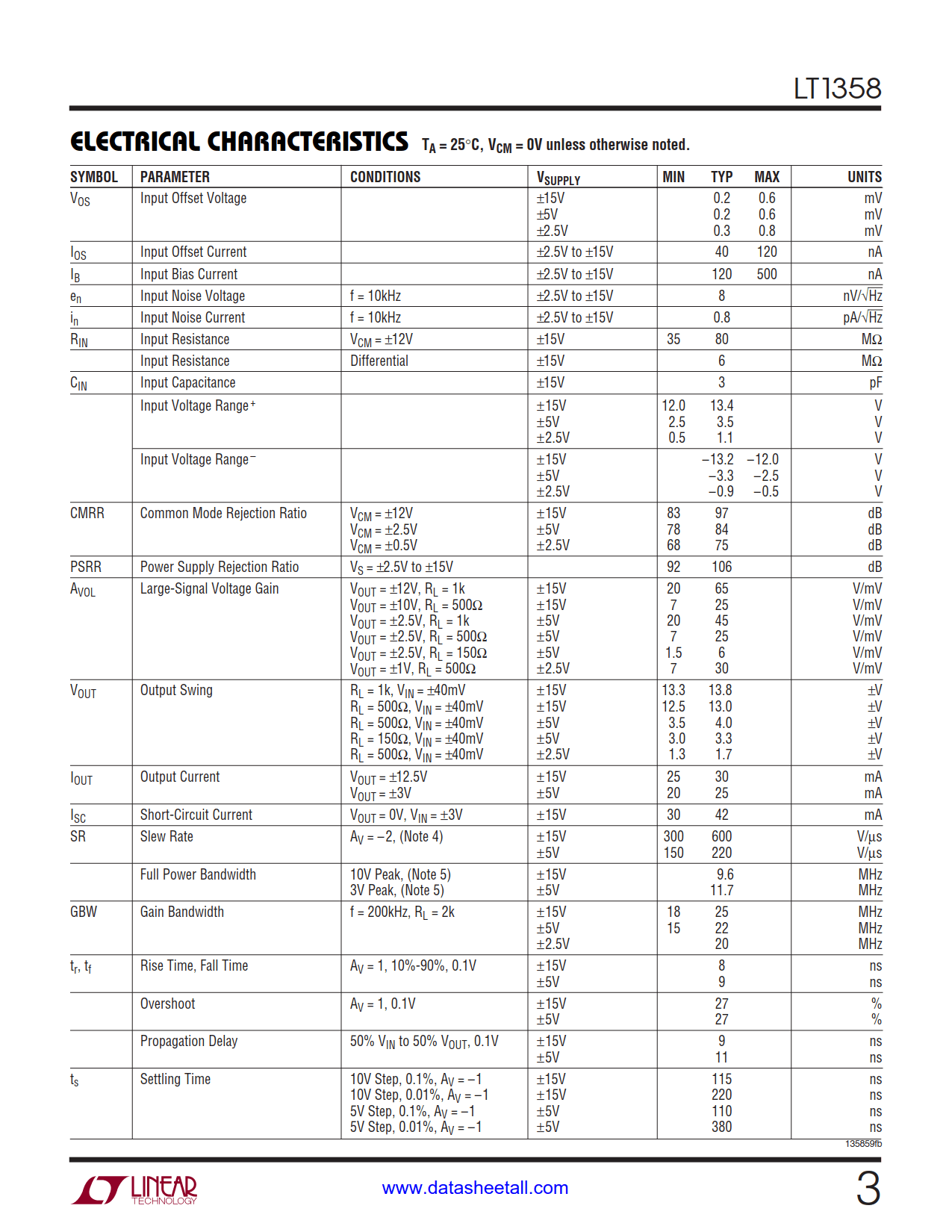

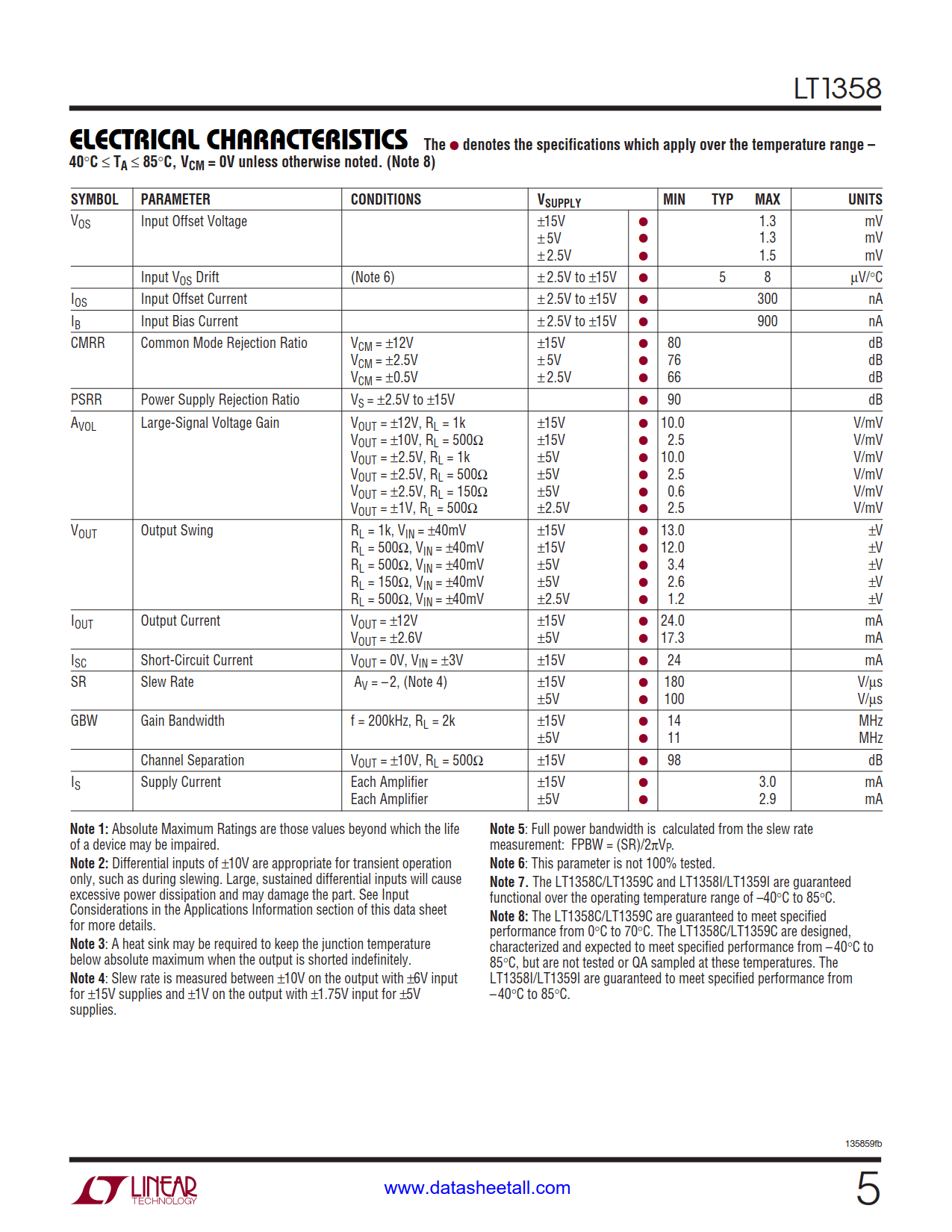

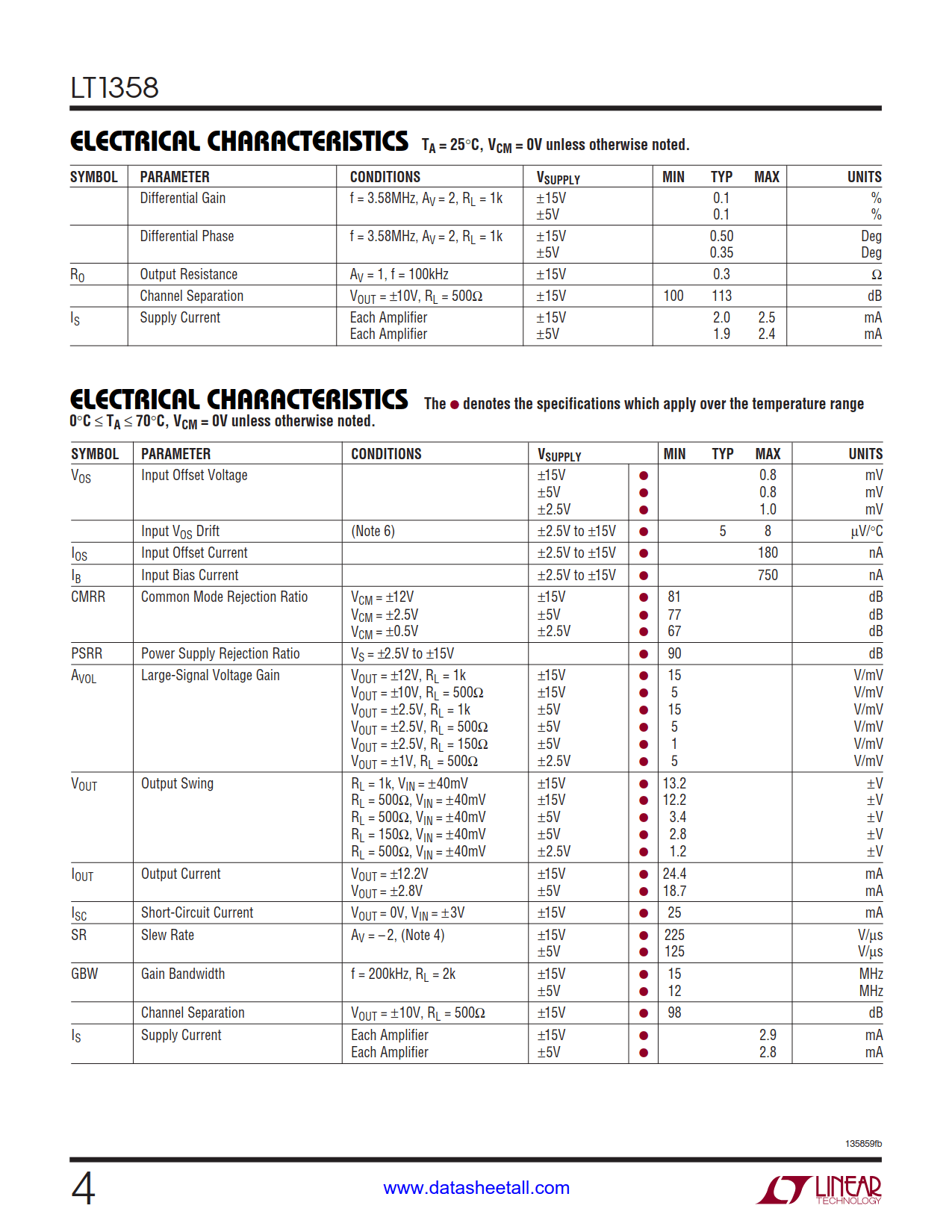

• 25MHz Gain-Bandwidth
• 600V/µs Slew Rate
• 2.5mA Maximum Supply Current per Amplifier
• Unity Gain Stable
• C-Load^™ Op Amp Drives All Capacitive Loads
• 8nV/√Hz Input Noise Voltage
• 600µV Maximum Input Offset Voltage
• 500nA Maximum Input Bias Current
• 120nA Maximum Input Offset Current
• 20V/mV Minimum DC Gain, R_L =1k
• 115ns Settling Time to 0.1%, 10V Step
• 220ns Settling Time to 0.01%, 10V Step
• ±12.5V Minimum Output Swing into 500Ω
• ±3V Minimum Output Swing into 150Ω
• Specified at ±2.5V, ±5V, and ±15V

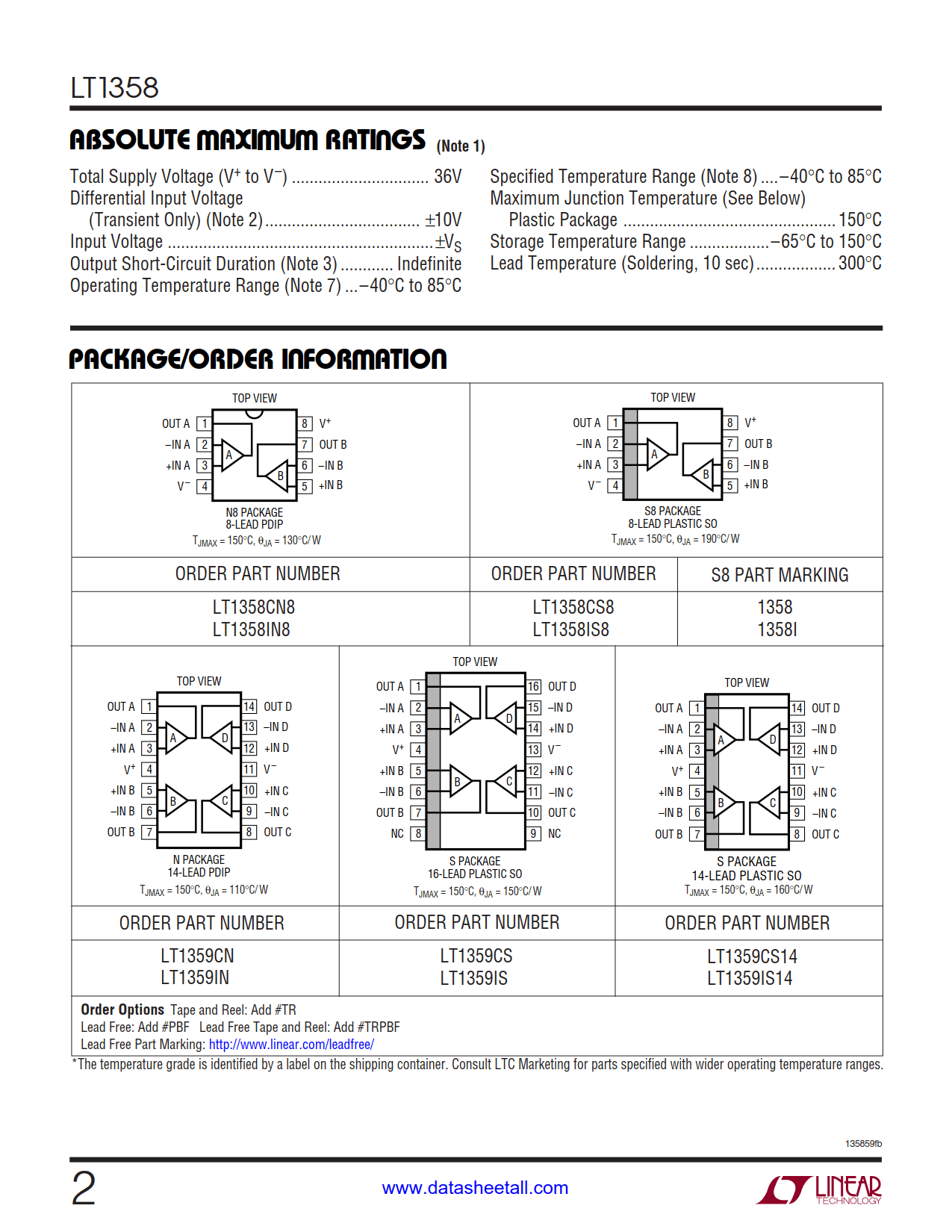

• LT1358 is Available in 8-Pin PDIP and SO Packages

• Wideband Amplifiers
• Buffers
• Active Filters
• Data Acquisition Systems
• Photodiode Amplifiers

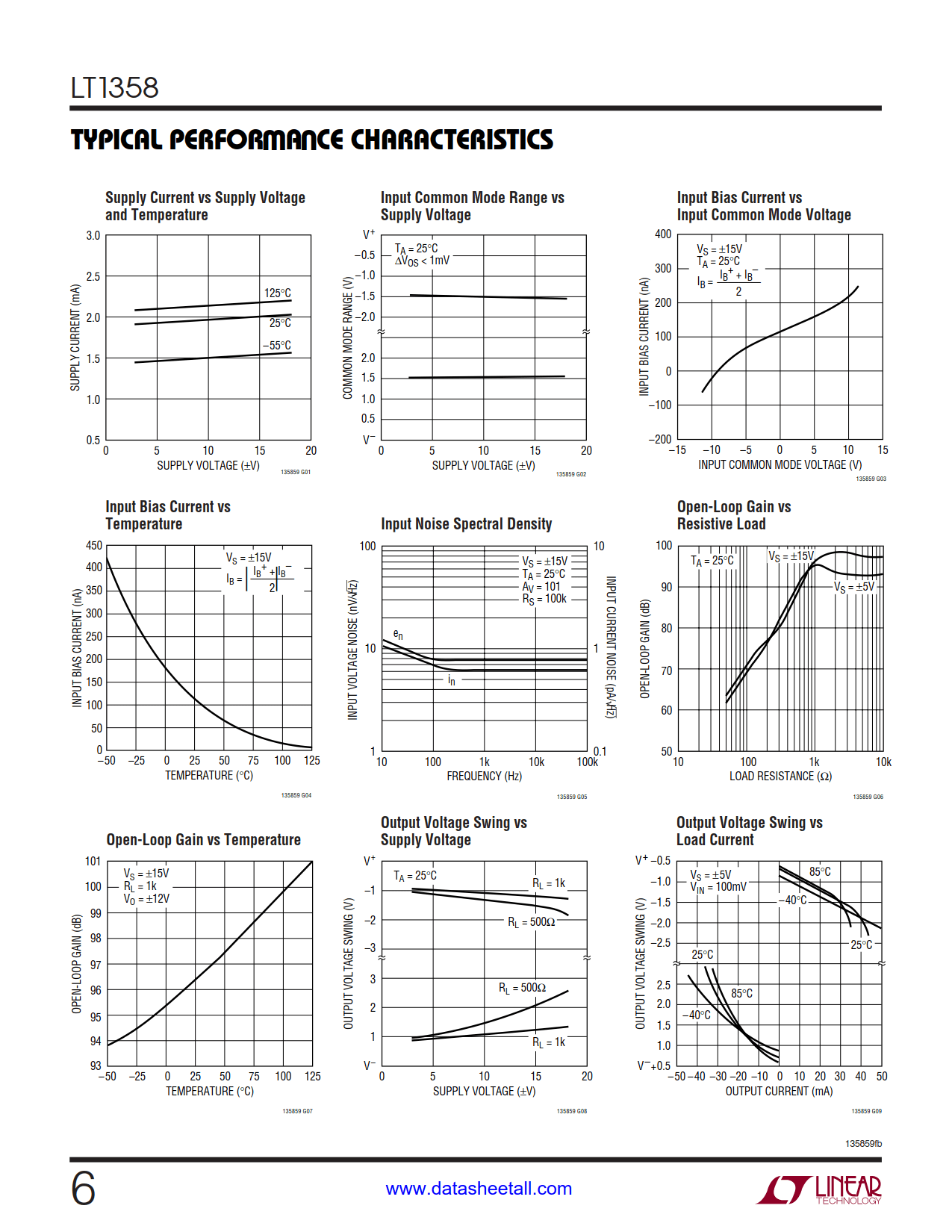

The LT1358 are dual low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±12.5V with ±15V supplies and a 150Ω load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.

The LT1358 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing. Singles, duals, and quads of each amplifier are available.
