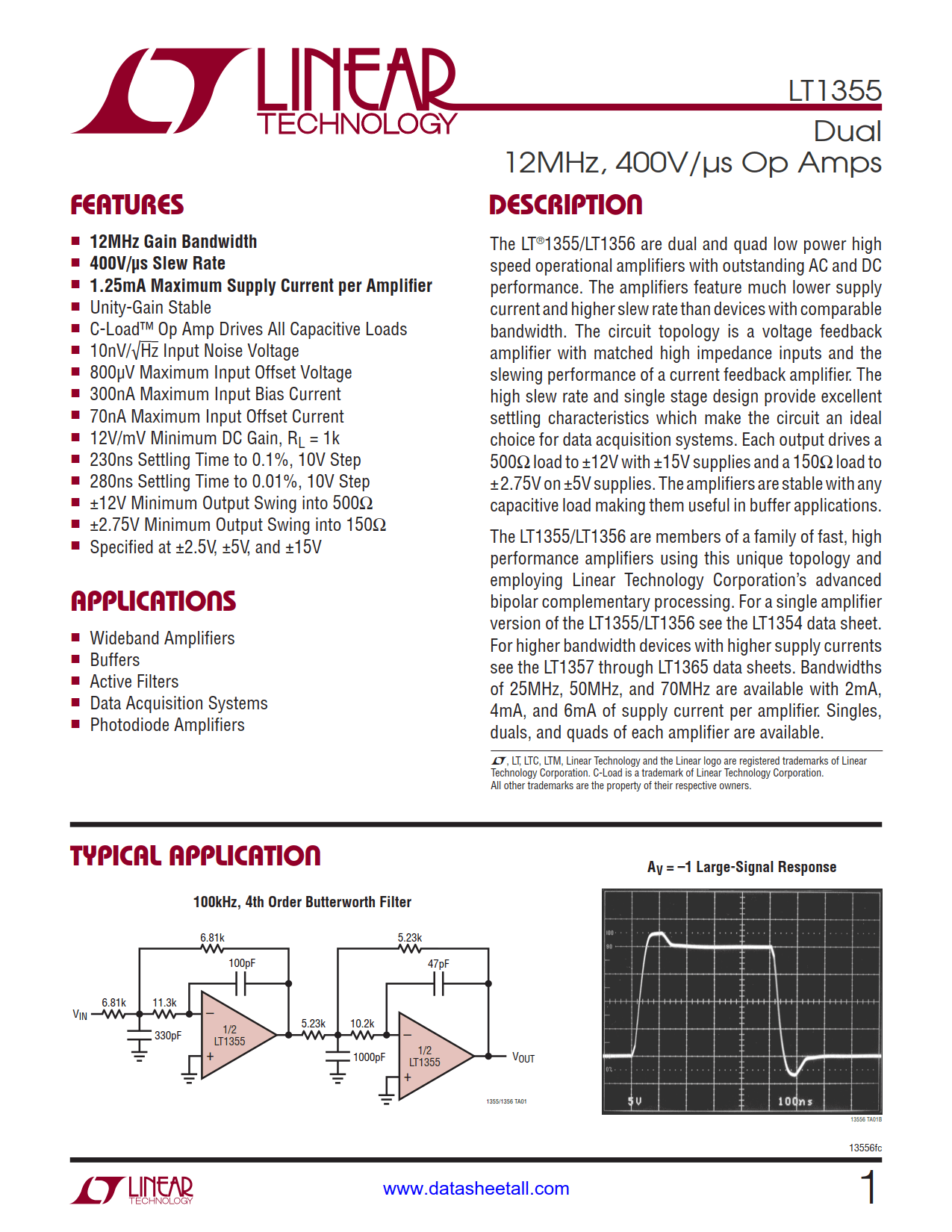

LT1355 Datasheet

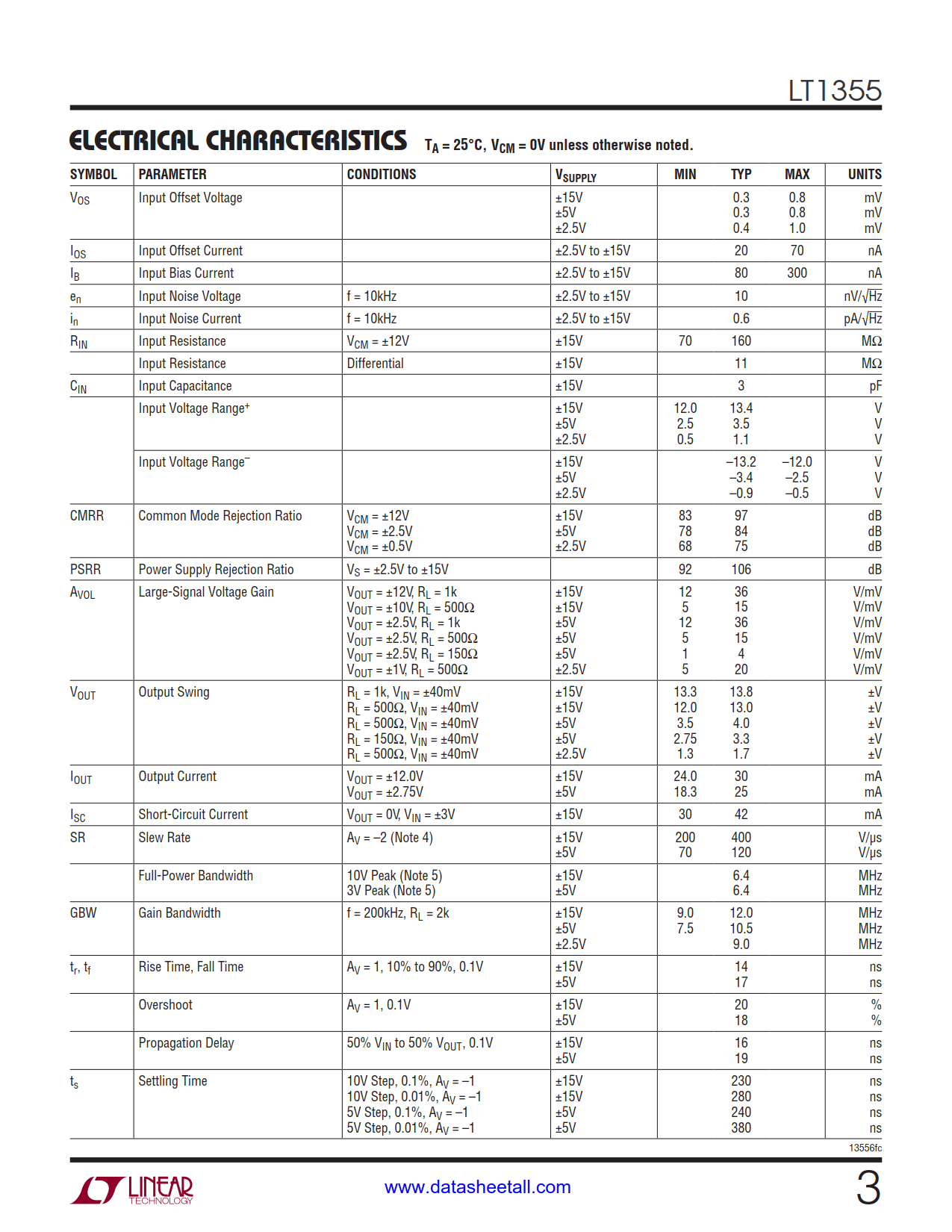

• 12MHz Gain Bandwidth
• 400V/μs Slew Rate

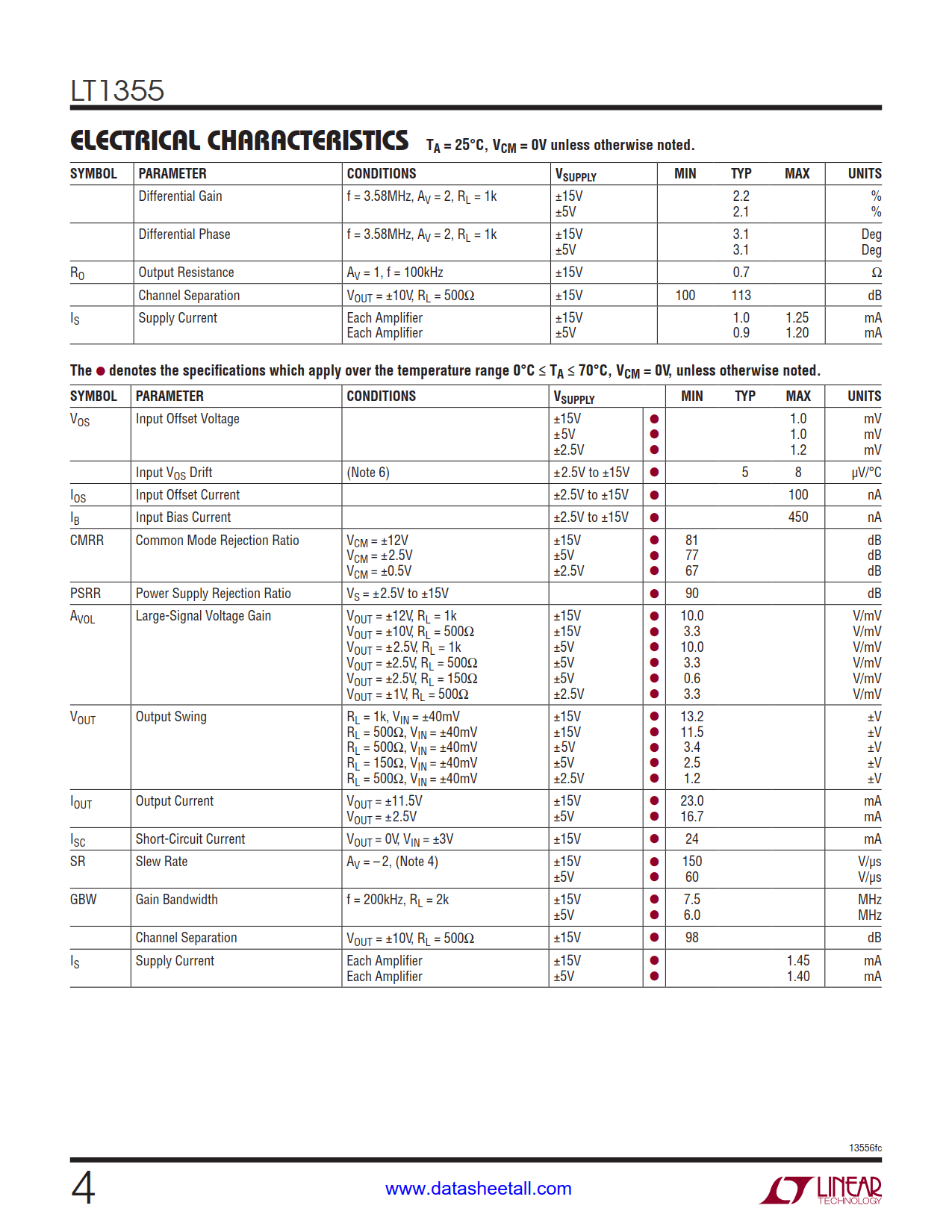

• 1.25mA Maximum Supply Current per Amplifier
• Unity-Gain Stable
• C-Load^™ Op Amp Drives All Capacitive Loads

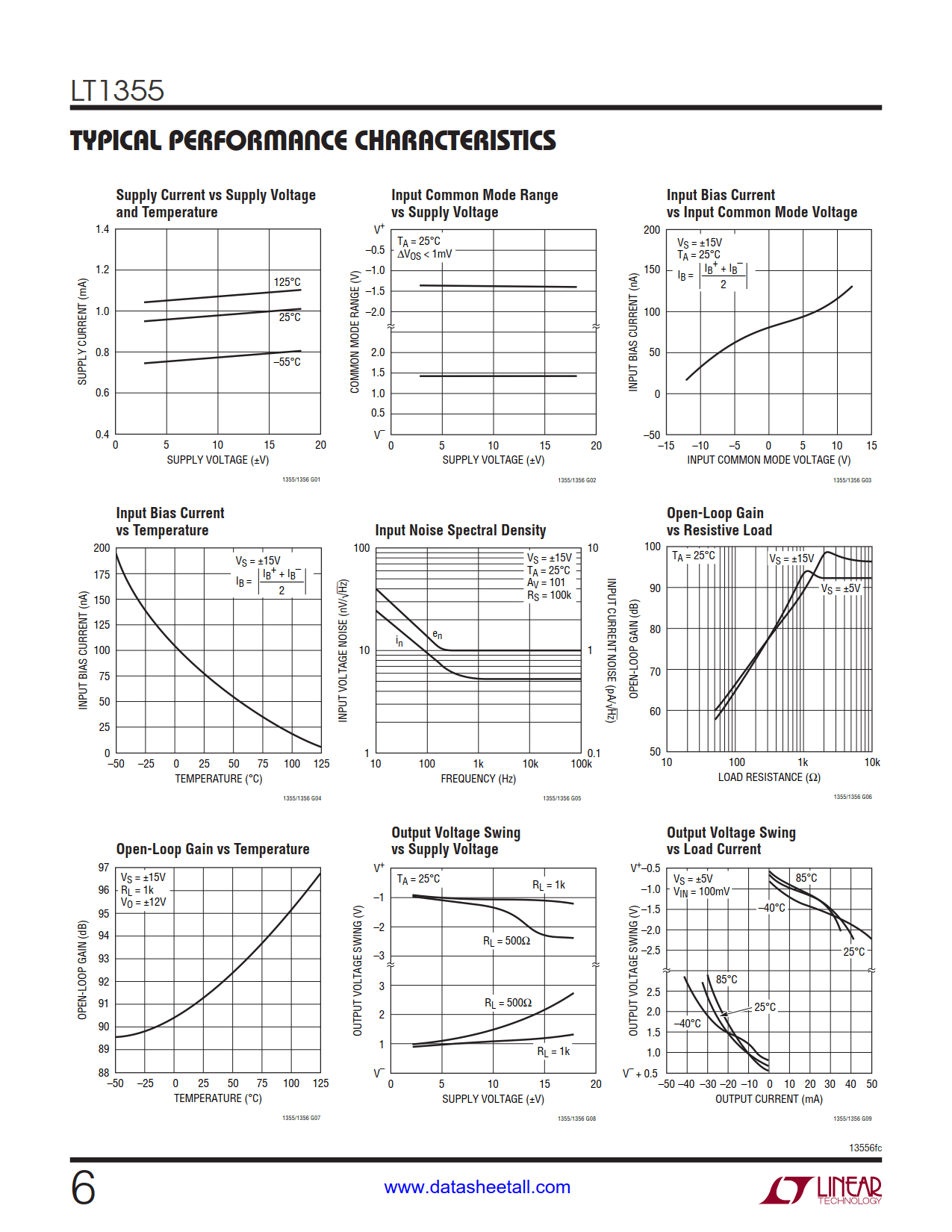

• 10nV/√Hz Input Noise Voltage

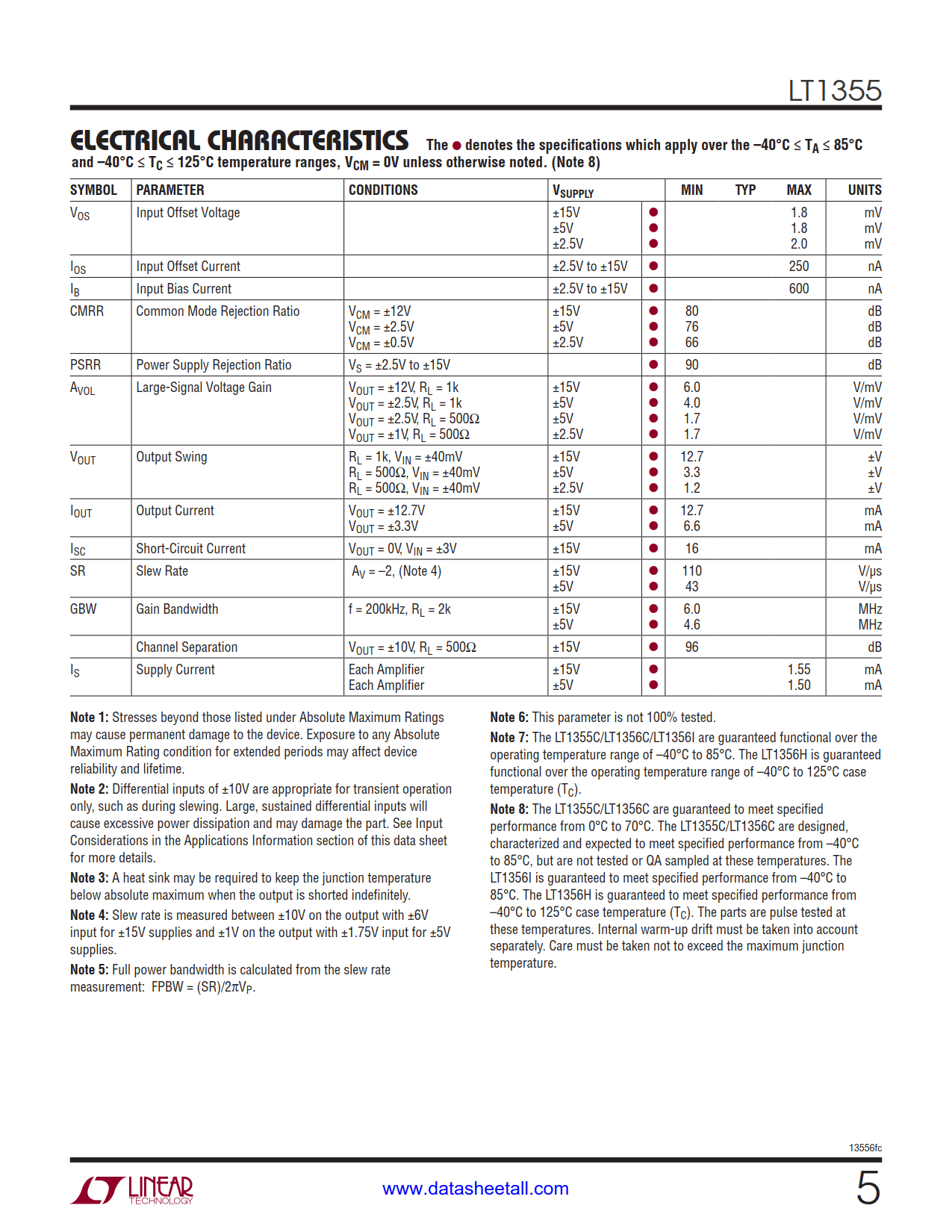

• 800μV Maximum Input Offset Voltage
• 300nA Maximum Input Bias Current
• 70nA Maximum Input Offset Current
• 12V/mV Minimum DC Gain, R_L = 1k
• 230ns Settling Time to 0.1%, 10V Step
• 280ns Settling Time to 0.01%, 10V Step
• ±12V Minimum Output Swing into 500Ω
• ±2.75V Minimum Output Swing into 150Ω

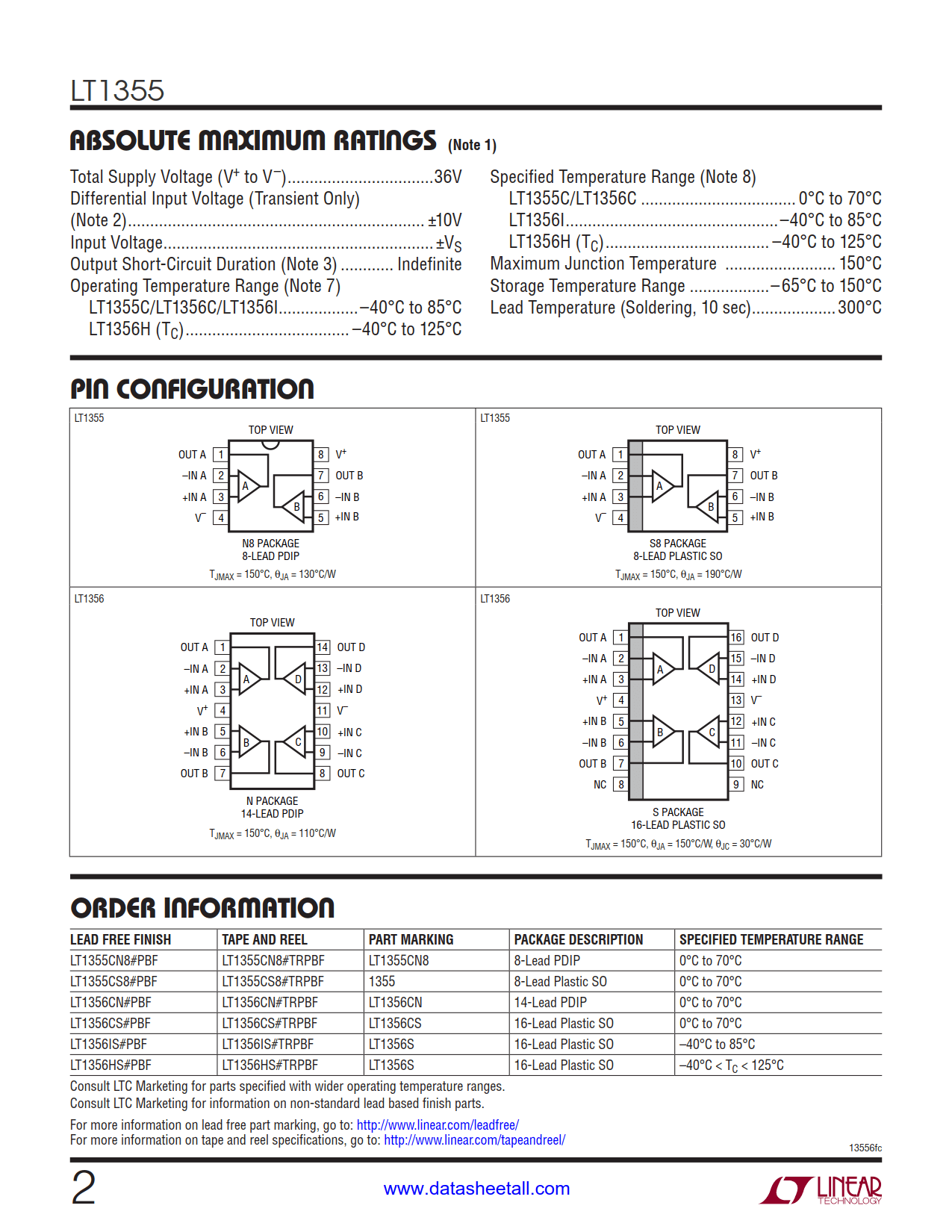

• Specified at ±2.5V, ±5V, and ±15V

• Wideband Amplifiers
• Buffers
• Active Filters
• Data Acquisition Systems
• Photodiode Amplifiers

The LT1355 are dual low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500Ω load to ±12V with ±15V supplies and a 150Ω load to ±2.75V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.

The LT1355 are members of a family of fast, high performance amplifiers using this unique topology and employing advanced bipolar complementary processing.
