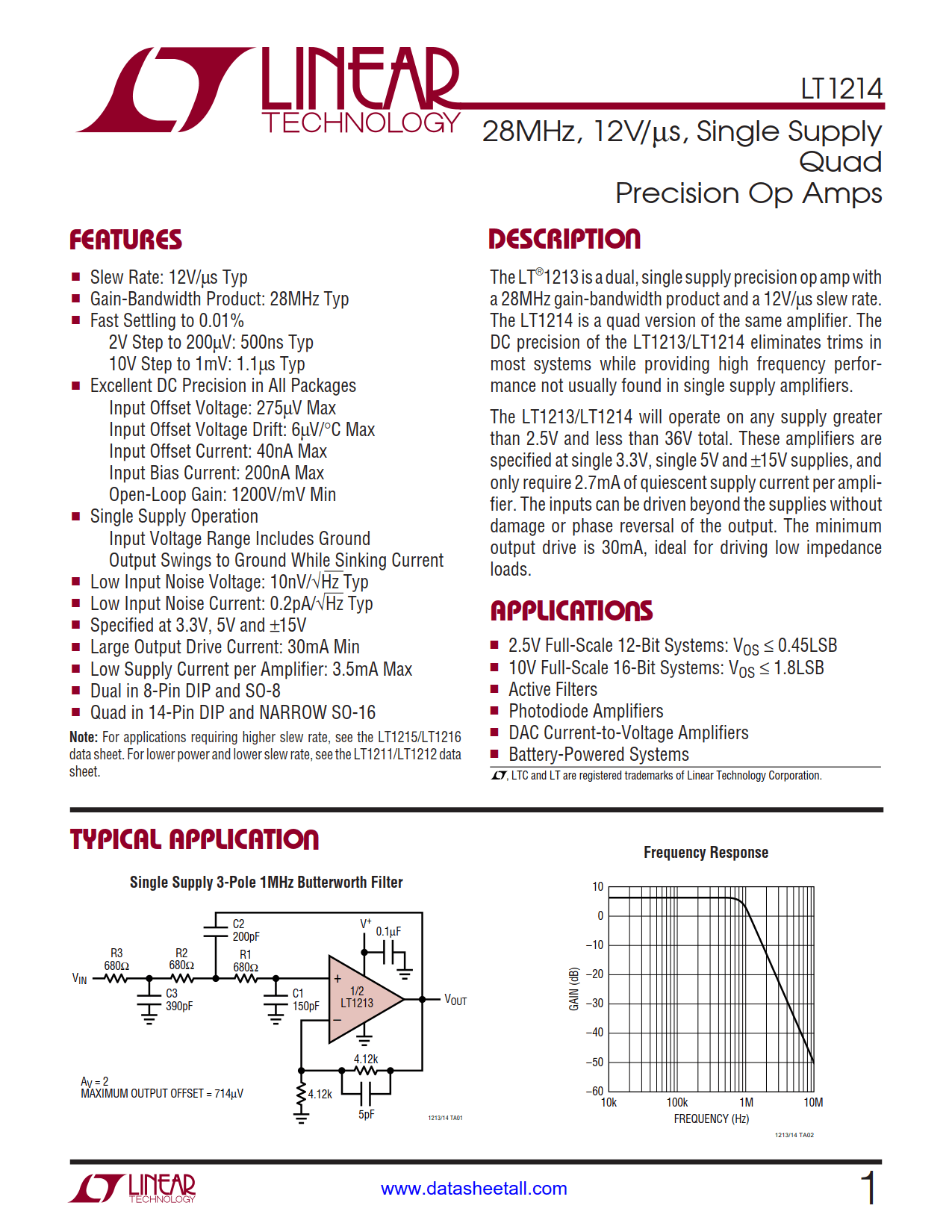

LT1214 Datasheet

• Slew Rate: 12V/µs Typ
• Gain-Bandwidth Product: 28MHz Typ
• Fast Settling to 0.01%
  • 2V Step to 200µV: 500ns Typ
  • 10V Step to 1mV: 1.1µs Typ
• Excellent DC Precision in All Packages
  • Input Offset Voltage: 275µV Max
  • Input Offset Voltage Drift: 6µV/°C Max
  • Input Offset Current: 40nA Max
  • Input Bias Current: 200nA Max
  • Open-Loop Gain: 1200V/mV Min
• Single Supply Operation
  • Input Voltage Range Includes Ground
  • Output Swings to Ground While Sinking Current
• Low Input Noise Voltage: 10nV/√Hz Typ
• Low Input Noise Current: 0.2pA/√Hz Typ

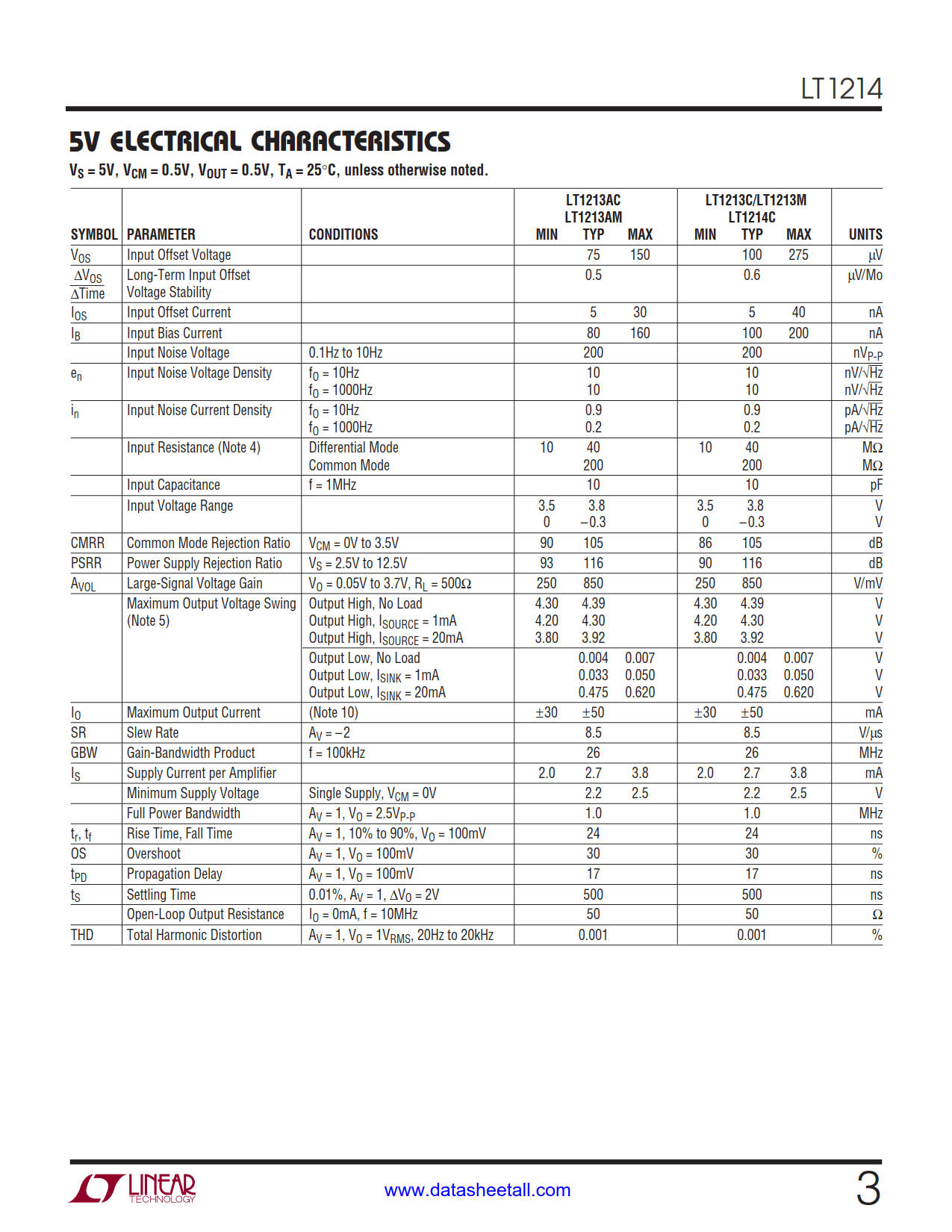

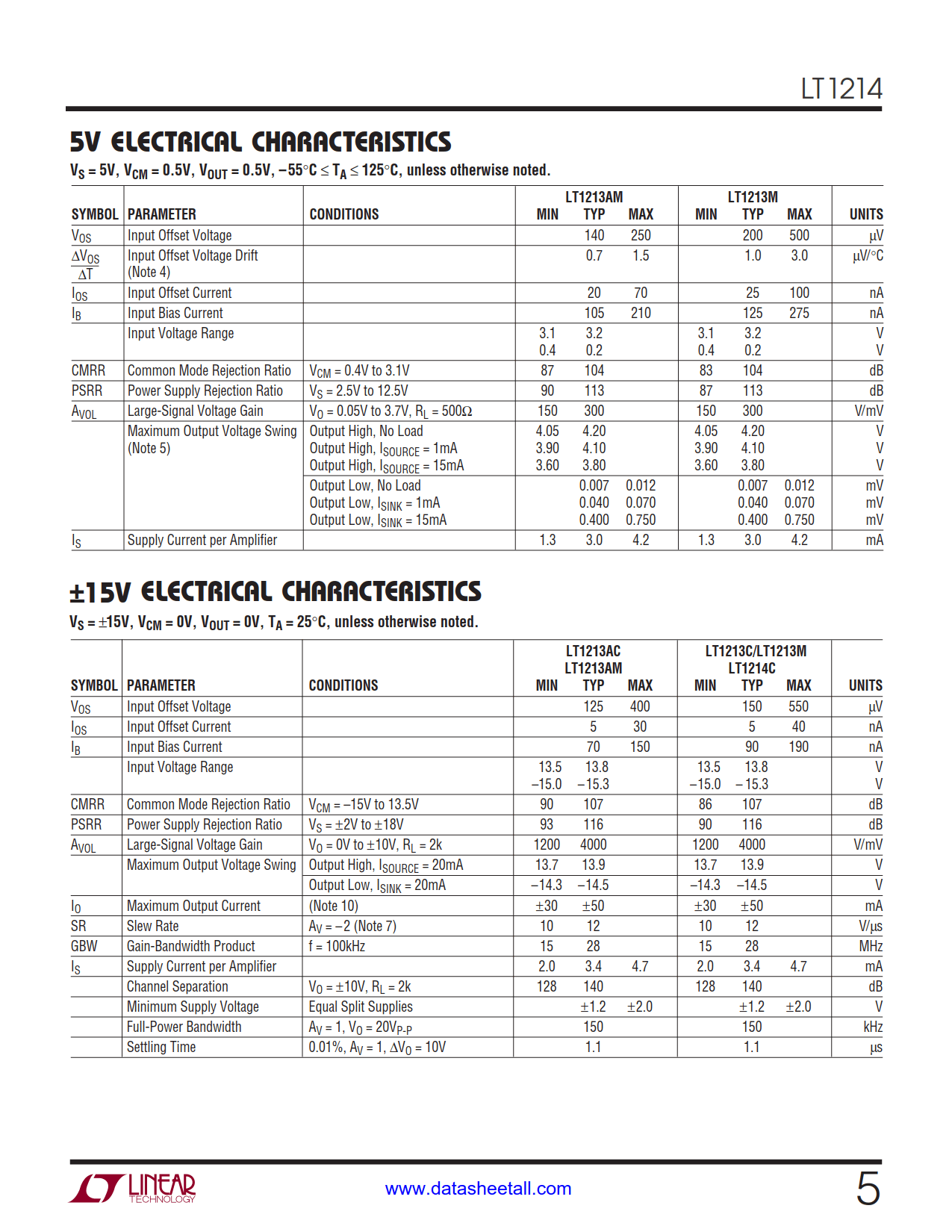

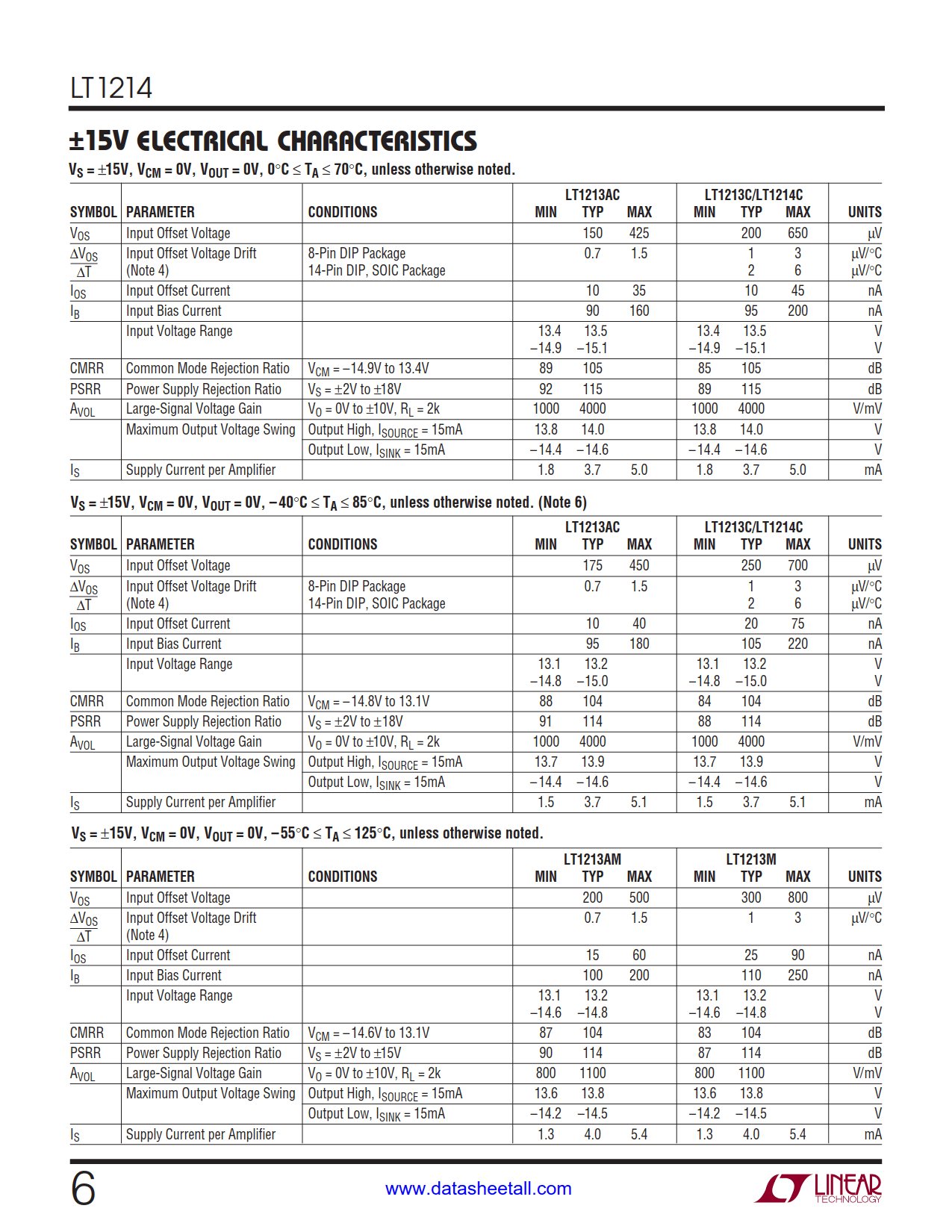

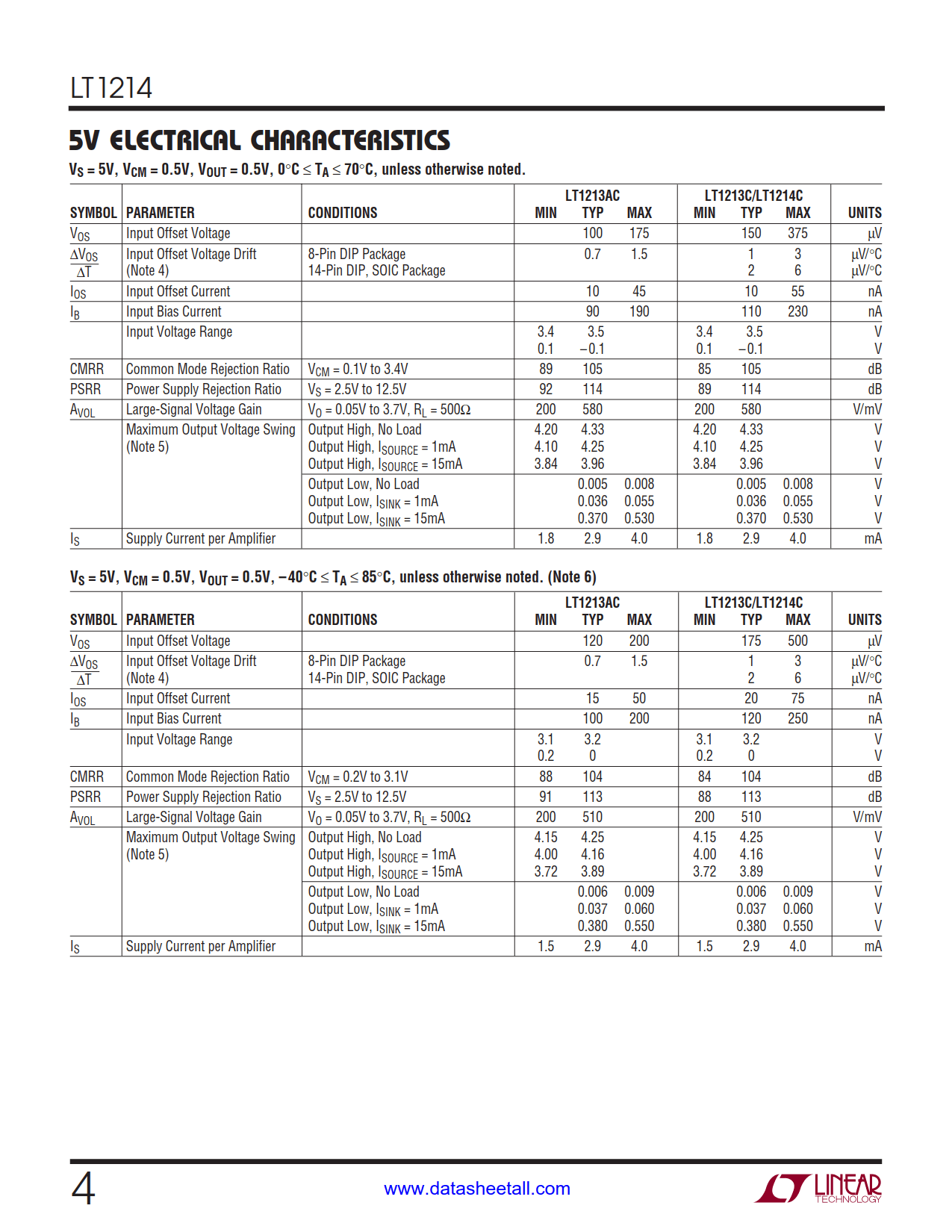

• Specified at 3.3V, 5V and ±15V
• Large Output Drive Current: 30mA Min
• Low Supply Current per Amplifier: 3.5mA Max

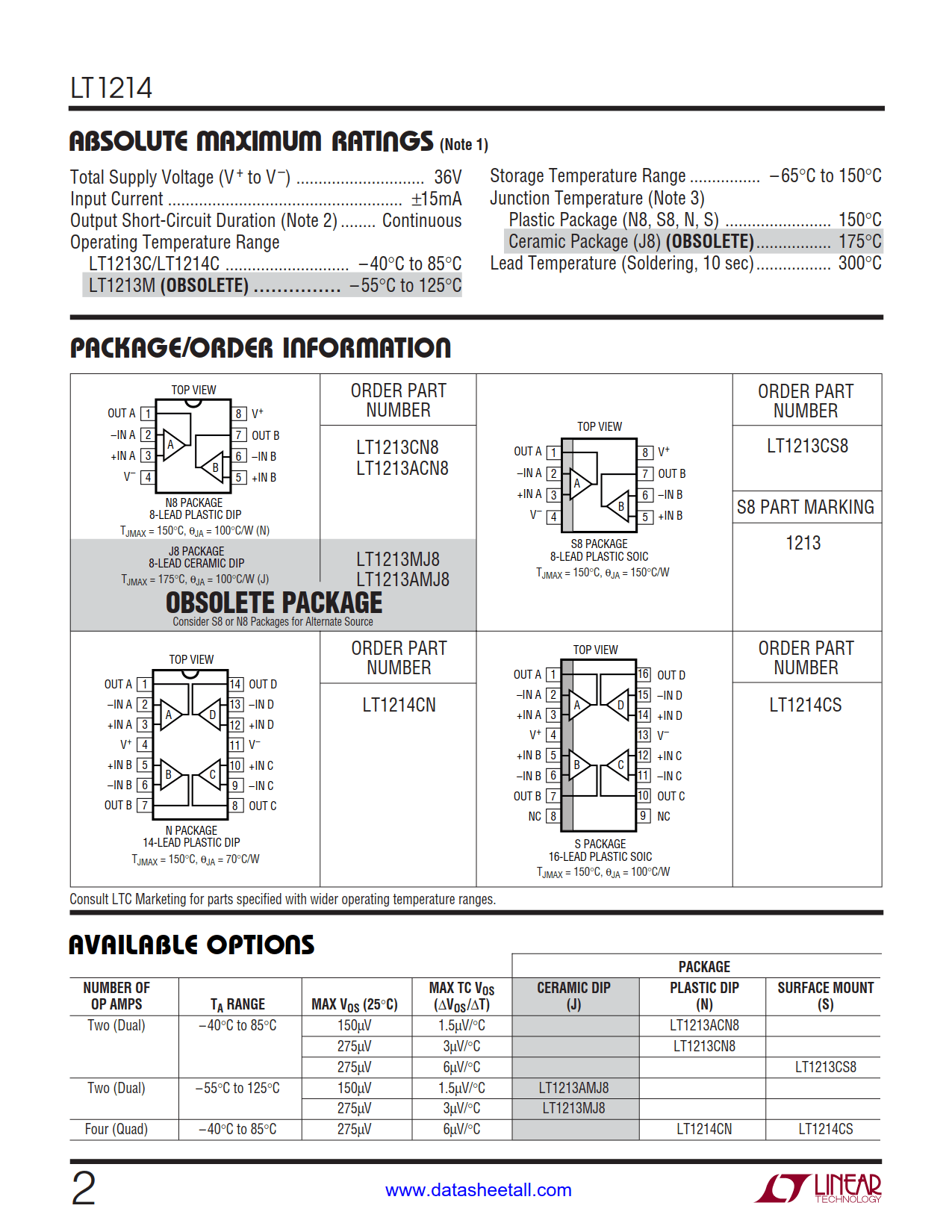

• Quad in 14-Pin DIP and NARROW SO-16

• 2.5V Full-Scale 12-Bit Systems V_OS < 0.45LSB
• 10V Full-Scale 16-Bit Systems V_OS < 1.8LSB
• Active Filters
• Photodiode Amplifiers
• DAC Current-to-Voltage Amplifiers
• Battery-Powered Systems

The LT1214 is a quad version of the same amplifier. The DC precision of the LT1214 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.

The LT1214 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified at single 3.3V, single 5V and ±15V supplies, and only require 2.7mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.
