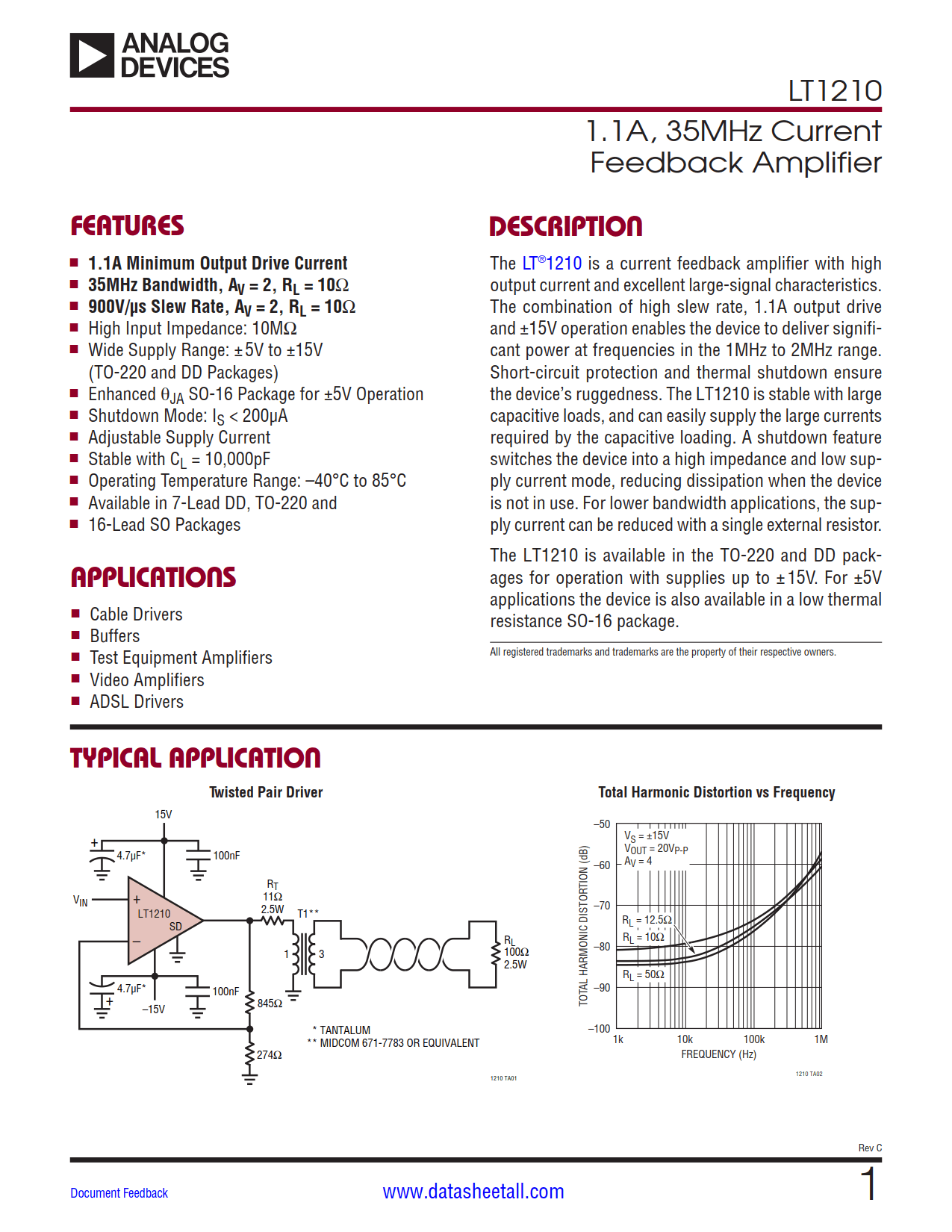

LT1210 Datasheet

• 1.1A Minimum Output Drive Current
• 35MHz Bandwidth, A_V = 2, R_L = 10Ω
• 900V/μs Slew Rate, A_V = 2, R_L = 10Ω
• High Input Impedance: 10MΩ
• Wide Supply Range: ± 5V to ±15V (TO-220 and DD Packages)
• Enhanced θ_JA SO-16 Package for ±5V Operation
• Shutdown Mode: I_S < 200μA
• Adjustable Supply Current
• Stable with C_L = 10,000pF
• Operating Temperature Range: –40°C to 85°C
• Available in 7-Lead DD, TO-220 and 16-Lead SO Packages

• Cable Drivers
• Buffers
• Test Equipment Amplifiers
• Video Amplifiers
• ADSL Drivers

The LT1210 is a current feedback amplifier with high output current and excellent large-signal characteristics. The combination of high slew rate, 1.1A output drive and ±15V operation enables the device to deliver significant power at frequencies in the 1MHz to 2MHz range. Short-circuit protection and thermal shutdown ensure the device’s ruggedness. The LT1210 is stable with large capacitive loads, and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance and low supply current mode, reducing dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor.

The LT1210 is available in the TO-220 and DD packages for operation with supplies up to ±15V. For ±5V applications the device is also available in a low thermal resistance SO-16 package.
