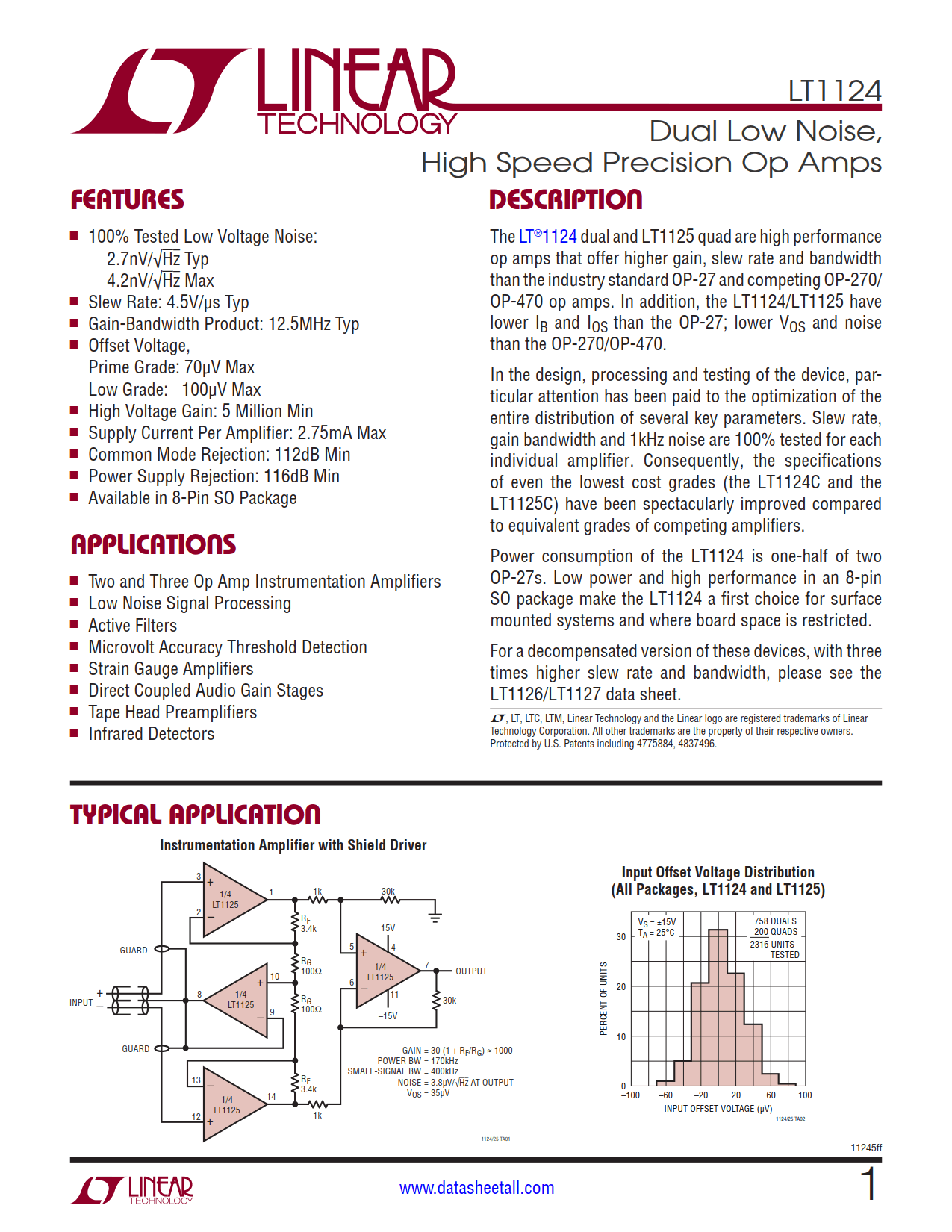

LT1124 Datasheet

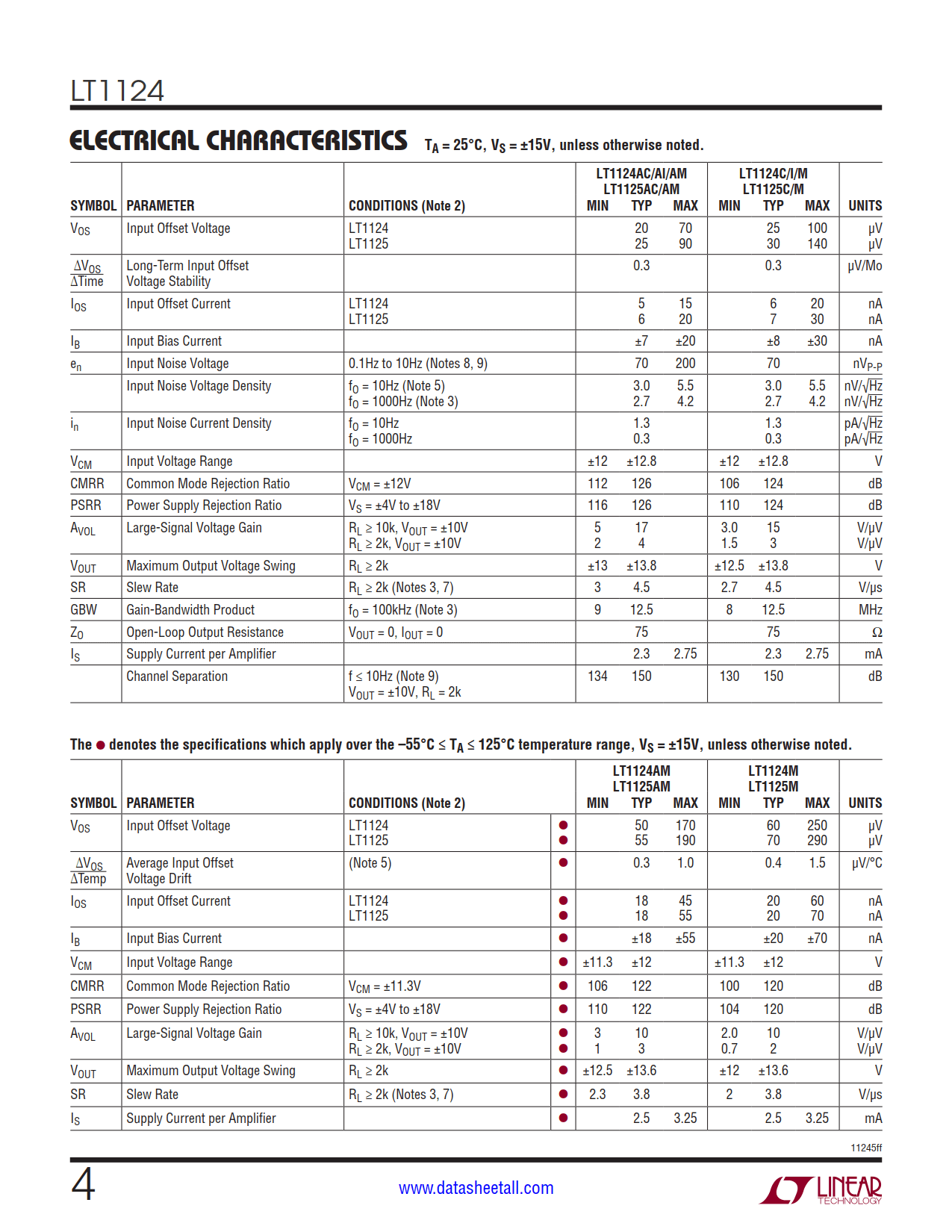

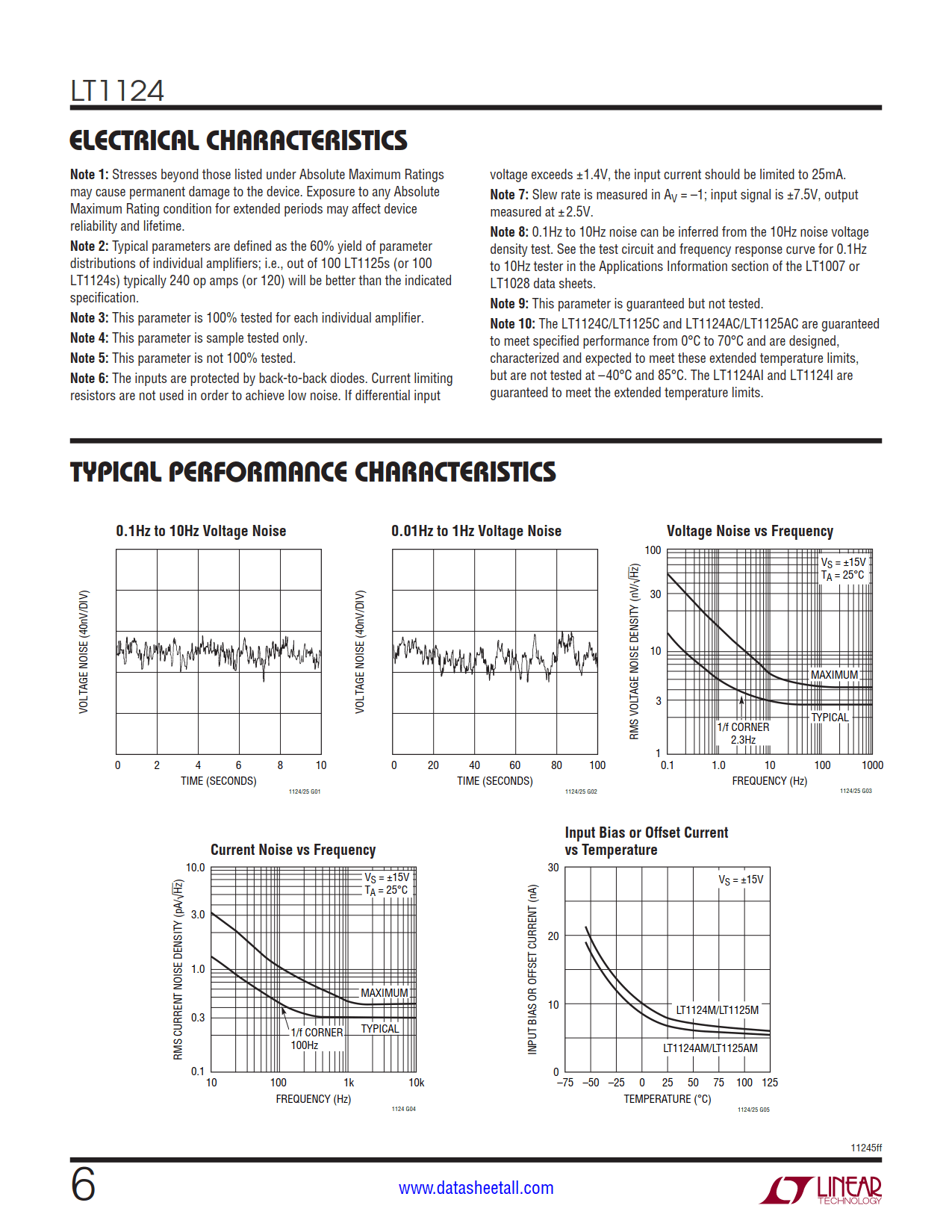

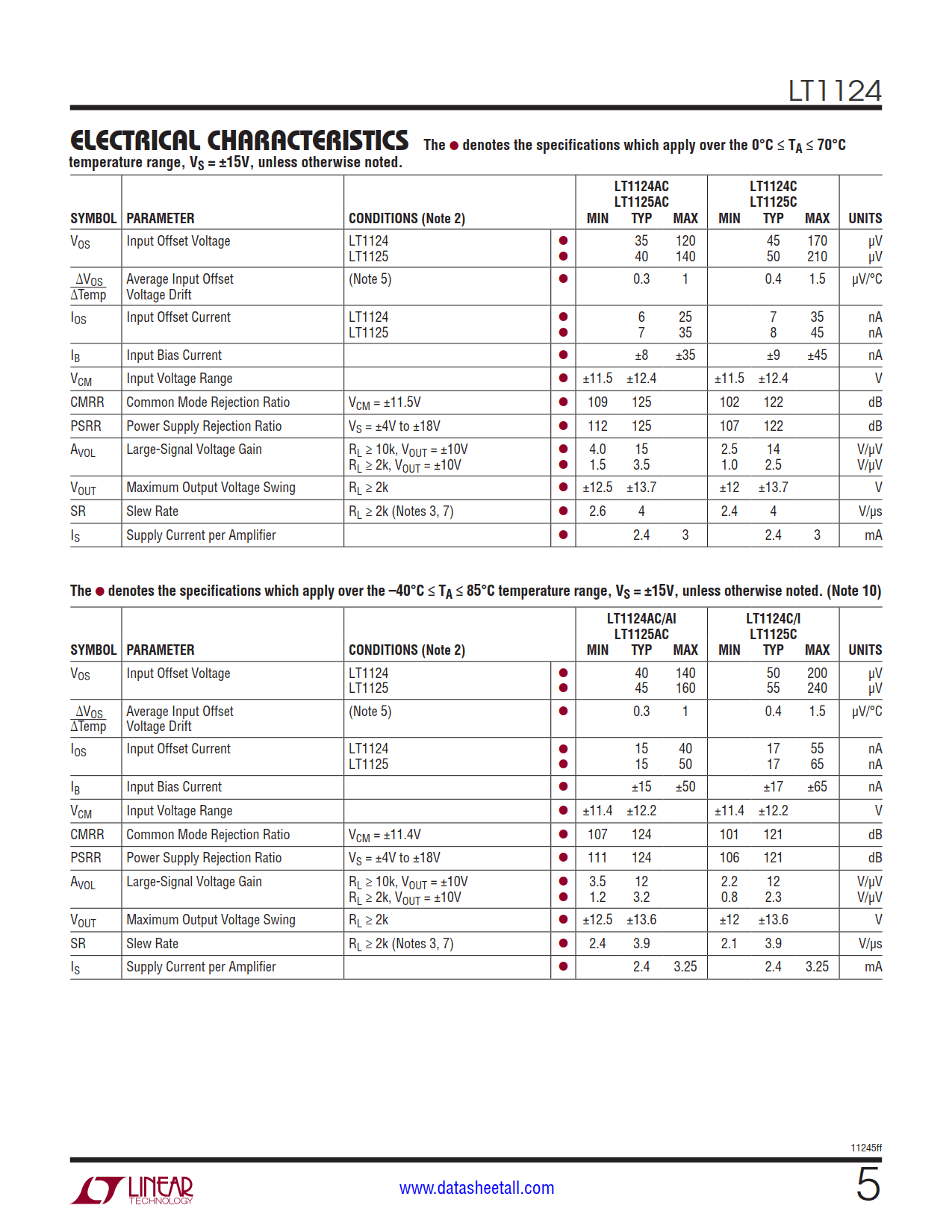

• 100% Tested Low Voltage Noise:
  • 2.7nV/√Hz Typ
  • 4.2nV/√Hz Max
• Slew Rate: 4.5V/μs Typ
• Gain-Bandwidth Product: 12.5MHz Typ
• Offset Voltage,
  • Prime Grade: 70μV Max
  • Low Grade: 100μV Max
• High Voltage Gain: 5 Million Min
• Supply Current Per Amplifier: 2.75mA Max
• Common Mode Rejection: 112dB Min
• Power Supply Rejection: 116dB Min

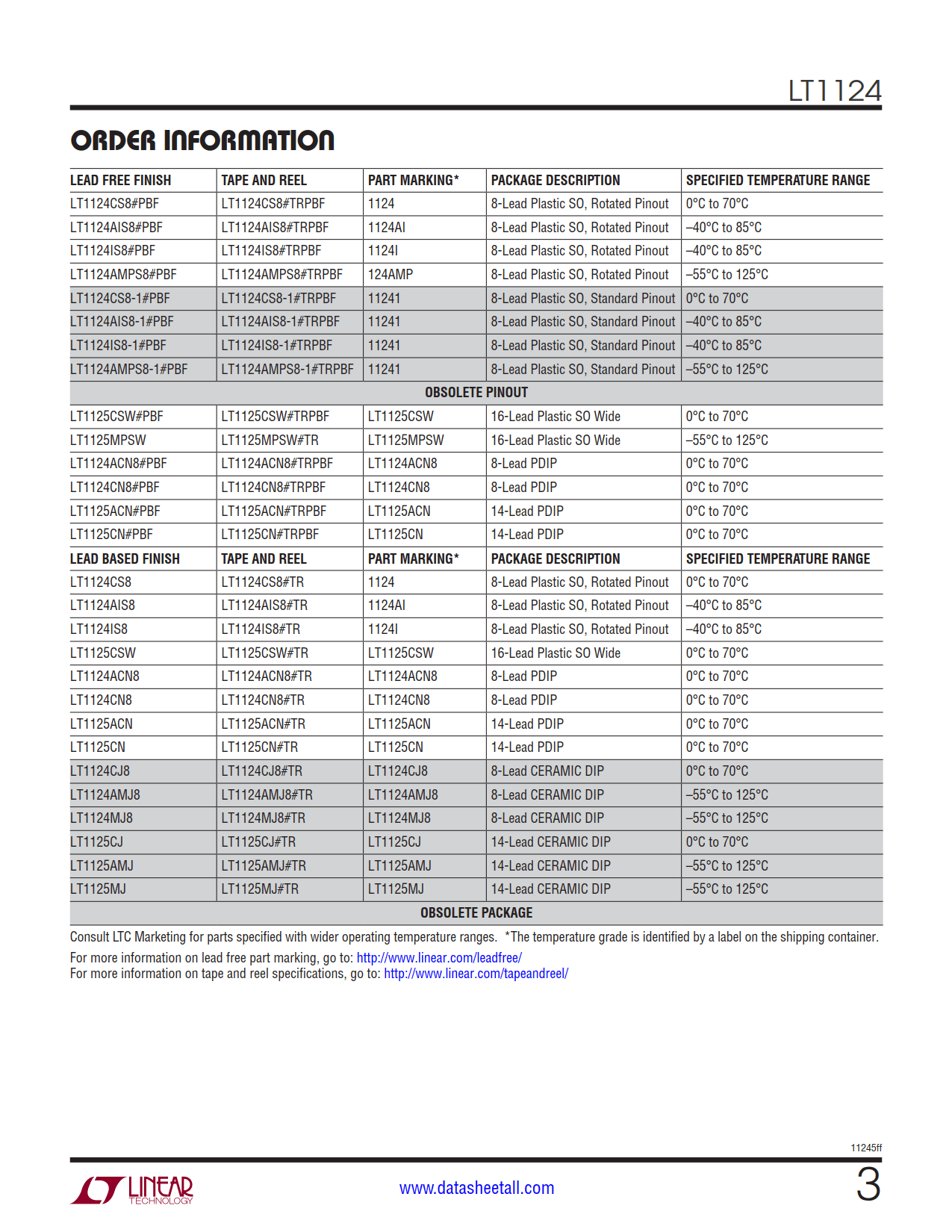

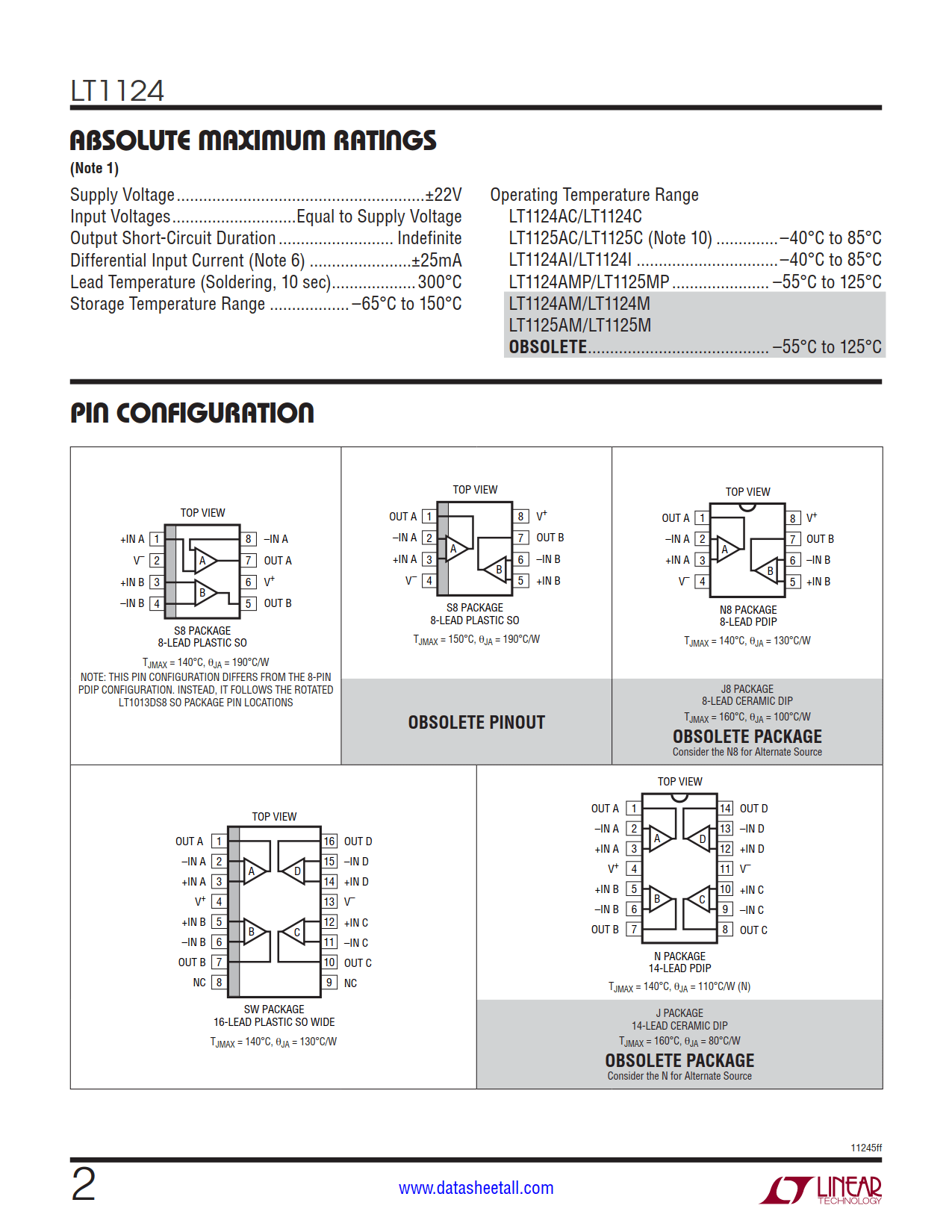

• Available in 8-Pin SO Package

• Two and Three Op Amp Instrumentation Amplifiers
• Low Noise Signal Processing
• Active Filters
• Microvolt Accuracy Threshold Detection
• Strain Gauge Amplifiers
• Direct Coupled Audio Gain Stages
• Tape Head Preamplifiers
• Infrared Detectors

The LT1124 dual are high performance op amps that offer higher gain, slew rate and bandwidth than the industry standard OP-27 and competing OP‑270/ OP-470 op amps. In addition, the LT1124 have lower I_B and I_OS than the OP-27; lower V_OS and noise than the OP-270/OP-470.

In the design, processing and testing of the device, particular attention has been paid to the optimization of the entire distribution of several key parameters. Slew rate, gain bandwidth and 1kHz noise are 100% tested for each individual amplifier. Consequently, the specifications of even the lowest cost grades (the LT1124C) have been spectacularly improved compared to equivalent grades of competing amplifiers.

Power consumption of the LT1124 is one-half of two OP-27s. Low power and high performance in an 8-pin SO package make the LT1124 a first choice for surface mounted systems and where board space is restricted.
