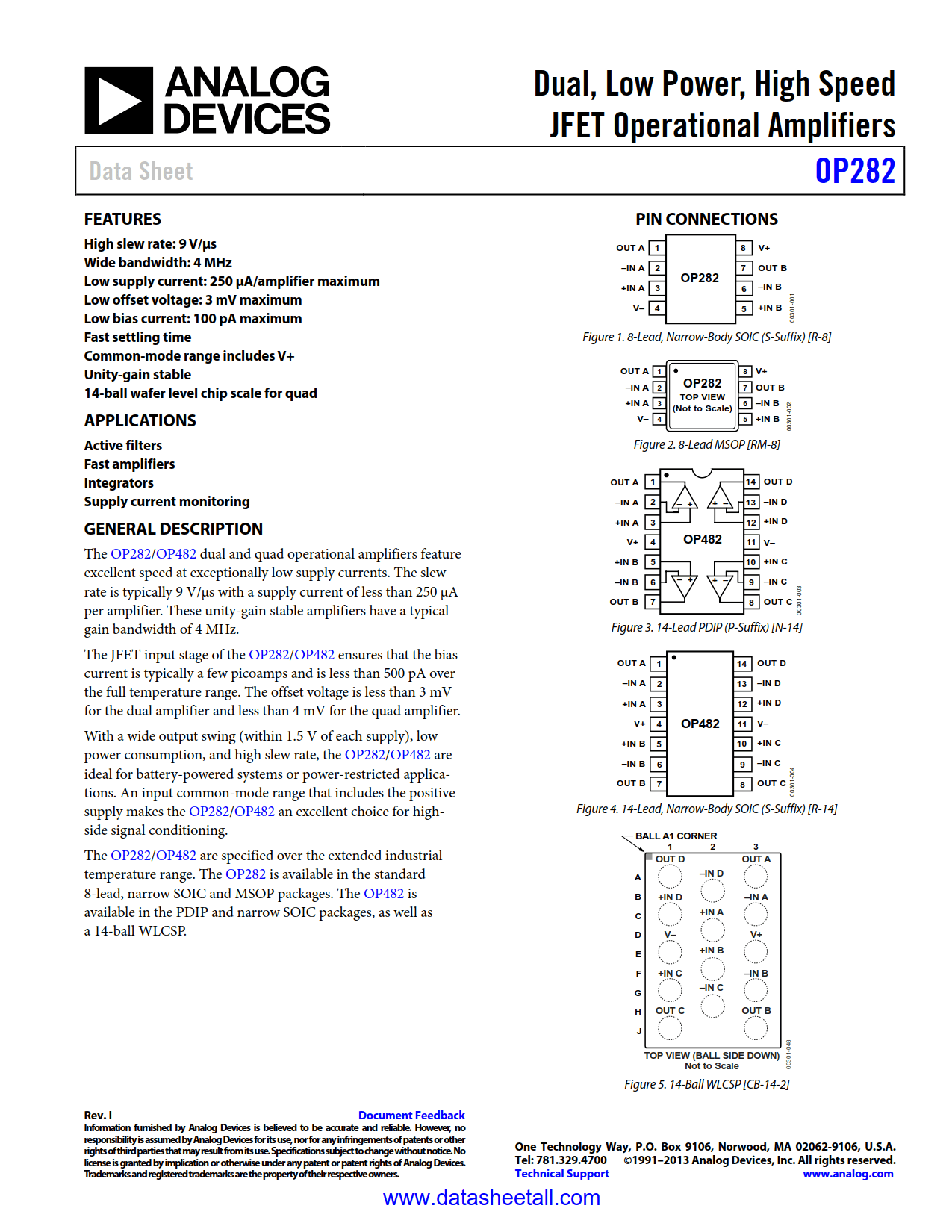

OP282 Datasheet
Low Power, High Speed JFET Dual Operational Amplifier
Low Power, High Speed JFET Dual Operational Amplifier
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| OP282ARMZ | 0 | $2.349 | Tube | 50 | A0B | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP |
| OP282ARMZ-REEL | 3000pcs | $2.349 | Reel | 3000 | A0B | 1 | 8 | -40°C ~ 85°C | 8-Lead MSOP |
| OP282GSZ | 0 | $1.791 | Tube | 98 | OP282G | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
| OP282GSZ-REEL | 0 | $1.791 | Reel | 2500 | OP282G | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
| OP282GSZ-REEL7 | 3000pcs | $1.791 | Reel | 1000 | OP282G | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
The OP282 dual operational amplifiers feature excellent speed at exceptionally low supply currents. Slew rate exceeds 7 V/µs with supply current under 250 µA per amplifier. these unity gain stable amplifiers have a typical gain bandwidth of 4 MHz.
The JFET input stage of the OP282 insures bias current is typically a few piocamps and below 500 pA over the full temperature range. Offset voltage is under 3 mV for the dual and under 4 mV for the quad.
With a wide output swing, within 1.5 volts of each supply, low power consumption and high slew rate, the OP282 are ideal for battery-powered systems or power restricted applications. An input common-mode range that includes the positive supply makes the OP282 an excellent choice for high-side signal conditioning.
The Op282 are specified over the extended industrial temperature range. Both dual and quad amplifiers are available in plastic and ceramic DIP plus SOIC surface mount packages.
