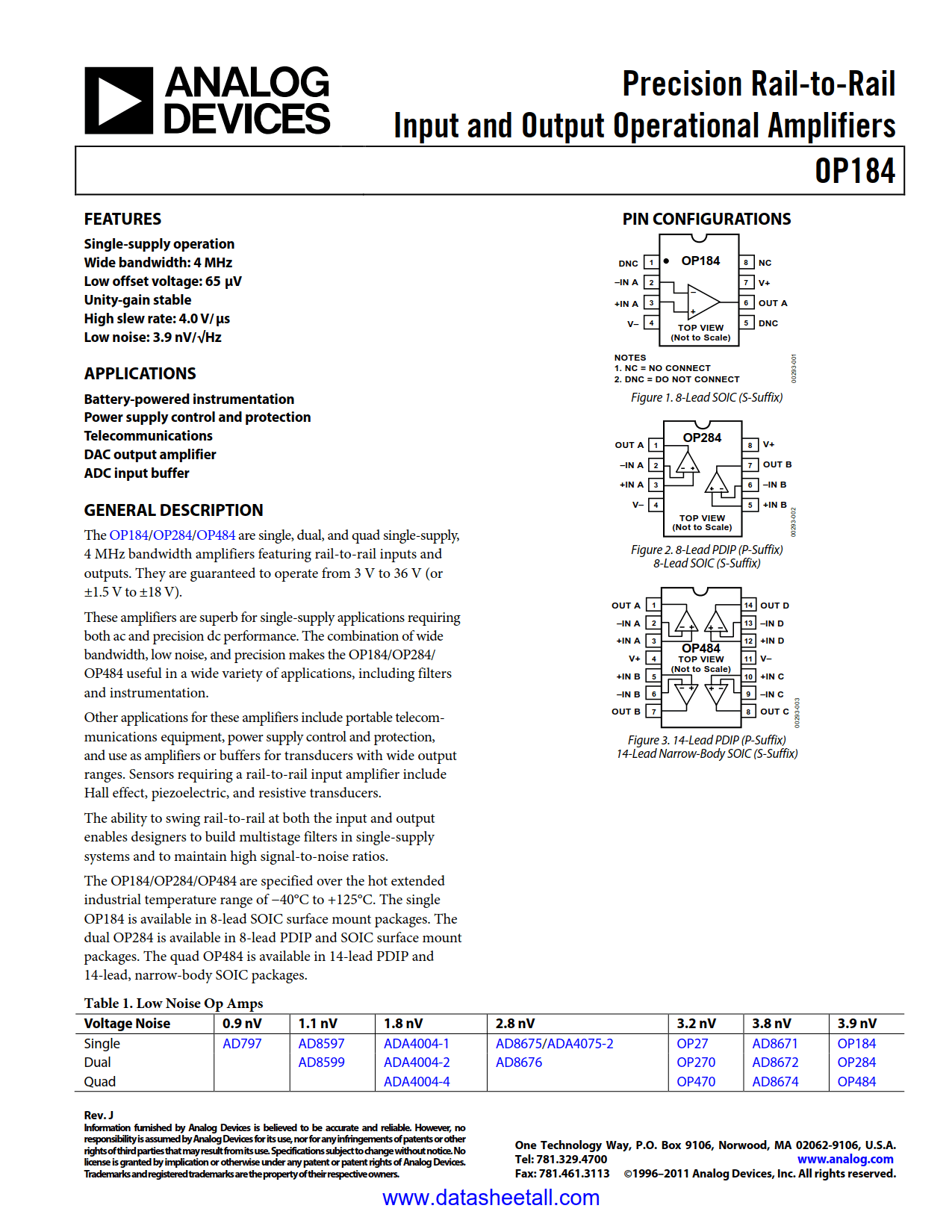

OP184 Datasheet
Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single-Supply Rail-to-Rail Input/Output Operational Amplifier
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
The OP184 are single single-supply, 4 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. They are guaranteed to operate from +3 to +36 (or ±1.5 to ±18) volts and will function with a single supply as low as +1.5 volts.
These amplifiers are superb for single supply applications requiring both ac and precision dc performance. The combination of bandwidth, low noise and precision makes the OP184 useful in a wide variety of applications, including filters and instrumentation.
Other applications for these amplifiers include portable telecom equipment, power supply control and protection, and as amplifiers or buffers for transducers with wide output ranges. Sensors requiring a rail-to-rail input amplifier include Hall effect, piezo electric, and resistive transducers.
The ability to swing rail-to-rail at both the input and output enables designers to build multistage filters in single-supply systems and to maintain high signal-to-noise ratios.
The OP184 are specified over the HOT extended industrial (-40°C to +125°C) temperature range. The single are available in 8-pin plastic DIP plus SO surface mount packages.
