| Part No.： | HMC8413 |
| Page： | 21 Pages |
| Size： | 607 KB |
| Manufacturer： | Analog Devices, Inc. |
| Logo： |  |
| Views： | 1 |
| Update Time： | 2025-01-01 11:16:50 |
| DataSheet： | Download |
| Part No. | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description | Buy |
| HMC8413LP2FE | Cut Tape | 500 | Y7T | 1 | 6 | -40°C ~ 85°C | 6-Lead LFCSP (2mm x 2mm) | |
| HMC8413LP2FETR | Reel | 500 | Y7T | 1 | 6 | -40°C ~ 85°C | 6-Lead LFCSP (2mm x 2mm) | |
| HMC8413LP2FE-CSL | Cut Tape | 500 | 1 | 6 | -55°C ~ 105°C | 6-Lead LFCSP (2mm x 2mm) | ||
| HMC8413LP2FETR-CSL | Reel | 500 | 1 | 6 | -55°C ~ 105°C | 6-Lead LFCSP (2mm x 2mm) |
The HMC8413 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise wideband amplifier that operates from 0.01 GHz to 9 GHz.

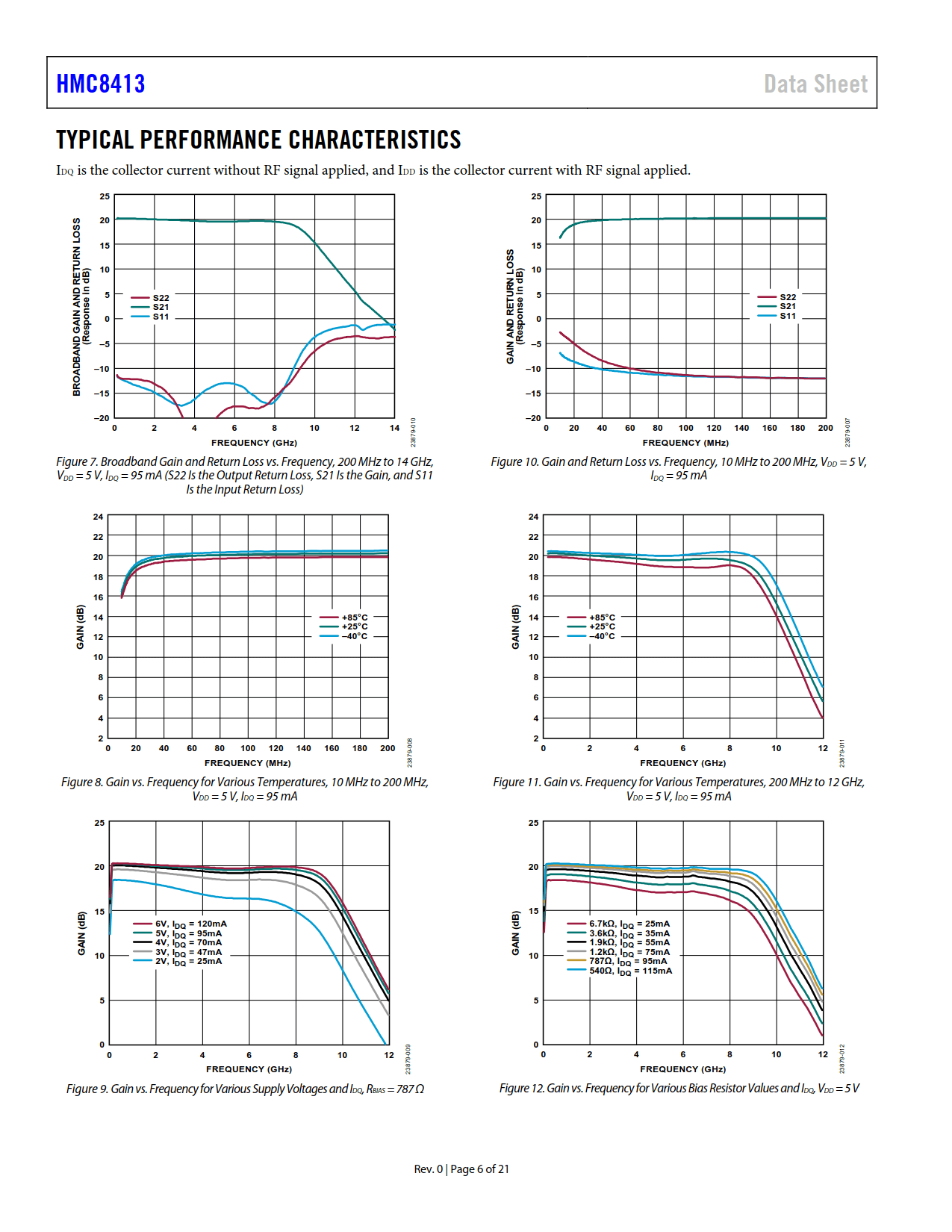

The HMC8413 provides a typical gain of 19.5 dB, a 1.9 dB typical noise figure, and a typical output third-order intercept (OIP3) of 35 dBm at 0.01 GHz to 7 GHz, requiring only 95 mA from a 5 V supply voltage. The saturated output power (PSAT) of 22 dBm typical at 0.01 GHz to 7 GHz enables the low noise amplifier to function as a local oscillator (LO) driver for many of Analog Devices, Inc., balanced, in-phase/quadrature (I/Q) or image rejection mixers.
The HMC8413 also features inputs and outputs that are internally matched to 50 Ω, making the device ideal for surface-mounted technology (SMT)-based, high capacity microwave radio applications.
The HMC8413 is housed in an RoHS-compliant, 2 mm × 2 mm, 6-lead LFCSP.
