DAC8512 Datasheet
+5V, Serial Input Complete 12-Bit DAC
+5V, Serial Input Complete 12-Bit DAC
| Part No. | In Stock | Price | Packaging | SPQ | Marking | MSL | Pins | Temp Range | Package Description |
| DAC8512EPZ | 0 | - | Tube | 50 | DAC8512E | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP |
| DAC8512FPZ | 198pcs | - | Tube | 50 | DAC8512F | 1 | 8 | -40°C ~ 85°C | 8-Lead PDIP |
| DAC8512FSZ | 0 | - | Tube | 98 | DAC8512F | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
| DAC8512FSZ-REEL | 0 | - | Reel | 2500 | DAC8512F | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
| DAC8512FSZ-REEL7 | 0 | - | Reel | 1000 | DAC8512F | 1 | 8 | -40°C ~ 85°C | 8-Lead SOIC |
The DAC8512 is a complete serial input, 12-bit, voltage output digital-to-analog converter designed to operate from a single +5 V supply. It contains the DAC, input shift register and latches, reference and a rail-to-rail output amplifier. Built using a CBCMOS process, these monolithic DACs offer the user low cost, and ease of use in +5 V only systems.

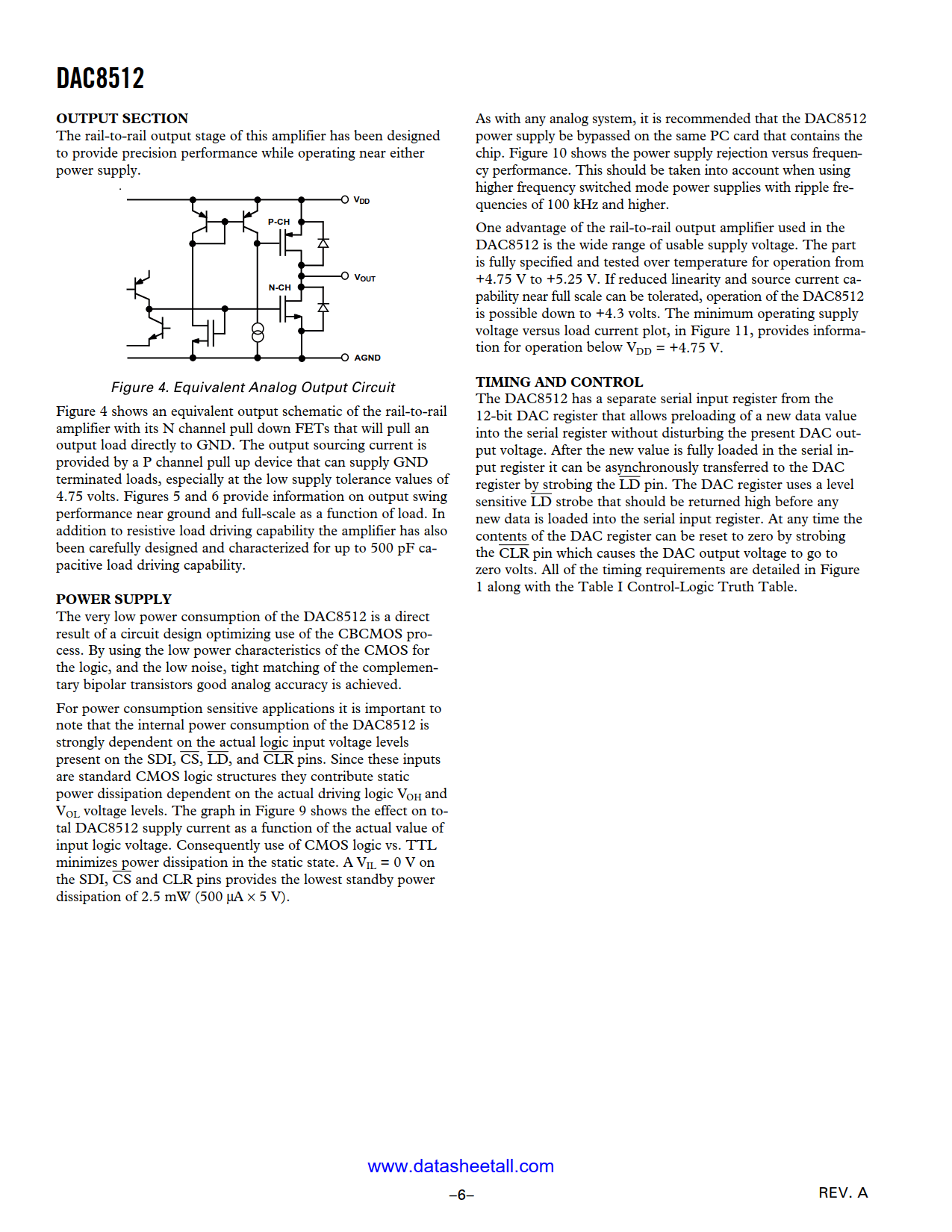

Coding for the DAC8512 is natural binary with the MSB loaded first. The output op amp can swing to either rail and is set to a range of 0 V to +4.095 V-for a one-millivolt-per-bit resolution. It is capable of sinking and sourcing 5 mA. An on-chip reference is laser trimmed to provide an accurate full-scale output voltage of 4.095 V.
Serial interface is high speed, three-wire, DSP compatible with data in (SDI), clock(CLK) and load strobe (LD). There is also a chip-select pin for connecting multiple DACs.
A CLR input sets the output to zero scale at power on or upon user demand. The DAC8512 is specified over the extended industrial (-40°C to +85°C) temperature range. DAC8512s are available in plastic DIPs and SO-8 surface mount packages.
