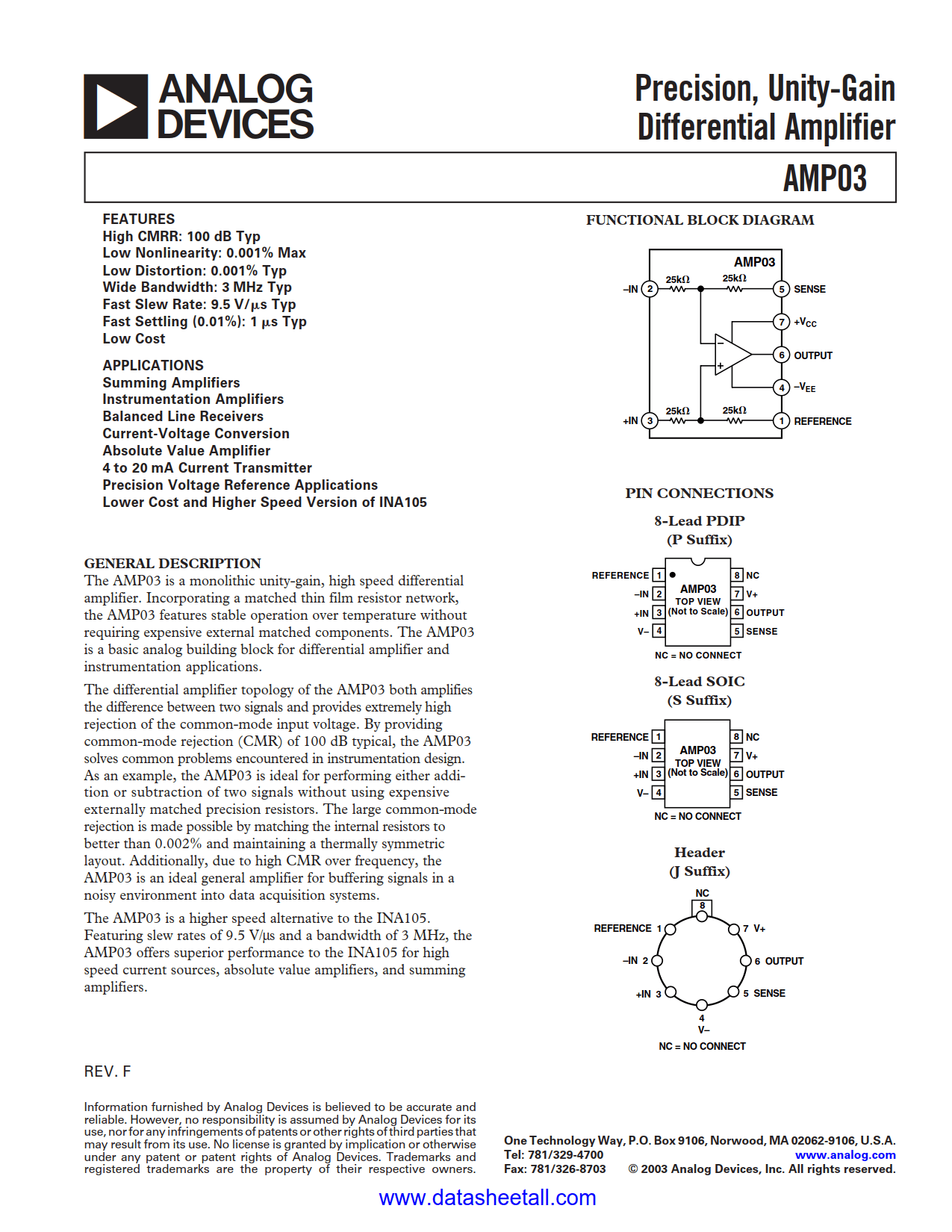

AMP03 Datasheet

Part No.

In Stock

Price

Packaging

SPQ

Marking

MSL

Pins

Temp Range

Package Description

• High CMRR: 100 dB Typ
• Low Nonlinearity: 0.001% Max
• Low Distortion: 0.001% Typ
• Wide Bandwidth: 3 MHz Typ
• Fast Slew Rate: 9.5 V/µs Typ
• Fast Settling (0.01%): 1µs Typ
• Low Cost

• Summing Amplifiers
• Instrumentation Amplifiers
• Balanced Line Receivers
• Current-Voltage Conversion
• Absolute Value Amplifier
• 4 to 20 mA Current Transmitter
• Precision Voltage Reference Applications
• Lower Cost and Higher Speed Version of INA105

The AMP03 is a monolithic unity-gain, high-speed differential amplifier. Incorporating a matched thin-film resistor network, the AMP03 features stable operation over temperature without requiring expensive external matched components. The AMP03 is a basic analog building block for differential amplifier and instrumentation amplifiers.
