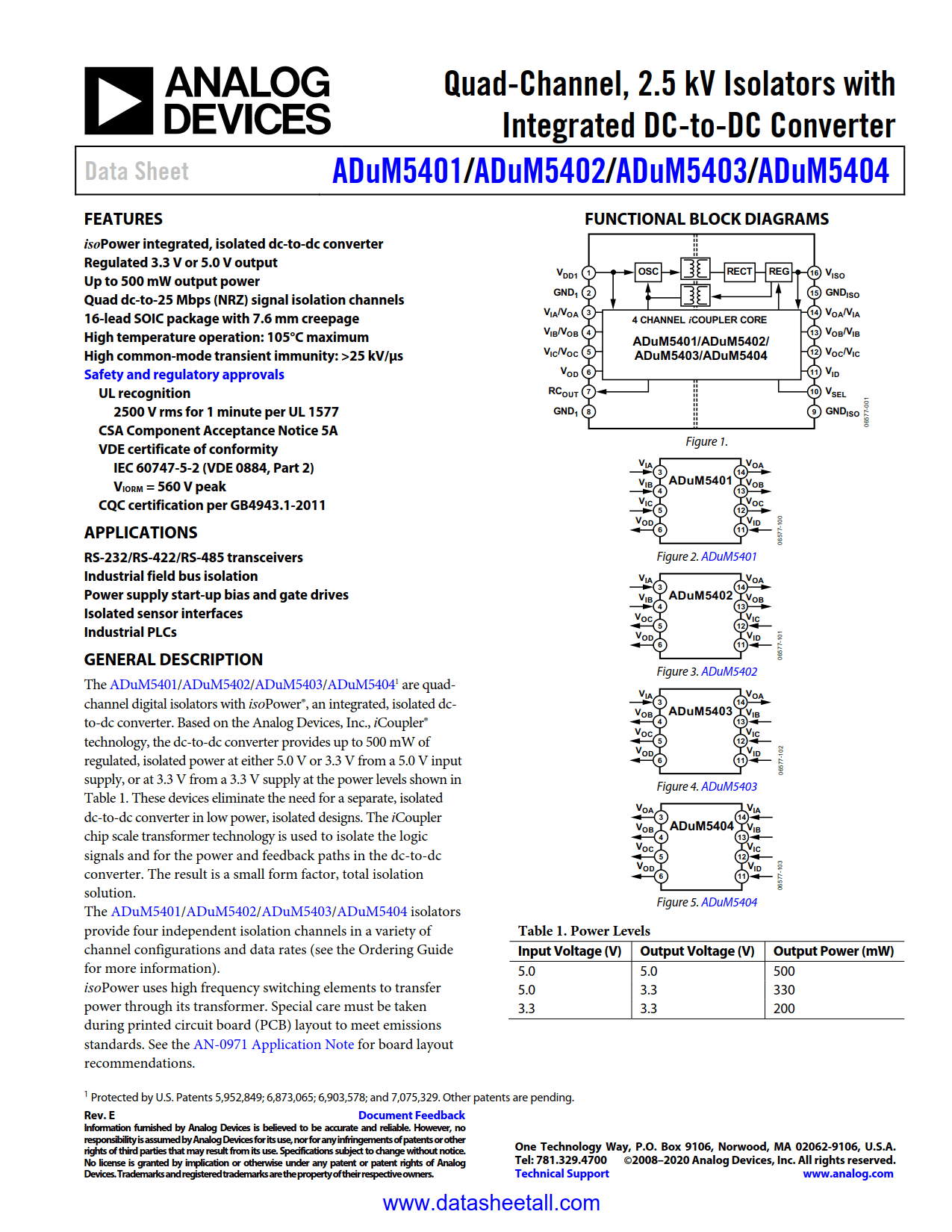

ADUM5403 Datasheet

• isoPower integrated, isolated dc-to-dc converter
• Regulated 3.3 V or 5.0 V output
• Up to 500 mW output power
• Quad dc-to-25 Mbps (NRZ) signal isolation channels
• 16-lead SOIC package with 7.6 mm creepage
• High temperature operation: 105°C maximum
• High common-mode transient immunity: >25 kV/μs
• Safety and regulatory approvals
  • UL recognition
    • 2500 V rms for 1 minute per UL 1577
  • CSA Component Acceptance Notice 5A
  • VDE certificate of conformity
    • IEC 60747-5-2 (VDE 0884, Part 2)
    • V_IORM = 560 V peak
  • CQC certification per GB4943.1-2011

• RS-232/RS-422/RS-485 transceivers
• Industrial field bus isolation
• Power supply startup bias and gate drives
• Isolated sensor interfaces
• Industrial PLCs

The ADuM5403 are quad-channel digital isolators with isoPower^®, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler^® technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power at either 5.0 V or 3.3 V from a 5.0 V input supply, or at 3.3 V from a 3.3 V supply at the power levels shown in Table 1. These devices eliminate the need for a separate, isolated dc-to-dc converter in low power, isolated designs. The iCoupler chip scale transformer technology is used to isolate the logic signals and for the power and feedback paths in the dc-to-dc converter. The result is a small form factor, total isolation solution.

The ADuM5403 isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for more information).

isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. See the AN-0971 Application Note for board layout recommendations.
