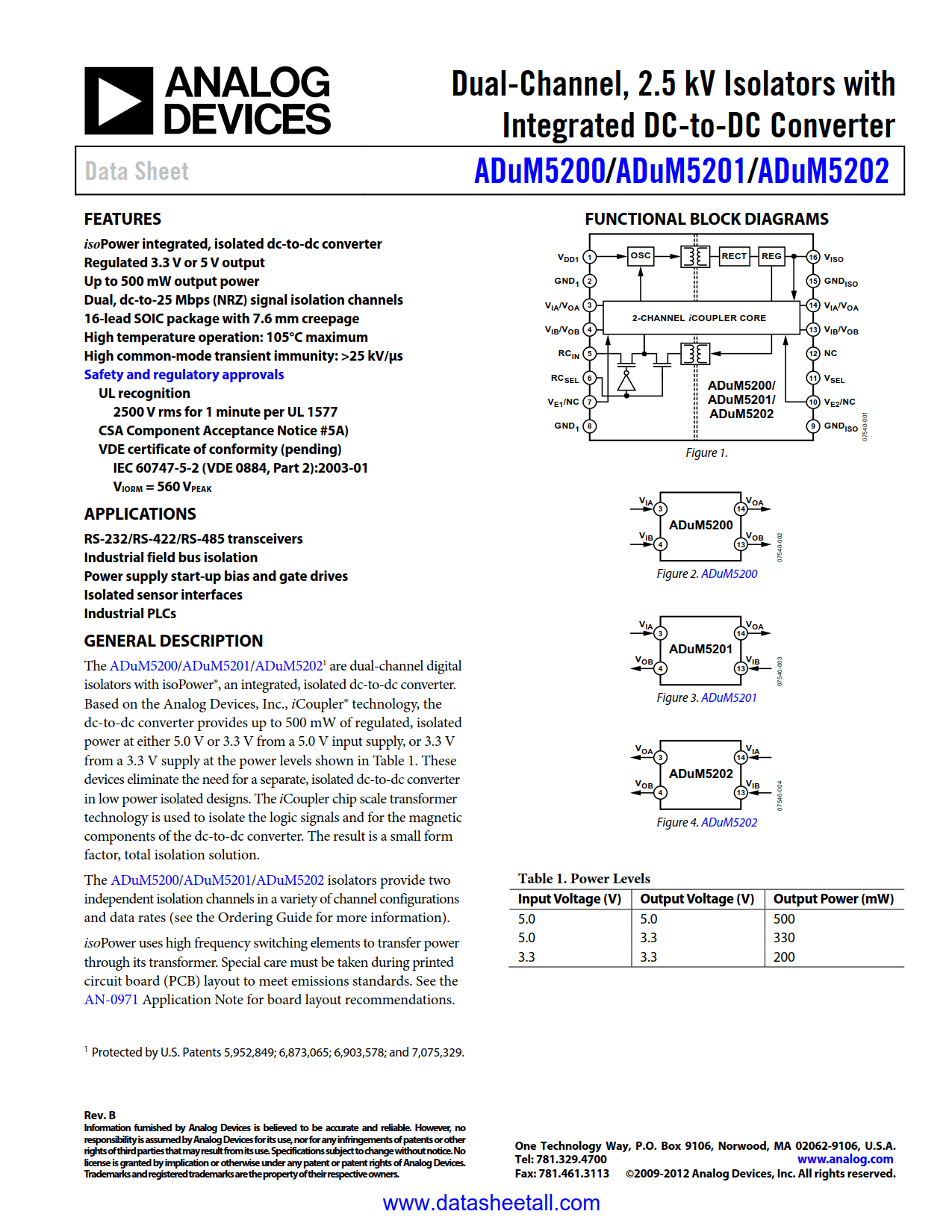

ADUM5201 Datasheet

• For AEC-Q100 Automotive Qualified Devices Specifications - Please View ADuM5201W Datasheet.
• isoPower^® integrated isolated DC/DC converter
• Regulated 3V or 5V output
• Up to 500 mW output power
• 16-lead SOIC package with 7.6 mm creepage
• Dual dc-to-25 Mbps (NRZ) signal isolation channels
• High temperature operation: 105°C maximum
• High common-mode transient immunity: > 25 kV/µs

Safety and regulatory approvals

• UL recognition
  2500 V rms for 1 minute per UL 1577
• VDE cert of conformity (pending)
  IEC 60747-5-2 (VDE V 0884-10):2006-12
  V_IORM = 560 V_PEAK
• See data sheet for additional features

• RS-232/RS-422/RS-485 transceiver
• Industrial field bus isolation
• Power supply startups and gate drives
• Isolated sensor interfaces
• Industrial PLCs

The ADuM5201 are dual channel digital isolators with isoPower, an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler^® technology, the dc-to-dc converter provides up to 500 mW of regulated, isolated power with 5.0 V input and 5.0 V output voltage, or 200 mW of power with 3.3 V input and 3.3 V output voltage. This eliminates the need for a separate isolated dc-to-dc converter in low power isolated designs. The Analog Devices chip scale transformer iCoupler technology is used for the isolation of the logic signals as well as for the dc-to-dc converter. The result is a small form factor, total isolation solution.

ADuM5201 units may be used in combination with ADuM5401, ADuM5402, ADuM5403, ADuM5404 and ADuM5000 with isoPower^® to achieve higher output power levels and greater channel counts (see the Increasing Available Power section).

The ADuM5201 isolators provide two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide for options).

isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards. Refer to the AN-0971 application note for details on board layout recommendations.
